Is an air filter included?

No. The intake does not come with a filter. The manufacturer recommends its MAX FLOW air filter, part number MAF-Z1-800, or a factory air filter. Using a factory or factory-shape filter is part of the design, since it keeps dust out and protects the engine.

Do I need to cut the hood?

Yes. On a factory hood, part of the underside has to be cut for clearance. The Type-S hood from the same manufacturer fits over the chamber without any modification, so owners planning that hood can avoid cutting altogether. Professional installation is recommended either way.

Will the Tsuchinoko Air Intake for ZF1 cars upset the ECU?

No. The Tsuchinoko Air Intake for ZF1 cars reuses part of the factory air cleaner box, which the manufacturer says avoids the airflow sensor flow errors and lean fuel trim that can come with aftermarket air cleaners. It also takes a factory-shape filter, so service stays simple.

Does it fit CVT models?

Yes. The manufacturer lists the intake for both the six-speed manual and the CVT versions of the ZF1 CR-Z, so transmission choice does not matter. Fitment is specific to the CR-Z, as the chamber and ducts were developed for this car alone.

Should I choose carbon or FRP?

Both versions share the same chamber design, ducts and fitment. The carbon version costs more and is the one shown in the installed photos. The manufacturer describes the material of both versions in the same terms, so ask us before ordering if you need detail on how the FRP finish differs.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

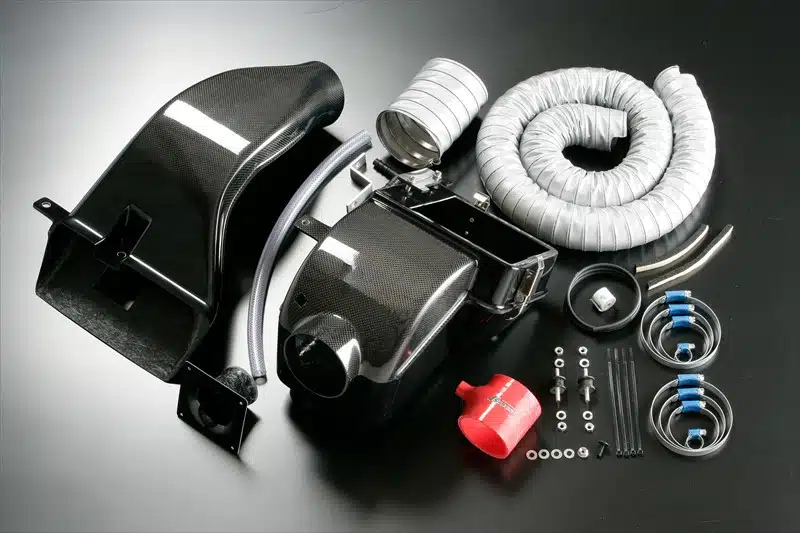

J’s Racing Tsuchinoko Air Intake for ZF1 Honda CR-Z

J’s Racing’s Tsuchinoko Air Intake for ZF1 CR-Z owners starts from the view that the factory intake is built around cost and easy maintenance, which leaves it restrictive and short of cool air. Developed only for the CR-Z, this chamber draws cooler outside air directly through two ducts, one at the grille and one low in the bumper, and enlarges the air box volume. J’s Racing combines a chamber effect for low and mid-range torque with ram pressure from the ducts for top-end power. It suits an owner who wants more response without ECU complaints; anyone unwilling to trim the hood underside should pair it with the Type-S hood.

Design and Performance

Because the Tsuchinoko reuses part of the factory air cleaner box, it avoids the airflow sensor errors and lean fuel trim that J’s Racing says can follow aftermarket air cleaners. It runs a factory or factory-shape filter, which keeps dust out and protects the engine. It fits both six-speed manual and CVT cars.

Features

Two fresh-air ducts, at the grille and the lower bumper
Larger air box volume for more power and torque, per J’s Racing
Chamber effect for low and mid-range torque
Ram pressure effect for high-rpm power
Reuses part of the factory air box to keep the ECU happy
Fits 6MT and CVT models

Applications

Honda CR-Z: ZF1 | 2010-2016 | 1.5L LEA hybrid

Notes

The air filter is not included; use the J’s Racing MAX FLOW filter MAF-Z1-800 or a factory filter
Part of the hood underside must be cut to fit, except with the J’s Racing Type-S hood, which needs no modification
Professional installation is recommended
Options: Carbon or FRP; J’s Racing’s installed photos show the carbon version
Production starts after you order; we confirm the lead time from J’s Racing USA when your order is placed, and the part ships from Japan

Frequently Asked Questions

Is an air filter included? No. The intake does not come with a filter. The manufacturer recommends its MAX FLOW air filter, part number MAF-Z1-800, or a factory air filter. Using a factory or factory-shape filter is part of the design, since it keeps dust out and protects the engine.
Do I need to cut the hood? Yes. On a factory hood, part of the underside has to be cut for clearance. The Type-S hood from the same manufacturer fits over the chamber without any modification, so owners planning that hood can avoid cutting altogether. Professional installation is recommended either way.
Will the Tsuchinoko Air Intake for ZF1 cars upset the ECU? No. The Tsuchinoko Air Intake for ZF1 cars reuses part of the factory air cleaner box, which the manufacturer says avoids the airflow sensor flow errors and lean fuel trim that can come with aftermarket air cleaners. It also takes a factory-shape filter, so service stays simple.
Does it fit CVT models? Yes. The manufacturer lists the intake for both the six-speed manual and the CVT versions of the ZF1 CR-Z, so transmission choice does not matter. Fitment is specific to the CR-Z, as the chamber and ducts were developed for this car alone.
Should I choose carbon or FRP? Both versions share the same chamber design, ducts and fitment. The carbon version costs more and is the one shown in the installed photos. The manufacturer describes the material of both versions in the same terms, so ask us before ordering if you need detail on how the FRP finish differs.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
