Will this kit fit behind 16 inch wheels?

No. The manufacturer states the calipers cannot be used with 16 inch wheels; a 17 inch or larger wheel is required. Clearance was shown on a 17 x 8.5J wheel at +40mm offset, and fitment is listed for wheels at that offset or above, so check your spokes.

Does the 6-Pot Caliper Kit for AP1 cars also fit the AP2?

Yes. The 6-Pot Caliper Kit for AP1 cars is listed for both S2000 chassis, the 1999 to 2003 AP1 and the 2004 to 2009 AP2. The dedicated offset and caliper brackets in the box mount the forged calipers and 324mm discs to the front hubs of either car.

Is it usable on the street or only on track?

It is designed for both. The Osaka tuner rates the 6-Pot Caliper Kit for AP1 and AP2 cars for everything from street driving to circuit work, with a linear pedal feel for control. The supplied Seidoya pads cover the same street and circuit range.

How durable is the kit under racing loads?

The manufacturer reports more than ten endurance races on the kit with only consumables replaced and no overhaul. Pads and rotors are the wear items, both sold separately, so owners replace those parts as they wear rather than rebuilding the calipers.

Can I replace only the rotor and keep the bell housing?

Yes. Two rotor options are offered. The rotor ring reuses your existing floating bell housing to lower the replacement cost, while the rotor assembly arrives with a new bell already fitted. Both are sold per side, left or right, and are made for this kit only.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing 6-Pot Caliper Kit for AP1 / AP2 Honda S2000

J’s Racing’s 6-Pot Caliper Kit for AP1 and AP2 S2000s was developed on the clock: the Osaka shop ran pad compounds and rotor diameters through repeated time attack sessions before settling on a forged aluminum six-piston caliper over a 324mm x 30mm ventilated disc. Every component is manufactured in Japan, and J’s Racing reports the kit has completed more than ten endurance races with only consumables replaced and no overhaul. That record is the real case for it on a heavily tracked roadster. It does demand 17-inch or larger wheels, so a car kept on 16s, or one that never sees a circuit, is better served by a pad change.

Construction

The forged aluminum calipers were picked for low weight, rigidity and heat resistance, and J’s Racing credits them with a linear pedal feel. Each disc is ventilated, blended with a special carbon content and slotted to a pattern drawn from race experience, then carried on a hard anodized aluminum floating bell. Dedicated offset and caliper brackets locate the package.

Features

Forged aluminum six-piston front calipers
Ventilated, slotted large-diameter discs with a carbon-blended material
Aluminum floating bell housings with a hard anodized finish
Stainless mesh brake hoses
Pads co-developed with brake maker Seidoya supplied in the kit

Specifications

Rotor diameter: 324mm
Rotor thickness: 30mm
Pistons per caliper: 6
Minimum wheel size: 17 inches
Wheel clearance reference: 17 x 8.5J, +40mm offset or above
Caliper material: Forged aluminum

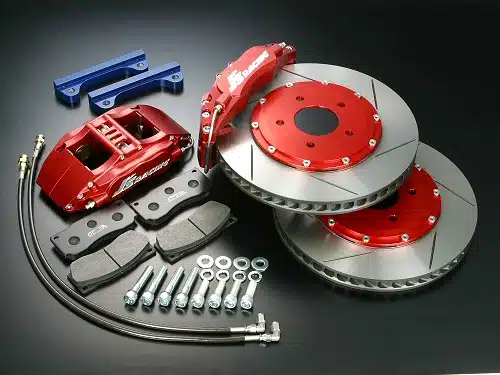

What’s Included

Forged aluminum 6-pot calipers
Carbon-blended ventilated discs
Aluminum floating bell housings
Offset brackets
Caliper brackets
Stainless mesh brake hoses
Seidoya brake pads

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C
Honda S2000: AP2 | 2004-2009 | 2.2L F22C

Notes

The calipers will not clear 16-inch wheels; 17-inch or larger wheels are required
Confirm spoke clearance on your wheels; J’s Racing lists fitment as 8.5J at +40mm offset or above
Service parts are sold separately: 6-Pot Brake Pads for the S2000 kit, S2000 6-Pot Rotor Ring and S2000 6-Pot Rotor Assembly with bell
Made to order in Japan; Bulletproof Automotive confirms availability and lead time with J’s Racing USA once your order is in

Frequently Asked Questions

Will this kit fit behind 16 inch wheels? No. The manufacturer states the calipers cannot be used with 16 inch wheels; a 17 inch or larger wheel is required. Clearance was shown on a 17 x 8.5J wheel at +40mm offset, and fitment is listed for wheels at that offset or above, so check your spokes.
Does the 6-Pot Caliper Kit for AP1 cars also fit the AP2? Yes. The 6-Pot Caliper Kit for AP1 cars is listed for both S2000 chassis, the 1999 to 2003 AP1 and the 2004 to 2009 AP2. The dedicated offset and caliper brackets in the box mount the forged calipers and 324mm discs to the front hubs of either car.
Is it usable on the street or only on track? It is designed for both. The Osaka tuner rates the 6-Pot Caliper Kit for AP1 and AP2 cars for everything from street driving to circuit work, with a linear pedal feel for control. The supplied Seidoya pads cover the same street and circuit range.
How durable is the kit under racing loads? The manufacturer reports more than ten endurance races on the kit with only consumables replaced and no overhaul. Pads and rotors are the wear items, both sold separately, so owners replace those parts as they wear rather than rebuilding the calipers.
Can I replace only the rotor and keep the bell housing? Yes. Two rotor options are offered. The rotor ring reuses your existing floating bell housing to lower the replacement cost, while the rotor assembly arrives with a new bell already fitted. Both are sold per side, left or right, and are made for this kit only.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
