Is the LSD Differential Assembly for AP2 right for a 2004 US S2000?

Yes. Go Tuning, the sole US distributor for Spoon, sells the LSD Differential Assembly for AP2 for 2004 through 2009 model year US cars, which covers the early F22C1 cars as well as the later ones. In Japan, Spoon registers it for the AP2 with the F22C, built from late 2005 to 2009.

What is the advantage over fitting a final gear and LSD separately?

The separate route means opening the factory differential, swapping the gear and LSD, then setting mesh and bearing preload, which few shops do well. This assembly arrives with that work completed and checked by Spoon on a new Honda unit. The factory differential is kept whole, which is useful for returning the car to stock later.

Will the shorter gearing raise highway engine speed?

Yes. With 4.44 replacing the factory 4.10, the engine turns about 8 percent faster at any road speed in any gear. Owners who drive long distances notice it at a cruise, while those who mainly drive on track or winding roads tend to value the stronger pull in every gear far more.

What does the LSD add?

A limited-slip differential shares drive between the two rear tires instead of letting the lightly loaded inside tire spin as the car exits a corner. On an AP2 with grippy tires and the stronger pull of the 4.44 gear, that keeps power going to the road and makes the rear of the car more predictable under throttle.

What should be done at installation?

Have a shop with a lift swap the complete unit, reconnect the axles and propeller shaft, and fill with fluid suited to a limited-slip unit. At a listed 33 kg the assembly is heavy enough that a transmission jack helps. A short, gentle drive afterwards lets the installer check for leaks and noise before hard use.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Spoon Sports LSD Differential Assembly for AP2 Honda S2000 with 4.44 Final Gear

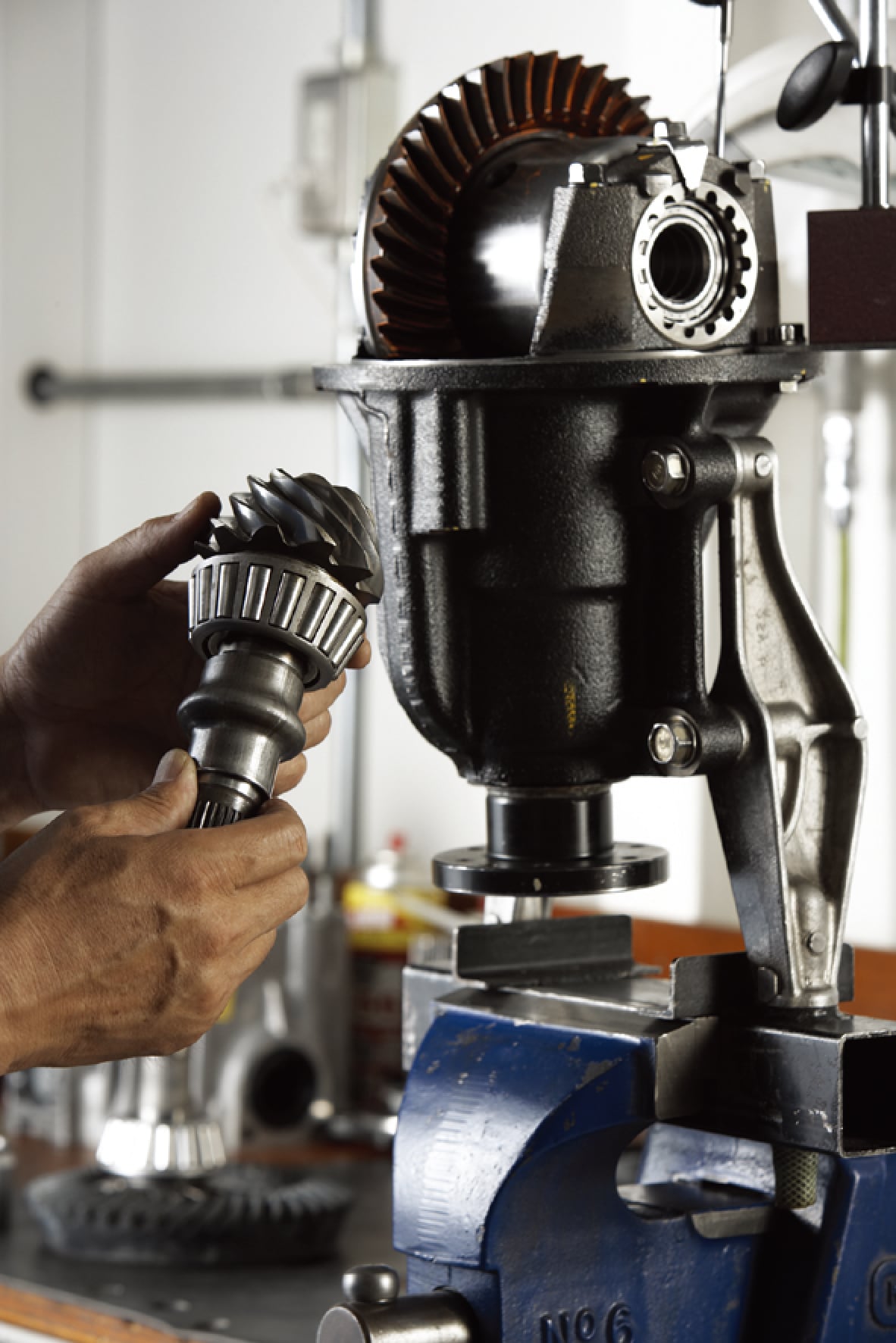

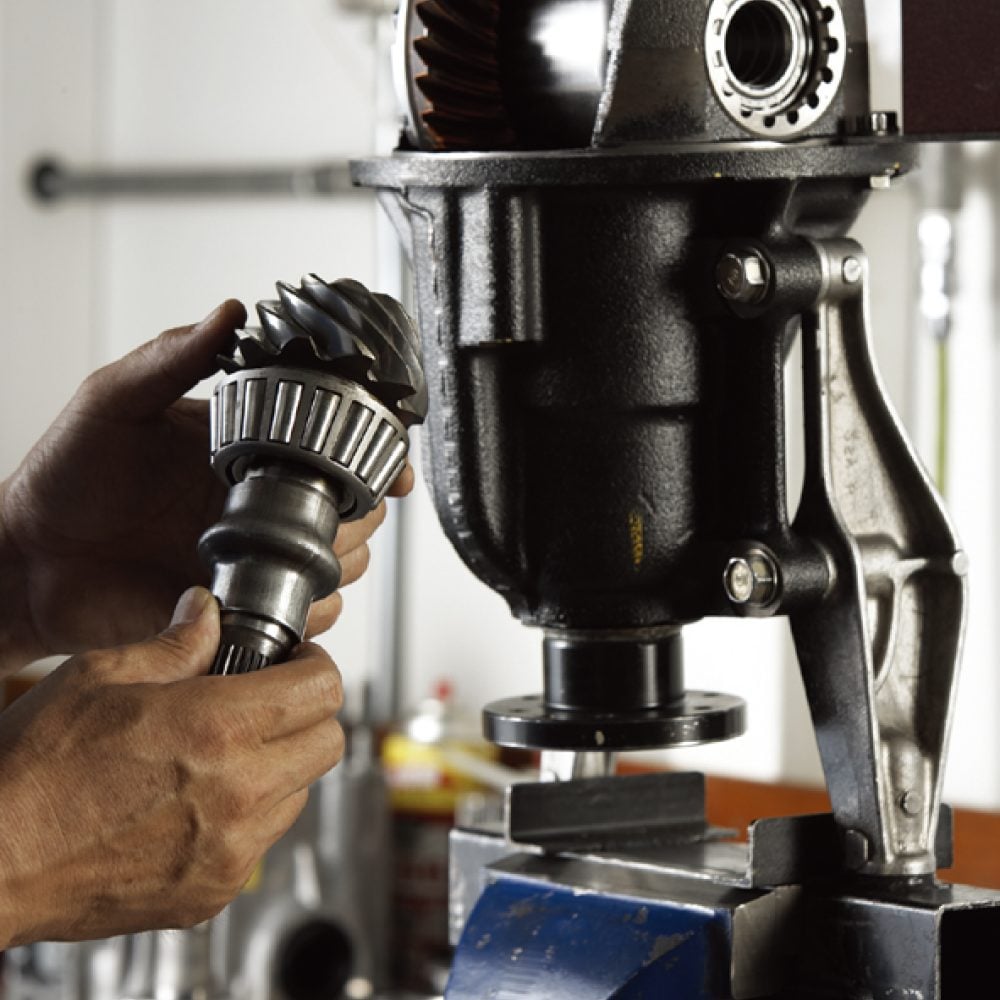

Spoon Sports’ LSD Differential Assembly for AP2 Honda S2000 takes the guesswork out of re-gearing the 2.2-litre car. Spoon starts from a brand new Honda differential, installs its own limited-slip unit and 4.44 final gear, and hands the job to technicians who clean, measure and set up every assembly before it is closed. The F22C already pulls harder in the midrange than the 2.0-litre engine it replaced, and the shorter final drive builds on that: with 4.44 in place of the factory 4.10, every gear multiplies torque by about 8 percent more. The LSD then shares that drive between the rear tires as the car unwinds from a corner. Each unit is built to order and lists at 33 kg. It makes the most sense for an AP2 that already wears sticky tires and sees lapping days; on a weekend touring car, the extra revs at a cruise may outweigh the sharper response.

Features

New Honda differential as the starting point
4.44 final gear by Spoon, about 8 percent shorter than stock
Spoon LSD for even drive between the rear tires
Cleaned, measured and set up by Spoon technicians
Supplied as a complete, balanced assembly

Applications

Honda S2000: AP2 | 2005-2009 | 2.2L F22C

Notes

The LSD Differential Assembly for AP2 ships as one complete differential
Go Tuning sells it for US 2004-2009 model year cars, including 2004-2005 cars with the F22C1
Built to order by Spoon, with about one month of factory lead time
Fluid is not listed among the contents; budget for fresh differential fluid at installation

Frequently Asked Questions

Is the LSD Differential Assembly for AP2 right for a 2004 US S2000? Yes. Go Tuning, the sole US distributor for Spoon, sells the LSD Differential Assembly for AP2 for 2004 through 2009 model year US cars, which covers the early F22C1 cars as well as the later ones. In Japan, Spoon registers it for the AP2 with the F22C, built from late 2005 to 2009.
What is the advantage over fitting a final gear and LSD separately? The separate route means opening the factory differential, swapping the gear and LSD, then setting mesh and bearing preload, which few shops do well. This assembly arrives with that work completed and checked by Spoon on a new Honda unit. The factory differential is kept whole, which is useful for returning the car to stock later.
Will the shorter gearing raise highway engine speed? Yes. With 4.44 replacing the factory 4.10, the engine turns about 8 percent faster at any road speed in any gear. Owners who drive long distances notice it at a cruise, while those who mainly drive on track or winding roads tend to value the stronger pull in every gear far more.
What does the LSD add? A limited-slip differential shares drive between the two rear tires instead of letting the lightly loaded inside tire spin as the car exits a corner. On an AP2 with grippy tires and the stronger pull of the 4.44 gear, that keeps power going to the road and makes the rear of the car more predictable under throttle.
What should be done at installation? Have a shop with a lift swap the complete unit, reconnect the axles and propeller shaft, and fill with fluid suited to a limited-slip unit. At a listed 33 kg the assembly is heavy enough that a transmission jack helps. A short, gentle drive afterwards lets the installer check for leaks and noise before hard use.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
