Which ratio should I choose, 5.1 or 5.3?

Both are shorter than the factory 4.764. The 5.1 set uses a 5.062 ratio, and the 5.3 is the shorter of the two, giving more acceleration and less top speed. Choose based on your circuits and how you want each gear to line up with the VTEC range, and ask Bulletproof Automotive if unsure.

What is the difference between the WPC and DLC versions?

Both use WPC, a fine shot peening process that hardens the gear surface, raises fatigue strength and leaves tiny oil-holding dimples. The DLC version adds a diamond-like carbon coating on the driven gear, which the manufacturer says gives better initial bedding-in, lower friction and greater durability.

Which cars does the Final Gear Set for EP3 fit?

The Final Gear Set for EP3 is designed for the JDM EP3 Civic Type R with the K20A engine, built from 2001 to 2005, whose factory final drive the manufacturer gives as 4.764. It may not fit the US-market EP3 Civic Si, so confirm your transmission before ordering.

Will a shorter final drive cost top speed?

Yes. Lower gearing gives up some top speed in exchange for stronger acceleration and closer spacing between gears. Engine speed at a given road speed rises in every gear too, so the car will rev higher on the highway than it does on the factory ratio.

What comes in the set?

One countershaft and one ring gear. The manufacturer recommends precise assembly by a professional shop with the specified torque values, since the transmission must be opened and the gears set up correctly. Fresh transmission oil is not included, so add it to the job list.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

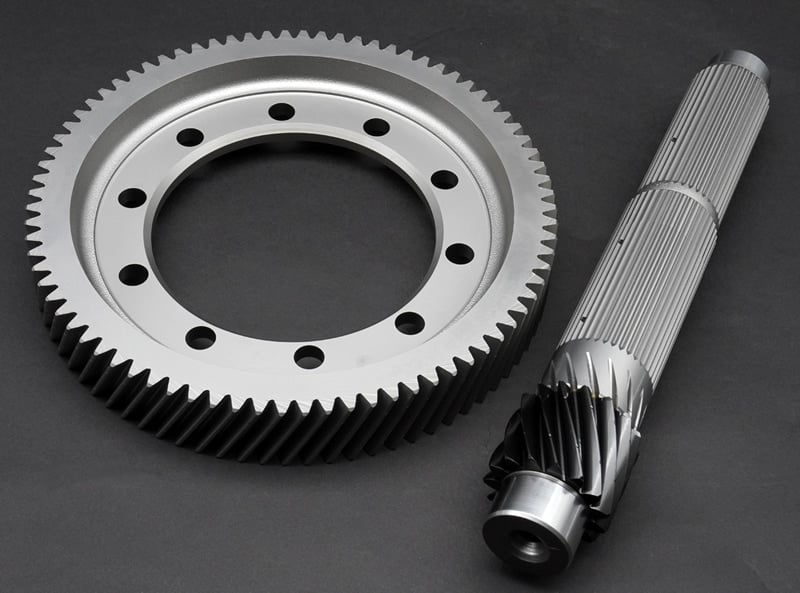

J’s Racing Final Gear Set for EP3 Honda Civic Type R

J’s Racing’s Final Gear Set for EP3 Civic Type R shortens the final drive from the factory 4.764 ratio, offered in 5.1 and 5.3 options; the 5.1 set is an actual 5.062. Lower gearing leaves peak torque where it is but shifts the torque curve toward lower rpm, trading some top speed for stronger acceleration and better spacing between gears. The Osaka tuner treats the gears with WPC, or WPC with DLC coating, for durability. It suits a circuit EP3 whose driver wants to stay in VTEC; on the highway the engine will turn higher rpm at any given speed.

Design and Performance

J’s Racing points to what VTEC owners ask for: shifting up before corner entry, holding third in VTEC without dropping to second, or using every gear up to sixth. The right final drive makes those setups possible. WPC, short for Wide Peening and Cleaning, fires fine shot at high speed to harden the gear surface, raise fatigue strength against chipping and leave tiny dimples that hold oil. The DLC version adds a diamond-like carbon coating to the driven gear for low friction and good initial bedding-in.

Features

Lowers the final drive from the factory 4.764
5.1 option uses a 5.062 ratio
WPC treatment for fatigue strength and resistance to gear chipping
DLC and WPC option pairs a DLC-coated driven gear with a WPC ring gear
Lower oil temperature, which J’s Racing says guards against failure caused by the final drive

What’s Included

Countershaft
Ring gear

Applications

Honda Civic Type R: EP3 | 2001-2005 | 2.0L K20A

Notes

J’s Racing designs this part for the JDM EP3 Civic Type R with the K20A engine; it may not fit the US-market EP3 Civic Si
Options: 5.1 or 5.3 ratio, each with WPC or DLC and WPC treatment
Precision assembly by a professional shop is recommended, using the specified torque values
The 1.5-Way LSD for the EP3 Honda Civic Type R is sold separately
Gear sets come from Japan through J’s Racing USA; Bulletproof Automotive confirms availability and lead time on each order

Frequently Asked Questions

Which ratio should I choose, 5.1 or 5.3? Both are shorter than the factory 4.764. The 5.1 set uses a 5.062 ratio, and the 5.3 is the shorter of the two, giving more acceleration and less top speed. Choose based on your circuits and how you want each gear to line up with the VTEC range, and ask Bulletproof Automotive if unsure.
What is the difference between the WPC and DLC versions? Both use WPC, a fine shot peening process that hardens the gear surface, raises fatigue strength and leaves tiny oil-holding dimples. The DLC version adds a diamond-like carbon coating on the driven gear, which the manufacturer says gives better initial bedding-in, lower friction and greater durability.
Which cars does the Final Gear Set for EP3 fit? The Final Gear Set for EP3 is designed for the JDM EP3 Civic Type R with the K20A engine, built from 2001 to 2005, whose factory final drive the manufacturer gives as 4.764. It may not fit the US-market EP3 Civic Si, so confirm your transmission before ordering.
Will a shorter final drive cost top speed? Yes. Lower gearing gives up some top speed in exchange for stronger acceleration and closer spacing between gears. Engine speed at a given road speed rises in every gear too, so the car will rev higher on the highway than it does on the factory ratio.
What comes in the set? One countershaft and one ring gear. The manufacturer recommends precise assembly by a professional shop with the specified torque values, since the transmission must be opened and the gears set up correctly. Fresh transmission oil is not included, so add it to the job list.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
