Which STI model years does this bundle fit?

GrimmSpeed lists the Bulb Shift Knob Bundle for every 2004-2021 Subaru STI with the 6-speed manual, covering the GD, GR, GV and VA generations. The knob thread is M12 x 1.25, but the shifter itself is specific to the STI gearbox.

What is the difference between the bulb and piston Swap-Top knobs?

Mainly shape. The round bulb, which GrimmSpeed lists at 494 g, works for overhand and side grips, while the piston is a cylinder that favors an overhand palm. Both use a weighted 303 stainless body with interchangeable laser-etched aluminum caps.

Do I need new shifter bushings with the GrimmSpeed Bulb Shift Knob Bundle?

No, they are not required. The bundle does not include bushings, and GrimmSpeed does not list them as a prerequisite. Owners with worn rubber bushings often add the GrimmSpeed 6-speed STI kit, with 90A polyurethane front and 80A rear bushings.

Can the shifter be returned to the stock throw?

Yes. Throw reduction on the GrimmSpeed STI Short Throw Shifter starts at zero percent, which matches the factory arc, and runs to 26.3 percent shorter. Etched marks on the upper shaft make it easy to return to a preferred setting.

How far can the knob height be adjusted?

The upper shaft moves the knob from 0.3 inch above the factory height to 1.0 inch below it, depending on the throw setting chosen. That range lets a driver drop the round knob toward the console for shorter hand travel or keep a familiar reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

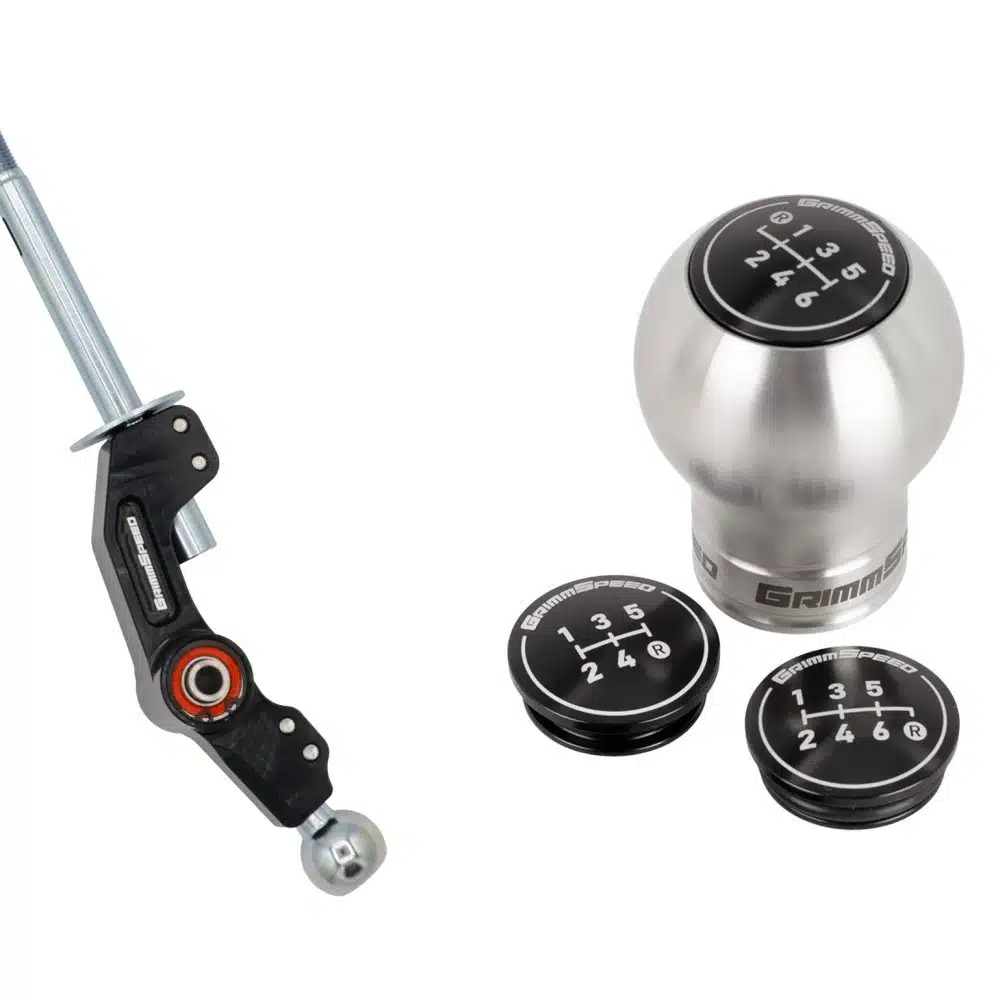

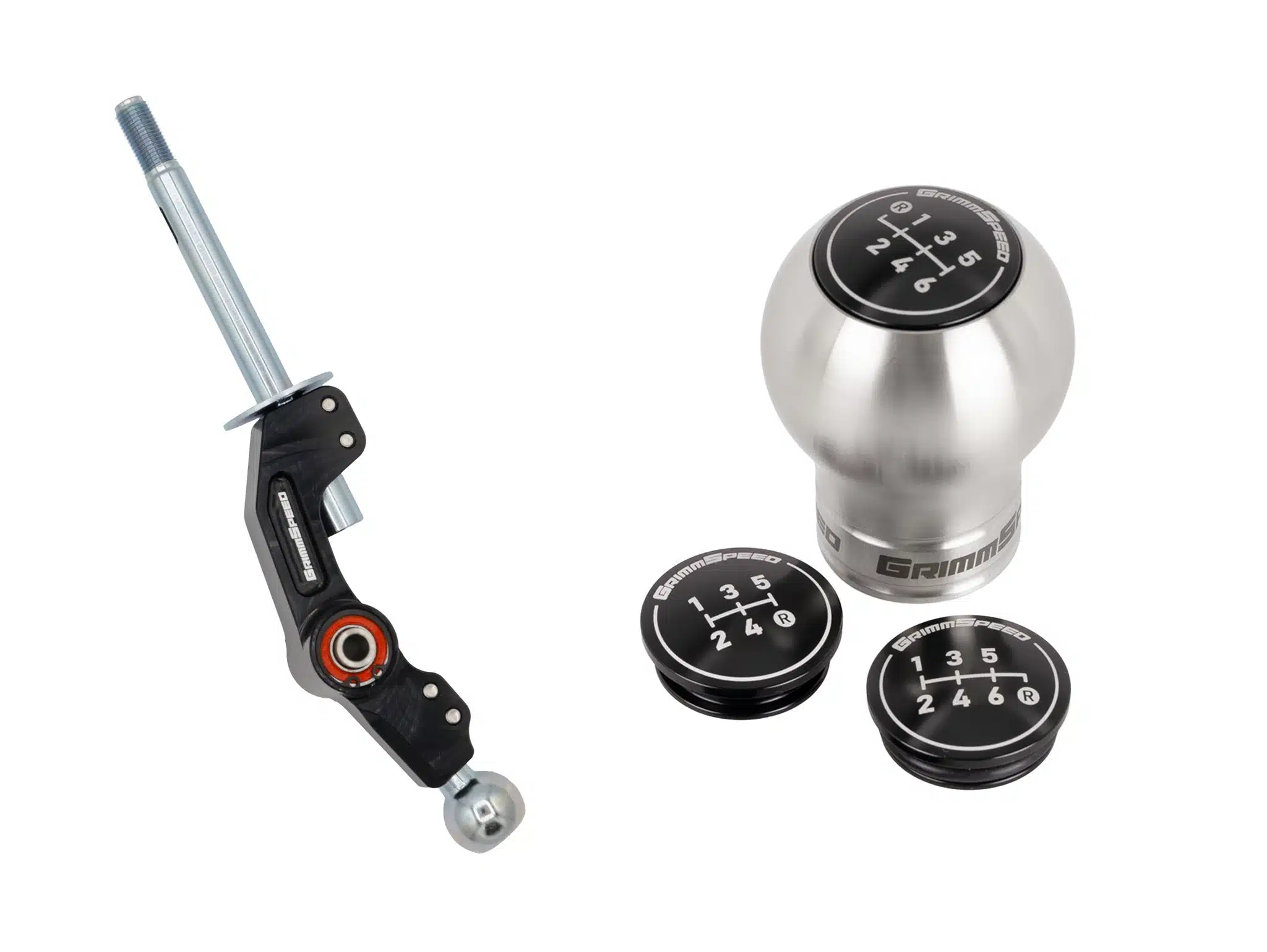

GrimmSpeed Short Shifter and Swap-Top Weighted Bulb Shift Knob Bundle for VA, GR / GV, and GD Subaru STI

GrimmSpeed’s Bulb Shift Knob Bundle sets a 494 g round Swap-Top knob, machined from 303 stainless steel, on top of the GrimmSpeed STI Short Throw Shifter for 2004-2021 STI models with the 6-speed box. Of the two weighted Swap-Top shapes, the bulb is the more forgiving to hold, falling under a palm-over grip or fingertips from the side. The weight is there to settle the lever into each gate, yet the shape stays easy to hold in traffic.

Engineering

Inside the shifter, sealed Enduro MAX ball bearings carry the pivot load that rubber bushings carry from the factory, and full-contact double-lip seals keep grit out. The upper shaft is A513-T5 DOM steel and the lower ball is 1045 steel, both zinc-plated, around a 6061-T6 billet center. Owners choose any reduction from zero to 26.3 percent using etched reference lines.

Features

Round bulb profile suits overhand and side-grip shifting alike.
Unscrewing aluminum top caps change the etched pattern without swapping the body.
Factory reverse lockout keeps working, with clearance for a 26mm collar.
Bolt-in install with no console cutting.

Specifications

Knob weight: 494 g
Knob material: 303 stainless steel body, 6061 aluminum caps
Throw reduction: adjustable, 0 to 26.3 percent
Height range: 0.3 in above to 1.0 in below stock
Upper shaft: A513-T5 DOM steel
Center bearing shaft: 303 stainless steel
Thread: M12x1.25

What’s Included

GrimmSpeed STI Short Throw Shifter (x1)
GrimmSpeed Swap-Top Weighted Shift Knob Kit, Bulb (x1)

Applications

Subaru WRX STI: GD | 2004-2007 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: GR / GV | 2008-2014 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: VA | 2015-2021 | 2.5L EJ257, 6-speed manual

Notes

This Bulb Shift Knob Bundle is an STI 6-speed part; GrimmSpeed does not list it for the WRX
At the shortest settings the linkage may touch the rubber boot gasket in first and third gears, so stay within the etched maximum mark
Factory shifter bushings stay in place; the GrimmSpeed 6-speed STI bushing kit is separate
Other pairings: Swap-Top Weighted Piston Shift Knob Bundle, Tallboy Shift Knob Bundle, Stubby Shift Knob Bundle or Standard Shift Knob Bundle

Frequently Asked Questions

Which STI model years does this bundle fit? GrimmSpeed lists the Bulb Shift Knob Bundle for every 2004-2021 Subaru STI with the 6-speed manual, covering the GD, GR, GV and VA generations. The knob thread is M12 x 1.25, but the shifter itself is specific to the STI gearbox.
What is the difference between the bulb and piston Swap-Top knobs? Mainly shape. The round bulb, which GrimmSpeed lists at 494 g, works for overhand and side grips, while the piston is a cylinder that favors an overhand palm. Both use a weighted 303 stainless body with interchangeable laser-etched aluminum caps.
Do I need new shifter bushings with the GrimmSpeed Bulb Shift Knob Bundle? No, they are not required. The bundle does not include bushings, and GrimmSpeed does not list them as a prerequisite. Owners with worn rubber bushings often add the GrimmSpeed 6-speed STI kit, with 90A polyurethane front and 80A rear bushings.
Can the shifter be returned to the stock throw? Yes. Throw reduction on the GrimmSpeed STI Short Throw Shifter starts at zero percent, which matches the factory arc, and runs to 26.3 percent shorter. Etched marks on the upper shaft make it easy to return to a preferred setting.
How far can the knob height be adjusted? The upper shaft moves the knob from 0.3 inch above the factory height to 1.0 inch below it, depending on the throw setting chosen. That range lets a driver drop the round knob toward the console for shorter hand travel or keep a familiar reach.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
