Will the GrimmSpeed Piston Shift Knob Bundle fit a WRX?

No. GrimmSpeed lists the Piston Shift Knob Bundle for the 2004-2021 Subaru STI 6-speed only. The knob alone threads onto many Subaru manual shifters, but the short throw shifter is an STI part, so WRX owners should confirm with GrimmSpeed first.

Can I fit a different knob to this shifter later?

Yes. The GrimmSpeed STI Short Throw Shifter accepts any shift knob with an M12 x 1.25 thread, factory or aftermarket, so the piston knob can be swapped at any time. Changing knobs does not alter the throw setting, though a taller or shorter knob will change how much effort each shift takes.

Which shift pattern caps come with the Swap-Top knob?

The Swap-Top knob kit includes laser-etched aluminum caps for the 5-speed AWD pattern, the 6-speed AWD pattern used by the STI, and the BRZ, 86 and FR-S pattern. Swapping a cap changes only the top, so the stainless body and its weight stay the same.

Can the throw be set too short?

Yes, if the shaft goes past the limit GrimmSpeed engraves. At the most aggressive positions the linkage can lightly touch the rubber gasket in first and third gears. GrimmSpeed says drivability is unaffected, but the marked maximum lets most owners stay just short of contact.

Does the STI keep its reverse lockout and console?

Yes. The short throw shifter retains the factory reverse lockout, and the piston knob clears a 26mm lockout collar. GrimmSpeed states that no console trimming is required, so the trim panels go back exactly as they came out of the car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

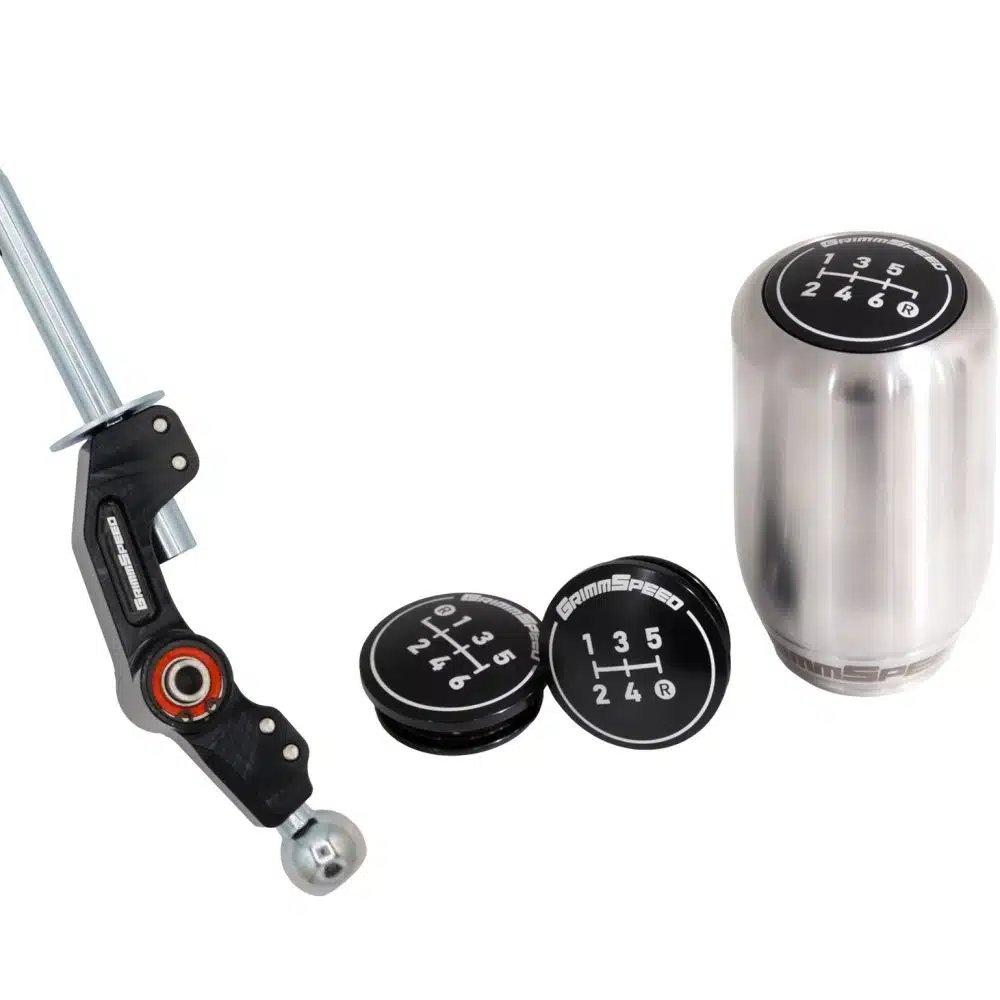

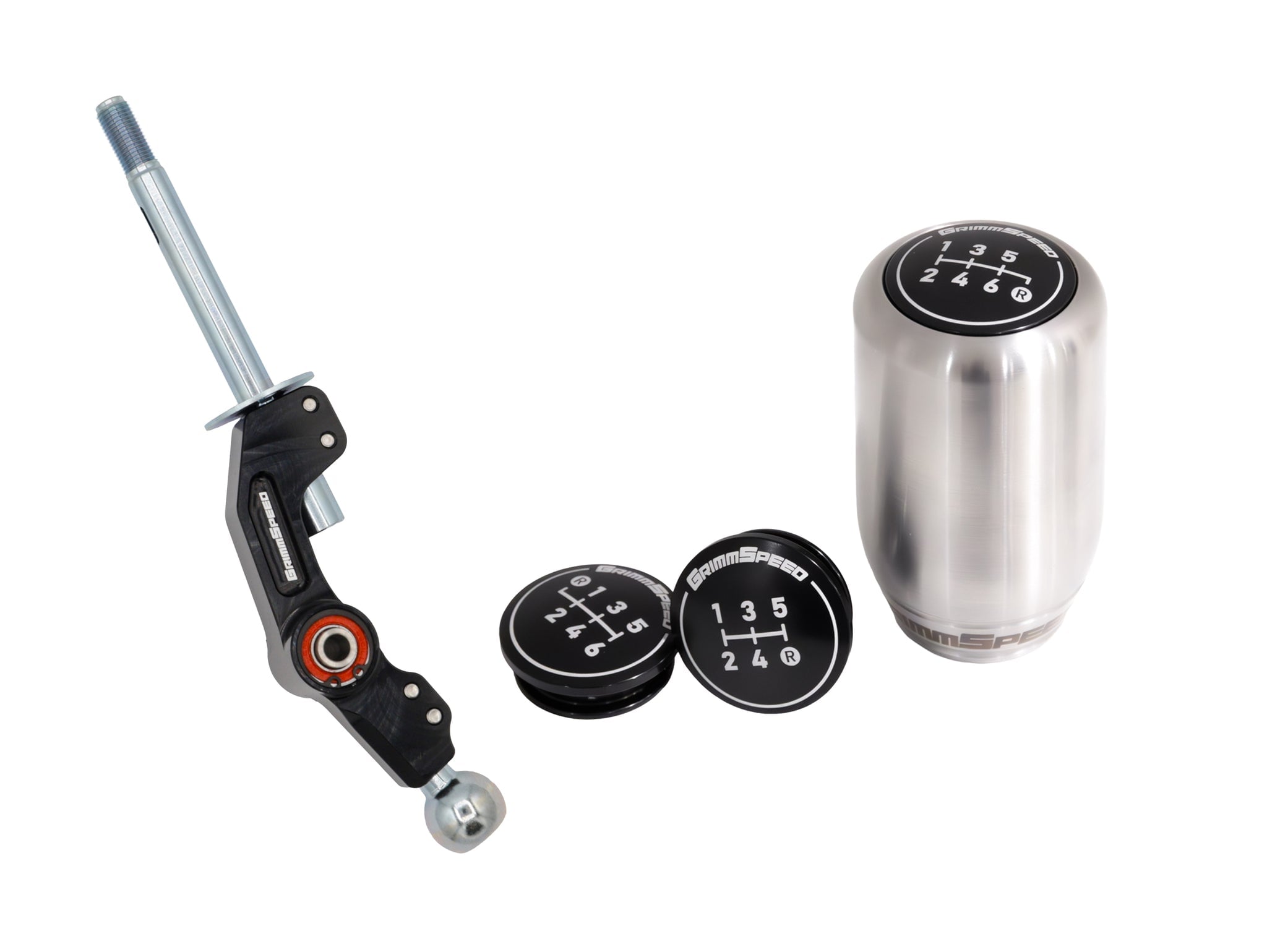

GrimmSpeed Short Shifter and Swap-Top Weighted Piston Shift Knob Bundle for VA, GR / GV, and GD Subaru STI

The GrimmSpeed Piston Shift Knob Bundle pairs the GrimmSpeed STI Short Throw Shifter with the Swap-Top weighted knob in its piston profile, a 303 stainless body, for the 2004-2021 STI 6-speed. Mass on top of a shortened lever is the logic: the inertia carries the stick into each gate, so a reduced throw feels firm rather than clipped. It suits an overhand shifter who wants a more mechanical cabin; anyone happy with their current shifter needs only the knob.

Design and Construction

GrimmSpeed replaces the factory rubber center bushings with sealed Enduro MAX ball bearings held by snap rings, inside a black anodized 6061-T6 billet center section. Etched marks on the DOM steel upper shaft set throw from stock to 26.3 percent shorter. The piston knob wears unscrewing aluminum caps, so the pattern on top can change while the weighted body stays.

Features

Weighted 303 stainless piston profile fills an overhand palm grip.
Laser-etched 6061 aluminum caps for 5-speed AWD, 6-speed AWD and BRZ / 86 / FR-S patterns.
Knob bore clears a 26mm reverse lockout collar, and neutral stays near stock.

Specifications

Throw reduction: 0 to 26.3 percent
Knob height: +0.3 in to -1.0 in versus stock
Shifter body: 6061-T6 billet aluminum, black anodized
Lower ball: 1045 steel, zinc-plated
Knob body: 303 stainless steel, piston profile
Knob thread: M12x1.25

What’s Included

GrimmSpeed STI Short Throw Shifter (x1)
GrimmSpeed Swap-Top Weighted Shift Knob, Piston, with interchangeable caps (x1)

Applications

Subaru WRX STI: GD | 2004-2007 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: GR / GV | 2008-2014 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: VA | 2015-2021 | 2.5L EJ257, 6-speed manual

Notes

GrimmSpeed lists the Piston Shift Knob Bundle for the 2004-2021 STI 6-speed only
Past the engraved maximum throw mark, the linkage can brush the rubber gasket in first and third; do not trim the gasket
Shifter bushings are not included; GrimmSpeed sells a 6-speed STI bushing kit separately
Other knob pairings: Swap-Top Weighted Bulb Shift Knob Bundle, Tallboy Shift Knob Bundle, Stubby Shift Knob Bundle and Standard Shift Knob Bundle

Frequently Asked Questions

Will the GrimmSpeed Piston Shift Knob Bundle fit a WRX? No. GrimmSpeed lists the Piston Shift Knob Bundle for the 2004-2021 Subaru STI 6-speed only. The knob alone threads onto many Subaru manual shifters, but the short throw shifter is an STI part, so WRX owners should confirm with GrimmSpeed first.
Can I fit a different knob to this shifter later? Yes. The GrimmSpeed STI Short Throw Shifter accepts any shift knob with an M12 x 1.25 thread, factory or aftermarket, so the piston knob can be swapped at any time. Changing knobs does not alter the throw setting, though a taller or shorter knob will change how much effort each shift takes.
Which shift pattern caps come with the Swap-Top knob? The Swap-Top knob kit includes laser-etched aluminum caps for the 5-speed AWD pattern, the 6-speed AWD pattern used by the STI, and the BRZ, 86 and FR-S pattern. Swapping a cap changes only the top, so the stainless body and its weight stay the same.
Can the throw be set too short? Yes, if the shaft goes past the limit GrimmSpeed engraves. At the most aggressive positions the linkage can lightly touch the rubber gasket in first and third gears. GrimmSpeed says drivability is unaffected, but the marked maximum lets most owners stay just short of contact.
Does the STI keep its reverse lockout and console? Yes. The short throw shifter retains the factory reverse lockout, and the piston knob clears a 26mm lockout collar. GrimmSpeed states that no console trimming is required, so the trim panels go back exactly as they came out of the car.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
