Do the Boost Logic Wrist Pins for LB724 fit factory pistons?

No. Boost Logic lists the Wrist Pins for LB724 Huracán and 4S R8 as compatible with its own forged pistons for the Lamborghini Huracán and the 2017 and later Audi R8 5.2 liter V10. Factory pistons and other brands are not listed, so pair these pins with a Boost Logic forged piston set.

Why upgrade from the pins supplied with the pistons?

The standard Boost Logic 5.2 forged piston set ships with heavy-duty wrist pins. The Pro Mod pins are an optional step up in C350 tool steel, chosen for tensile strength, hardness and heat resistance. They suit builds running very high cylinder pressure, where extra margin at the pin is worth the added cost.

What is C350 tool steel?

C350 is a high strength maraging steel grade valued for its tensile strength and hardness. Boost Logic uses it for these pins because it resists wear and carries high loads, and because it holds its properties through the temperature swings a high-performance engine goes through on track and street.

How many pins come in the package?

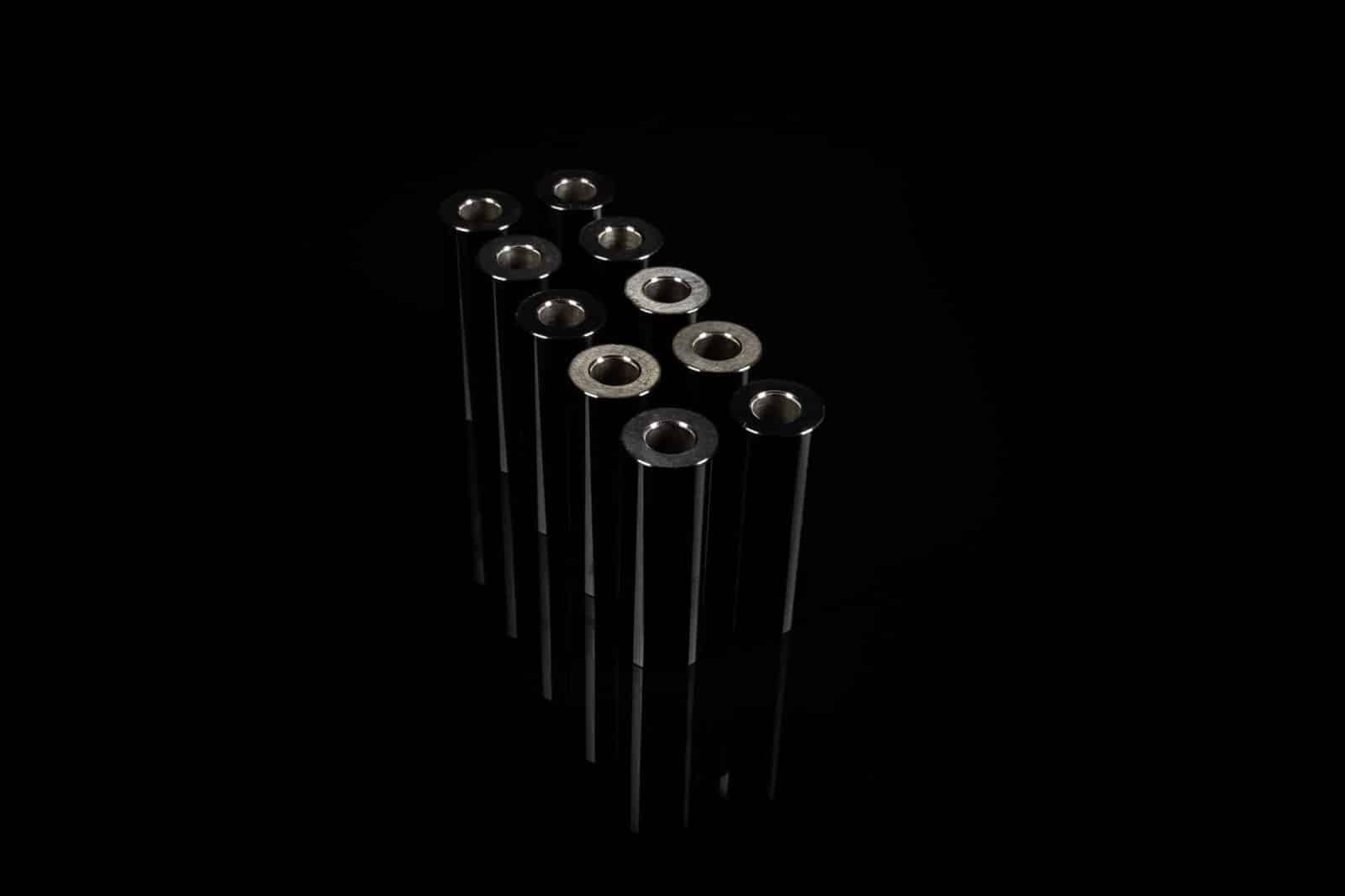

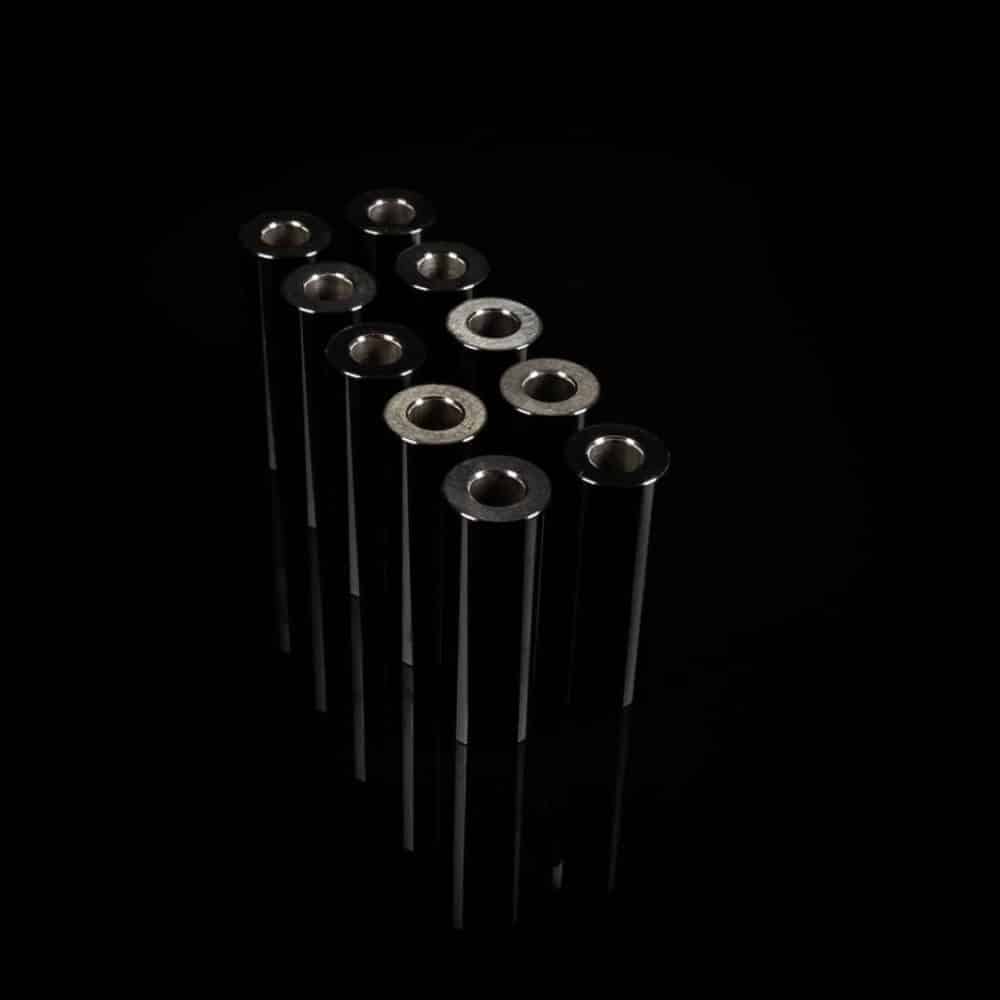

Boost Logic does not state the quantity in its description. The product photo shows ten pins, which matches one pin per cylinder of the V10, but confirm the contents and whether clips are included with Bulletproof Automotive before ordering, so the engine build is not held up waiting for parts.

Do the pins require professional installation?

Yes. Wrist pins are fitted when the pistons are assembled to the connecting rods with the engine apart, so they are normally installed by the engine builder during a V10 build. Pin to piston and pin to rod clearances should be checked during assembly before the rotating assembly goes into the block.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Boost Logic Pro Mod Wrist Pins for LB724 Lamborghini Huracán and 4S Audi R8

Boost Logic’s Pro Mod Wrist Pins for LB724 Lamborghini Huracán and 4S Audi R8 are an optional upgrade pin made from C350 tool steel for Boost Logic forged pistons in the 5.2-liter V10. Boost Logic chose C350 for its tensile strength, hardness and heat resistance, which keep wear low and load-bearing capacity high in engines making big power on track or street. They make sense in a high-output V10 build on Boost Logic pistons; they are not an upgrade for factory pistons, since Boost Logic lists compatibility only with its own forged pistons.

Features

C350 tool steel construction
High tensile strength and hardness for high load capacity and minimal wear
Heat resistance suited to engines that see extreme temperature swings
Optional step up from the heavy-duty pins supplied with Boost Logic 5.2 forged pistons

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

Compatible only with Boost Logic forged pistons for the Huracán and 2017+ Audi R8 5.2 V10, such as the Boost Logic 5.2 Forged Pistons for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030407) and the Boost Logic Pro Series 5.2 Forged Pistons for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030407-Pro)
Pistons are not included; the pins are sold on their own
Boost Logic does not state the quantity; the product photo shows ten pins, one per cylinder
The Wrist Pins for LB724 Huracán and 4S R8 are fitted with the engine apart

Frequently Asked Questions

Do the Boost Logic Wrist Pins for LB724 fit factory pistons? No. Boost Logic lists the Wrist Pins for LB724 Huracán and 4S R8 as compatible with its own forged pistons for the Lamborghini Huracán and the 2017 and later Audi R8 5.2 liter V10. Factory pistons and other brands are not listed, so pair these pins with a Boost Logic forged piston set.
Why upgrade from the pins supplied with the pistons? The standard Boost Logic 5.2 forged piston set ships with heavy-duty wrist pins. The Pro Mod pins are an optional step up in C350 tool steel, chosen for tensile strength, hardness and heat resistance. They suit builds running very high cylinder pressure, where extra margin at the pin is worth the added cost.
What is C350 tool steel? C350 is a high strength maraging steel grade valued for its tensile strength and hardness. Boost Logic uses it for these pins because it resists wear and carries high loads, and because it holds its properties through the temperature swings a high-performance engine goes through on track and street.
How many pins come in the package? Boost Logic does not state the quantity in its description. The product photo shows ten pins, which matches one pin per cylinder of the V10, but confirm the contents and whether clips are included with Bulletproof Automotive before ordering, so the engine build is not held up waiting for parts.
Do the pins require professional installation? Yes. Wrist pins are fitted when the pistons are assembled to the connecting rods with the engine apart, so they are normally installed by the engine builder during a V10 build. Pin to piston and pin to rod clearances should be checked during assembly before the rotating assembly goes into the block.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
