Which compression ratio should I choose for the Boost Logic Forged Pistons for LB724 Huracán and 4S R8?

The Boost Logic Forged Pistons for LB724 Huracán and 4S R8 come in 10:1 and 12.5:1. The lower 10:1 ratio leaves more margin against detonation under high boost, while 12.5:1 stays close to the factory compression for more off-boost response. Confirm the choice against the turbo kit, fuel and tune planned for the engine before ordering.

Do these pistons require sleeving the block?

No. Boost Logic designs these pistons to run in the OEM 5.2 liter V10 block without sleeves. That avoids the machining and cost of a sleeved block, although any engine build still needs the bores measured and prepared by the engine builder before the pistons are fitted.

How much power can the pistons handle?

Boost Logic rates the forged pistons for power outputs above 2,000 wheel horsepower. Reaching that level depends on the rest of the build, including rods, turbochargers, fuel system, drivetrain and tuning, so the rating describes the headroom of the pistons rather than a figure the pistons deliver on their own.

What comes in the set?

The set contains ten forged pistons, one for each cylinder of the V10, along with heavy-duty wrist pins and clips. Boost Logic does not list piston rings or connecting rods as included, and it sells optional Pro Mod wrist pins in C350 tool steel separately for builds that want a stronger pin.

Do they fit the first-generation Audi R8 V10?

Boost Logic lists fitment as every Lamborghini Huracán and the 2017 and later Audi R8 5.2 liter, which is the 4S generation. First-generation R8 V10 engines are not listed, so owners of those cars should confirm fitment with Bulletproof Automotive before ordering a set.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

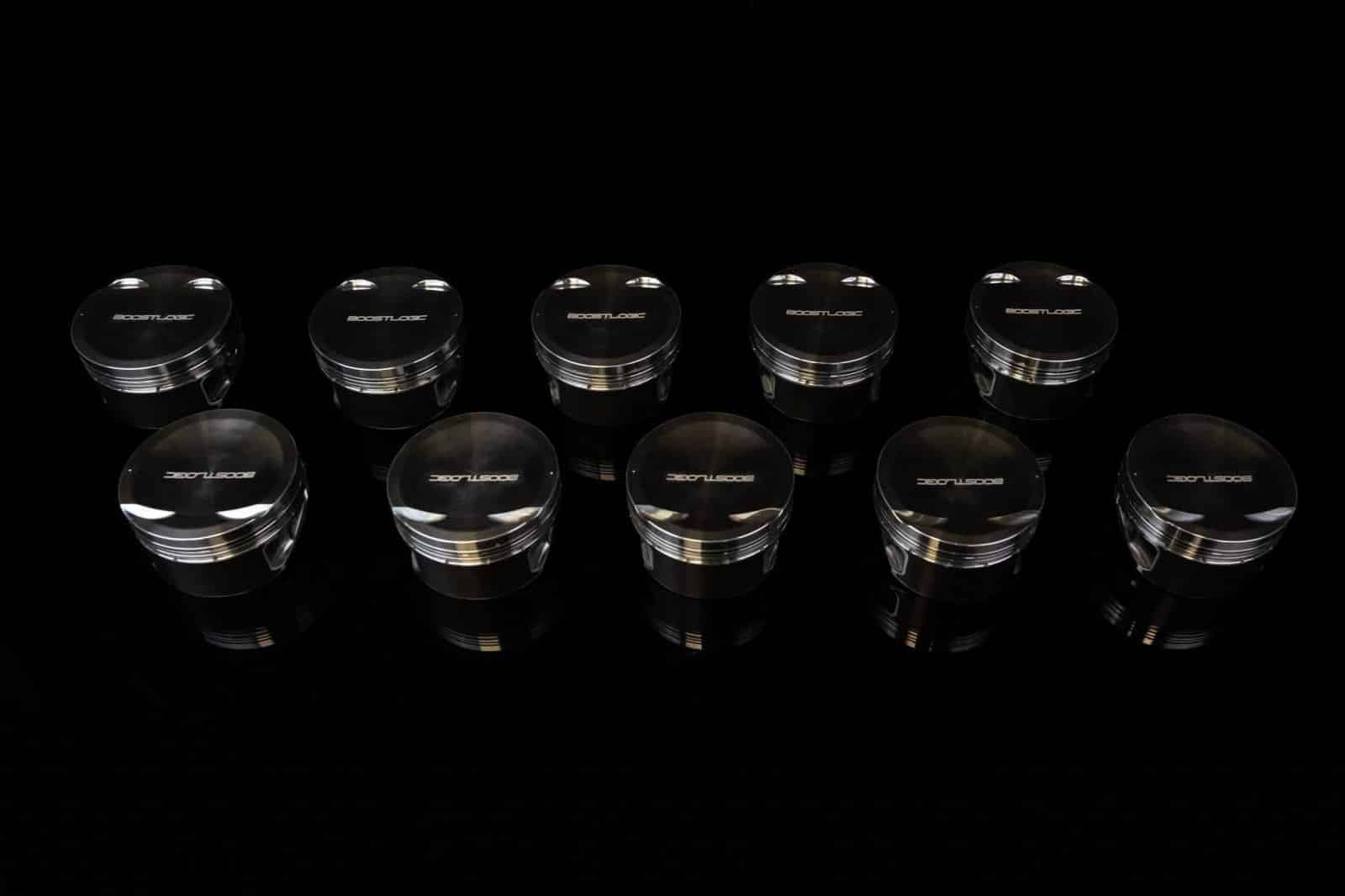

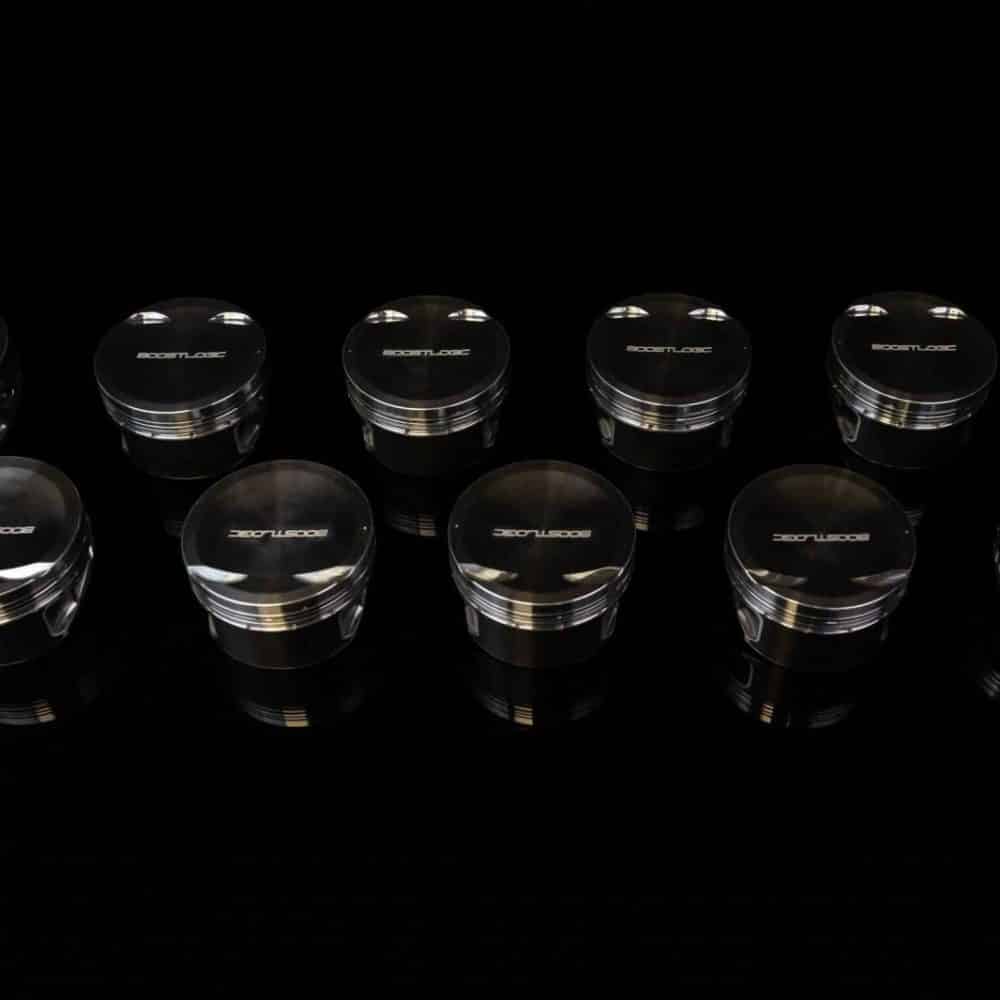

Boost Logic 5.2 Forged Pistons for LB724 Lamborghini Huracán and 4S Audi R8

Boost Logic’s Forged Pistons for LB724 Lamborghini Huracán and 4S Audi R8 are a ten-piston set for the 5.2-liter V10, built for owners taking the engine far past factory output with boost. Boost Logic rates the set for more than 2,000 wheel horsepower and designs it to run in the OEM block without sleeves, which keeps a big-power build simpler than one that needs the block machined for liners. The set ships complete with heavy-duty wrist pins and clips, in a choice of 10:1 or 12.5:1 compression. On a naturally aspirated V10 it is more piston than the engine needs; the design brief is a turbocharged build.

Construction

Each piston is forged rather than cast, which is the construction Boost Logic relies on to survive the cylinder pressure of a boosted V10. The set is designed for the factory bore with no sleeves, and Boost Logic offers optional Pro Mod wrist pins in C350 tool steel for builds that want more margin at the pin.

Features

Forged construction rated by Boost Logic for over 2,000 whp
Designed for the OEM block with no sleeves required
Choice of 10:1 or 12.5:1 compression ratio
Supplied with heavy-duty wrist pins and clips
Sold as a set of ten pistons, one per cylinder

What’s Included

10 forged pistons
Heavy-duty wrist pins
Wrist pin clips

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

Choose 10:1 or 12.5:1 compression at checkout
Boost Logic lists pistons, wrist pins and clips as the contents; piston rings and connecting rods are not listed and should be sourced separately
Optional Boost Logic Pro Mod wrist pins in C350 tool steel are sold separately (BL 06030407-PMRP)
The Forged Pistons for LB724 Huracán and 4S R8 are an engine-build part and are fitted with the engine apart

Frequently Asked Questions

Which compression ratio should I choose for the Boost Logic Forged Pistons for LB724 Huracán and 4S R8? The Boost Logic Forged Pistons for LB724 Huracán and 4S R8 come in 10:1 and 12.5:1. The lower 10:1 ratio leaves more margin against detonation under high boost, while 12.5:1 stays close to the factory compression for more off-boost response. Confirm the choice against the turbo kit, fuel and tune planned for the engine before ordering.
Do these pistons require sleeving the block? No. Boost Logic designs these pistons to run in the OEM 5.2 liter V10 block without sleeves. That avoids the machining and cost of a sleeved block, although any engine build still needs the bores measured and prepared by the engine builder before the pistons are fitted.
How much power can the pistons handle? Boost Logic rates the forged pistons for power outputs above 2,000 wheel horsepower. Reaching that level depends on the rest of the build, including rods, turbochargers, fuel system, drivetrain and tuning, so the rating describes the headroom of the pistons rather than a figure the pistons deliver on their own.
What comes in the set? The set contains ten forged pistons, one for each cylinder of the V10, along with heavy-duty wrist pins and clips. Boost Logic does not list piston rings or connecting rods as included, and it sells optional Pro Mod wrist pins in C350 tool steel separately for builds that want a stronger pin.
Do they fit the first-generation Audi R8 V10? Boost Logic lists fitment as every Lamborghini Huracán and the 2017 and later Audi R8 5.2 liter, which is the 4S generation. First-generation R8 V10 engines are not listed, so owners of those cars should confirm fitment with Bulletproof Automotive before ordering a set.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
