Will the GESI Catted Downpipes for P552 fit my F-150?

They fit the 2017 to 2020 Ford F-150 with the second-generation 3.5L EcoBoost, in both 2WD and 4WD. The GESI Catted Downpipes for P552 are a direct replacement for the factory downpipes and bolt to the factory turbochargers, with no cutting or fabrication required.

Do the downpipes need a tune?

Active Autowerke does not list a tune as a requirement for these downpipes. It describes the largest horsepower and torque gains as coming when the downpipes are paired with tuning and supporting modifications, so owners chasing the full benefit should plan the downpipes and the tune together.

Will they cause a check engine light?

Active Autowerke states that the GESI converters will not set a catalyst efficiency check engine light. The converters are EPA registered and OBD2 compliant, the factory oxygen sensors are retained, and the catalysts reach operating efficiency within 9 seconds of startup.

Do they make the truck louder or add drone?

The downpipes bring out more turbo sound and a deeper exhaust tone. Active Autowerke describes the result as more aggressive without excessive drone. The final character of the truck also depends on which exhaust it runs behind them, factory or aftermarket cat-back, since both bolt up.

What is the difference between the GESI and AFlow versions?

Both use the same 3 inch mandrel-bent stainless downpipes and both are rated to 950 horsepower. The GESI version reaches operating efficiency within 9 seconds rather than 15, and its converters carry a heat rating of 1600F and above rather than 1500F, at a higher price.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

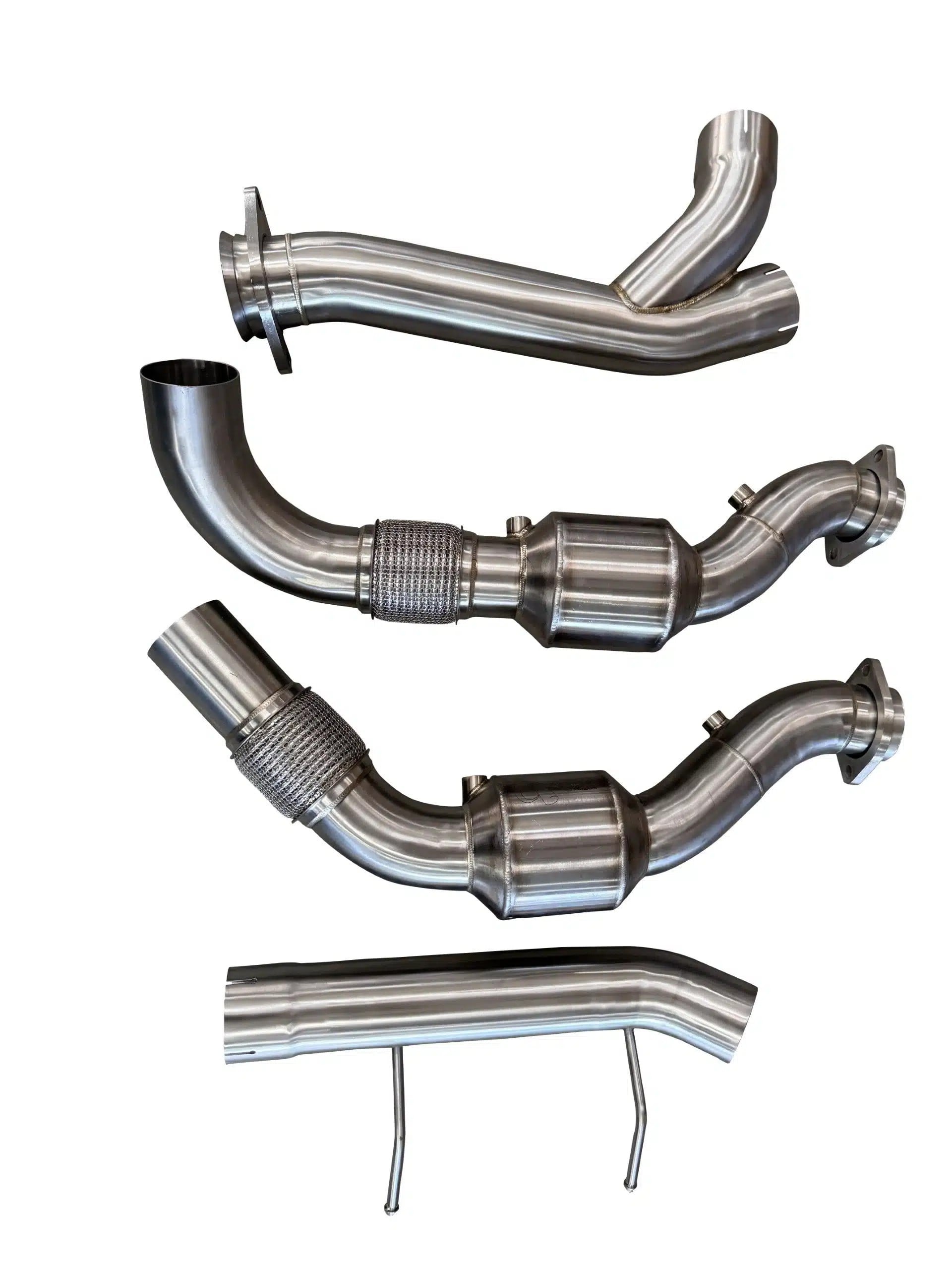

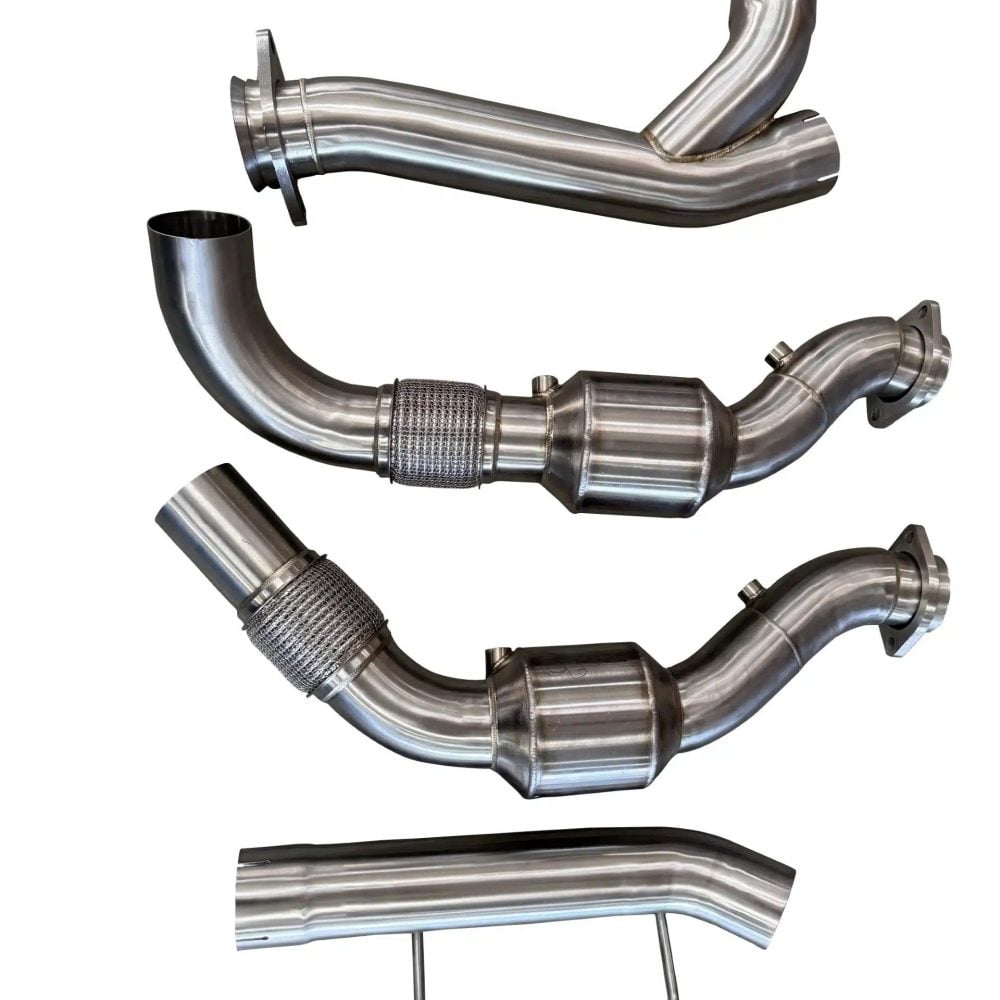

Active Autowerke GESI Catted Downpipes for P552 Ford F-150 3.5L EcoBoost

Active Autowerke’s GESI Catted Downpipes for P552 Ford F-150 3.5L EcoBoost swap the restrictive factory pair on the second-generation twin-turbo V6 for 3 inch mandrel-bent stainless, each run carrying a 5 inch GESI ultra high flow converter. Built for 2017 to 2020 trucks in 2WD and 4WD form, they let both turbos clear exhaust gas faster, which sharpens spool and throttle response. Active Autowerke designs and assembles them in Miami. The GESI pair is the one to choose for a truck that tows hard or carries a serious tune, since its converters are rated to 1600F and reach working temperature in 9 seconds; for a lighter-duty daily driver, the AFlow Catted Downpipes cost less.

Bolt-On and Go

Each downpipe meets its turbo at a CNC-cut flange for a leak-free seal, and an integrated flex section absorbs engine movement so the welds are not left carrying it. The factory oxygen sensors move straight across, and the outlets suit the stock exhaust or most aftermarket cat-backs, so the job needs standard tools rather than fabrication.

Features

Pair of 5 inch GESI ultra high flow converters, EPA registered and OBD2 compliant
Active Autowerke states they will not set a catalyst efficiency check engine light
Retains the factory oxygen sensors
CNC-cut turbo flanges and integrated flex sections
Works with the stock exhaust or aftermarket cat-back systems
Designed and assembled in Miami, Florida

Specifications

Tubing diameter: 3 in, mandrel bent
Converter diameter: 5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 950 hp
Heat rating: 1600F and above
Light-off time: Within 9 seconds of startup
Material: TIG welded 304 stainless steel

What’s Included

Catted downpipes with GESI converters (x2)

Applications

Ford F-150: P552 | 2017-2020 | 3.5L EcoBoost

Notes

The GESI Catted Downpipes for P552 fit 2WD and 4WD trucks with the second-generation 3.5L EcoBoost twin-turbo engine
Warranty is 1 year on the downpipes, 5 years or 50,000 miles on the converter shells and tube ends, and 2 years or 25,000 miles on the catalytic cores, for the original purchaser. A tune that adds more burble than stock voids the core warranty.
Also offered with Active AFlow converters as the AFlow Catted Downpipes for P552 Ford F-150

Frequently Asked Questions

Will the GESI Catted Downpipes for P552 fit my F-150? They fit the 2017 to 2020 Ford F-150 with the second-generation 3.5L EcoBoost, in both 2WD and 4WD. The GESI Catted Downpipes for P552 are a direct replacement for the factory downpipes and bolt to the factory turbochargers, with no cutting or fabrication required.
Do the downpipes need a tune? Active Autowerke does not list a tune as a requirement for these downpipes. It describes the largest horsepower and torque gains as coming when the downpipes are paired with tuning and supporting modifications, so owners chasing the full benefit should plan the downpipes and the tune together.
Will they cause a check engine light? Active Autowerke states that the GESI converters will not set a catalyst efficiency check engine light. The converters are EPA registered and OBD2 compliant, the factory oxygen sensors are retained, and the catalysts reach operating efficiency within 9 seconds of startup.
Do they make the truck louder or add drone? The downpipes bring out more turbo sound and a deeper exhaust tone. Active Autowerke describes the result as more aggressive without excessive drone. The final character of the truck also depends on which exhaust it runs behind them, factory or aftermarket cat-back, since both bolt up.
What is the difference between the GESI and AFlow versions? Both use the same 3 inch mandrel-bent stainless downpipes and both are rated to 950 horsepower. The GESI version reaches operating efficiency within 9 seconds rather than 15, and its converters carry a heat rating of 1600F and above rather than 1500F, at a higher price.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
