Which trucks do the AFlow Catted Downpipes for P552 fit?

The AFlow Catted Downpipes for P552 fit the 2017, 2018, 2019 and 2020 Ford F-150 with the second-generation 3.5L EcoBoost twin-turbo V6. Active Autowerke lists both 2WD and 4WD trucks, and the downpipes bolt to the factory turbochargers in place of the stock units.

Are these downpipes EPA compliant?

Yes. The Active AFlow converters are EPA registered and fully OBD2 compliant for 1996 and newer vehicles, and Active Autowerke sells this set as EPA compliant. Each downpipe keeps its own 5 inch converter, and the factory oxygen sensors stay in service.

Is a tune required with the AFlow downpipes?

Active Autowerke does not name a tune as a requirement. It does say the extra flow supports higher power levels, especially alongside tuning and other supporting modifications, so a truck that is already tuned or about to be will see the most return from the swap.

Can I install them myself?

The downpipes are a direct bolt-on with no cutting or fabrication, and Active Autowerke says most installs can be done with standard tools. Experienced owners can tackle the job at home, though working room around the turbos on an F-150 makes a lift or a shop the easier route.

Why choose AFlow over GESI?

Price is the main reason. Both sets share the same 3 inch stainless pipework and the same 950 horsepower rating. The AFlow converters take up to 15 seconds to reach working efficiency against 9 for the GESI version, and carry a 1500F heat rating against 1600F, which matters most on a truck that tows heavy loads.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke AFlow Catted Downpipes for P552 Ford F-150 3.5 EcoBoost

Active Autowerke’s AFlow Catted Downpipes for P552 Ford F-150 3.5 EcoBoost give the 2017 to 2020 twin-turbo V6 a freer path out of both turbochargers while keeping a 5 inch Active AFlow converter in each bank. The factory downpipes are one of the tightest points in the EcoBoost exhaust, and replacing them with 3 inch mandrel-bent stainless lets the turbos reach boost sooner. Active Autowerke designs and assembles the set in Miami. For a daily-driven or lightly modified truck this is the sensible buy: the AFlow converters carry the same 950 horsepower rating as the GESI Catted Downpipes at a markedly lower price, giving up only some light-off speed and heat margin.

Design and Performance

Smooth mandrel bends keep the 3 inch section at full diameter through every turn, and a flex section built into each pipe soaks up engine rock on the way to the exhaust. Active Autowerke cuts the turbo flanges on a CNC machine for a sealed joint, carries the factory oxygen sensors over unchanged, and quotes a deeper exhaust note with more turbo sound and no excessive drone.

Features

Pair of 5 inch Active AFlow super high output converters
EPA registered, OBD2 compliant converters on a 304 stainless metallic substrate
Active Autowerke states they will not set a catalyst efficiency check engine light
Factory oxygen sensors retained
Direct bolt-on replacement for the factory downpipes
Pairs with the stock exhaust or an aftermarket cat-back

Specifications

Tubing diameter: 3 in, mandrel bent
Converter diameter: 5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 950 hp
Heat rating: 1500F and above
Light-off time: Within 15 seconds of startup
Material: TIG welded 304 stainless steel

What’s Included

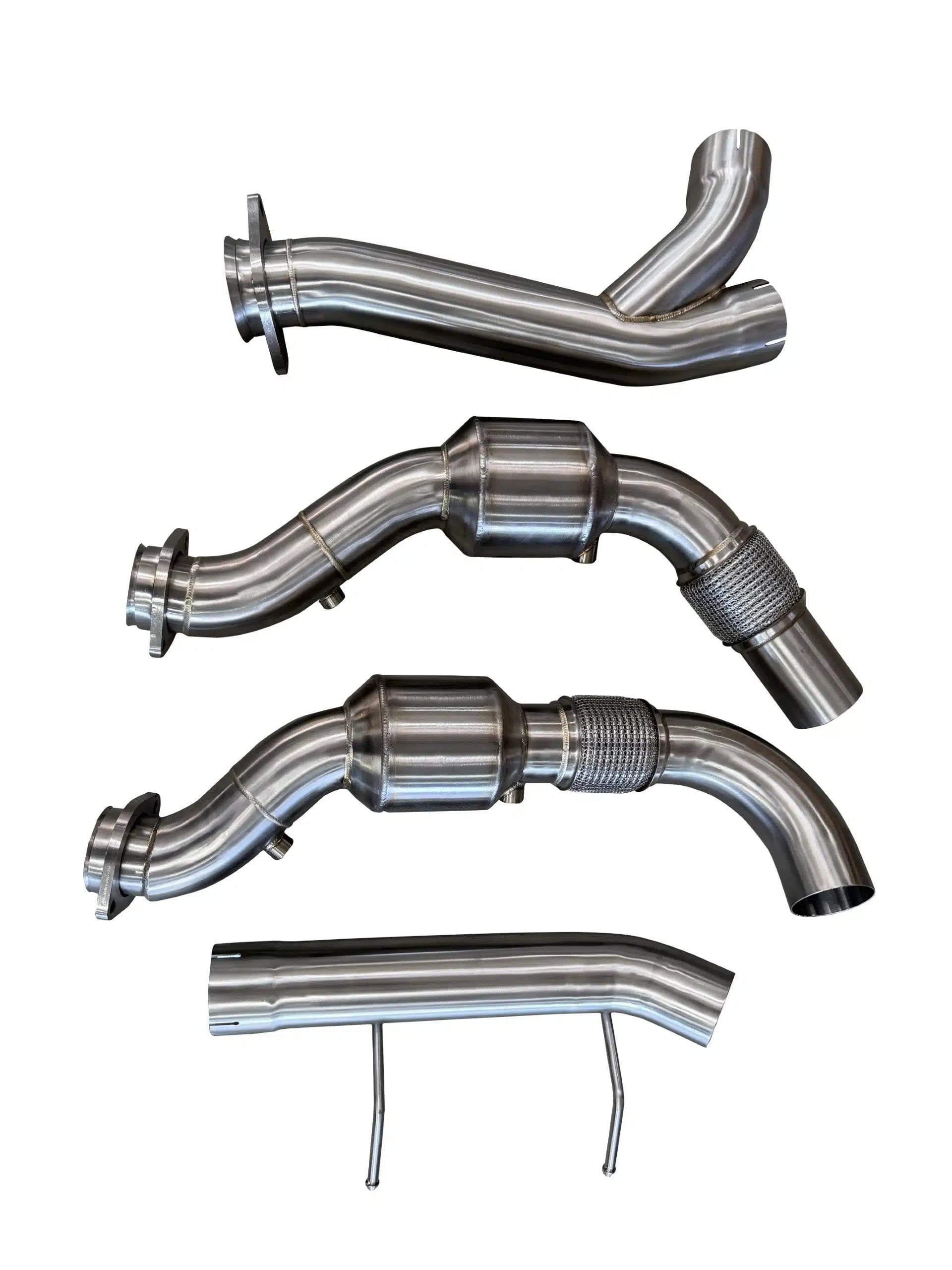

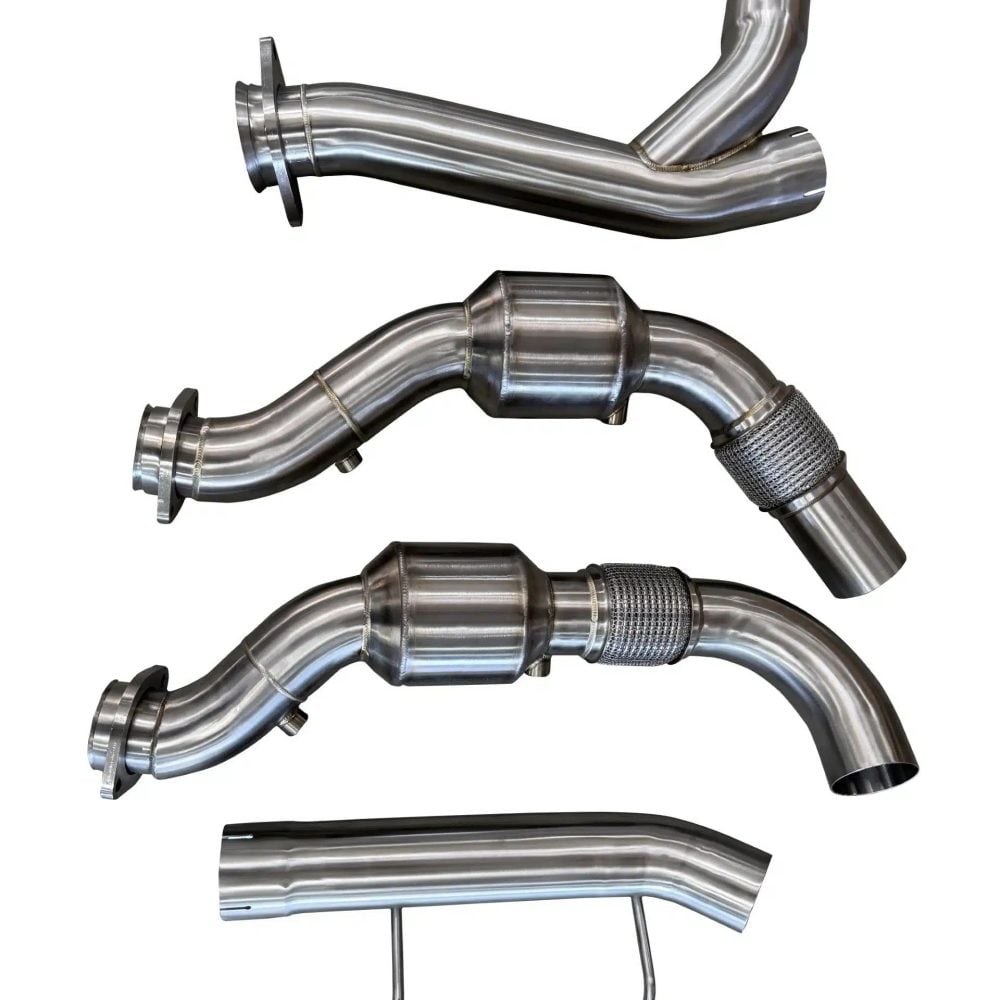

Catted downpipes with AFlow converters (x2)

Applications

Ford F-150: P552 | 2017-2020 | 3.5L EcoBoost

Notes

The AFlow Catted Downpipes for P552 suit 2WD and 4WD F-150s with the second-generation 3.5L EcoBoost
Active Autowerke covers the downpipes for 1 year, the converter shells and tube ends for 5 years or 50,000 miles, and the catalytic cores for 2 years or 25,000 miles, for the original purchaser only. Excessive burble from a tune voids the core warranty.
For quicker light-off and a 1600F heat rating, see the GESI Catted Downpipes for P552 Ford F-150

Frequently Asked Questions

Which trucks do the AFlow Catted Downpipes for P552 fit? The AFlow Catted Downpipes for P552 fit the 2017, 2018, 2019 and 2020 Ford F-150 with the second-generation 3.5L EcoBoost twin-turbo V6. Active Autowerke lists both 2WD and 4WD trucks, and the downpipes bolt to the factory turbochargers in place of the stock units.
Are these downpipes EPA compliant? Yes. The Active AFlow converters are EPA registered and fully OBD2 compliant for 1996 and newer vehicles, and Active Autowerke sells this set as EPA compliant. Each downpipe keeps its own 5 inch converter, and the factory oxygen sensors stay in service.
Is a tune required with the AFlow downpipes? Active Autowerke does not name a tune as a requirement. It does say the extra flow supports higher power levels, especially alongside tuning and other supporting modifications, so a truck that is already tuned or about to be will see the most return from the swap.
Can I install them myself? The downpipes are a direct bolt-on with no cutting or fabrication, and Active Autowerke says most installs can be done with standard tools. Experienced owners can tackle the job at home, though working room around the turbos on an F-150 makes a lift or a shop the easier route.
Why choose AFlow over GESI? Price is the main reason. Both sets share the same 3 inch stainless pipework and the same 950 horsepower rating. The AFlow converters take up to 15 seconds to reach working efficiency against 9 for the GESI version, and carry a 1500F heat rating against 1600F, which matters most on a truck that tows heavy loads.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
