Why choose the GESI Catted Downpipes for F97 over the AFlow version?

Headroom. The GESI Catted Downpipes for F97 / F98 BMW X3 M / X4 M carry converters rated for 500 to 850 horsepower, aimed at an S58 being built well past stock. The AFlow version uses the same pipes with converters rated up to 800 horsepower, at a lower price and with a two-year replacement guarantee.

Does an X3 M need a tune after installing catted downpipes?

No. Active Autowerke sells this set as needing no performance tune, and the GESI catalysts keep the downstream oxygen sensors in range on factory software. Owners planning a tune or larger turbos are the ones who gain most from the GESI rating, because the converters are sized for that power.

Will GESI cats cause a check engine light on the S58?

No. Active Autowerke states that the GESI converters in this set will not trigger a catalyst efficiency fault. The 400 cell metallic substrate reaches operating efficiency within 9 seconds of startup, and the converters are EPA registered and OBD2 compliant, so the onboard monitors keep reporting normally.

How hard is it to install downpipes on an X4 M?

It is a bolt-on job with no cutting or welding. Each downpipe clamps to its turbo with a cast stainless V-band, a flex joint takes up engine rock, and the outlet meets the factory exhaust at stock 70mm diameter. A lift makes the work far more manageable than ramps or jack stands.

Will these downpipes fit a European X3 M?

Active Autowerke confirms fitment on US-model F97 and F98 vehicles only and cannot guarantee it on vehicles built for other markets. Owners with an imported or non-US specification vehicle should contact Bulletproof Automotive before ordering so the exhaust layout can be checked.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

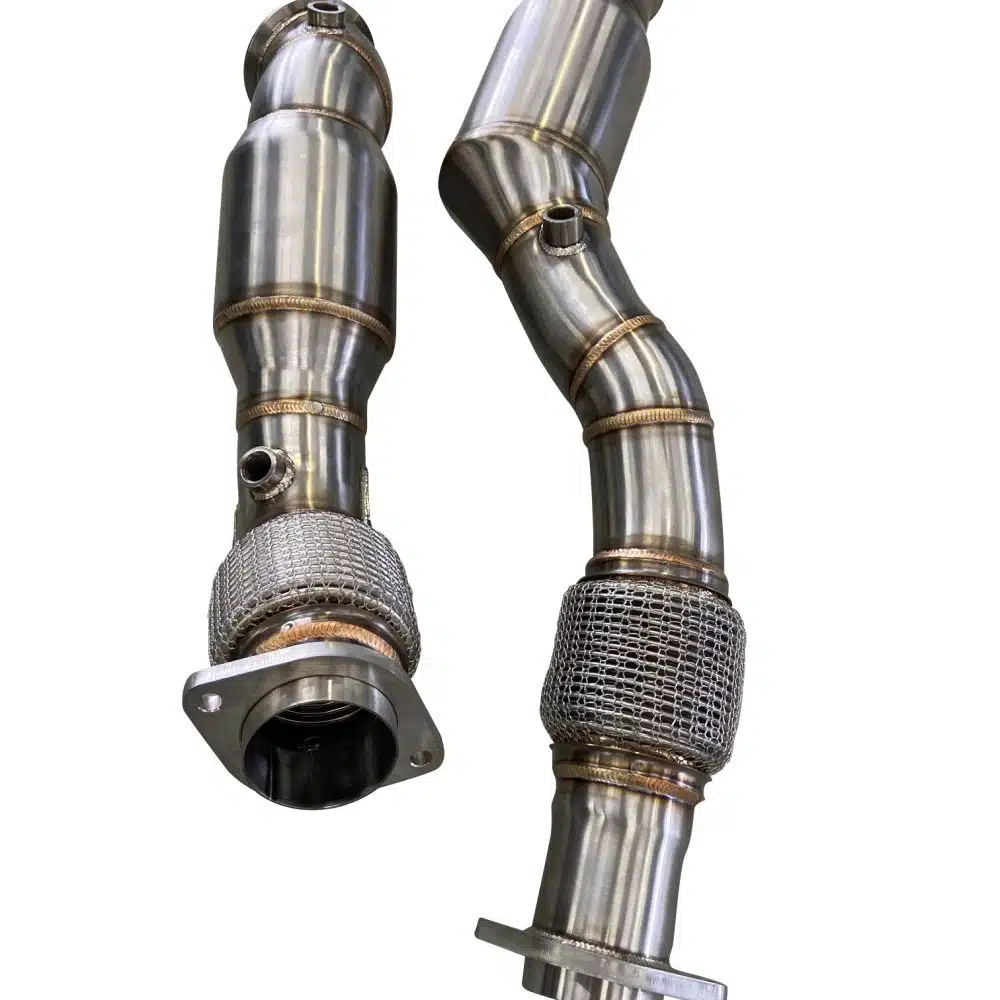

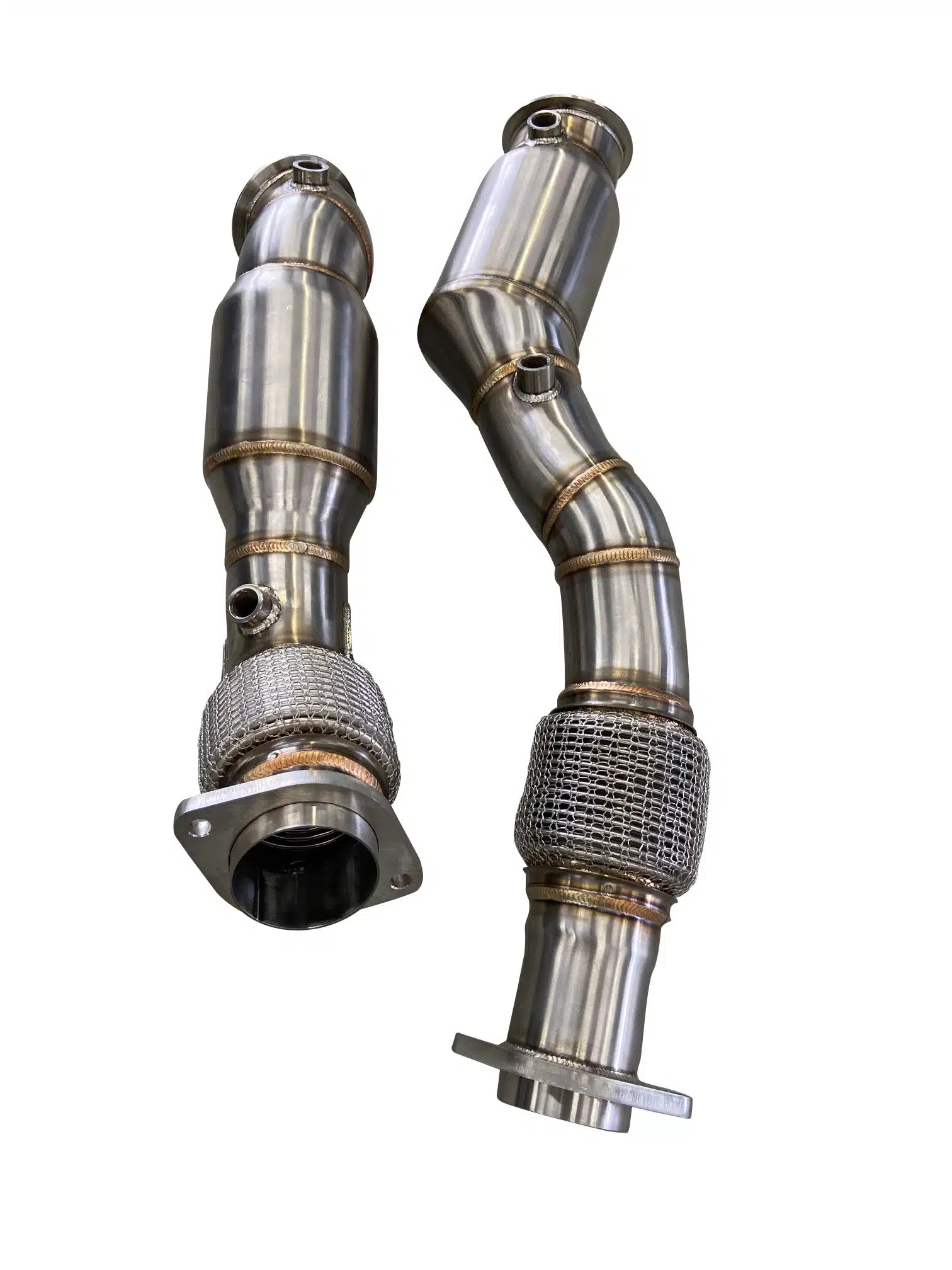

Active Autowerke GESI Catted Downpipes for F97 / F98 BMW X3 M / X4 M

Active Autowerke’s GESI Catted Downpipes for F97 / F98 BMW X3 M / X4 M are built for the owner who sees the S58 in a performance SUV as a starting point. Each bank gets a 3 inch run of TIG welded 304 stainless and a 4.5 inch GESI G-Sport UHO-series converter rated for engines making 500 to 850 horsepower, so the catalysts keep pace with turbo, fuel and tuning upgrades that would outgrow a milder converter. On a vehicle that will stay close to factory specification, the AFlow Catted Downpipes share this pipework, cost less and add a two-year replacement guarantee.

Construction

The downpipes follow the shortest, least-bent path the F97 and F98 underbody permits, which is how Active Autowerke cuts the back pressure that slows an S58 turbo during spool. Cast stainless V-band flanges locate each pipe at its turbo, braided stainless flex sections isolate engine movement, and the outlets meet the factory exhaust at stock diameter.

Features

Pair of GESI G-Sport UHO-series high flow converters
EPA registered and OBD2 compliant
Full 304 stainless converter construction, substrate included, furnace brazed to the mantle
GESI proprietary precious metal loading for reduced emissions at high flow
Converters withstand 1500F and reach efficiency within 9 seconds of startup
TIG welded in Miami, Florida
Bolt-on installation with no cutting or welding

Specifications

Piping diameter: 3 in (76mm)
Wall thickness: 1.5mm
Outlet diameter: 70mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: 500 to 850 hp

Applications

BMW X3 M: F97 | 2020-2024 | 3.0L S58
BMW X4 M: F98 | 2020-2025 | 3.0L S58

Notes

Active Autowerke confirms fitment on US-model vehicles only
The GESI Catted Downpipes for F97 connect to the factory mid-pipe or to the Active Autowerke Equal Length Mid-Pipe for F97 or Single Mid-Pipe for F97, with the Valved Axle-Back Exhaust for F97 / F98 completing the system
Shell and tube-end warranty runs 5 years or 50,000 miles and catalytic core warranty 2 years or 25,000 miles, original purchaser only. Excessive burble from a tune voids the core warranty.

Frequently Asked Questions

Why choose the GESI Catted Downpipes for F97 over the AFlow version? Headroom. The GESI Catted Downpipes for F97 / F98 BMW X3 M / X4 M carry converters rated for 500 to 850 horsepower, aimed at an S58 being built well past stock. The AFlow version uses the same pipes with converters rated up to 800 horsepower, at a lower price and with a two-year replacement guarantee.
Does an X3 M need a tune after installing catted downpipes? No. Active Autowerke sells this set as needing no performance tune, and the GESI catalysts keep the downstream oxygen sensors in range on factory software. Owners planning a tune or larger turbos are the ones who gain most from the GESI rating, because the converters are sized for that power.
Will GESI cats cause a check engine light on the S58? No. Active Autowerke states that the GESI converters in this set will not trigger a catalyst efficiency fault. The 400 cell metallic substrate reaches operating efficiency within 9 seconds of startup, and the converters are EPA registered and OBD2 compliant, so the onboard monitors keep reporting normally.
How hard is it to install downpipes on an X4 M? It is a bolt-on job with no cutting or welding. Each downpipe clamps to its turbo with a cast stainless V-band, a flex joint takes up engine rock, and the outlet meets the factory exhaust at stock 70mm diameter. A lift makes the work far more manageable than ramps or jack stands.
Will these downpipes fit a European X3 M? Active Autowerke confirms fitment on US-model F97 and F98 vehicles only and cannot guarantee it on vehicles built for other markets. Owners with an imported or non-US specification vehicle should contact Bulletproof Automotive before ordering so the exhaust layout can be checked.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
