Do the AFlow Catted Downpipes for F97 need a tune?

No. Active Autowerke sells the AFlow Catted Downpipes for F97 / F98 BMW X3 M / X4 M as needing no performance tune, and its two-year catalyst efficiency guarantee holds on factory software. A tune can draw more from the freer flow later, but the vehicle runs correctly without one.

Will these downpipes set a check engine light on an X3 M?

Active Autowerke guarantees that its AFlow converters will not set a catalyst efficiency fault during the first two years of ownership and replaces them in full if they do. The 400 cell substrate reaches working efficiency within 9 seconds of a cold start, which keeps the downstream sensors satisfied.

Are these the same downpipes as the G80 M3 set?

No. The X3 M and X4 M use the same S58 engine family as the G80 M3, but the engine sits in a different chassis, so Active Autowerke builds a separate downpipe for the F97 and F98. The construction, pipe diameter and converters match the M3 set.

Should I choose AFlow or GESI converters for my X3 M?

For a stock or lightly modified vehicle, AFlow. The AFlow converters are rated for up to 800 horsepower and carry a two-year replacement guarantee. The GESI version costs more and uses converters rated from 500 to 850 horsepower, which suits an S58 being built for much more power than BMW gave it.

Do they fit European X3 M and X4 M models?

Active Autowerke confirms fitment on US-model vehicles only and cannot guarantee it on vehicles built for other markets. Owners of an imported or European-specification F97 or F98 should contact Bulletproof Automotive before ordering, so the exhaust layout can be checked against the US-model part.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke AFlow Catted Downpipes for F97 / F98 BMW X3 M / X4 M

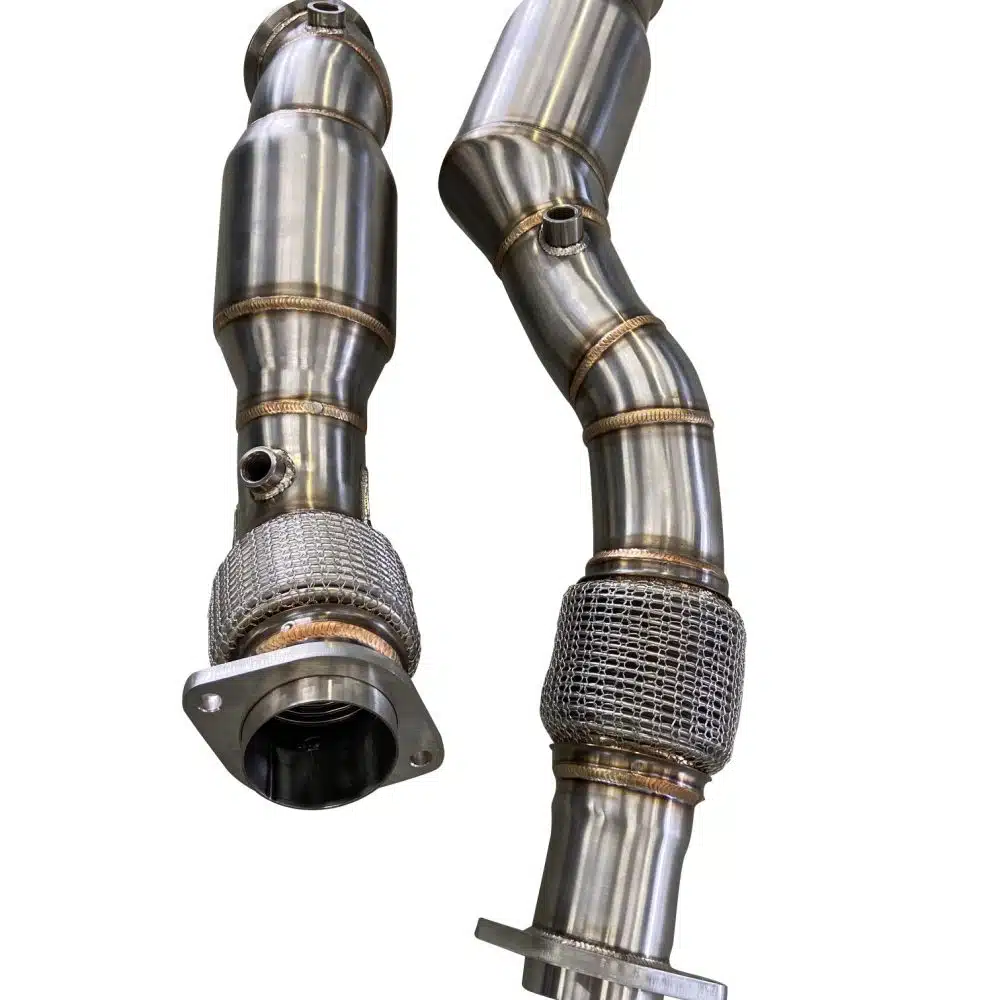

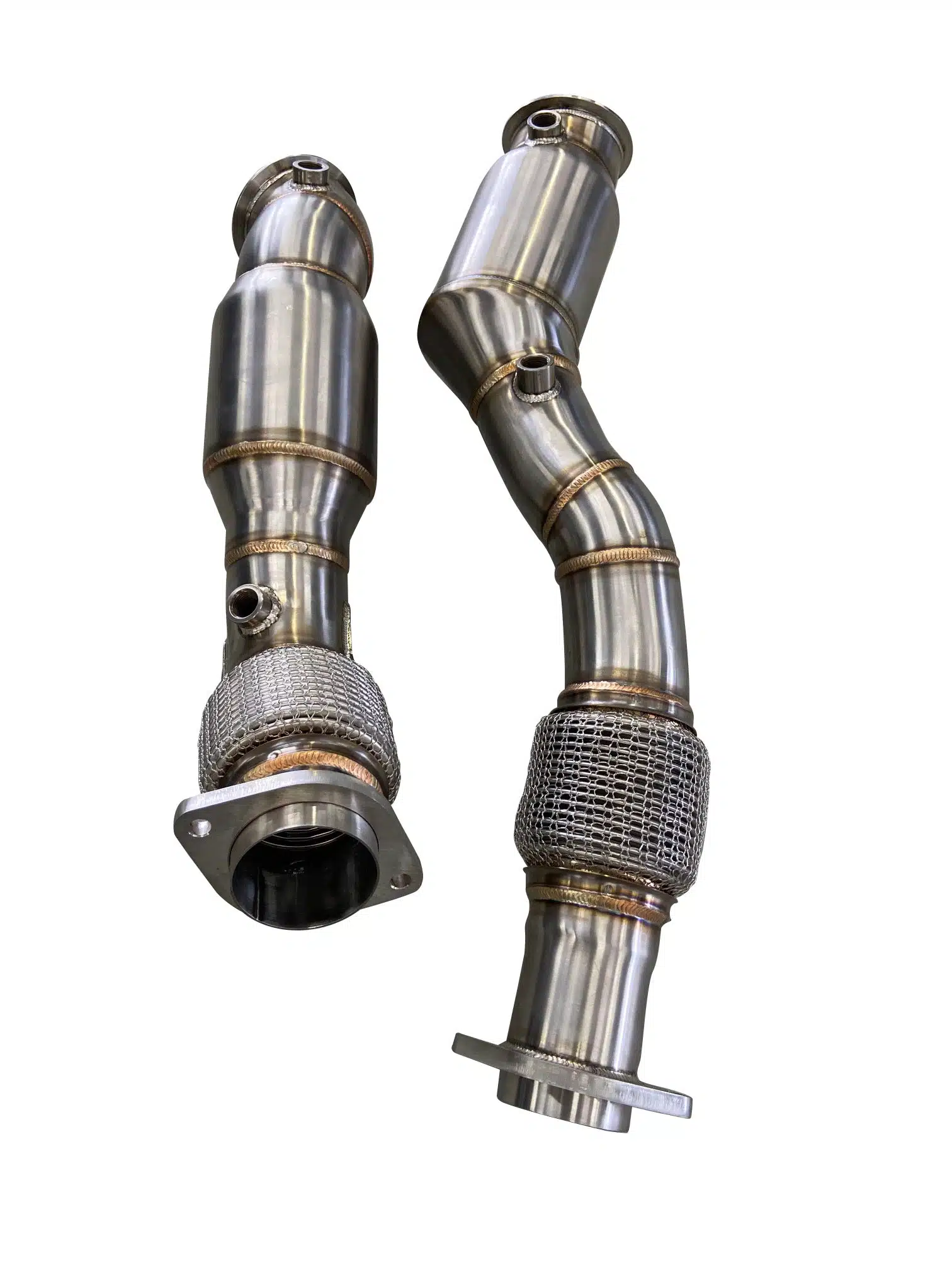

Active Autowerke’s AFlow Catted Downpipes for F97 / F98 BMW X3 M / X4 M give the twin-turbo S58 in these M sport activity vehicles a freer exit, with 3 inch stainless pipes and an Active AFlow converter in each bank. The X3 M and X4 M share their engine with the G80 M3 but carry it in a taller, heavier body, and faster turbo response is what Active Autowerke designed these pipes to deliver. For a daily-driven X3 M on factory software, this is the sensible choice: no tune is needed, the converters carry a two-year guarantee against catalyst efficiency codes, and they cost less than the GESI Catted Downpipes.

Design and Performance

Active Autowerke chose a large-bore pipe with as few bends as packaging allows, so exhaust gas leaves each turbine housing against less back pressure and the turbos spool sooner. A cast stainless V-band seals each pipe to its turbo, stainless flex joints take up engine movement, and the outlets never drop below factory diameter.

Features

Pair of Active AFlow high flow catalytic converters
EPA registered and OBD2 compliant converters
Two-year guarantee against catalyst efficiency check engine lights, with full replacement
304 stainless substrate furnace brazed to the converter mantle
Converters rated to 1500F and efficient within 9 seconds of startup
TIG welded 304 stainless steel, made in Miami, Florida
Bolt-on installation with no cutting or welding

Specifications

Piping diameter: 3 in (76mm)
Wall thickness: 1.5mm
Outlet diameter: 70mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 800 hp

Applications

BMW X3 M: F97 | 2020-2024 | 3.0L S58
BMW X4 M: F98 | 2020-2025 | 3.0L S58

Notes

Active Autowerke confirms fitment on US-model vehicles only
The AFlow Catted Downpipes for F97 meet the factory mid-pipe or the Active Autowerke Equal Length Mid-Pipe for F97 and Single Mid-Pipe for F97, and pair with the Valved Axle-Back Exhaust for F97 / F98
Shells and tube ends are warranted for 5 years or 50,000 miles and the catalytic cores for 2 years or 25,000 miles, to the original purchaser. Tuning for more burble than stock voids the warranty, since it physically destroys the core.

Frequently Asked Questions

Do the AFlow Catted Downpipes for F97 need a tune? No. Active Autowerke sells the AFlow Catted Downpipes for F97 / F98 BMW X3 M / X4 M as needing no performance tune, and its two-year catalyst efficiency guarantee holds on factory software. A tune can draw more from the freer flow later, but the vehicle runs correctly without one.
Will these downpipes set a check engine light on an X3 M? Active Autowerke guarantees that its AFlow converters will not set a catalyst efficiency fault during the first two years of ownership and replaces them in full if they do. The 400 cell substrate reaches working efficiency within 9 seconds of a cold start, which keeps the downstream sensors satisfied.
Are these the same downpipes as the G80 M3 set? No. The X3 M and X4 M use the same S58 engine family as the G80 M3, but the engine sits in a different chassis, so Active Autowerke builds a separate downpipe for the F97 and F98. The construction, pipe diameter and converters match the M3 set.
Should I choose AFlow or GESI converters for my X3 M? For a stock or lightly modified vehicle, AFlow. The AFlow converters are rated for up to 800 horsepower and carry a two-year replacement guarantee. The GESI version costs more and uses converters rated from 500 to 850 horsepower, which suits an S58 being built for much more power than BMW gave it.
Do they fit European X3 M and X4 M models? Active Autowerke confirms fitment on US-model vehicles only and cannot guarantee it on vehicles built for other markets. Owners of an imported or European-specification F97 or F98 should contact Bulletproof Automotive before ordering, so the exhaust layout can be checked against the US-model part.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
