When are the GESI Catted Downpipes for F80 worth the extra cost?

When the S55 is headed past 500 horsepower. The GESI Catted Downpipes for F80 / F82 BMW M3 / M4 and F87 M2 Competition use converters rated from 500 to 850 horsepower, while the AFlow version is rated up to 500. On a stock or lightly tuned car, the AFlow set covers the output for less money.

Will GESI catted downpipes set a check engine light on an S55?

No. Active Autowerke states that the GESI converters in this set will not trigger a catalyst efficiency fault. The 400 cell metallic substrate reaches working efficiency within 9 seconds of startup, and GESI registers the converters with the EPA as OBD2 compliant.

Do I need a tune to run these downpipes?

No. Active Autowerke sells the set as needing no performance tune, and the car runs on factory software with the converters in place. Most owners who choose the GESI version do plan a tune or turbo upgrade, because that is when the higher converter rating starts to pay for itself.

Can the factory oxygen sensor heat shield be reused?

Yes. Active Autowerke designed these downpipes to accept the original oxygen sensor heat shield, so the engine bay looks stock once the job is done. The shield transfers from the factory downpipes during installation, which is a bolt-on job with no cutting or welding.

Do they fit the standard F87 M2?

No. The standard F87 M2 uses the single-turbo N55 engine and needs a different downpipe, which Active Autowerke sells separately. This set fits the twin-turbo S55 in the F87 M2 Competition, the F80 M3 and the F82 M4, exactly as Active Autowerke lists them.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

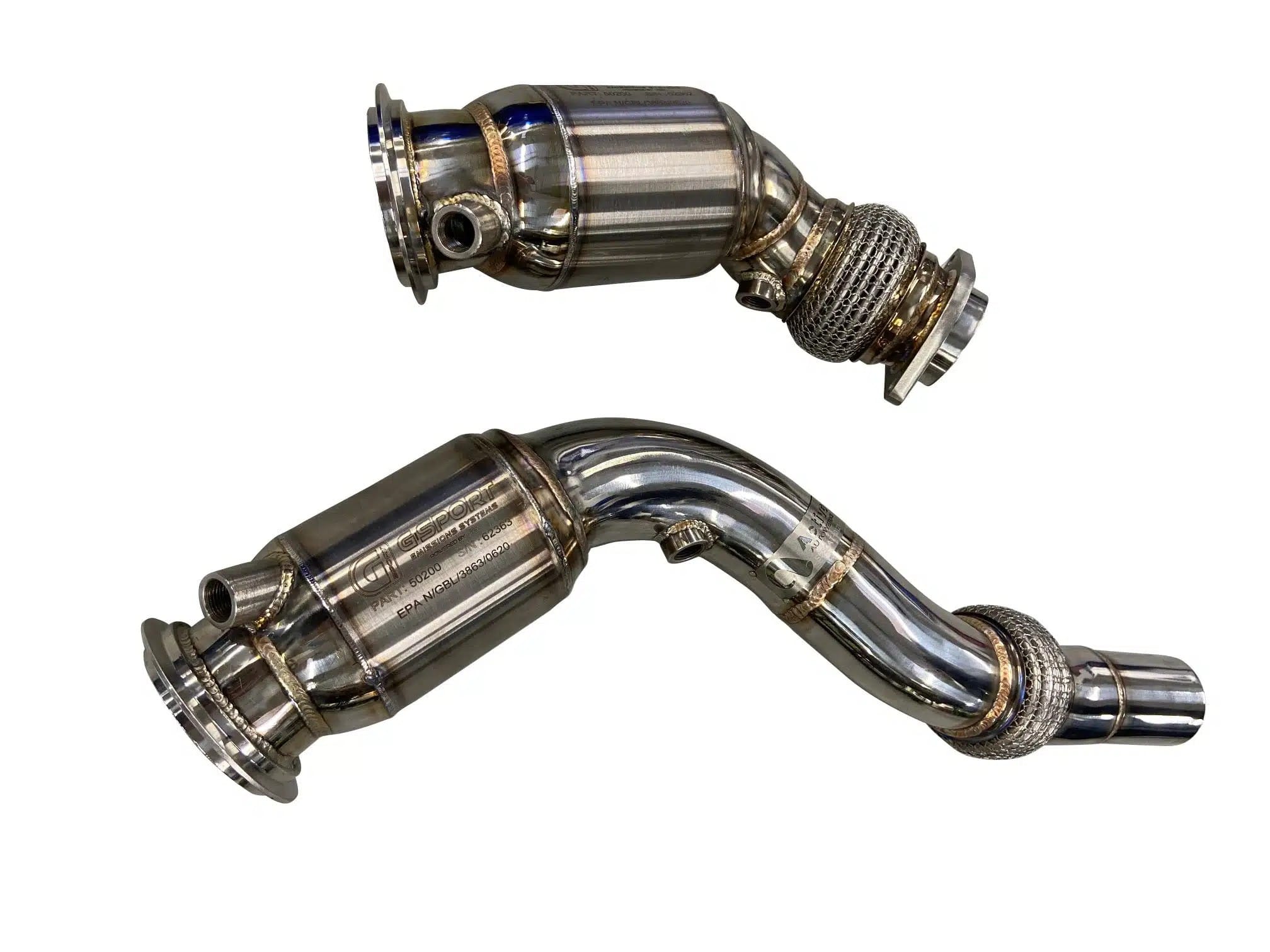

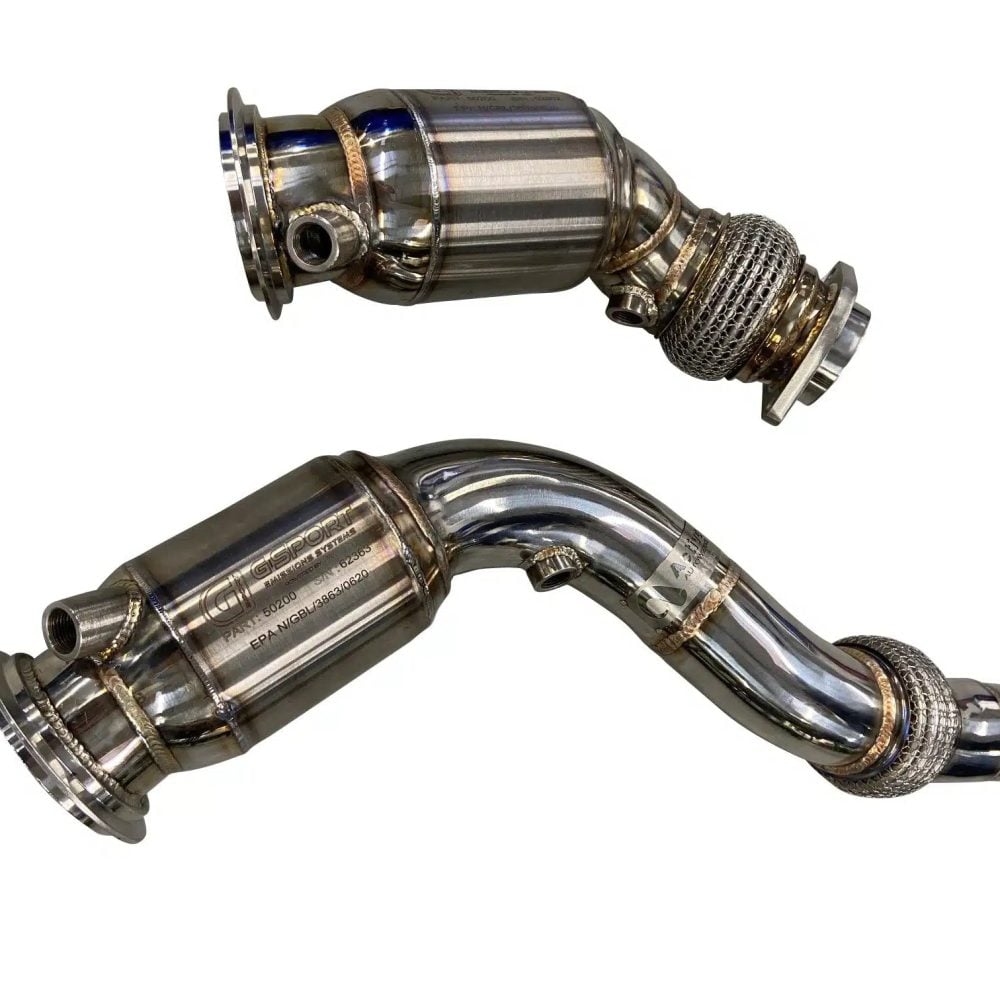

Active Autowerke GESI Catted Downpipes for F80 / F82 BMW M3 / M4 and F87 M2 Competition

Active Autowerke’s GESI Catted Downpipes for F80 / F82 BMW M3 / M4 and F87 M2 Competition carry second-generation GESI G-Sport HO-series converters, 4 inches across and rated for 500 to 850 horsepower, in a TIG welded 304 stainless downpipe made in Miami. That rating begins where the AFlow converters stop. An S55 running larger turbos, ethanol blends or an aggressive tune can exceed 500 horsepower, and at that point a converter sized for stock output becomes the bottleneck. For an M3, M4 or M2 Competition kept near factory power, the AFlow Catted Downpipes cost less and do the job; this set is for the S55 that is still being developed.

Features

Pair of GESI G-Sport HO-series Gen 2 high flow catalytic converters
EPA registered and OBD2 compliant
Accepts the factory oxygen sensor heat shield, so the engine bay keeps its stock appearance
Full 304 stainless converters, substrate furnace brazed to the mantle
GESI proprietary precious metal loading for reduced emissions
Cast stainless upper V-band flanges and TIG welded 304 stainless construction
Bolt-on installation with no cutting, welding or tune required
Made in Miami, Florida

Specifications

Converter diameter: 4 in
Catalyst cell density: 400 cpsi
Rated output: 500 to 850 hp
Heat rating: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

BMW M2 Competition: F87 | 2019-2021 | 3.0L S55
BMW M3: F80 | 2015-2018 | 3.0L S55
BMW M4: F82 | 2015-2020 | 3.0L S55

Notes

The GESI Catted Downpipes for F80 / F82 BMW M3 / M4 and F87 M2 Competition connect to the factory mid-pipe or to the Active Autowerke Equal Length Mid-Pipe for F80 / F82, Single Mid-Pipe for F80 / F82, Equal Length Mid-Pipe for F87 and Single Mid-Pipe for F87
For a complete system, see the Equal Length Exhaust Bundle for F80 / F82 and Equal Length Exhaust Bundle for F87
Shell and tube-end warranty is 5 years or 50,000 miles; catalytic core warranty is 2 years or 25,000 miles, original purchaser only. Excess burble from a tune voids it, since that physically destroys the core.

Frequently Asked Questions

When are the GESI Catted Downpipes for F80 worth the extra cost? When the S55 is headed past 500 horsepower. The GESI Catted Downpipes for F80 / F82 BMW M3 / M4 and F87 M2 Competition use converters rated from 500 to 850 horsepower, while the AFlow version is rated up to 500. On a stock or lightly tuned car, the AFlow set covers the output for less money.
Will GESI catted downpipes set a check engine light on an S55? No. Active Autowerke states that the GESI converters in this set will not trigger a catalyst efficiency fault. The 400 cell metallic substrate reaches working efficiency within 9 seconds of startup, and GESI registers the converters with the EPA as OBD2 compliant.
Do I need a tune to run these downpipes? No. Active Autowerke sells the set as needing no performance tune, and the car runs on factory software with the converters in place. Most owners who choose the GESI version do plan a tune or turbo upgrade, because that is when the higher converter rating starts to pay for itself.
Can the factory oxygen sensor heat shield be reused? Yes. Active Autowerke designed these downpipes to accept the original oxygen sensor heat shield, so the engine bay looks stock once the job is done. The shield transfers from the factory downpipes during installation, which is a bolt-on job with no cutting or welding.
Do they fit the standard F87 M2? No. The standard F87 M2 uses the single-turbo N55 engine and needs a different downpipe, which Active Autowerke sells separately. This set fits the twin-turbo S55 in the F87 M2 Competition, the F80 M3 and the F82 M4, exactly as Active Autowerke lists them.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
