Does the AFlow Catted Downpipe for A90 require a tune?

No. Active Autowerke states that the AFlow Catted Downpipe for A90 needs no performance tune, and its 18 whp result with the company exhaust was recorded on the stock tune. Software can extract more from the larger pipe, but the downpipe and its catalyst guarantee do not depend on it.

Will it throw a check engine light on the Supra?

No, not for catalyst efficiency, according to Active Autowerke, which promises full replacement of the converter within the first two years if one appears. Light-off takes under 9 seconds from a cold start, and the 400 cell metallic core keeps the rear oxygen sensor reporting normal catalyst activity.

How much power does the downpipe add?

Active Autowerke measured 18 wheel horsepower over stock on a Supra MKV fitted with this catted downpipe and its Signature exhaust, both on the stock tune. That figure covers the pair rather than the downpipe alone, so results with a different exhaust will vary.

What is the difference between the AFlow and GESI Supra downpipes?

They share the same 4.5 inch stainless pipework and 80mm outlet. The AFlow version uses an Active AFlow converter rated up to 800 horsepower and carries the two-year replacement guarantee. The GESI version uses a GESI G-Sport UHO converter rated from 500 to 850 horsepower, suited to heavily built B58 engines, at a higher price.

Is the gasket included?

Yes. Active Autowerke includes the turbo flange gasket and installs it in the downpipe flange before shipping, because some customers damaged loose gaskets while fitting the part. The downpipe then bolts to the turbo with its cast stainless V-band and meets the factory exhaust with no cutting or welding.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

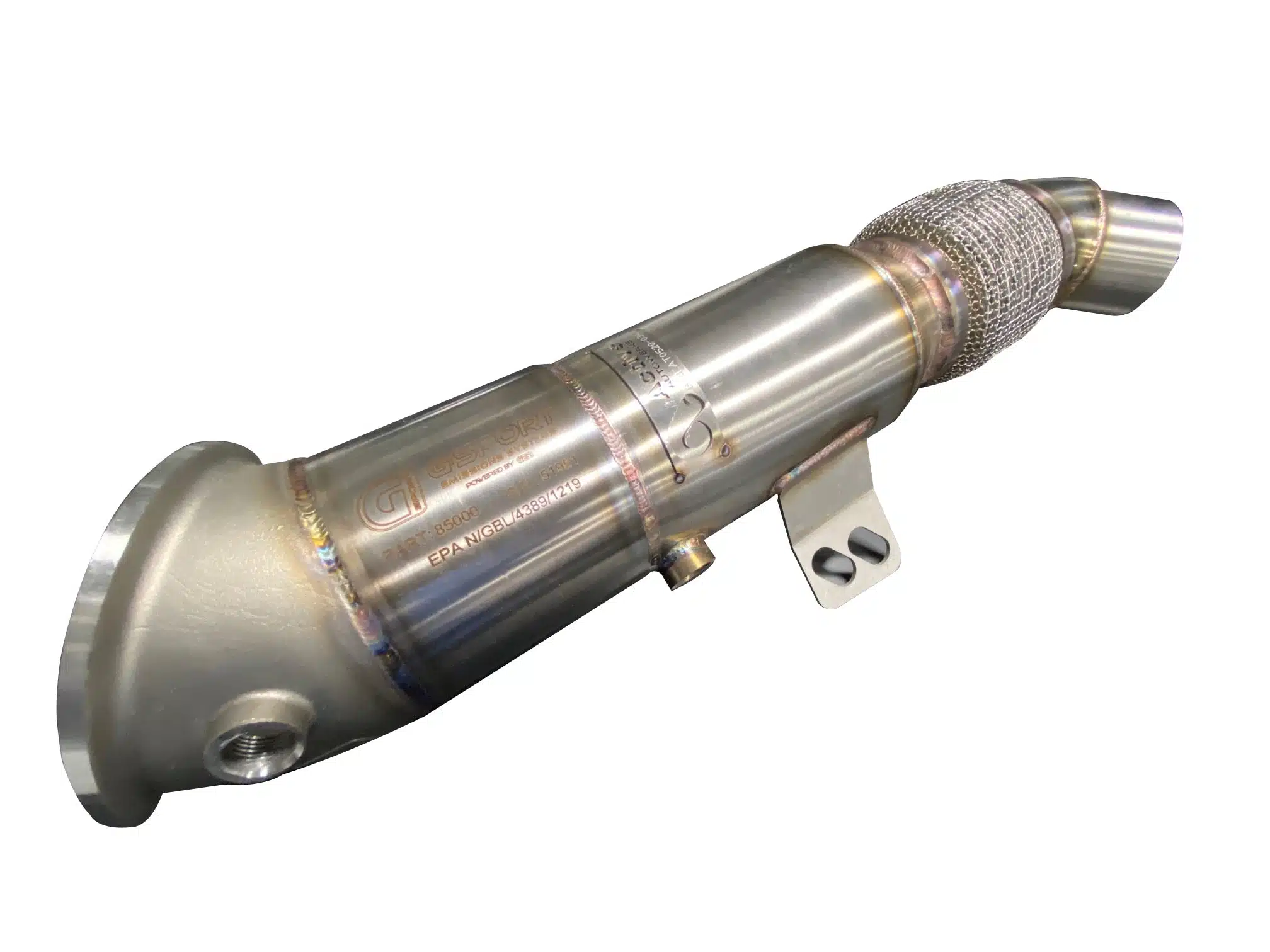

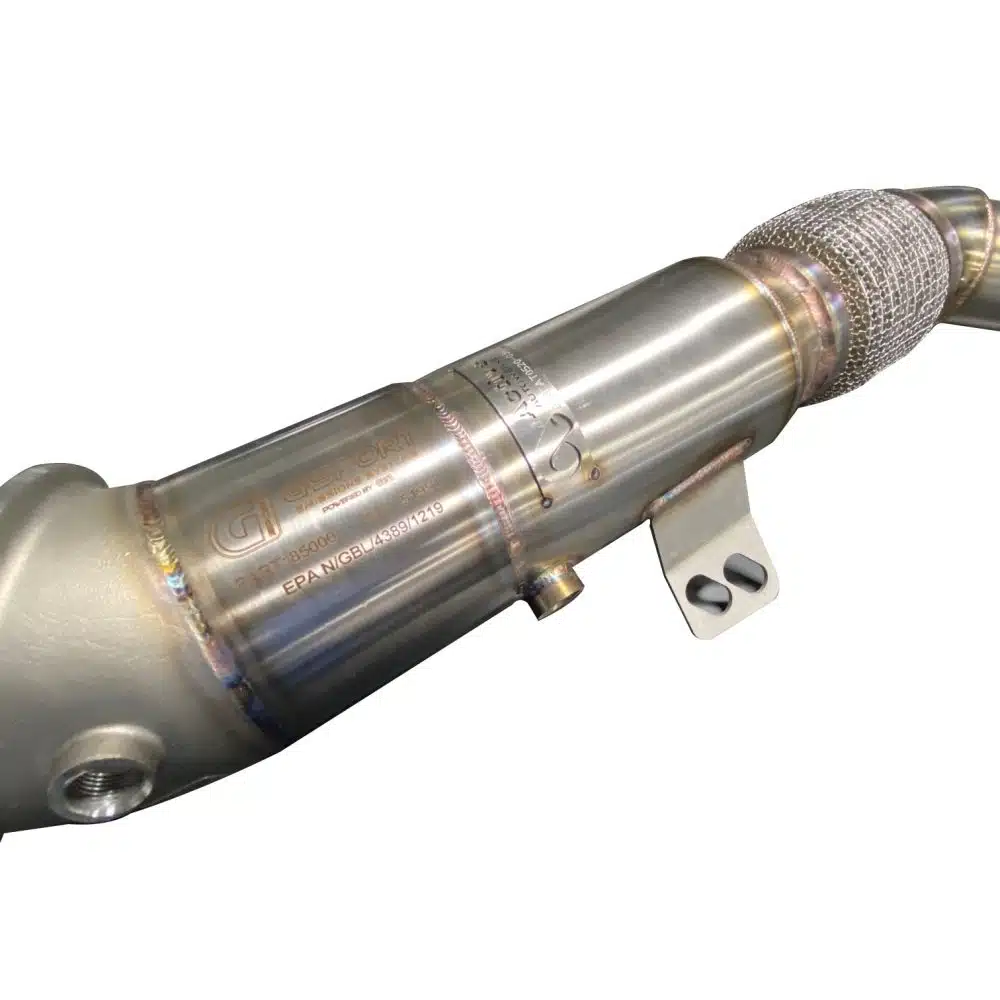

Active Autowerke AFlow Catted Downpipe for A90 Toyota GR Supra 3.0

Active Autowerke’s AFlow Catted Downpipe for A90 Toyota GR Supra 3.0 opens the B58 exhaust exit to 4.5 inches right behind the turbo, then steps down through a 3.5 inch stainless flex section to meet the factory system at its stock 80mm, never narrower. A 4.5 inch Active AFlow converter rated up to 800 horsepower keeps a catalyst in place, and Active Autowerke backs it with two years of full replacement against catalyst efficiency codes. Paired with the company exhaust on the stock tune it recorded an 18 whp gain, which makes it the natural first step for a Supra owner who wants response without committing to software; the GESI Catted Downpipe for A90 suits builds pushing much harder.

Design and Performance

Toyota and BMW co-developed the fifth-generation Supra around the B58 straight six, so the A90 inherits a factory downpipe Active Autowerke found restrictive enough to slow spool. The fix was a large-bore pipe with the fewest bends possible and a converter of matching diameter.

Features

Active AFlow high flow converter on a 304 stainless substrate furnace brazed to the mantle
EPA registered and OBD2 compliant converter
Two-year full replacement guarantee against catalyst efficiency check engine lights
Cast stainless upper V-band and stainless flex joint
Turbo flange gasket included and pre-installed in the downpipe flange
No performance tune needed, and no cutting or welding
TIG welded 304 stainless steel, made in Miami, Florida

Specifications

Piping diameter: 4.5 in at the turbo, tapering to 3.5 in
Outlet diameter: 80mm
Wall thickness: 1.5mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 800 hp
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

Toyota GR Supra: A90 | 2020-present | 3.0L B58

Notes

Active Autowerke recorded the 18 whp gain with the AFlow Catted Downpipe for A90 and its Signature exhaust fitted to a Supra MKV on the stock tune
Pairs with the Active Autowerke Performance Cat-Back Exhaust for A90 and Charge Pipe for A90 GR Supra 3.0
Warranty is 5 years or 50,000 miles on the shell and tube ends and 2 years or 25,000 miles on the catalytic core, to the original purchaser, and is void on a car tuned for more burble than stock

Frequently Asked Questions

Does the AFlow Catted Downpipe for A90 require a tune? No. Active Autowerke states that the AFlow Catted Downpipe for A90 needs no performance tune, and its 18 whp result with the company exhaust was recorded on the stock tune. Software can extract more from the larger pipe, but the downpipe and its catalyst guarantee do not depend on it.
Will it throw a check engine light on the Supra? No, not for catalyst efficiency, according to Active Autowerke, which promises full replacement of the converter within the first two years if one appears. Light-off takes under 9 seconds from a cold start, and the 400 cell metallic core keeps the rear oxygen sensor reporting normal catalyst activity.
How much power does the downpipe add? Active Autowerke measured 18 wheel horsepower over stock on a Supra MKV fitted with this catted downpipe and its Signature exhaust, both on the stock tune. That figure covers the pair rather than the downpipe alone, so results with a different exhaust will vary.
What is the difference between the AFlow and GESI Supra downpipes? They share the same 4.5 inch stainless pipework and 80mm outlet. The AFlow version uses an Active AFlow converter rated up to 800 horsepower and carries the two-year replacement guarantee. The GESI version uses a GESI G-Sport UHO converter rated from 500 to 850 horsepower, suited to heavily built B58 engines, at a higher price.
Is the gasket included? Yes. Active Autowerke includes the turbo flange gasket and installs it in the downpipe flange before shipping, because some customers damaged loose gaskets while fitting the part. The downpipe then bolts to the turbo with its cast stainless V-band and meets the factory exhaust with no cutting or welding.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
