Does the GrimmSpeed cold air intake for ZC6 Subaru BRZ models need a tune?

No. GrimmSpeed designed the cold air intake for ZC6 Subaru BRZ, ZN6 FR-S and 86 models to run on the factory tune, and its testing showed air-fuel ratios nearly identical to stock. Owners who do tune can use Open Flash Tablet v4 maps, which were refined with this intake fitted.

How much power does it add?

GrimmSpeed measured peak gains of 6 whp and 3 to 4 ft-lb in the torque dip on a Dyno Dynamics dyno, which reads lower than a Dynojet. A second test on a Dynojet showed a 10 whp gain. Both results were bolt-on figures with no tuning.

Does the front bumper have to come off for installation?

No. GrimmSpeed made bumper-on installation a design requirement after other intakes it tried left the bumper fitting poorly afterward. Installation takes about 30 minutes using the GrimmSpeed written and video guides, and the kit includes the PCV hose extension and clamps needed.

Are any factory parts reused?

Yes. The GrimmSpeed intake reuses the rubber isolators and sleeves from the factory airbox, and those pieces are not included in the kit. Set them aside when the stock airbox comes out so the new airbox can be mounted on them.

Does it fit the 2022 and newer BRZ or GR86?

No. GrimmSpeed lists this intake for the first-generation BRZ, Scion FR-S and Toyota 86 only, all with the 2.0L FA20. The second-generation ZD8 BRZ and ZN8 GR86 use the larger 2.4L FA24 and are not part of the GrimmSpeed fitment for this intake.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

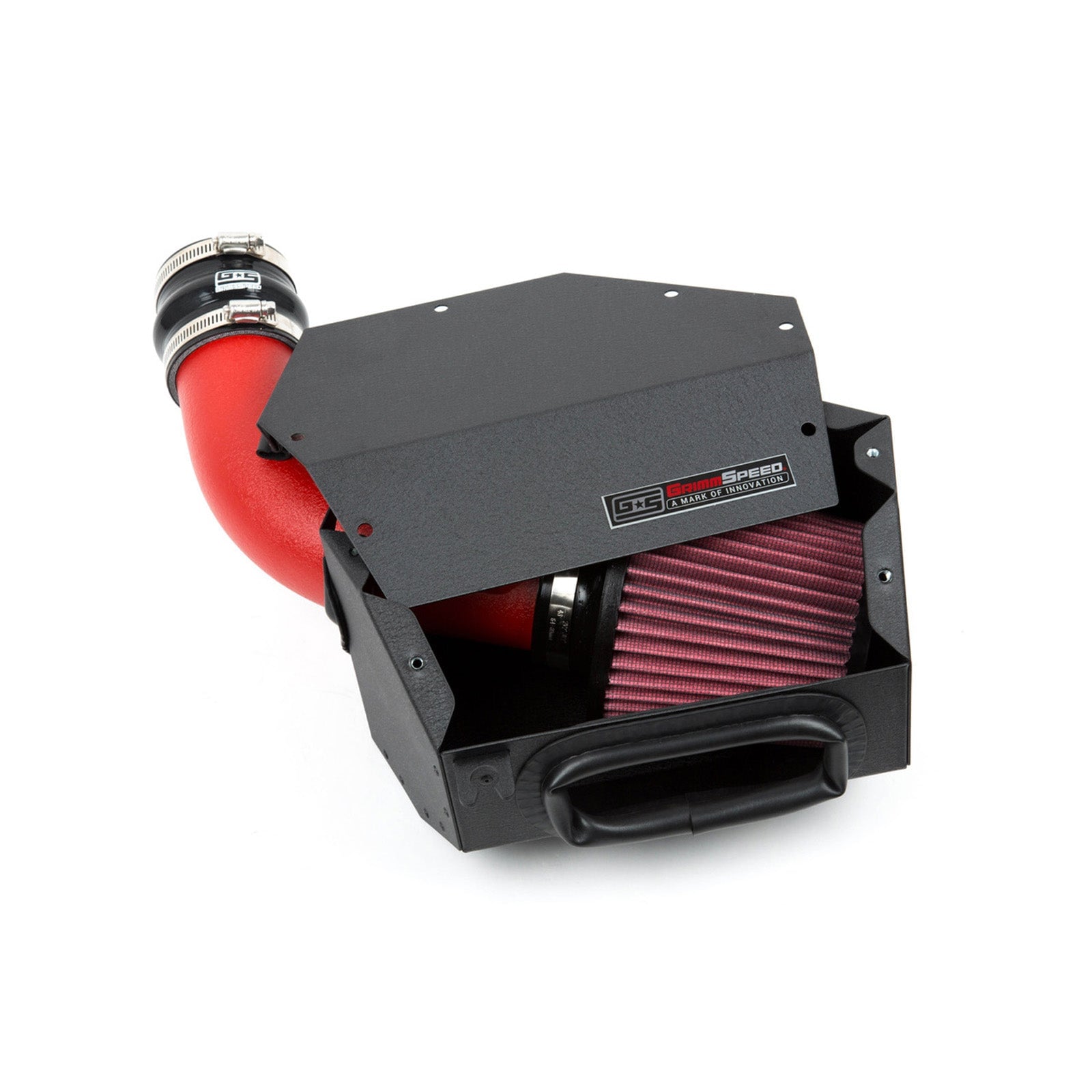

GrimmSpeed Cold Air Intake for ZC6 Subaru BRZ and ZN6 Scion FR-S / Toyota 86

The GrimmSpeed cold air intake for ZC6 Subaru BRZ, Scion FR-S and Toyota 86 owners is one of the few intakes for the naturally aspirated FA20 designed from the start to run safely on the factory tune, holding the air-fuel ratio close to stock while adding power across the rev range. It installs in about 30 minutes without pulling the bumper, a requirement GrimmSpeed set after rival intakes left its test car with a bumper that never sat right. For an owner who wants a gain without reflashing the ECU, it is a sound first modification.

Development and Testing

GrimmSpeed mapped the engine bay in 3D with a FARO arm, then used that envelope to remove the 90 degree bend just ahead of the airbox, which cut resistance and helped the MAF read accurately. The MAF sits inside the airbox, clear of header heat. With an outside tuner, GrimmSpeed tested 26 intake configurations across more than 140 dyno pulls before settling on the production design.

Features

Power and torque gains through the whole rev range, including the FA20 torque dip
Riveted, laser cut airbox with threaded inserts and wrinkle black powder coat
6061 MAF flanges and air straightener TIG welded to custom bent tubing
Made in the USA

What’s Included

Intake tube
High-flow dry filter
Hump hose connector
Airbox assembly
Hose clamps (x3)
PCV hose extension
PCV clamp
MAF flange screws (x2)
Rubber sealing strip (3 ft)
Noise generator blanking plug

Applications

Scion FR-S: ZN6 | 2013-2016 | 2.0L FA20
Subaru BRZ: ZC6 | 2013-2020 | 2.0L FA20
Toyota 86: ZN6 | 2017-2020 | 2.0L FA20

Notes

No tuning is required for this cold air intake for ZC6 Subaru BRZ, FR-S and 86 models; GrimmSpeed reports air-fuel ratios nearly identical to factory
The intake reuses the rubber isolators and sleeves from the factory airbox, which are not included in the kit
Dyno figures are untuned: peak gains of 6 whp and 3 to 4 ft-lb in the torque dip on a Dyno Dynamics dyno, and 10 whp on a second, Dynojet dyno; GrimmSpeed does not list any other modifications on the test car
GrimmSpeed reports roughly 2 whp more at the top end from modifying the factory snorkel

Frequently Asked Questions

Does the GrimmSpeed cold air intake for ZC6 Subaru BRZ models need a tune? No. GrimmSpeed designed the cold air intake for ZC6 Subaru BRZ, ZN6 FR-S and 86 models to run on the factory tune, and its testing showed air-fuel ratios nearly identical to stock. Owners who do tune can use Open Flash Tablet v4 maps, which were refined with this intake fitted.
How much power does it add? GrimmSpeed measured peak gains of 6 whp and 3 to 4 ft-lb in the torque dip on a Dyno Dynamics dyno, which reads lower than a Dynojet. A second test on a Dynojet showed a 10 whp gain. Both results were bolt-on figures with no tuning.
Does the front bumper have to come off for installation? No. GrimmSpeed made bumper-on installation a design requirement after other intakes it tried left the bumper fitting poorly afterward. Installation takes about 30 minutes using the GrimmSpeed written and video guides, and the kit includes the PCV hose extension and clamps needed.
Are any factory parts reused? Yes. The GrimmSpeed intake reuses the rubber isolators and sleeves from the factory airbox, and those pieces are not included in the kit. Set them aside when the stock airbox comes out so the new airbox can be mounted on them.
Does it fit the 2022 and newer BRZ or GR86? No. GrimmSpeed lists this intake for the first-generation BRZ, Scion FR-S and Toyota 86 only, all with the 2.0L FA20. The second-generation ZD8 BRZ and ZN8 GR86 use the larger 2.4L FA24 and are not part of the GrimmSpeed fitment for this intake.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
