Does the Charge Pipe for G20 M340i fit xDrive models?

No. Active Autowerke states that its Charge Pipe for G20 BMW M340i, G22 M440i and A90 Toyota GR Supra 3.0 is not compatible with xDrive models. Rear-drive M340i and M440i cars are the intended BMW fit, and every A90 GR Supra 3.0 is rear-drive. Confirm the drivetrain before ordering.

Why does the factory B58 charge pipe fail?

The factory B58 charge pipe is made entirely of plastic and can eventually split along a molded seam. The engine computer then sees a large air leak and puts the engine into limp mode, so power falls away until the pipe is replaced. Active Autowerke rates the B58 part as tougher than the N55 version, though still prone to the same failure.

Is anything from the factory pipe reused?

Yes. The factory throttle clip and O-ring are not supplied with the Active Autowerke pipe, so both move across from the original part during installation. The machined throttle body end is designed around that factory O-ring seal. Silicone couplers and stainless clamps for the remaining joints come in the box.

Can this charge pipe be used with water methanol injection?

Yes. A raised boss upstream of the throttle body carries two ports for water methanol nozzles, placed so the injected mix has distance to atomize before it reaches the engine. Active Autowerke checks the thread depth of each port so the nozzle sprays cleanly without hitting the walls of the threaded hole.

Is an aluminum charge pipe worth it on a stock car?

Active Autowerke designed the pipe for stock and modified cars alike. On a factory B58 it works as insurance against a cracked plastic pipe and the limp mode that follows. The case grows stronger on a tuned car, because the plastic part then carries higher boost pressure every time the throttle opens.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

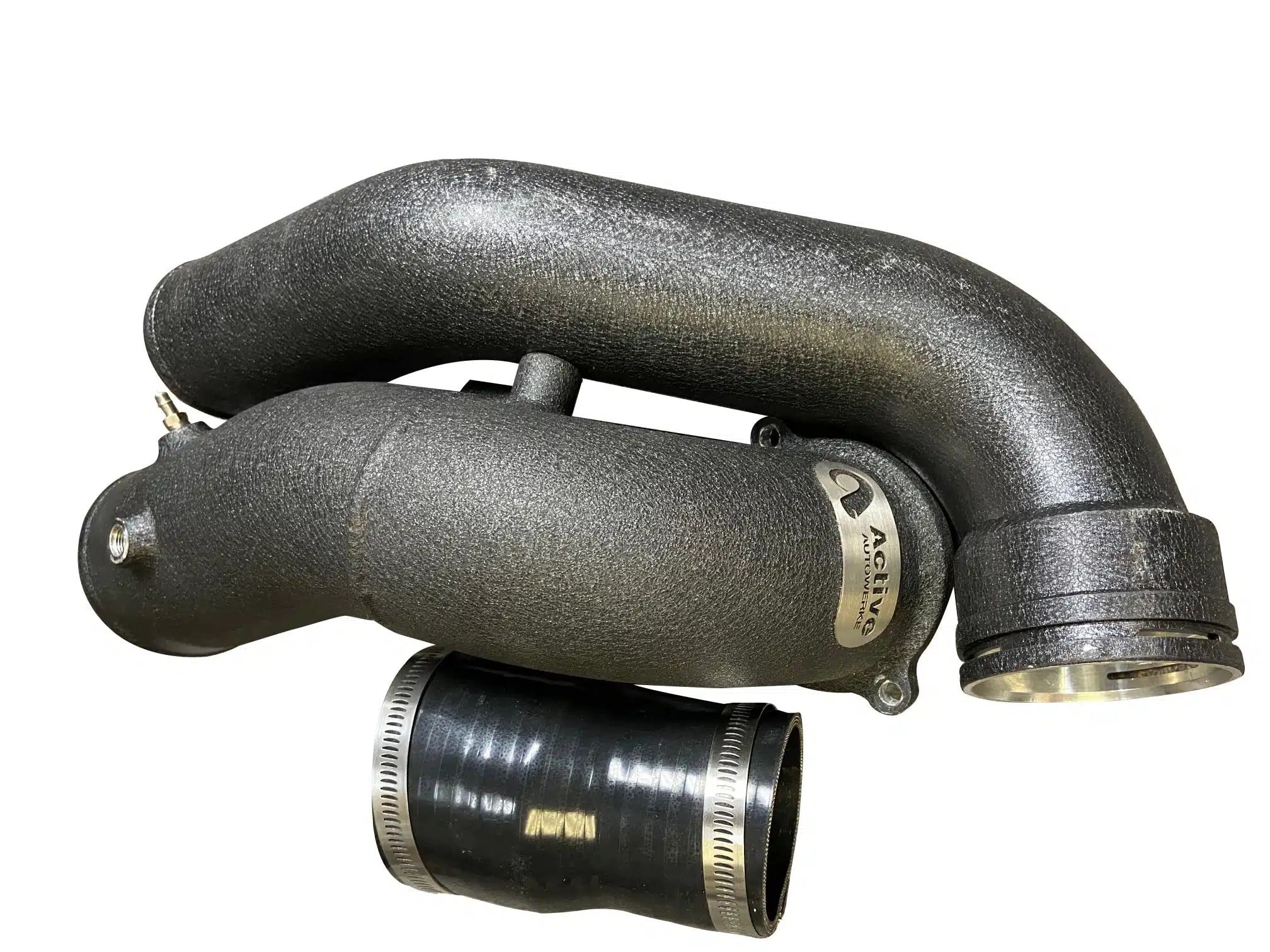

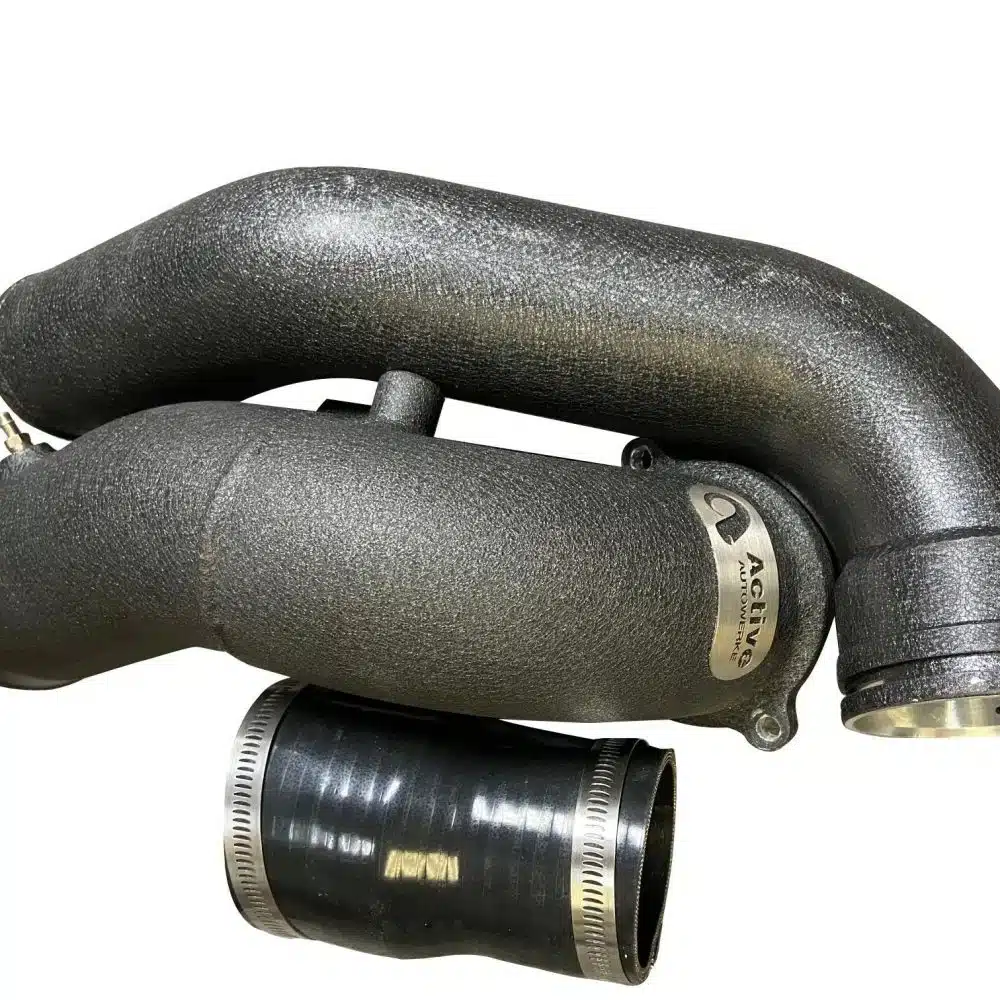

Active Autowerke Charge Pipe for G20 BMW M340i, G22 M440i and A90 Toyota GR Supra 3.0

Active Autowerke’s Charge Pipe for G20 BMW M340i, G22 M440i and A90 Toyota GR Supra 3.0 trades the plastic factory part for aluminum tubing, ending the risk of a split seam that drops the B58 into limp mode. Its throttle body end is CNC machined to copy the factory fit, so the original O-ring still seals it, and a raised boss carries two threaded ports for water methanol nozzles. On a stock engine it is sensible insurance against a roadside failure. On a tuned one running more boost than BMW intended, it belongs on the car before the next map does.

Features

All-aluminum construction in place of the factory plastic pipe
CNC machined throttle body connection that duplicates the factory part
Keeps the factory BMW O-ring seal at the throttle body
Raised boss with two water methanol nozzle ports, upstream of the throttle so the spray can atomize
Port thread depths checked so each nozzle sprays cleanly without striking the bore
Consistent tube diameter from turbo side to throttle body
Black powder coat finish for a factory look under the hood
Silicone couplers and stainless clamps supplied

Applications

BMW M340i: G20 | 2020-present | 3.0L B58
BMW M440i: G22 | 2021-present | 3.0L B58
Toyota GR Supra: A90 | 2020-present | 3.0L B58

Notes

The Charge Pipe for G20 BMW M340i, G22 M440i and A90 GR Supra 3.0 is not compatible with xDrive models
The factory throttle clip and O-ring are not included. Both transfer from the original pipe during installation.
For the exhaust side, Active Autowerke builds the AFlow Catted Downpipe for B58 and GESI Catted Downpipe for B58 for 2024 and older BMW models, and the AFlow Catted Downpipe for A90 GR Supra 3.0 and GESI Catted Downpipe for A90 GR Supra 3.0

Frequently Asked Questions

Does the Charge Pipe for G20 M340i fit xDrive models? No. Active Autowerke states that its Charge Pipe for G20 BMW M340i, G22 M440i and A90 Toyota GR Supra 3.0 is not compatible with xDrive models. Rear-drive M340i and M440i cars are the intended BMW fit, and every A90 GR Supra 3.0 is rear-drive. Confirm the drivetrain before ordering.
Why does the factory B58 charge pipe fail? The factory B58 charge pipe is made entirely of plastic and can eventually split along a molded seam. The engine computer then sees a large air leak and puts the engine into limp mode, so power falls away until the pipe is replaced. Active Autowerke rates the B58 part as tougher than the N55 version, though still prone to the same failure.
Is anything from the factory pipe reused? Yes. The factory throttle clip and O-ring are not supplied with the Active Autowerke pipe, so both move across from the original part during installation. The machined throttle body end is designed around that factory O-ring seal. Silicone couplers and stainless clamps for the remaining joints come in the box.
Can this charge pipe be used with water methanol injection? Yes. A raised boss upstream of the throttle body carries two ports for water methanol nozzles, placed so the injected mix has distance to atomize before it reaches the engine. Active Autowerke checks the thread depth of each port so the nozzle sprays cleanly without hitting the walls of the threaded hole.
Is an aluminum charge pipe worth it on a stock car? Active Autowerke designed the pipe for stock and modified cars alike. On a factory B58 it works as insurance against a cracked plastic pipe and the limp mode that follows. The case grows stronger on a tuned car, because the plastic part then carries higher boost pressure every time the throttle opens.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
