How much downforce can the V1X Rear Wing Kit for G87 handle?

Verus Engineering rates the V1X Rear Wing Kit for G87 to generate and withstand more than 700 lb of downforce. The load on track depends on road speed and on the angle of attack, adjustable from 0 to 15 degrees, so read the rating as the capacity of the wing and its mounts.

Which Verus wing suits my M2, the V1X or the swan neck UCW?

Verus Engineering describes the V1X as a higher downforce wing for road course and track use, and the UCW as an efficient wing for most street and track applications. On the G87 the V1X is rated past 700 lb, the UCW past 500 lb, and the UCW costs less.

Do I need a front splitter with the V1X wing on a G87?

Yes, for a balanced car. Verus Engineering developed the V1X to offset its G87 front splitter, which is rated for more than 300 lb. A wing this large without matching front load moves the aero balance rearward and makes the M2 push wide in fast corners.

What is the M2 V1X wing made from?

Verus Engineering lays up the V1X element in 2x2 twill pre-preg carbon fiber, cures it in an autoclave and finishes it in automotive high-gloss clear. The swan neck uprights and trunk mounts are machined from billet aluminum, the mount spacers from stainless, and Verus builds its V1X wings in the U.S.A.

What comes in the box with the G87 V1X wing?

The kit holds the V1X element, two swan neck uprights, two trunk mounts, four stainless spacers, two vented carbon endplates, the Gurney flap and hardware. Verus Engineering assembles each wing to order and ships it within 5 business days unless it states otherwise.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering V1X Rear Wing Kit for G87 BMW M2

Verus Engineering’s V1X Rear Wing Kit for G87 BMW M2 is the higher-downforce of the two Verus wings for the M2, rated to generate and withstand more than 700 lb against the 500 lb rating of the swan neck UCW. The element hangs from machined swan neck uprights that bolt to the factory trunk, and Verus aims it at the track driver who needs a large step in rear load to match a serious front package such as its own front splitter. On an M2 with factory front aero, this is more wing than the nose can balance.

Design and Performance

Verus optimized the airfoil with the ANSYS adjoint solver for the space above the M2 trunk and checked in CFD that it sees clean air and offsets the Verus front splitter. Angle of attack runs from 0 to 15 degrees, and Verus reports close correlation between CFD and track testing.

Features

Swan neck uprights carry the element from above, which Verus uses to raise wing efficiency
Vented carbon endplates and a V1X Gurney flap supplied
Machined stainless spacers seat the billet trunk mounts on the factory lid
Made in the U.S.A.

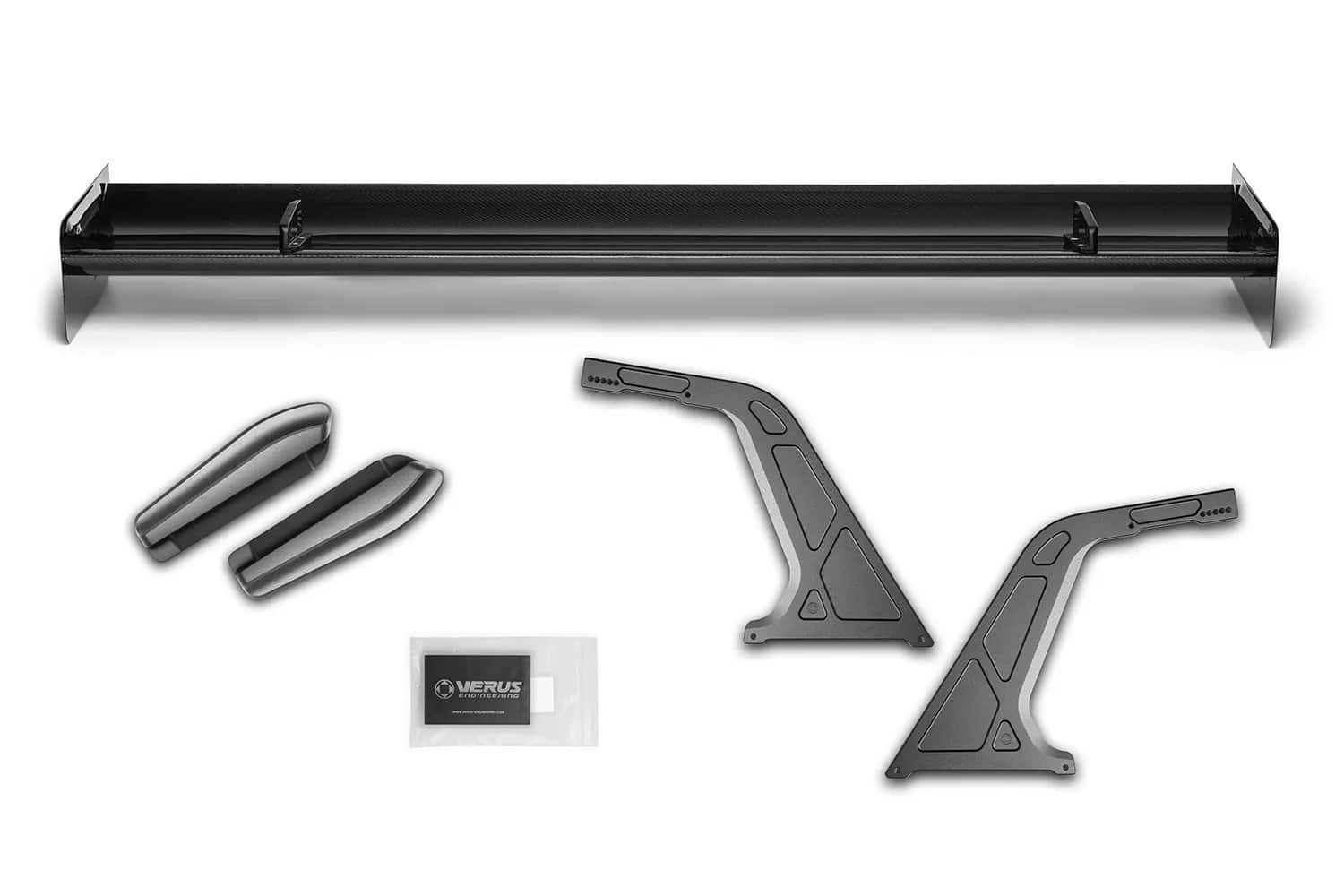

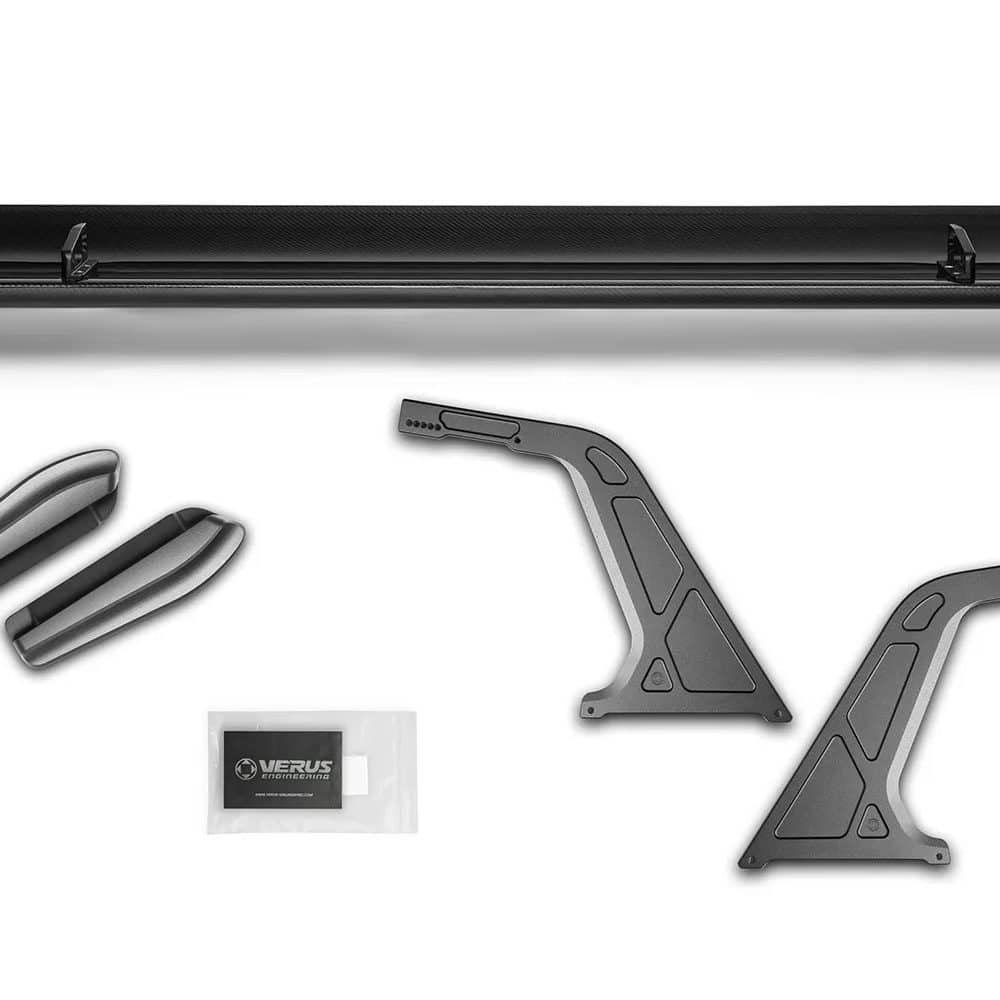

What’s Included

V1X rear wing element assembly
Machined aluminum swan neck rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Machined stainless rear wing trunk mount spacers (x4)
Vented carbon rear wing endplates (x2)
V1X Gurney flap
Hardware kit with every part needed for the install

Applications

BMW M2: G87 | 2023-present

Notes

Each V1X Rear Wing Kit for G87 is built to order, with Verus quoting dispatch within 5 business days unless it states otherwise
An install manual and a video from Verus walk through fitting the wing to the trunk
Verus designed it to balance the Verus Engineering Front Splitter Kit for G87 BMW M2; the Dive Plane Kit and Side Splitter Kit complete the package
The Swan Neck UCW Rear Wing Kit is the lower-priced option, rated past 500 lb
The KMX Carbon Fiber Endplate Kit bolts to any V1X element
See every Verus Engineering part for the G87 BMW M2
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

How much downforce can the V1X Rear Wing Kit for G87 handle? Verus Engineering rates the V1X Rear Wing Kit for G87 to generate and withstand more than 700 lb of downforce. The load on track depends on road speed and on the angle of attack, adjustable from 0 to 15 degrees, so read the rating as the capacity of the wing and its mounts.
Which Verus wing suits my M2, the V1X or the swan neck UCW? Verus Engineering describes the V1X as a higher downforce wing for road course and track use, and the UCW as an efficient wing for most street and track applications. On the G87 the V1X is rated past 700 lb, the UCW past 500 lb, and the UCW costs less.
Do I need a front splitter with the V1X wing on a G87? Yes, for a balanced car. Verus Engineering developed the V1X to offset its G87 front splitter, which is rated for more than 300 lb. A wing this large without matching front load moves the aero balance rearward and makes the M2 push wide in fast corners.
What is the M2 V1X wing made from? Verus Engineering lays up the V1X element in 2×2 twill pre-preg carbon fiber, cures it in an autoclave and finishes it in automotive high-gloss clear. The swan neck uprights and trunk mounts are machined from billet aluminum, the mount spacers from stainless, and Verus builds its V1X wings in the U.S.A.
What comes in the box with the G87 V1X wing? The kit holds the V1X element, two swan neck uprights, two trunk mounts, four stainless spacers, two vented carbon endplates, the Gurney flap and hardware. Verus Engineering assembles each wing to order and ships it within 5 business days unless it states otherwise.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
