Does the KMX Carbon Fiber Endplate Kit include a wing?

No. The KMX Carbon Fiber Endplate Kit is a left and right pair of endplates that replace the standard plates on an existing Verus Engineering V1X rear wing. The wing element, uprights and mounts are sold separately, and the KMX plates bolt on with the same hardware as the standard endplates.

Will the KMX endplates fit my V1X wing?

Yes, if it is a Verus Engineering V1X. Verus states the KMX plates bolt directly to every V1X rear wing element regardless of chassis, so one pair suits a V1X on a Supra, Corvette, BMW M2 or Porsche GT car. For its UCW wing, Verus offers a separate vented endplate design.

How much performance do the KMX endplates add?

Verus Engineering measured a 0.6% improvement in lift-to-drag efficiency over the standard V1X endplates at 10 degrees angle of attack, with a swan neck mounted wing in free stream airflow. Venting the top side of the wing and reshaping the bottom of each plate reduces vortices and sheds high-pressure air.

What are the KMX endplates made from?

Each plate is 2x2 twill pre-preg carbon fiber, laid up on machined aluminum molds for a consistent fit, autoclave cured and coated in a gloss automotive clear for UV resistance. Verus Engineering gives them vents, a distinctive shape and an expanding 3D contour that change the look of the wing.

Are the KMX plates worth it over the standard V1X endplates?

Yes, for an owner who wants a distinctive look with a measurable benefit. Verus Engineering designed the KMX plates to add styling flair to the V1X while improving efficiency, and its CFD testing showed a small lift-to-drag gain. Owners focused only on lap time should weigh that gain against the cost.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

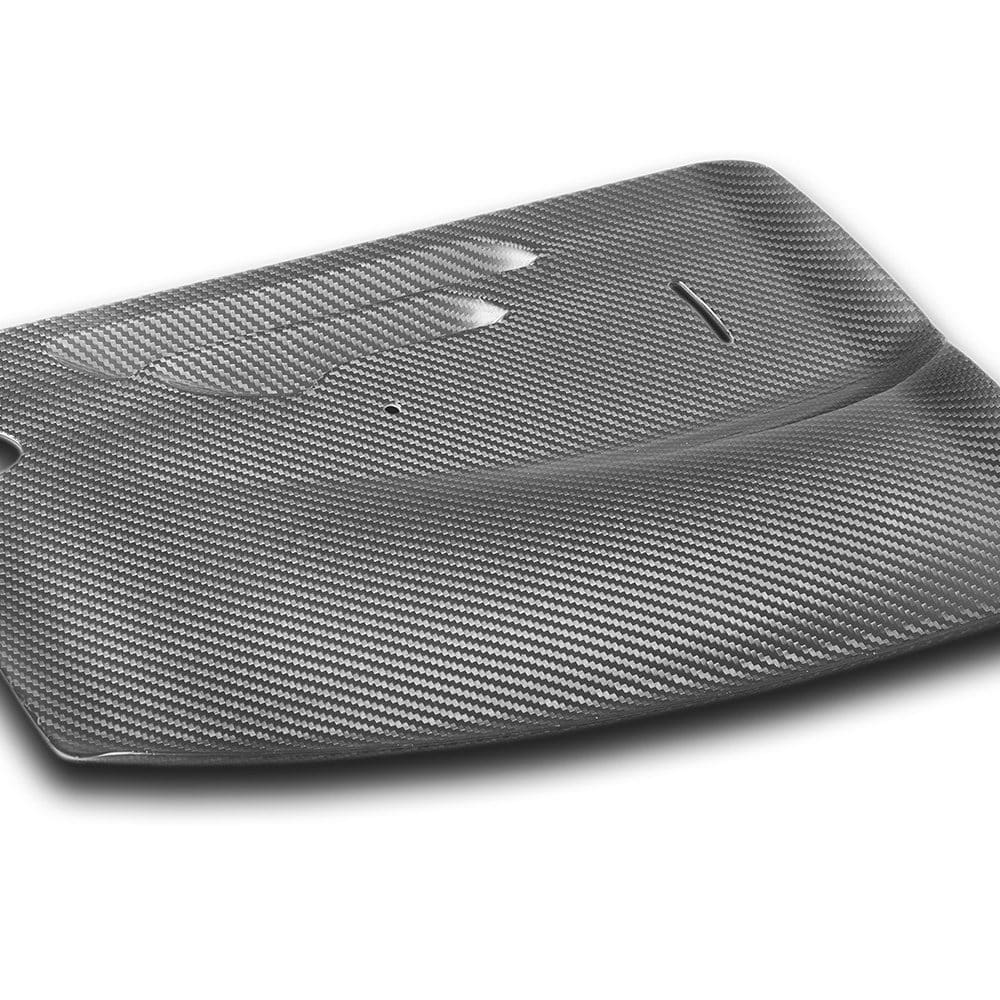

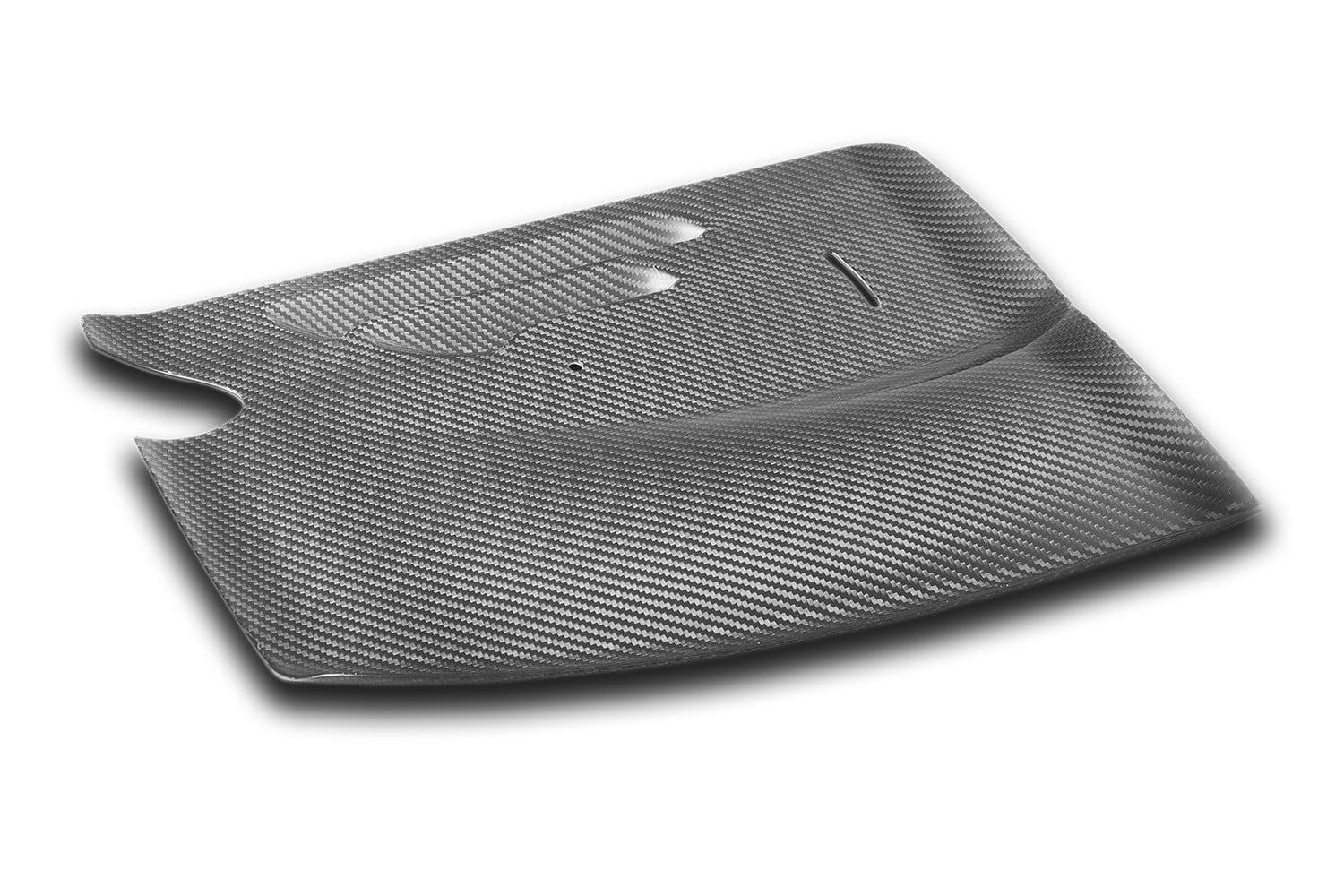

Verus Engineering KMX Carbon Fiber Endplate Kit for V1X Rear Wings

Verus Engineering’s KMX Carbon Fiber Endplate Kit for V1X Rear Wings replaces the standard endplates on any Verus V1X wing with a vented, sculpted pair that bolts on with the same hardware. Verus shaped them in CFD, venting the top side of the wing and reshaping the lower part of each plate, and reports a 0.6% gain in lift-to-drag efficiency over the standard V1X endplates at 10 degrees angle of attack. That is a modest number, which makes the KMX plates a styling upgrade that also earns its keep, not a lap-time fix on its own.

Testing and Construction

Verus ran its comparison on a swan neck upright and mount in free stream airflow, so the figure describes the wing and endplates in isolation. The plates are laid up in 2×2 twill pre-preg carbon on machined aluminum molds, autoclave cured and coated in gloss automotive clear for UV resistance. Fewer vortices at the wing tips, and some high-pressure air shed from the top surface, account for the gain.

Features

Vented top section and shaped lower edge developed in CFD
0.6% lift-to-drag improvement over standard V1X endplates at 10 degrees AOA
Expanding 3D contour for a distinctive profile
2×2 twill pre-preg carbon, autoclave cured
Gloss automotive clear for UV resistance
Bolts on with the standard V1X endplate hardware

What’s Included

KMX V1X carbon fiber endplate, left-hand
KMX V1X carbon fiber endplate, right-hand

Applications

Fits: every Verus Engineering V1X rear wing element, on any chassis

Notes

Endplates only; the V1X wing element, uprights and mounts are not included
The KMX Carbon Fiber Endplate Kit bolts on exactly like the standard V1X endplates, with no change in hardware
V1X wings on BA include the Swan Neck V1X Rear Wing Kit for A90 Toyota GR Supra, the V1X Rear Wing Kit for G87 BMW M2 and the V1X Rear Wing Kit for 991 Porsche 911 GT3 RS and GT2 RS
See every Verus Engineering part at Bulletproof Automotive
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the KMX Carbon Fiber Endplate Kit include a wing? No. The KMX Carbon Fiber Endplate Kit is a left and right pair of endplates that replace the standard plates on an existing Verus Engineering V1X rear wing. The wing element, uprights and mounts are sold separately, and the KMX plates bolt on with the same hardware as the standard endplates.
Will the KMX endplates fit my V1X wing? Yes, if it is a Verus Engineering V1X. Verus states the KMX plates bolt directly to every V1X rear wing element regardless of chassis, so one pair suits a V1X on a Supra, Corvette, BMW M2 or Porsche GT car. For its UCW wing, Verus offers a separate vented endplate design.
How much performance do the KMX endplates add? Verus Engineering measured a 0.6% improvement in lift-to-drag efficiency over the standard V1X endplates at 10 degrees angle of attack, with a swan neck mounted wing in free stream airflow. Venting the top side of the wing and reshaping the bottom of each plate reduces vortices and sheds high-pressure air.
What are the KMX endplates made from? Each plate is 2×2 twill pre-preg carbon fiber, laid up on machined aluminum molds for a consistent fit, autoclave cured and coated in a gloss automotive clear for UV resistance. Verus Engineering gives them vents, a distinctive shape and an expanding 3D contour that change the look of the wing.
Are the KMX plates worth it over the standard V1X endplates? Yes, for an owner who wants a distinctive look with a measurable benefit. Verus Engineering designed the KMX plates to add styling flair to the V1X while improving efficiency, and its CFD testing showed a small lift-to-drag gain. Owners focused only on lap time should weigh that gain against the cost.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
