Can the Dive Plane Kit for G87 be installed without drilling?

Yes. The Dive Plane Kit for G87 includes 3M VHB double-sided tape cut to the shape of each plane and two templates to position them, so it can go on without drilling. Verus Engineering also supplies a hardware kit for owners who prefer to bolt the planes on, and publishes an install video for the M2.

What is the Ventus 1 package for the G87 M2?

Ventus 1 is the Verus Engineering entry aero package for the M2, and these dive planes are part of it alongside the swan neck UCW wing. Verus developed it to give a safe aerodynamic balance at high speed, helping the car get more from its tires on track and adding confidence on the street. Ventus 2 adds more downforce.

How do dive planes make downforce on the M2?

Each plane generates load on its own surfaces and also helps pull air out of the front of the wheel well, which Verus Engineering made the focus of its development. Together they shift the aerodynamic balance forward and help seal the sides of the car, raising front grip and corner speed without a longer splitter.

What are the M2 dive planes made from?

Verus Engineering builds the M2 planes from autoclave cured carbon fiber, using 2x2 twill pre-preg. They were shaped in OpenFOAM CFD to get the most from the space available on the G87 bumper, and the kit supplies 3M VHB tape cut to each shape so every plane bonds flush to the bumper.

What is included in the G87 dive plane kit?

Four carbon dive planes come in the kit, an upper and a lower for each side, with four pieces of 3M VHB tape cut to their shapes, two install templates and a hardware kit. Verus Engineering covers the install in a dedicated video for the G87 M2.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

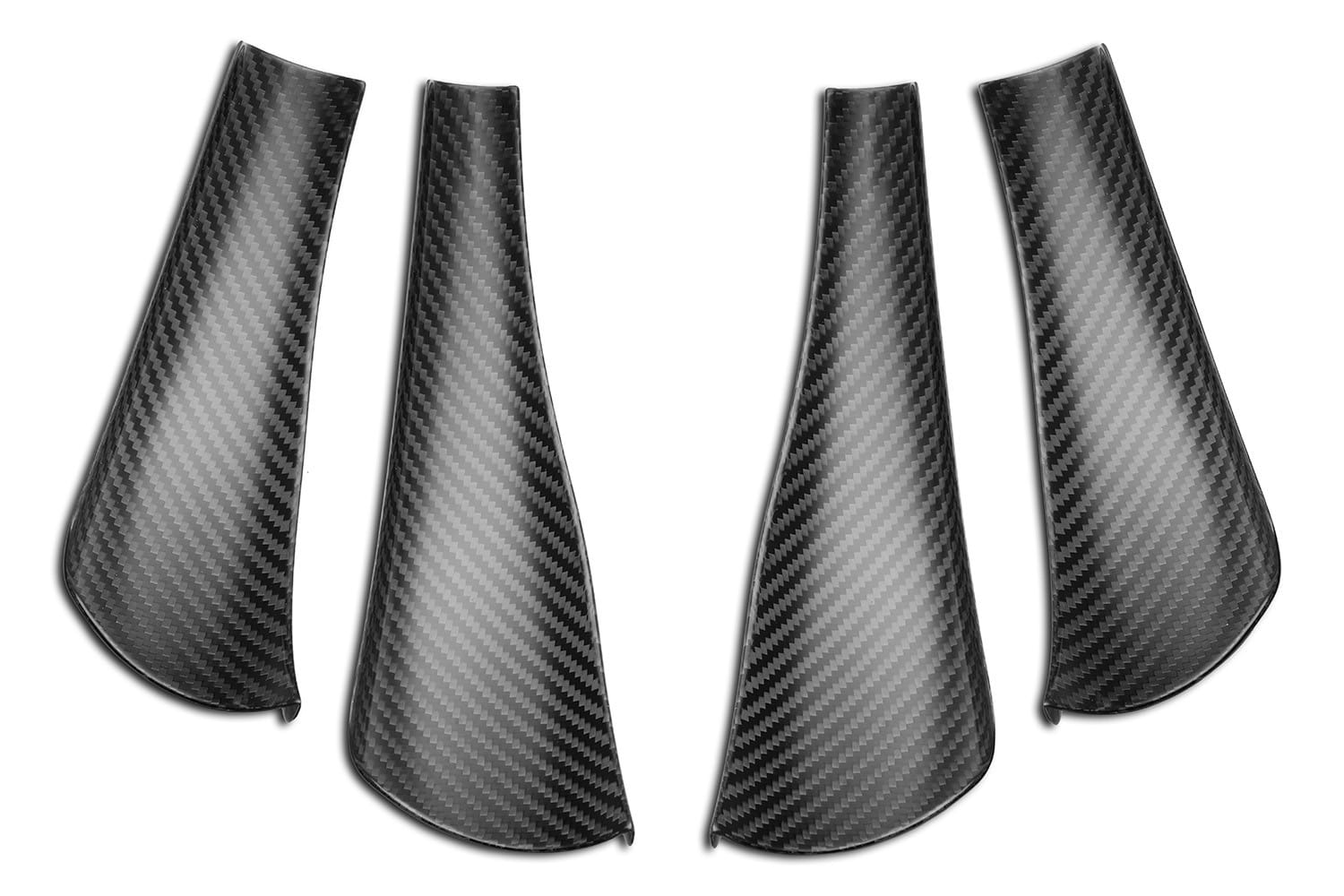

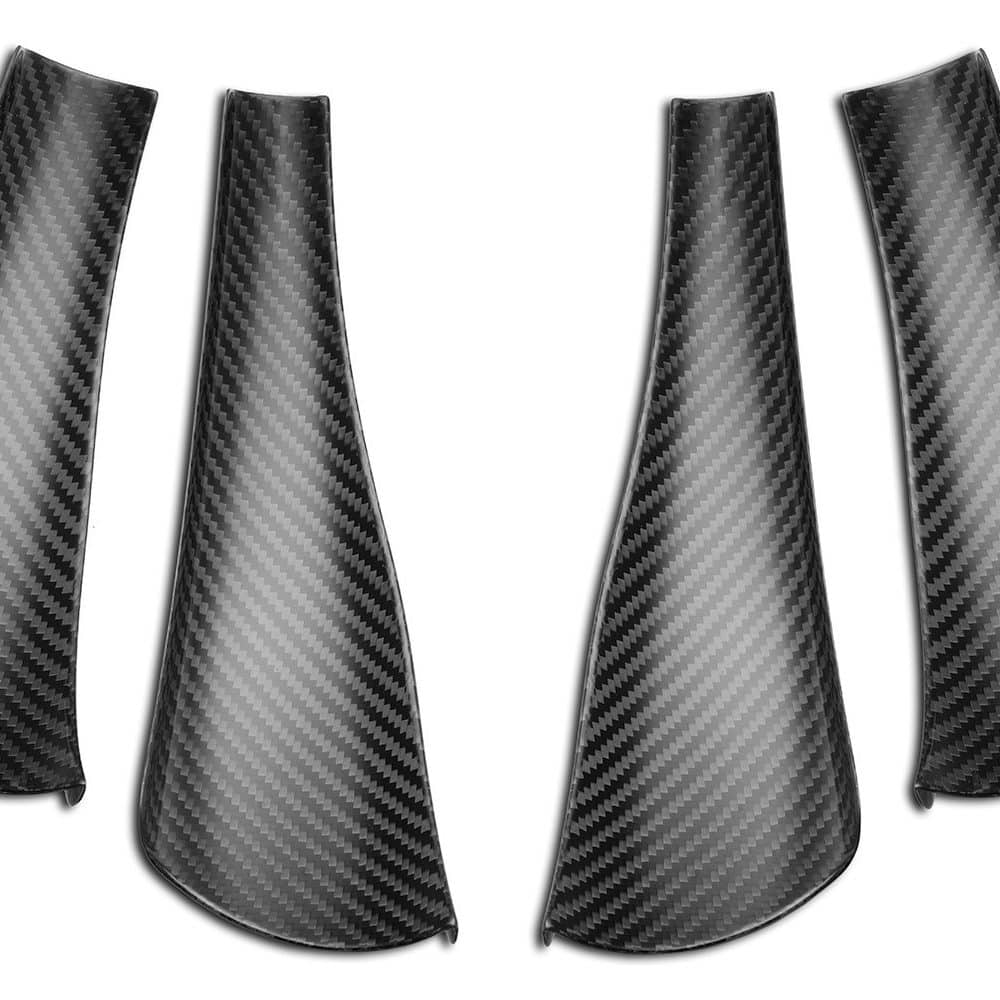

Verus Engineering Dive Plane Kit for G87 BMW M2

Verus Engineering’s Dive Plane Kit for G87 BMW M2 adds front-end downforce without moving the splitter further forward, using an upper and a lower carbon element at each corner of the bumper. Verus developed the shapes in OpenFOAM CFD for the space available on the M2, aiming for load on the planes themselves and for better extraction of air from the front of the wheel wells. This is the kit for an M2 owner balancing a large rear wing or diffuser, and it forms part of the Verus Ventus 1 package.

Construction and Install

Verus molds the elements in pre-preg carbon fiber, 2×2 twill, and cures them in an autoclave. It supplies 3M VHB double-sided tape cut to each plane, two templates and a hardware kit, so the planes can be taped or bolted on.

Features

Moves the aero balance toward the front axle
Gives finer control over front-biased aero balance
Helps seal the sides of the car
Draws air out of the front of the wheel wells
Mounts with pre-cut 3M VHB tape or the supplied hardware

What’s Included

Upper dive planes (L/R)
Lower dive planes (L/R)
3M VHB double-sided tape, cut to each dive plane shape (x4)
Install templates (x2)
Hardware kit with everything needed for the install

Applications

BMW M2: G87 | 2023-present

Notes

Four dive planes per kit, an upper and a lower for each side
The Dive Plane Kit for G87 can be taped or bolted on, and the Verus install video shows the process
Verus groups it with the Verus Engineering Swan Neck UCW Rear Wing Kit for G87 BMW M2 in the Ventus 1 package, and points owners wanting more downforce to Ventus 2, which includes the Front Splitter Kit
The Carbon Polyweave Side Splitter Kit continues the work along the sills, cutting lift in yaw
See every Verus Engineering part for the G87 BMW M2
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Can the Dive Plane Kit for G87 be installed without drilling? Yes. The Dive Plane Kit for G87 includes 3M VHB double-sided tape cut to the shape of each plane and two templates to position them, so it can go on without drilling. Verus Engineering also supplies a hardware kit for owners who prefer to bolt the planes on, and publishes an install video for the M2.
What is the Ventus 1 package for the G87 M2? Ventus 1 is the Verus Engineering entry aero package for the M2, and these dive planes are part of it alongside the swan neck UCW wing. Verus developed it to give a safe aerodynamic balance at high speed, helping the car get more from its tires on track and adding confidence on the street. Ventus 2 adds more downforce.
How do dive planes make downforce on the M2? Each plane generates load on its own surfaces and also helps pull air out of the front of the wheel well, which Verus Engineering made the focus of its development. Together they shift the aerodynamic balance forward and help seal the sides of the car, raising front grip and corner speed without a longer splitter.
What are the M2 dive planes made from? Verus Engineering builds the M2 planes from autoclave cured carbon fiber, using 2×2 twill pre-preg. They were shaped in OpenFOAM CFD to get the most from the space available on the G87 bumper, and the kit supplies 3M VHB tape cut to each shape so every plane bonds flush to the bumper.
What is included in the G87 dive plane kit? Four carbon dive planes come in the kit, an upper and a lower for each side, with four pieces of 3M VHB tape cut to their shapes, two install templates and a hardware kit. Verus Engineering covers the install in a dedicated video for the G87 M2.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
