Does the V1X wing fit the G80 M3 sedan?

No. Verus Engineering lists the V1X wing for the G82 M4 coupe only and does not list a version for the G80 M3. M3 owners can still fit the Verus front splitter, dual element dive planes and carbon hood louvers, all of which are listed for both cars.

Does the V1X wing mount to the factory M4 trunk?

Yes. Verus Engineering designed the V1X for the factory G82 trunk, using machined 6061-T6 trunk mounts and swan neck uprights, and supplies stainless hardware and every template the install needs. Verus documents the job in a manual and a video, and scan data of the car gave the mounts a near OEM fit.

What front aero do I need to balance the V1X on an M4?

Verus Engineering developed the V1X to balance its front splitter and pairs them with side splitters in the Ventus 2 kit, with the dual dive planes adding further front load. A wing this large on a factory nose moves the balance rearward, so plan the front package alongside it.

How long does it take to get a V1X wing for the M4?

Verus Engineering assembles each V1X wing to order and ships it within 5 business days of receiving the order unless it states otherwise. Each one is made in the U.S.A.; allow for that build window plus transit when planning an install ahead of a track weekend.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering V1X Rear Wing Kit for G82 BMW M4

Verus Engineering’s V1X Rear Wing Kit for G82 BMW M4 is the larger of the two Verus wings for the M4, an element bigger than the UCW that Verus optimized with the ANSYS adjoint solver and refined in wind tunnel testing. Verus states it makes more downforce at 2 degrees angle of attack than the swan neck UCW makes at 12 degrees. It is meant for an M4 that already carries the Verus front splitter and spends regular time on road courses.

Construction

The 2×2 twill pre-preg carbon element is autoclave cured under an automotive high-gloss clear, and the kit adds vented carbon endplates and a Gurney flap. Verus machines the 6061-T6 swan neck uprights and trunk mounts in house on 5-axis CNC machines and builds every V1X wing in the U.S.A.

Features

Airfoil refined in the wind tunnel after ANSYS adjoint optimization
Swan neck mounts free more of the wing’s underside to build low pressure
Angle of attack adjustable from 0 to 15 degrees
Stainless hardware throughout

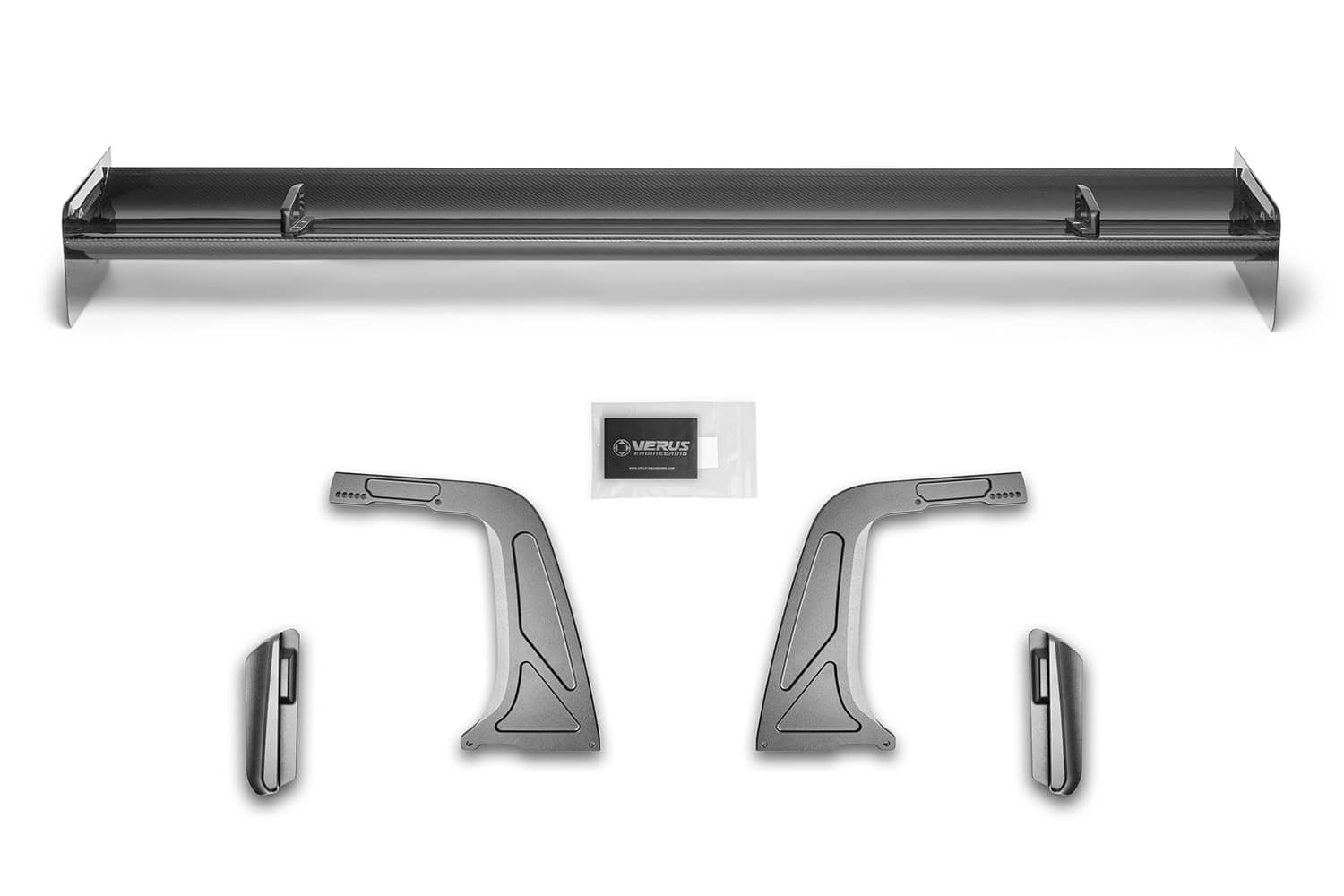

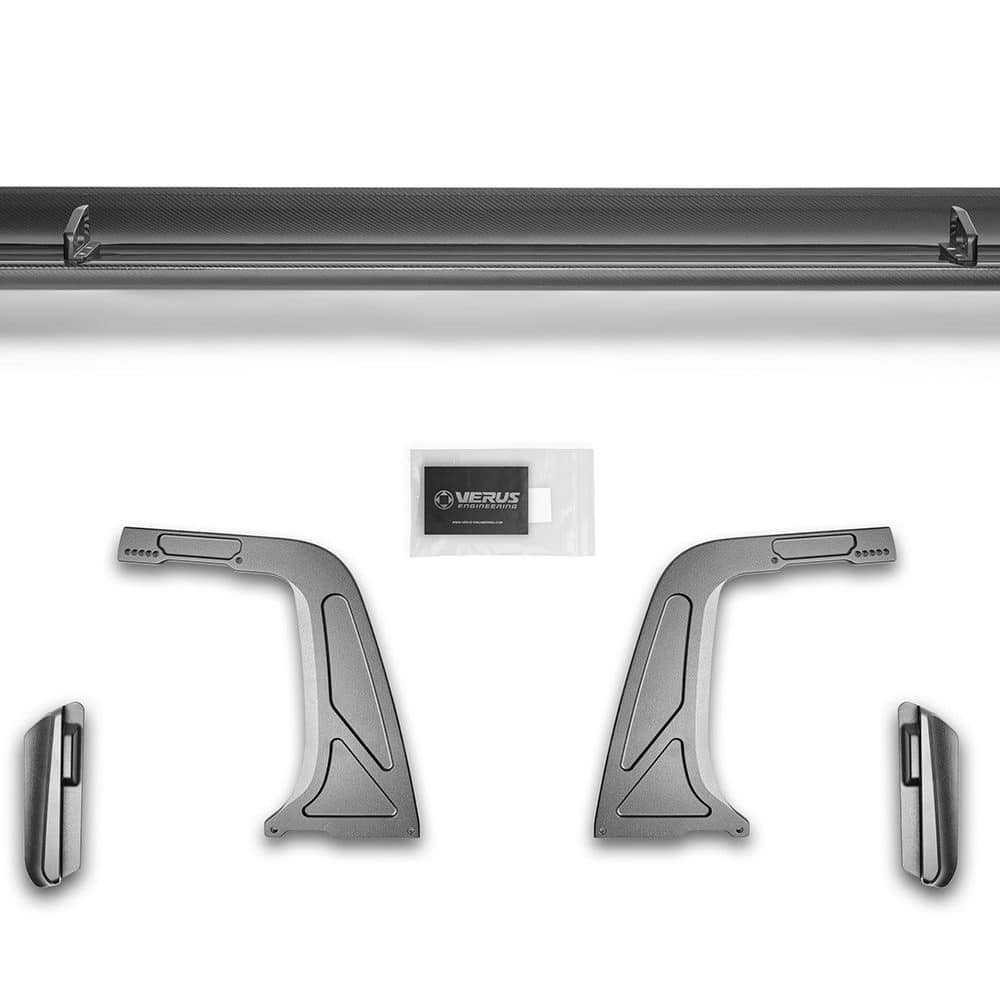

What’s Included

V1X rear wing assembly
Machined aluminum swan neck rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Vented carbon fiber rear wing endplates (x2)
Gurney flap
Hardware kit with every part needed for the install

Applications

BMW M4: G82 | 2021-present

Notes

Verus lists this wing for the G82 M4 coupe only, not the G80 M3 sedan
Lead time: the V1X Rear Wing Kit for G82 is assembled per order, and Verus ships within 5 business days unless it gives a different date
It is the rear element of the Verus Ventus 2 kit with the Verus Engineering Front Splitter Kit for G80 BMW M3 and G82 M4 and Side Splitter Kit, and works with the Dual Element Dive Plane Kit
Owners wanting less rear load can step down to the Swan Neck UCW Rear Wing Kit, which costs less
The KMX Carbon Fiber Endplate Kit fits every V1X wing, whatever the chassis
See every Verus Engineering part for the G82 BMW M4
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

How does the V1X Rear Wing Kit for G82 compare with the swan neck UCW wing? The V1X Rear Wing Kit for G82 uses a larger element than the UCW, and Verus Engineering states it makes more downforce at 2 degrees angle of attack than the swan neck UCW makes at 12. Both mount on swan neck uprights to the factory trunk, and the UCW costs less.
Does the V1X wing fit the G80 M3 sedan? No. Verus Engineering lists the V1X wing for the G82 M4 coupe only and does not list a version for the G80 M3. M3 owners can still fit the Verus front splitter, dual element dive planes and carbon hood louvers, all of which are listed for both cars.
Does the V1X wing mount to the factory M4 trunk? Yes. Verus Engineering designed the V1X for the factory G82 trunk, using machined 6061-T6 trunk mounts and swan neck uprights, and supplies stainless hardware and every template the install needs. Verus documents the job in a manual and a video, and scan data of the car gave the mounts a near OEM fit.
What front aero do I need to balance the V1X on an M4? Verus Engineering developed the V1X to balance its front splitter and pairs them with side splitters in the Ventus 2 kit, with the dual dive planes adding further front load. A wing this large on a factory nose moves the balance rearward, so plan the front package alongside it.
How long does it take to get a V1X wing for the M4? Verus Engineering assembles each V1X wing to order and ships it within 5 business days of receiving the order unless it states otherwise. Each one is made in the U.S.A.; allow for that build window plus transit when planning an install ahead of a track weekend.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
