Does the UCW Rear Wing Kit for ZN6 require drilling the trunk?

Yes. The UCW Rear Wing Kit for ZN6 bolts through the factory trunk lid, and Verus Engineering includes a drill template so the holes land where the design expects. Trunk load transfer hardware in the kit routes the downforce from the sheet steel trunk mounts into the body structure.

How does the UCW wing compare with the Verus High-Efficiency wing on an FR-S or BRZ?

The UCW has a 250mm curved chord and makes more downforce than the High-Efficiency wing, which Verus Engineering sized for the typical track day driver and the modest stock output of the FA20. Pick the UCW when the car already runs a large splitter; otherwise the High-Efficiency wing balances it with less drag.

How much downforce can the UCW wing handle?

Verus Engineering designed the ZN6 UCW to make and survive more than 500 lb of downforce. The load at any moment depends on road speed and on the angle of attack, which adjusts from 0 to 15 degrees, so 500 lb is the structural ceiling and not a number the car sees on every straight.

What does the carbon endplate option change?

Every kit comes with a pair of rear wing endplates, and choosing Included under Carbon Endplates specifies carbon fiber endplates. The airfoil, uprights, trunk mounts and hardware are identical in both versions, so the decision comes down to how the rear of the car should look.

Has Verus tested the UCW wing on track?

Yes. Verus Engineering developed the airfoil with the ANSYS adjoint solver and CFD, then tested it on track, and reports that the simulation and real-world data match closely. It published the results in a wing comparison blog post, which is useful reading before choosing between its rear wings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s UCW Rear Wing Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ is the wing for a car whose nose already carries serious aero and whose rear now has to catch up. Verus built it to bridge the gap between its swan neck High-Efficiency wing and the 300mm V1X airfoil, and the 250mm curved chord makes more downforce than the High-Efficiency wing. The 2×2 twill pre-preg carbon element rides on machined billet aluminum uprights over sheet steel trunk mounts, and its angle of attack adjusts from 0 to 15 degrees. Without a substantial front splitter it shifts the balance too far rearward, and the smaller wing is the better buy.

Features

Airfoil optimized with the ANSYS adjoint solver for a better lift-to-drag ratio
Built to make and carry more than 500 lb of downforce
Load-transferring trunk system carries wing load into the body
Autoclave cured carbon under a high-gloss automotive clear
Stainless hardware from the trunk mounts to the endplates

What’s Included

Carbon fiber rear wing element assembly
Machined aluminum rear wing uprights (x2)

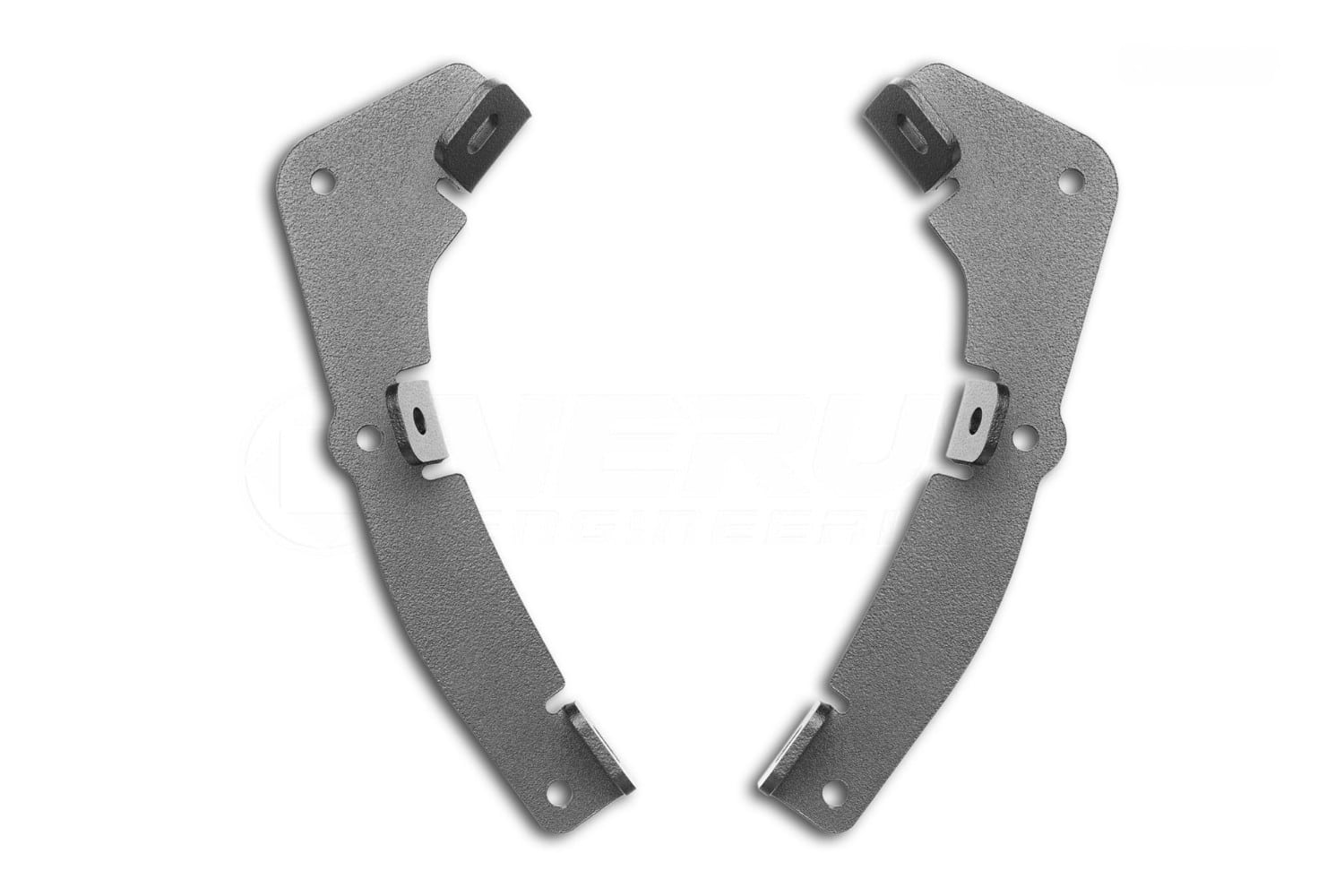

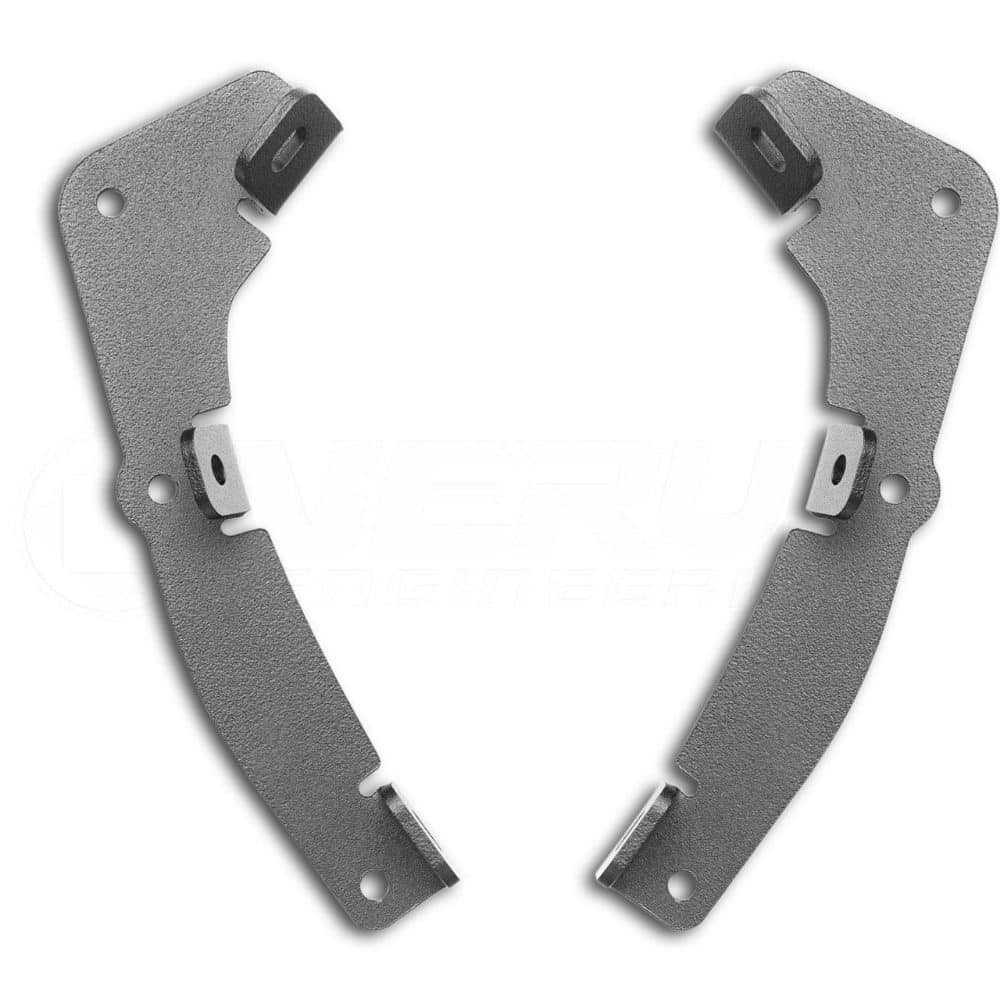

Sheet steel trunk mounts (L/R)
Rear wing endplates (x2)
Trunk load transfer hardware
Drill template
Hardware kit with every part needed for the install

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

Mounting the UCW Rear Wing Kit for ZN6 means drilling the trunk lid; the kit includes a drill template, and Verus publishes an install manual
Every kit includes a pair of endplates; choose Included under Carbon Endplates for the carbon fiber version
UCW wings are assembled to order and leave Verus within 5 business days unless Verus states otherwise
Verus runs this wing in its Ventus 4 package; balance it with a large front splitter such as the Carbon Polyweave Adjustable Front Splitter
For a top-mounted version, see the Swan Neck UCW Rear Wing Kit
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the UCW Rear Wing Kit for ZN6 require drilling the trunk? Yes. The UCW Rear Wing Kit for ZN6 bolts through the factory trunk lid, and Verus Engineering includes a drill template so the holes land where the design expects. Trunk load transfer hardware in the kit routes the downforce from the sheet steel trunk mounts into the body structure.
How does the UCW wing compare with the Verus High-Efficiency wing on an FR-S or BRZ? The UCW has a 250mm curved chord and makes more downforce than the High-Efficiency wing, which Verus Engineering sized for the typical track day driver and the modest stock output of the FA20. Pick the UCW when the car already runs a large splitter; otherwise the High-Efficiency wing balances it with less drag.
How much downforce can the UCW wing handle? Verus Engineering designed the ZN6 UCW to make and survive more than 500 lb of downforce. The load at any moment depends on road speed and on the angle of attack, which adjusts from 0 to 15 degrees, so 500 lb is the structural ceiling and not a number the car sees on every straight.
What does the carbon endplate option change? Every kit comes with a pair of rear wing endplates, and choosing Included under Carbon Endplates specifies carbon fiber endplates. The airfoil, uprights, trunk mounts and hardware are identical in both versions, so the decision comes down to how the rear of the car should look.
Has Verus tested the UCW wing on track? Yes. Verus Engineering developed the airfoil with the ANSYS adjoint solver and CFD, then tested it on track, and reports that the simulation and real-world data match closely. It published the results in a wing comparison blog post, which is useful reading before choosing between its rear wings.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
