How does the Swan Neck UCW Rear Wing Kit for ZN6 differ from the standard UCW wing?

Both wings use a UCW airfoil derived from the Verus V1X. The Swan Neck UCW Rear Wing Kit for ZN6 hangs the element from mounts above it, which Verus Engineering says improves efficiency over bottom-mount formats, while the standard UCW sits on uprights beneath the element.

Does the swan neck UCW wing need a front splitter?

Yes, on a balanced track car. Verus Engineering built the wing for drivers who need a large step in rear downforce to offset a significant front aero package, naming its front splitter kit as the partner. The 0 to 15 degree adjustment trims rear load, but a factory nose leaves the balance too far rearward.

How much downforce does the swan neck UCW wing make?

Verus Engineering rates the wing to generate and withstand more than 500 lb of downforce. The vendor data gives no figure at a set speed for the 86, FR-S and BRZ, so read 500 lb as the structural rating. Verus reports that its CFD results and track testing closely agree.

Which endplates come with the swan neck UCW wing?

The standard kit ships with a pair of aluminum rear wing endplates, and the carbon fiber endplate option adds a carbon pair. Both versions share the same pre-preg element, machined aluminum uprights, sheet steel trunk mounts and stainless hardware, so the choice comes down to the finish at the wing tips.

What kind of driving suits the swan neck UCW wing?

Track driving. Verus Engineering built the wing to add a large amount of rear downforce, raise confidence on track and cut lap times, and it makes the most sense on a car that already carries a significant front aero package. Mostly street-driven cars are better served by the smaller High-Efficiency wing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Swan Neck UCW Rear Wing Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s Swan Neck UCW Rear Wing Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ hangs the classic UCW element from mounts above it, a layout Verus says brings better efficiency than bottom-mount wing formats. Verus optimized the airfoil with the ANSYS adjoint solver, refined it in wind tunnel testing and built the fit from in-house scan data. The element is 2×2 twill pre-preg carbon, autoclave cured, and adjusts from 0 to 15 degrees. Rated past 500 lb of downforce, it belongs on a track car with a front splitter big enough to balance it; on a car with a factory nose it is more rear load than the chassis can use.

Features

Airfoil refined in the wind tunnel after adjoint solver optimization
Swan neck mounts span a large surface area of the trunk lid
Bespoke mounting kit in steel and machined aluminum, tailored to the trunk
Aluminum endplates standard, carbon fiber endplates as an option
Stainless hardware and every template needed for installation

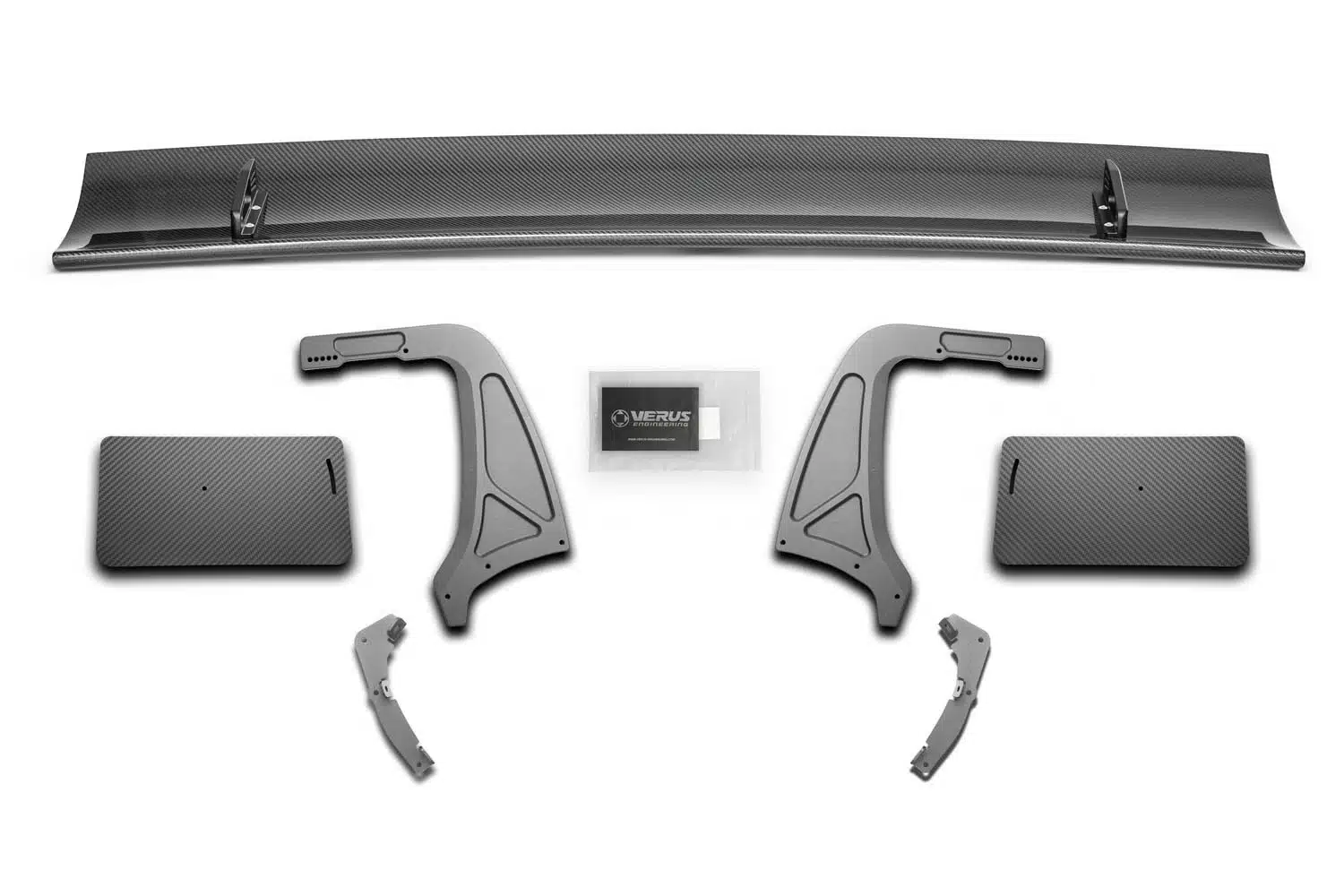

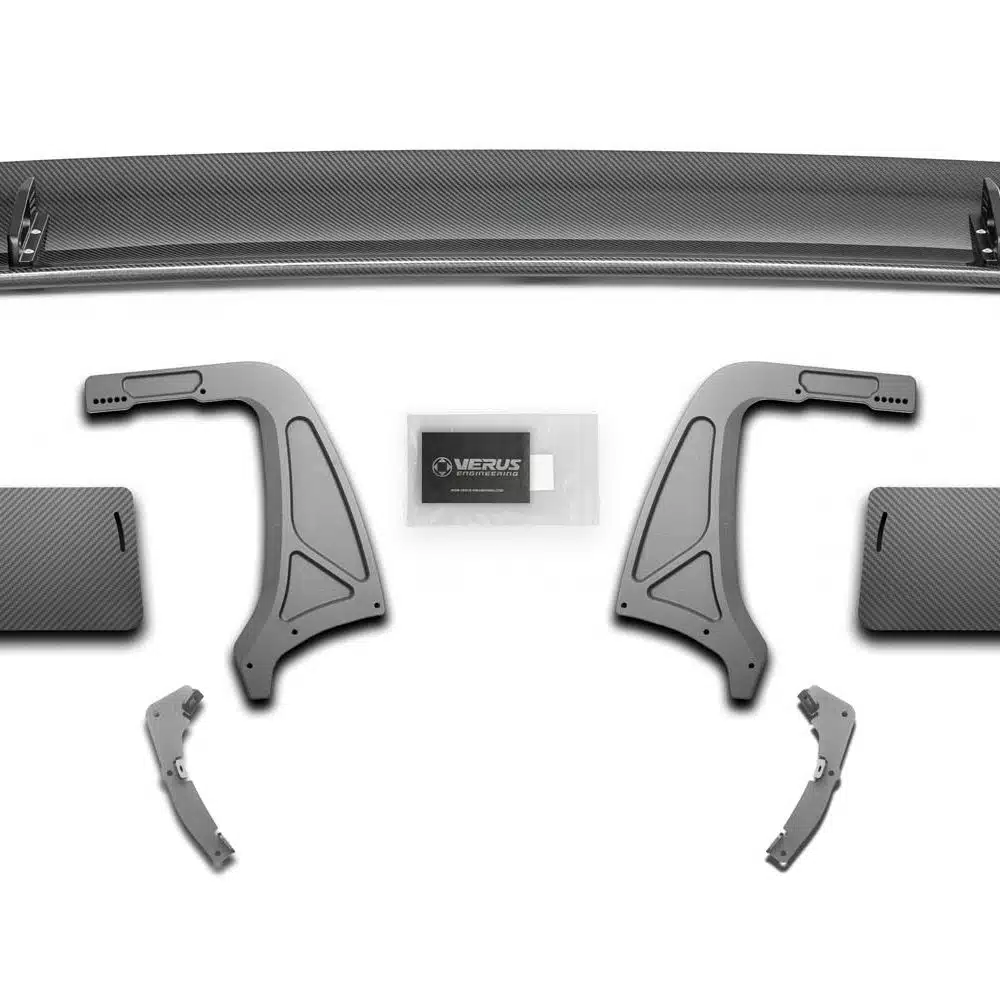

What’s Included

Carbon fiber rear wing assembly
Machined aluminum rear wing uprights (x2)
Sheet steel rear wing trunk mounts (x2)
Aluminum rear wing endplates (x2)
Carbon fiber rear wing endplates (x2) with the carbon option
Hardware kit

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

The Swan Neck UCW Rear Wing Kit for ZN6 is assembled to order and ships from Verus within 5 business days unless Verus states otherwise
Verus runs this wing in its Ventus 3 package with a front splitter; the Carbon Polyweave Adjustable Front Splitter lets the front load be set to match
Verus also builds the smaller High-Efficiency Rear Wing Kit and a bottom-mount version of this wing, the UCW Rear Wing Kit
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

How does the Swan Neck UCW Rear Wing Kit for ZN6 differ from the standard UCW wing? Both wings use a UCW airfoil derived from the Verus V1X. The Swan Neck UCW Rear Wing Kit for ZN6 hangs the element from mounts above it, which Verus Engineering says improves efficiency over bottom-mount formats, while the standard UCW sits on uprights beneath the element.
Does the swan neck UCW wing need a front splitter? Yes, on a balanced track car. Verus Engineering built the wing for drivers who need a large step in rear downforce to offset a significant front aero package, naming its front splitter kit as the partner. The 0 to 15 degree adjustment trims rear load, but a factory nose leaves the balance too far rearward.
How much downforce does the swan neck UCW wing make? Verus Engineering rates the wing to generate and withstand more than 500 lb of downforce. The vendor data gives no figure at a set speed for the 86, FR-S and BRZ, so read 500 lb as the structural rating. Verus reports that its CFD results and track testing closely agree.
Which endplates come with the swan neck UCW wing? The standard kit ships with a pair of aluminum rear wing endplates, and the carbon fiber endplate option adds a carbon pair. Both versions share the same pre-preg element, machined aluminum uprights, sheet steel trunk mounts and stainless hardware, so the choice comes down to the finish at the wing tips.
What kind of driving suits the swan neck UCW wing? Track driving. Verus Engineering built the wing to add a large amount of rear downforce, raise confidence on track and cut lap times, and it makes the most sense on a car that already carries a significant front aero package. Mostly street-driven cars are better served by the smaller High-Efficiency wing.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
