Will the UCW Rear Wing Kit for S550 fit a Mustang GT?

Yes, with extra work. The UCW Rear Wing Kit for S550 is designed for the GT350R and uses the mounting holes in its factory trunk lid. Verus Engineering states it also works on other S550 Mustangs with additional modification and a trunk bracket that is not part of this kit, and publishes a Mustang GT install video.

How much downforce does the Verus UCW wing make on the GT350R?

Verus Engineering designed the GT350R wing to make and carry more than 500 lb of downforce. How much of that a car uses comes down to speed and to the angle of attack, set anywhere from 0 to 15 degrees to match the front aero, so 500 lb describes what the assembly can carry.

Does the Shelby need a front splitter with this wing?

Yes, for a balanced car at the limit. Verus Engineering aimed the UCW wing at track drivers whose front aero is already substantial, and matched the size of its GT350 front splitter and dive planes to the load from this wing and the rear diffuser. Together those parts make up the Ventus 3 package.

How long does Verus take to ship a UCW wing?

Verus Engineering assembles every UCW wing to order and ships it within 5 business days of receiving the order, unless Verus states otherwise at the time. Allow for that lead time when planning an install around a track day or event.

What is the GT350R wing element made from?

Verus Engineering builds the wing element from 2x2 twill pre-preg carbon fiber, cured in an autoclave and finished in automotive high-gloss clear. The uprights and trunk mounts are machined from billet aluminum, stainless hardware is used throughout, and the airfoil derives from the Verus V1X profile, refined with the ANSYS adjoint solver.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for S550 Ford Mustang Shelby GT350R

Verus Engineering’s UCW Rear Wing Kit for S550 Ford Mustang Shelby GT350R mounts to the trunk lid of the R through mounting holes already present from the factory, carrying a pre-preg carbon element built for a large step up in rear downforce. Verus rates the assembly past 500 lb of downforce, with 0 to 15 degrees of angle-of-attack adjustment. It is a track part for a GT350R whose nose already wears serious front aero; on a stock front end it would shift the balance rearward.

Design and Performance

The UCW airfoil derives from the Verus V1X profile, sized to the space above the Shelby trunk and refined with the ANSYS adjoint solver for a better lift-to-drag ratio. Verus says CFD and on-track testing correlated closely, and the wing forms the rear of its Ventus 3 package for the GT350.

Features

Autoclave-cured 2×2 twill pre-preg carbon element under a high-gloss automotive clear
Machined billet aluminum uprights and trunk mounts
Angle of attack adjustable from 0 to 15 degrees
Rated past 500 lb of downforce
Stainless hardware throughout

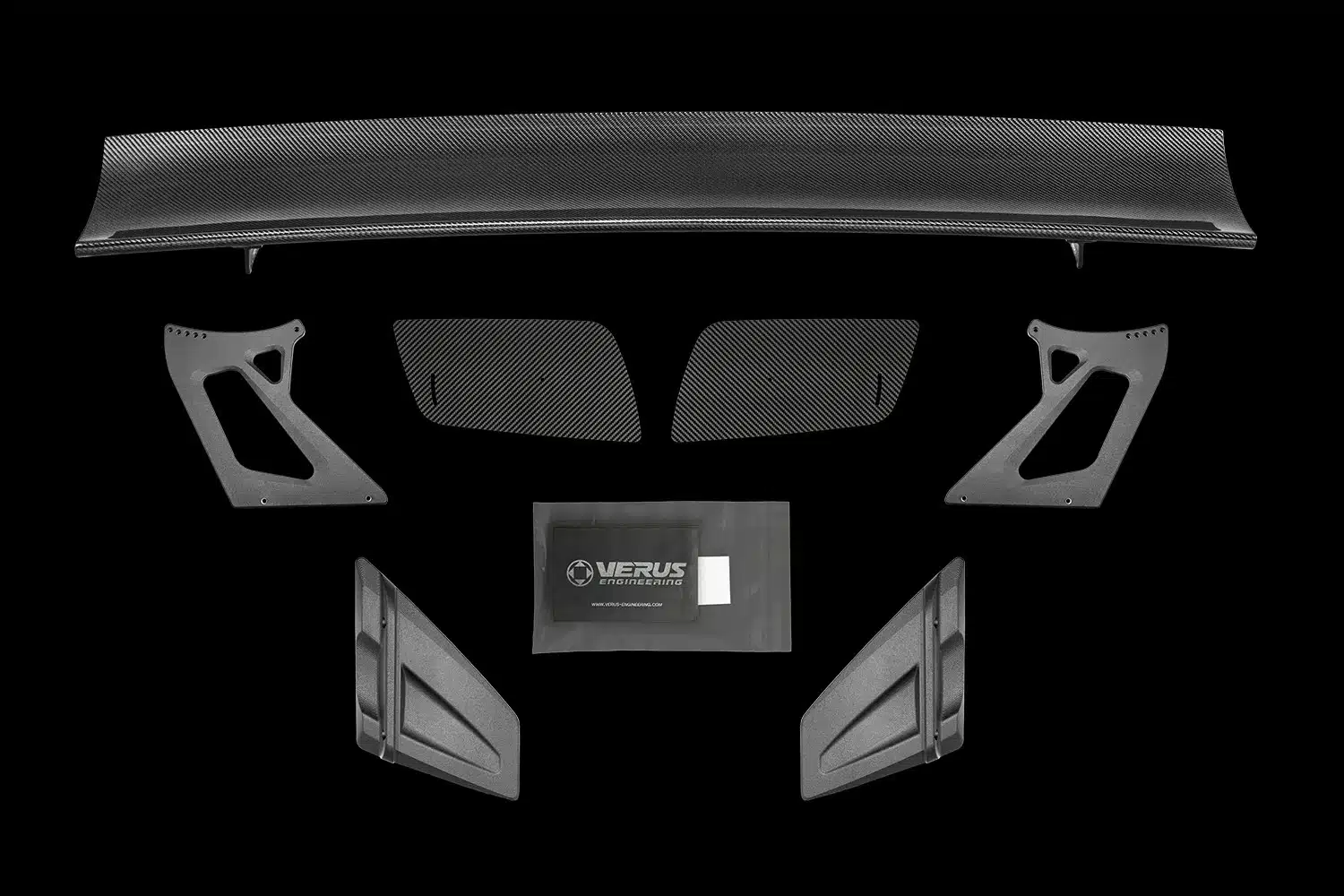

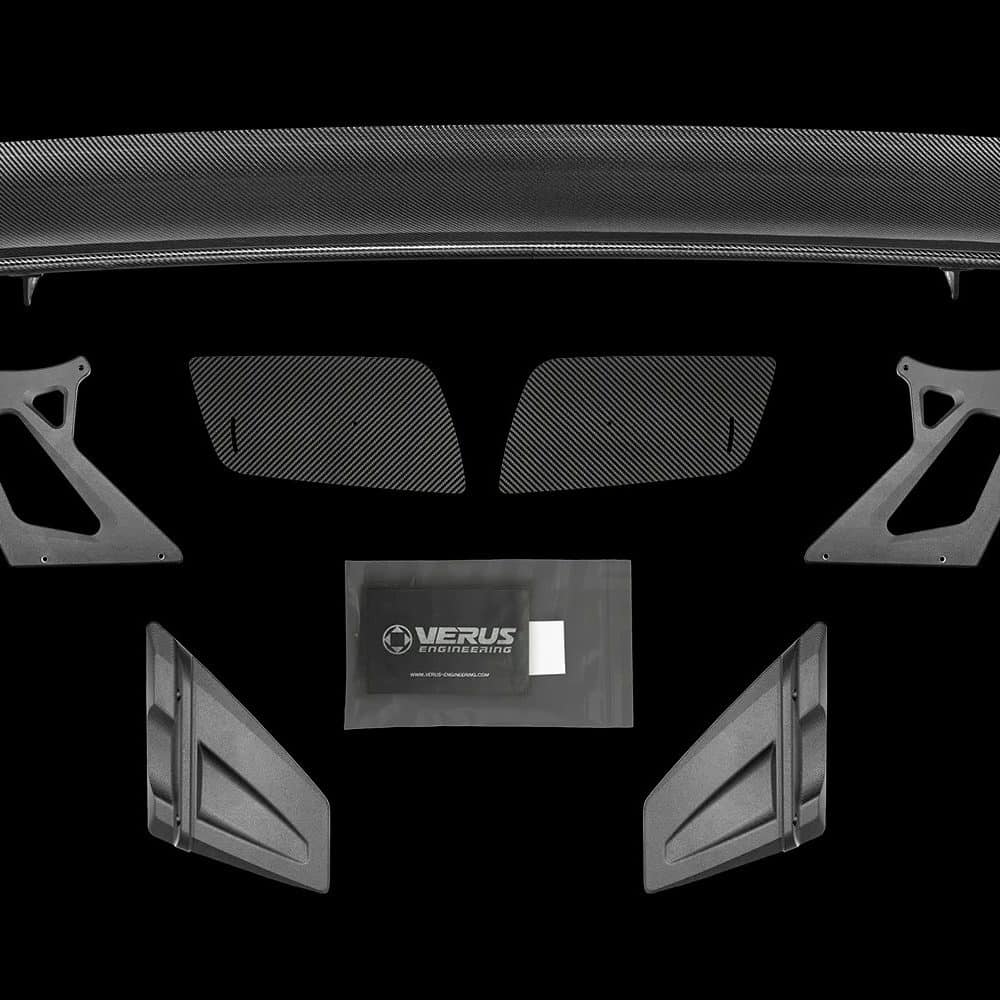

What’s Included

Rear wing element assembly
Machined aluminum rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Carbon rear wing endplates, FFV or standard as selected (x2)
Hardware kit

Applications

Ford Mustang Shelby GT350R: S550 | 2015-2020
Ford Mustang: S550 | 2015-2023

Notes

The UCW Rear Wing Kit for S550 bolts to the GT350R trunk lid through the factory mounting holes
Other S550 Mustangs need additional modification and a separate trunk bracket, not included; Verus publishes an S550 Mustang GT install video
Verus assembles each UCW wing to order, with dispatch inside 5 business days unless Verus advises otherwise
Choose FFV or standard carbon endplates when ordering; Verus also sells Vented Carbon Fiber Endplates for UCW Rear Wings separately
Verus sized its GT350 Front Splitter Kit and Dual Element Dive Plane Kit to balance this wing in the Ventus 3 package
See every Verus Engineering part for the S550 Ford Mustang Shelby GT350R
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will the UCW Rear Wing Kit for S550 fit a Mustang GT? Yes, with extra work. The UCW Rear Wing Kit for S550 is designed for the GT350R and uses the mounting holes in its factory trunk lid. Verus Engineering states it also works on other S550 Mustangs with additional modification and a trunk bracket that is not part of this kit, and publishes a Mustang GT install video.
How much downforce does the Verus UCW wing make on the GT350R? Verus Engineering designed the GT350R wing to make and carry more than 500 lb of downforce. How much of that a car uses comes down to speed and to the angle of attack, set anywhere from 0 to 15 degrees to match the front aero, so 500 lb describes what the assembly can carry.
Does the Shelby need a front splitter with this wing? Yes, for a balanced car at the limit. Verus Engineering aimed the UCW wing at track drivers whose front aero is already substantial, and matched the size of its GT350 front splitter and dive planes to the load from this wing and the rear diffuser. Together those parts make up the Ventus 3 package.
How long does Verus take to ship a UCW wing? Verus Engineering assembles every UCW wing to order and ships it within 5 business days of receiving the order, unless Verus states otherwise at the time. Allow for that lead time when planning an install around a track day or event.
What is the GT350R wing element made from? Verus Engineering builds the wing element from 2×2 twill pre-preg carbon fiber, cured in an autoclave and finished in automotive high-gloss clear. The uprights and trunk mounts are machined from billet aluminum, stainless hardware is used throughout, and the airfoil derives from the Verus V1X profile, refined with the ANSYS adjoint solver.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
