Do the Vented Carbon Fiber Endplates come with a UCW wing?

No. The Vented Carbon Fiber Endplates are a pair of replacement plates for a Verus Engineering UCW rear wing you already own or are buying separately. They bolt to the wing element in place of the standard endplates, using the same hardware, so nothing else needs to change on the uprights or the trunk mounts.

Will the vented endplates fit any UCW wing?

Yes. Verus Engineering states that the vented plates bolt directly to all UCW wing elements, so they suit UCW wings across the Verus range, from the GR Supra and Shelby GT350R kits to the Corvette and Porsche versions. They mount exactly as the standard UCW endplates do, with no change in hardware.

How much do vented endplates improve a UCW wing?

In Verus Engineering CFD testing at 10 degrees angle of attack, lift-to-drag ratio rose by 1.2%, from 0.3% more downforce and 0.9% less drag. The wing sat on a generic swan neck upright in free stream airflow, so the gain on a given car depends on its setup.

What are the Verus vented endplates made from?

They are 2x2 twill pre-preg carbon fiber, autoclave cured and formed on machined aluminum molds so each pair matches. Verus Engineering finishes them in a gloss automotive clear that protects the carbon from UV, and the vents and expanding 3D contour give the UCW wing a distinctive look.

Why vent a wing endplate?

A wing generates vortices where the element meets the endplate, and those vortices cost efficiency. Verus Engineering shaped the vents to shed some of the high-pressure air on the top side of the wing and reshaped the bottom of the plate, which reduced the vortices and gave the UCW wing more downforce with less drag in CFD testing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

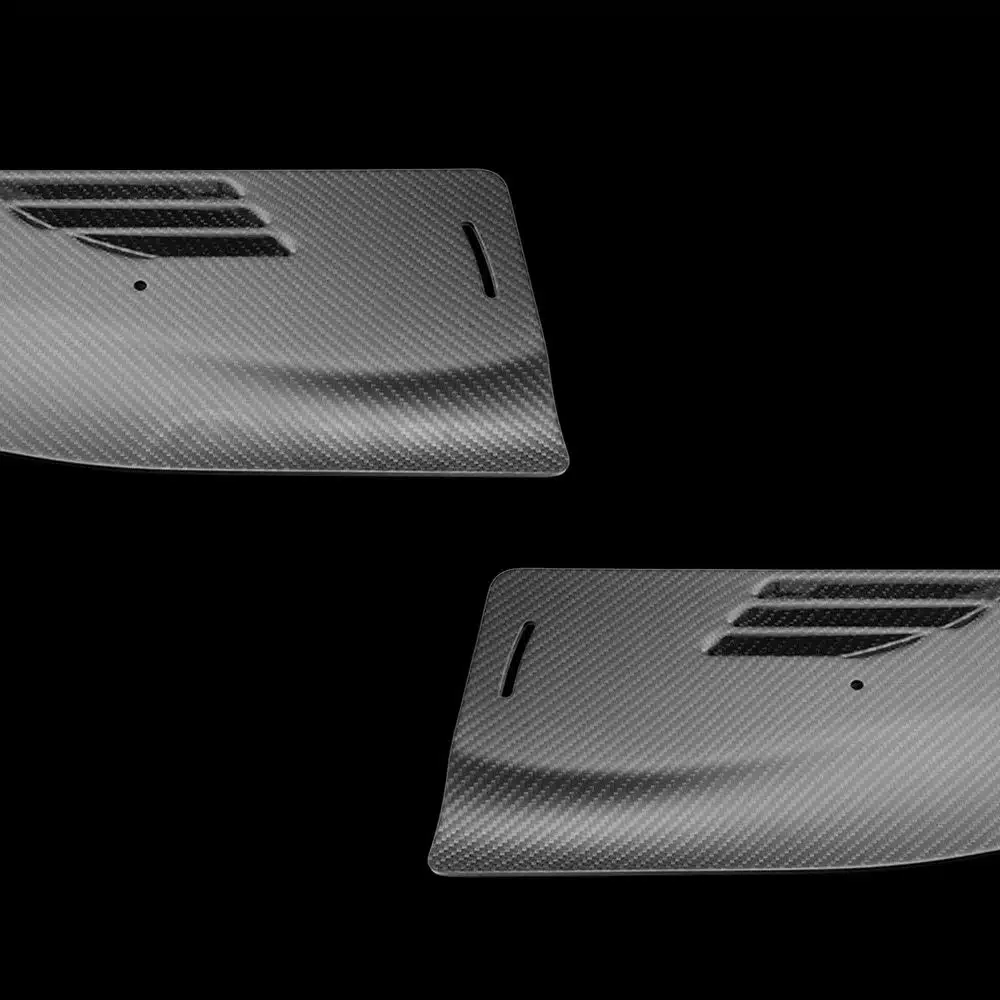

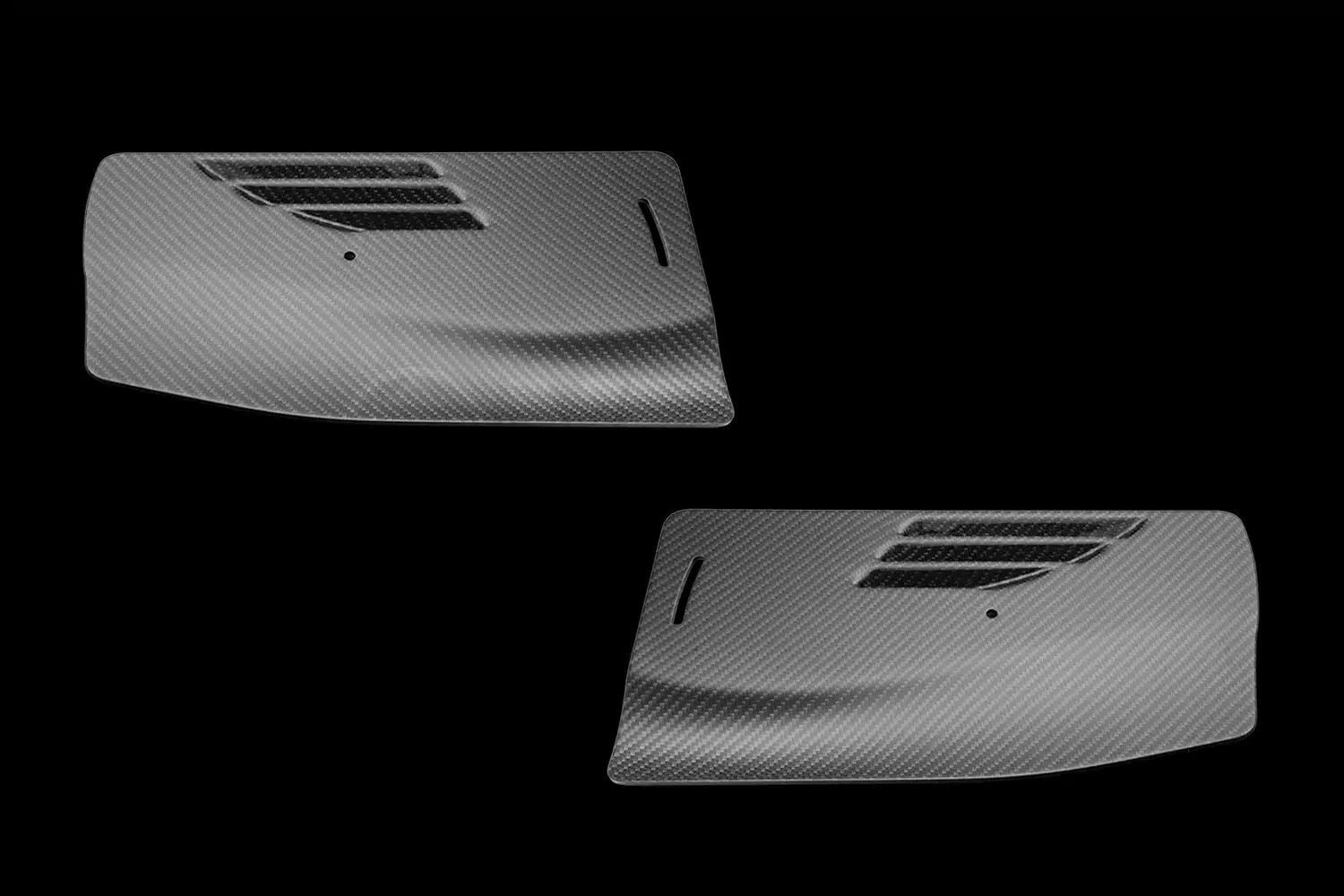

Verus Engineering Vented Carbon Fiber Endplates for UCW Rear Wings

Verus Engineering’s Vented Carbon Fiber Endplates for UCW Rear Wings swap onto any Verus UCW wing in place of its standard endplates, using the existing hardware, and bring a sharper look along with a measured gain in efficiency. In CFD, Verus cut vents that act on the upper surface of the wing and reshaped the bottom of each plate, finding a 1.2% improvement in lift-to-drag ratio at 10 degrees angle of attack, made up of 0.3% more downforce and 0.9% less drag. The change in grip is small, so buy them for the finish first and count the efficiency as a bonus.

How Verus Tested Them

Verus took its measurements on a generic swan neck mount in free stream air, which keeps the car out of the numbers. The vents bleed off some high-pressure air above the element, and the reshaped lower edge trims the vortices where wing and plate meet. Machined aluminum molds give every pair the same fit, and the 2×2 twill pre-preg layup is autoclave cured, then sealed under gloss automotive clear that protects it from UV.

Features

1.2% lift-to-drag gain at 10 degrees AOA in Verus CFD testing
0.3% more downforce and 0.9% less drag than standard endplates
Vented upper section with an expanding 3D contour
Pre-preg 2×2 twill, formed on machined aluminum molds
Autoclave cured, gloss clear for UV resistance
Bolts to every UCW wing element with standard hardware

Applications

Fits: every Verus Engineering UCW rear wing element, on any vehicle

Notes

Endplates only, sold as a pair; the UCW wing itself is not included
The Vented Carbon Fiber Endplates mount exactly as the standard UCW endplates do, with the same hardware
UCW wings on BA include the UCW Rear Wing Kit for A90 Toyota GR Supra, the UCW Rear Wing Kit for S550 Ford Mustang Shelby GT350R and the UCW Rear Wing Kit for 992 Porsche 911 GT3
See every Verus Engineering part at Bulletproof Automotive
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Do the Vented Carbon Fiber Endplates come with a UCW wing? No. The Vented Carbon Fiber Endplates are a pair of replacement plates for a Verus Engineering UCW rear wing you already own or are buying separately. They bolt to the wing element in place of the standard endplates, using the same hardware, so nothing else needs to change on the uprights or the trunk mounts.
Will the vented endplates fit any UCW wing? Yes. Verus Engineering states that the vented plates bolt directly to all UCW wing elements, so they suit UCW wings across the Verus range, from the GR Supra and Shelby GT350R kits to the Corvette and Porsche versions. They mount exactly as the standard UCW endplates do, with no change in hardware.
How much do vented endplates improve a UCW wing? In Verus Engineering CFD testing at 10 degrees angle of attack, lift-to-drag ratio rose by 1.2%, from 0.3% more downforce and 0.9% less drag. The wing sat on a generic swan neck upright in free stream airflow, so the gain on a given car depends on its setup.
What are the Verus vented endplates made from? They are 2×2 twill pre-preg carbon fiber, autoclave cured and formed on machined aluminum molds so each pair matches. Verus Engineering finishes them in a gloss automotive clear that protects the carbon from UV, and the vents and expanding 3D contour give the UCW wing a distinctive look.
Why vent a wing endplate? A wing generates vortices where the element meets the endplate, and those vortices cost efficiency. Verus Engineering shaped the vents to shed some of the high-pressure air on the top side of the wing and reshaped the bottom of the plate, which reduced the vortices and gave the UCW wing more downforce with less drag in CFD testing.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
