Will the Dive Plane Kit for S550 fit a standard Mustang GT bumper?

No. Verus Engineering states the Dive Plane Kit for S550 fits only the OEM GT350 bumper, and lists it for GT350 and GT350R owners. The planes are shaped from scan data of that bumper and bond to it with 3M VHB tape, so a Mustang GT bumper or an aftermarket cover will not give the correct fit.

Do I need a front splitter to run dive planes on my GT350?

No. Verus Engineering designed the kit to add front downforce without moving the splitter further forward or lower, and it works on the factory setup for owners who want more front grip. It also offsets the rear load of a big wing or diffuser in the Verus Ventus packages.

How are the Verus GT350 dive planes installed?

Each plane sticks to the factory GT350 bumper on its own piece of 3M VHB double-sided tape, so the bumper is never drilled. Verus Engineering supplies a paper template to mark the positions, and its install manual and video walk through the process on the Shelby.

Do canards slow the car down on the straights?

Yes, by a small margin. Verus Engineering reports minimal added drag in its CFD data, because the planes make part of their downforce by increasing evacuation from the front wheel wells and sealing the sides of the car. In return they shift the aero balance forward and raise front grip.

What are the dive planes made from?

They are carbon fiber, 1.5mm thick, made from 2x2 twill pre-preg that Verus Engineering cures in an autoclave and coats in gloss clear. OpenFOAM analysis and scan data of the GT350 bumper set their shapes, with the aim of generating vortices that draw air from the wheel wells.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Dual Element Dive Plane Kit for S550 Ford Mustang Shelby GT350

Verus Engineering’s Dual Element Dive Plane Kit for S550 Ford Mustang Shelby GT350 adds front downforce without pushing the splitter further forward or lower, which makes it the front aero choice for a GT350 or GT350R that still sees public roads between track days. Two carbon elements per side shift the aero balance forward and pull air out of the front wheel wells, and Verus found only a small drag penalty in its CFD data. The kit fits the factory GT350 bumper only, so a car wearing an aftermarket bumper cover is not a candidate.

Design and Construction

Verus developed the planes in OpenFOAM, targeting vortices that improve evacuation from the front fender wells and help seal the sides of the car, so the gain at the nose does not cost performance elsewhere. The shapes come from scan data of the GT350 bumper.

Features

Shifts aero balance forward and reduces front lift
Allows forward-biased fine tuning of the aero balance
Helps seal the sides of the car
Evacuates air from the front of each wheel well
Mounts with 3M VHB double-sided tape, no holes required
Paper template supplied for accurate placement

What’s Included

Dive planes, right-hand top and left-hand top
Dive planes, right-hand bottom and left-hand bottom
3M VHB double-sided tape, one piece per dive plane (x4)
Paper install template

Applications

Ford Mustang Shelby GT350 and GT350R: S550 | 2015-2020

Notes

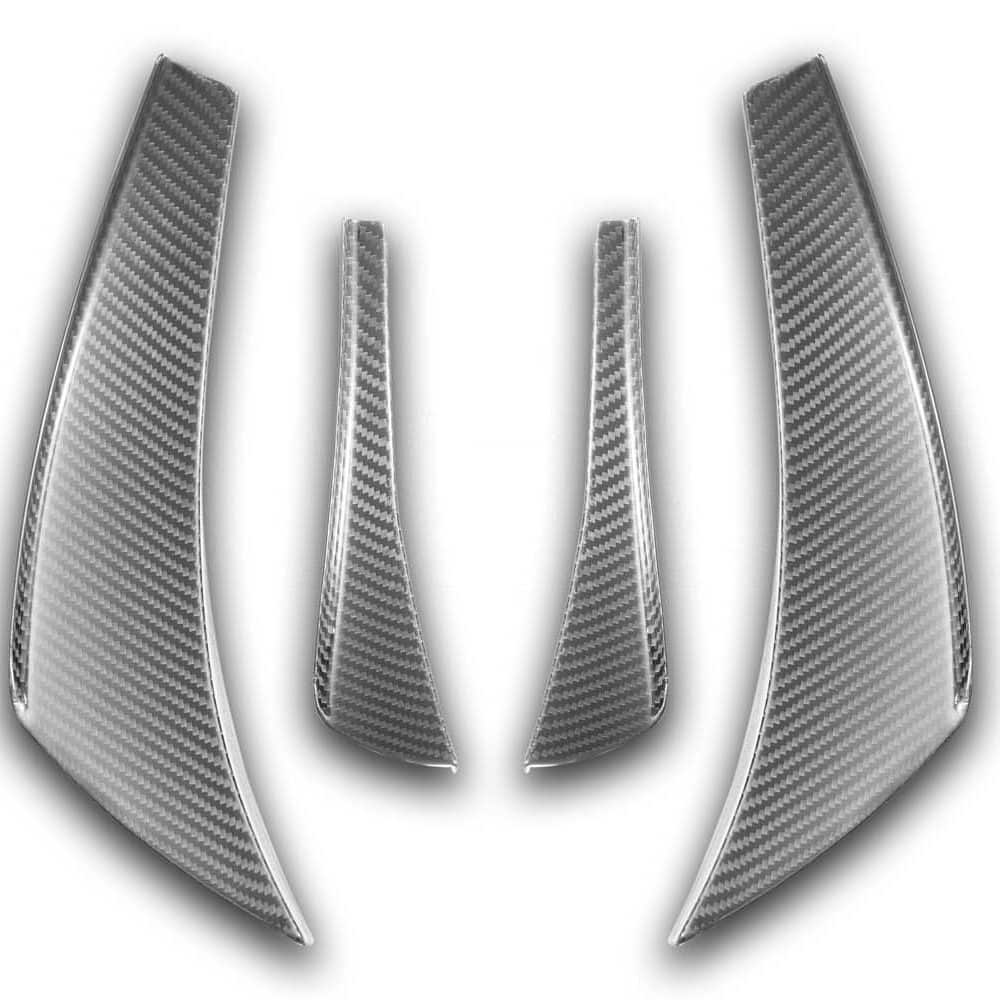

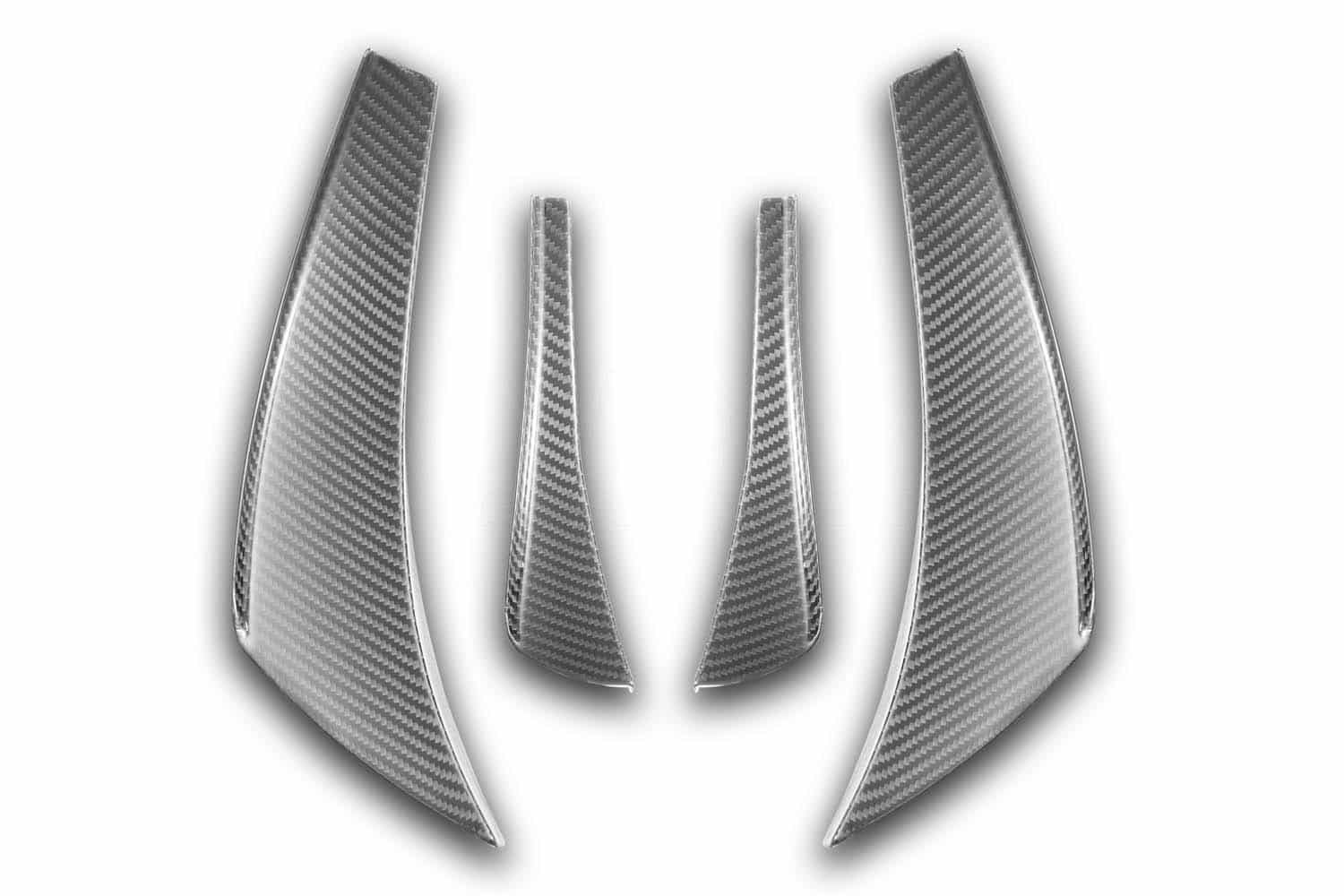

Four carbon dive planes come in the kit, an upper and a lower for each side
Compatible with the OEM GT350 bumper only
Fitting the Dive Plane Kit for S550 takes 3M VHB tape and the paper template, with no drilling; Verus covers the job in a manual and a video
Runs in the Verus Ventus packages for the GT350 alongside the Verus Engineering Front Splitter Kit for S550 Ford Mustang Shelby GT350, the UCW Rear Wing Kit and the Rear Diffuser
See every Verus Engineering part for the S550 Ford Mustang Shelby GT350
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will the Dive Plane Kit for S550 fit a standard Mustang GT bumper? No. Verus Engineering states the Dive Plane Kit for S550 fits only the OEM GT350 bumper, and lists it for GT350 and GT350R owners. The planes are shaped from scan data of that bumper and bond to it with 3M VHB tape, so a Mustang GT bumper or an aftermarket cover will not give the correct fit.
Do I need a front splitter to run dive planes on my GT350? No. Verus Engineering designed the kit to add front downforce without moving the splitter further forward or lower, and it works on the factory setup for owners who want more front grip. It also offsets the rear load of a big wing or diffuser in the Verus Ventus packages.
How are the Verus GT350 dive planes installed? Each plane sticks to the factory GT350 bumper on its own piece of 3M VHB double-sided tape, so the bumper is never drilled. Verus Engineering supplies a paper template to mark the positions, and its install manual and video walk through the process on the Shelby.
Do canards slow the car down on the straights? Yes, by a small margin. Verus Engineering reports minimal added drag in its CFD data, because the planes make part of their downforce by increasing evacuation from the front wheel wells and sealing the sides of the car. In return they shift the aero balance forward and raise front grip.
What are the dive planes made from? They are carbon fiber, 1.5mm thick, made from 2×2 twill pre-preg that Verus Engineering cures in an autoclave and coats in gloss clear. OpenFOAM analysis and scan data of the GT350 bumper set their shapes, with the aim of generating vortices that draw air from the wheel wells.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
