Do I need anything else for a car with automatic headlight leveling?

Yes. On cars fitted with an automatic headlight level sensor, Verus Engineering specifies its part A0104A, sold separately, to hook the sensor up to the new arms. Order it with the kit so the install can be finished in one session. Cars without the sensor need nothing beyond the arms and the supplied hardware.

Which cars does the Rear Lower Control Arm Kit fit?

The Rear Lower Control Arm Kit fits the Subaru WRX and WRX STI from 2008 onward and the Subaru BRZ, Scion FR-S, Toyota 86 and Toyota GR86 from 2013 onward, according to Verus Engineering. One part number covers both platforms, with the same arms, inboard mounts and hardware.

What is the difference between the spherical and polyurethane inboard mounts?

Verus Engineering offers the kit with either a spherical or a polyurethane inboard mount, in any of the three colors. As a general rule, a spherical joint locates the arm with the least deflection and passes more road noise, while polyurethane allows slight movement and filters more vibration, which suits a daily driver.

Are the arms strong enough for track use?

Yes. Verus Engineering tested load cases including 2G braking, 1.5G acceleration and a 5G lateral load representing a light crash, and found none stressed the arm much compared with the combined load. On that basis Verus rates the arms for race and street use, while keeping them the lightest on the market at 2 lb 10 oz each.

How much rear camber can I dial in?

The arms adjust rear camber by up to -7 degrees, using a pre-hardened stainless adjustment piece and slop-free bearings that hold the setting once it is locked. Verus Engineering designed the adjustment to be quick and easy, so an alignment shop can match the rear to the front camber.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

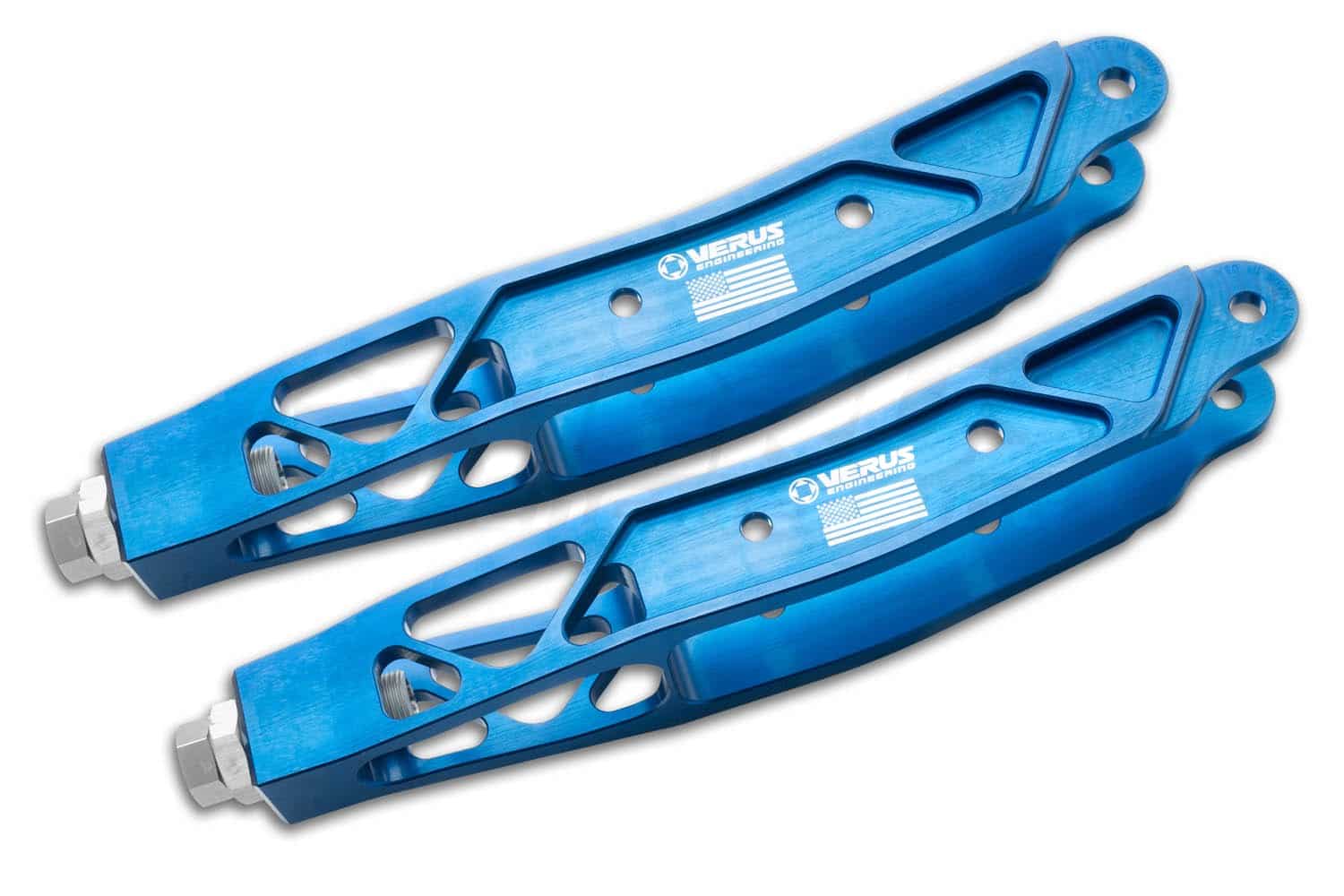

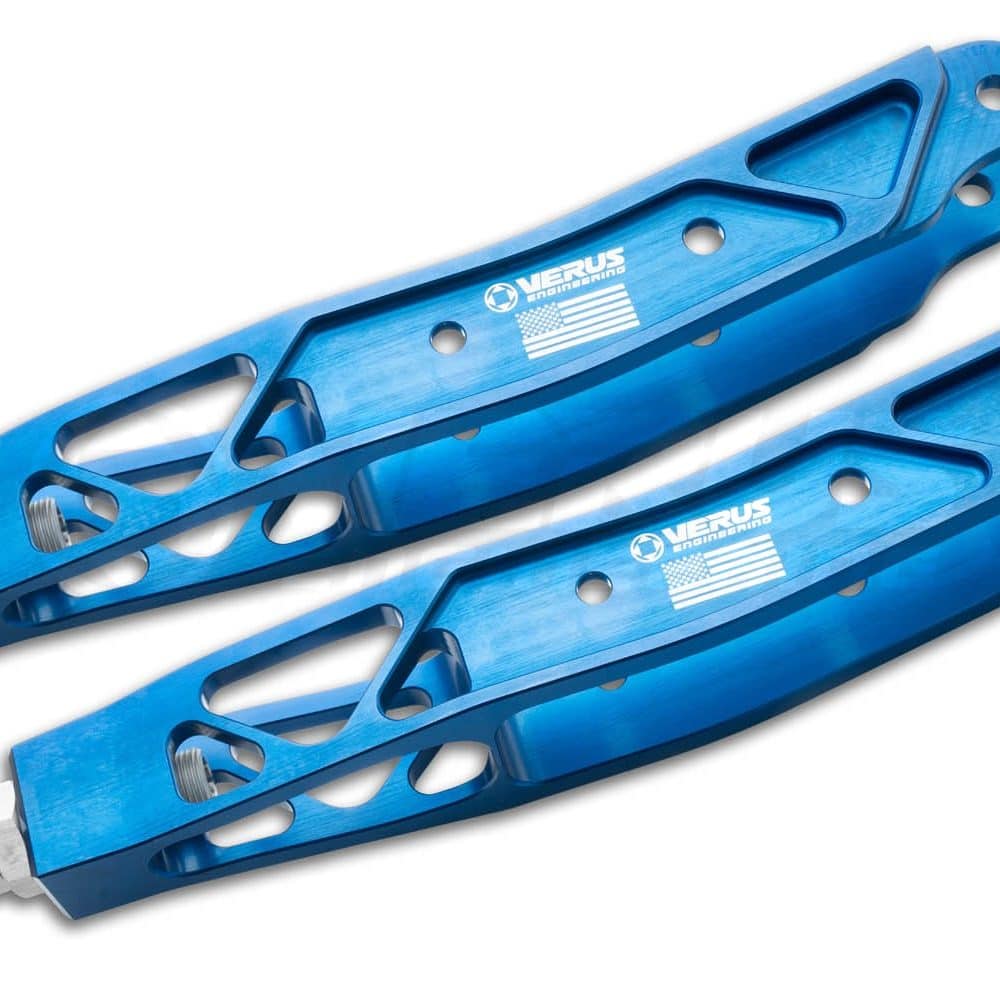

Verus Engineering 7000 Series Rear Lower Control Arm Kit for Subaru WRX, WRX STI, BRZ, Scion FR-S, Toyota 86 and GR86

Verus Engineering’s 7000 Series Rear Lower Control Arm Kit for Subaru WRX, WRX STI, BRZ, Scion FR-S, Toyota 86 and GR86 sets rear camber quickly, with up to -7 degrees of range, from arms that Verus calls the lightest on the market. Each arm is CNC machined from billet 7000 series aluminum and weighs 2 lb 10 oz, close to a pound less per side than the factory part. Verus settled the design through FEA, bench and real-world testing. The kit pays off once the front of the car runs more negative camber and the rear has to match it.

Inboard Mount Options

Choose a spherical or a polyurethane inboard mount, with the arms anodized in blue, black or red. Camber adjusts through a pre-hardened stainless adjustment piece and three-piece high strength PTFE lined rod ends, and 10.9 zinc coated hardware is included.

Features

Rear camber adjustment up to -7 degrees
Lightweight 2 lb 10 oz arms
Slop-free bearings keep the camber setting consistent
Anodized for surface strength and corrosion resistance
Spherical or polyurethane inboard mounting

What’s Included

Rear lower control arms (x2)
Spherical or polyurethane inboard mounting, as selected
Hardware kit with 10.9 zinc coated hardware

Applications

Subaru WRX: GR / GV / VA | 2008-2021
Subaru WRX STI: GR / GV / VA | 2008-2021
Subaru BRZ: ZC6 | 2013-2020
Subaru BRZ: ZD8 | 2022-present
Scion FR-S: ZN6 | 2013-2016
Toyota 86: ZN6 | 2017-2020
Toyota GR86: ZN8 | 2022-present

Notes

Cars with an automatic headlight level sensor need the Verus Auto Headlight Level Bracket Kit, sold separately, to hook the sensor up to these arms
The Rear Lower Control Arm Kit is sold as a pair, one arm per side
On the 86, GR86, FR-S and BRZ, pair the arms with the Front Camber Plate Assembly for front camber adjustment
Verus publishes an install manual and an install video for the control arms
See every Verus Engineering part for the Subaru WRX
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Do I need anything else for a car with automatic headlight leveling? Yes. On cars fitted with an automatic headlight level sensor, Verus Engineering specifies its part A0104A, sold separately, to hook the sensor up to the new arms. Order it with the kit so the install can be finished in one session. Cars without the sensor need nothing beyond the arms and the supplied hardware.
Which cars does the Rear Lower Control Arm Kit fit? The Rear Lower Control Arm Kit fits the Subaru WRX and WRX STI from 2008 onward and the Subaru BRZ, Scion FR-S, Toyota 86 and Toyota GR86 from 2013 onward, according to Verus Engineering. One part number covers both platforms, with the same arms, inboard mounts and hardware.
What is the difference between the spherical and polyurethane inboard mounts? Verus Engineering offers the kit with either a spherical or a polyurethane inboard mount, in any of the three colors. As a general rule, a spherical joint locates the arm with the least deflection and passes more road noise, while polyurethane allows slight movement and filters more vibration, which suits a daily driver.
Are the arms strong enough for track use? Yes. Verus Engineering tested load cases including 2G braking, 1.5G acceleration and a 5G lateral load representing a light crash, and found none stressed the arm much compared with the combined load. On that basis Verus rates the arms for race and street use, while keeping them the lightest on the market at 2 lb 10 oz each.
How much rear camber can I dial in? The arms adjust rear camber by up to -7 degrees, using a pre-hardened stainless adjustment piece and slop-free bearings that hold the setting once it is locked. Verus Engineering designed the adjustment to be quick and easy, so an alignment shop can match the rear to the front camber.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
