Will these camber plates fit my coilovers?

Yes, with exceptions. The plates replace the factory top hats directly, and Verus Engineering lists three suspension units that need a different top nut or pillow ball nut than the one supplied: Koni Yellow struts, Tein coilovers and Ohlins Road and Track coilovers. Owners of those units should source the correct nut from the coilover maker first.

How much camber does the Camber Plate Assembly for Toyota 86 add?

The Camber Plate Assembly for Toyota 86 allows up to -3 degrees of front camber at stock ride height without camber bolts, on the 86, GR86, FR-S and BRZ. Lowered cars sit at different geometry, so the usable range shifts with ride height, but Verus Engineering designed the plates to reach that figure on a car at factory height.

Do camber plates change ride height?

No. Verus Engineering designed the plates to retain the same installed height as the factory top hats, so the car sits where it did before. The change is in the mount itself: a PTFE lined spherical bearing reduces compliance at the top of the strut, and each plate saves 15 oz over the original part.

How long do the spherical bearings last?

Verus Engineering chose high-end wide series spherical bearings so the plates gain driver feel without giving up longevity. Each bearing is PTFE lined and runs a 440 stainless ball in a 17-4 PH stainless race, inside billet 6061-T6 aluminum that is anodized for corrosion resistance, a combination built for long service on street and track.

Do the plates fit the newer GR86 and BRZ?

Yes. Verus Engineering lists the front camber plates for the BRZ, FR-S, GT86 and GR86, which covers the first-generation Scion FR-S, Subaru BRZ and Toyota 86 as well as the second-generation Toyota GR86 and Subaru BRZ sold from 2022. The same assemblies, bushings and nuts are used across all of these cars.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

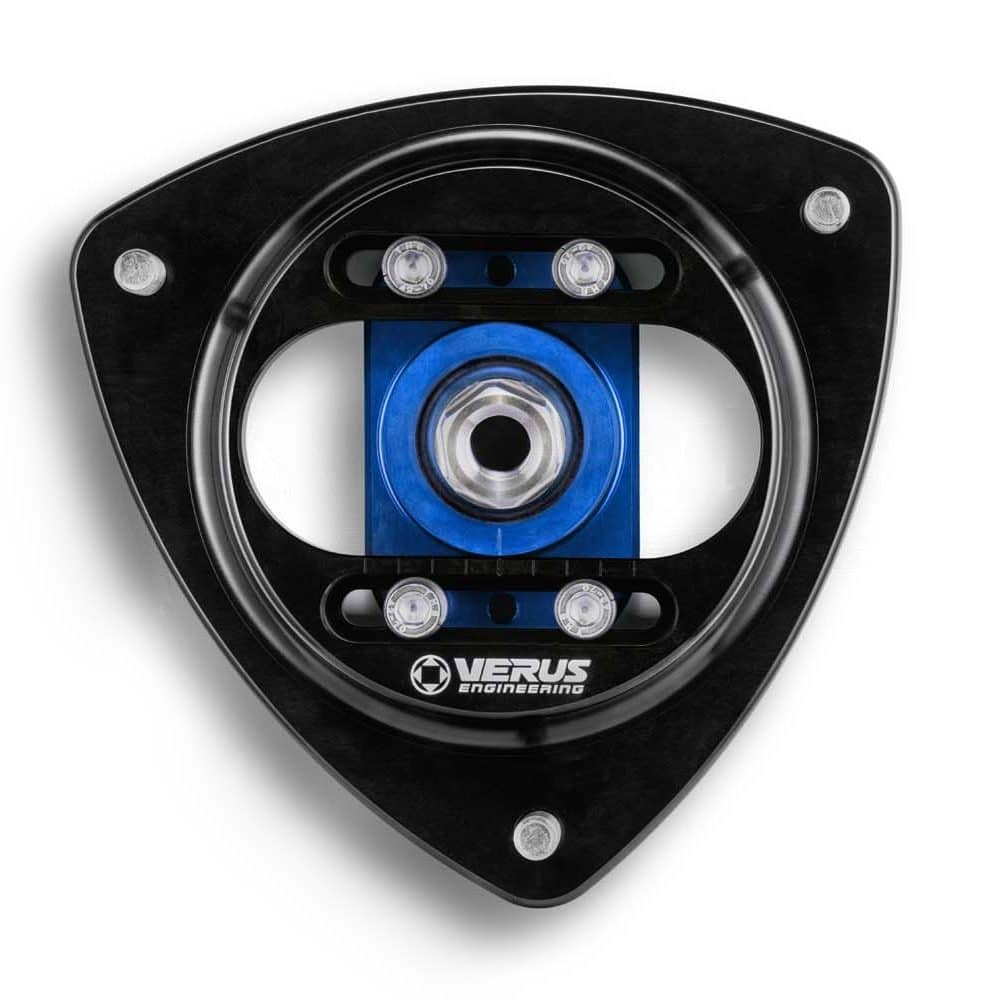

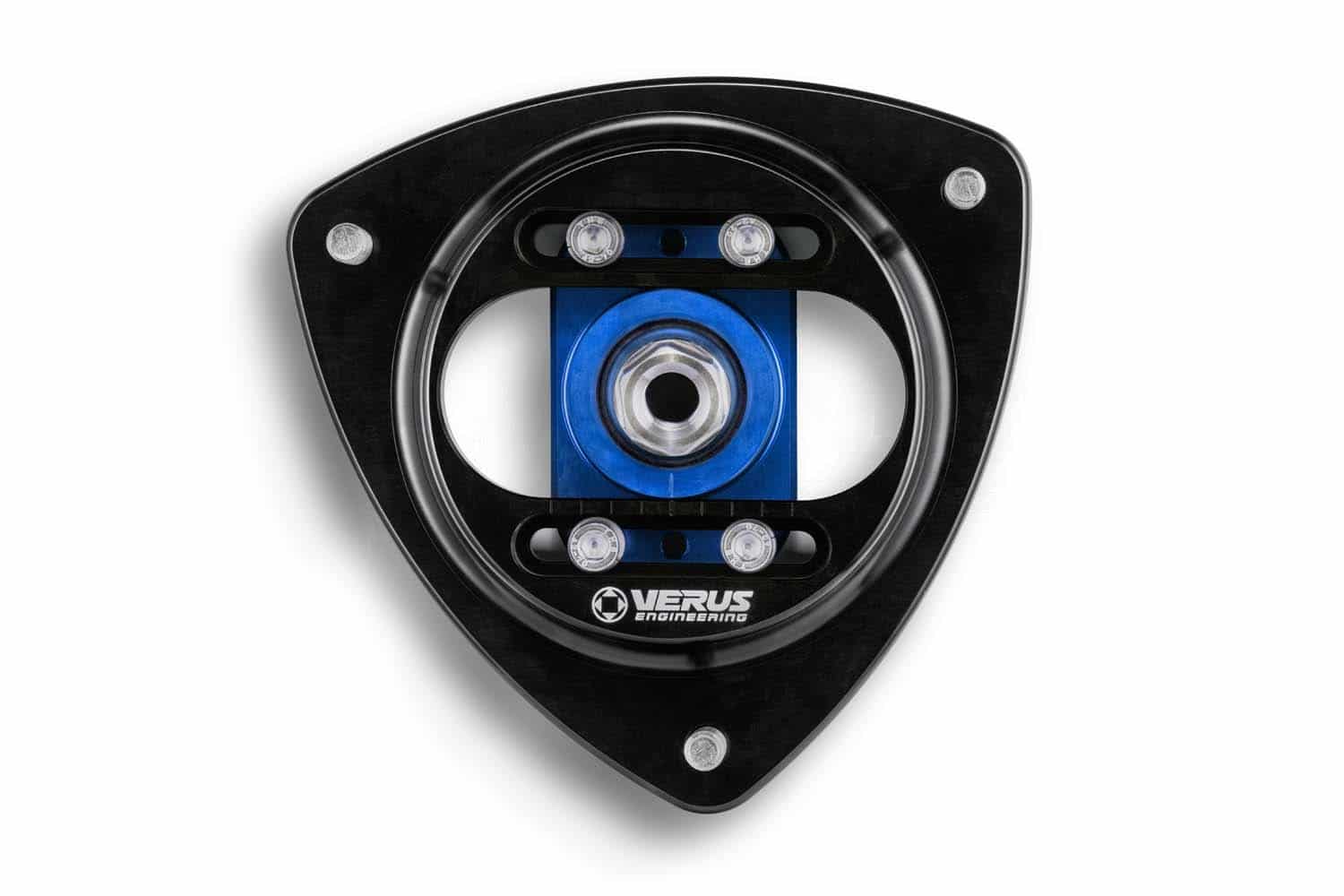

Verus Engineering Front Camber Plate Assembly for Toyota 86, GR86, Scion FR-S and Subaru BRZ

Verus Engineering’s Front Camber Plate Assembly for Toyota 86, GR86, Scion FR-S and Subaru BRZ replaces the factory top hats and allows up to -3 degrees of front camber at stock ride height, with no camber bolts. Each plate carries a wide series spherical bearing, PTFE lined with a 440 stainless ball and a 17-4 PH stainless race, which reduces compliance and sharpens steering feel. Installed height matches the factory part, so the car sits where it did before. On a car that sees track days, more negative camber stops the outside tire rolling onto its edge in corners; a commuter gains less.

Construction

The plates are machined from billet 6061-T6 aluminum and anodized for corrosion resistance, in blue, black or red. Clinch press-in studs give an OEM-like install, every fastener is stainless, and each side weighs 15 oz less than the factory part. Verus makes them in the U.S.A.

Features

Up to -3 degrees of front camber at stock ride height
Quick, simple camber adjustment
Lightweight design that saves 15 oz per side
Wide series PTFE-lined spherical bearing for sharper steering feel
Same installed height as the factory top hats

What’s Included

Camber plate assemblies (L/R)
Spherical bushings (x2)
Spherical nuts (x2)

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Subaru BRZ: ZD8 | 2022-present
Toyota 86: ZN6 | 2017-2020
Toyota GR86: ZN8 | 2022-present

Notes

Koni Yellow struts, Tein coilovers and Ohlins Road and Track coilovers need a different top nut or pillow ball nut than the one supplied
The Camber Plate Assembly for Toyota 86 replaces the factory top hats directly and keeps the factory installed height
Pair the plates with the 7000 Series Rear Lower Control Arm Kit to adjust camber at the rear as well
Verus publishes an install manual and an install video for the camber plates
See every Verus Engineering part for the Toyota 86 and GR86
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will these camber plates fit my coilovers? Yes, with exceptions. The plates replace the factory top hats directly, and Verus Engineering lists three suspension units that need a different top nut or pillow ball nut than the one supplied: Koni Yellow struts, Tein coilovers and Ohlins Road and Track coilovers. Owners of those units should source the correct nut from the coilover maker first.
How much camber does the Camber Plate Assembly for Toyota 86 add? The Camber Plate Assembly for Toyota 86 allows up to -3 degrees of front camber at stock ride height without camber bolts, on the 86, GR86, FR-S and BRZ. Lowered cars sit at different geometry, so the usable range shifts with ride height, but Verus Engineering designed the plates to reach that figure on a car at factory height.
Do camber plates change ride height? No. Verus Engineering designed the plates to retain the same installed height as the factory top hats, so the car sits where it did before. The change is in the mount itself: a PTFE lined spherical bearing reduces compliance at the top of the strut, and each plate saves 15 oz over the original part.
How long do the spherical bearings last? Verus Engineering chose high-end wide series spherical bearings so the plates gain driver feel without giving up longevity. Each bearing is PTFE lined and runs a 440 stainless ball in a 17-4 PH stainless race, inside billet 6061-T6 aluminum that is anodized for corrosion resistance, a combination built for long service on street and track.
Do the plates fit the newer GR86 and BRZ? Yes. Verus Engineering lists the front camber plates for the BRZ, FR-S, GT86 and GR86, which covers the first-generation Scion FR-S, Subaru BRZ and Toyota 86 as well as the second-generation Toyota GR86 and Subaru BRZ sold from 2022. The same assemblies, bushings and nuts are used across all of these cars.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
