Does the Headlight Level Bracket Kit for ZN6 include the control arms?

No. The Headlight Level Bracket Kit for ZN6 contains two aluminum brackets and a hardware kit. It attaches the factory automatic headlight level sensor to the Verus Engineering 7000 Series Rear Lower Control Arm Kit, which is sold separately and should be ordered with it on any car fitted with the sensor.

How do I know if my car has automatic headlight leveling?

Check the factory rear lower control arms before removing them. Verus Engineering explains that late-model and European-market GT86, BRZ and FR-S cars can come with an auto headlight level sensor mounted on the rear lower control arm. If the sensor is attached there, order this bracket kit with the Verus arms; if not, the arms install on their own.

Which cars is the bracket made for?

Verus Engineering made it for first-generation Toyota 86, European GT86, Scion FR-S and Subaru BRZ cars with factory automatic headlight leveling. The product title also lists the WRX without describing it, so WRX owners should confirm fitment with Bulletproof Automotive first. Verus does not name the 2022 and later GR86 or BRZ.

What is the bracket made from?

Each bracket is laser cut from 5052 aluminum, powder coated for corrosion resistance and laser engraved with the Verus logo. Verus Engineering supplies stainless hardware and nylon spacers with the two brackets, and the kit is made in the U.S.A., matching the build standard of the control arms it attaches to.

Is the bracket difficult to install?

No. Verus Engineering describes the kit as a simple bolt-on that joins the factory level sensor to its control arms, with every fastener supplied. Fit it in the same session as the rear lower control arms, while the rear suspension is apart, so the sensor is connected before the car returns to the road.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

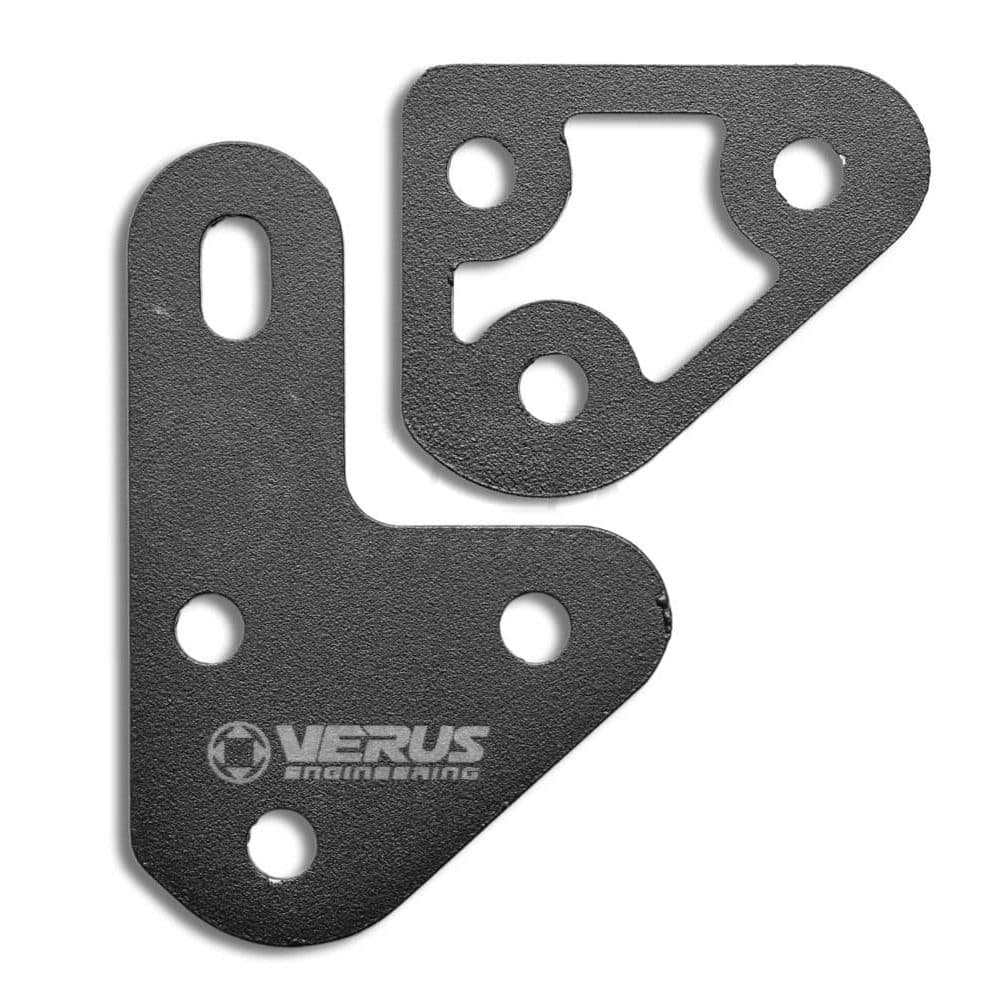

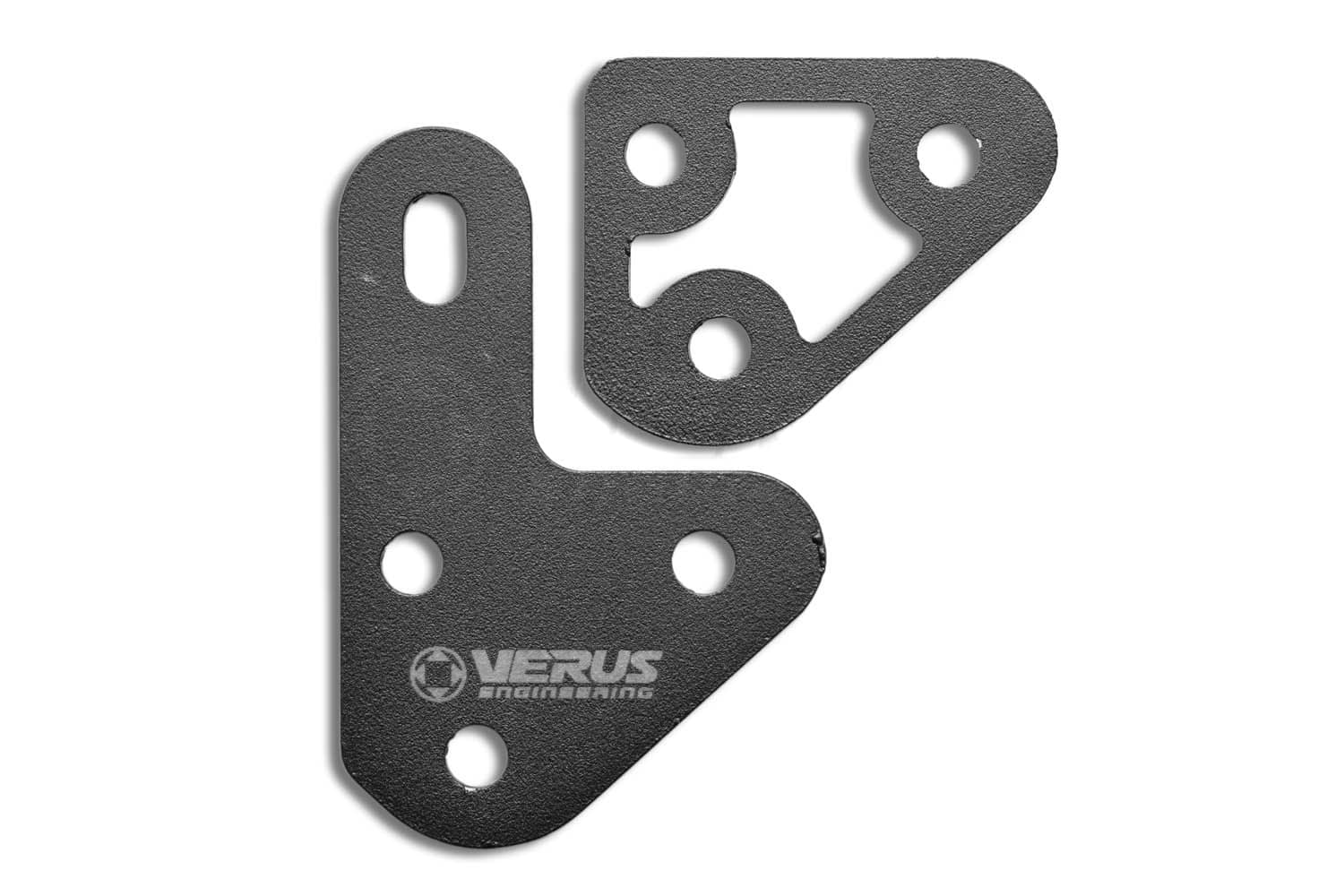

Verus Engineering Auto Headlight Level Bracket Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s Auto Headlight Level Bracket Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ hooks the factory automatic headlight level sensor up to the Verus 7000 Series rear lower control arms. Late-model and European-market GT86, BRZ and FR-S cars can carry that sensor on the rear lower control arm, and Verus left the mount off its own arms to keep them the lightest on the market. Two laser-cut 5052 aluminum brackets and a hardware kit put it back; a car without the sensor has no need for this kit.

Why the Verus Arms Need It

Each Verus arm is CNC machined from 7000 series aluminum and weighs 2 lb 10 oz, close to a pound less per side than the factory part. Verus designed this bracket later, at the request of late-model and European owners, so only the cars that use the sensor carry the extra metal.

Features

Integrates the factory level sensor with the Verus rear lower control arm
Simple bolt-on installation
Laser cut from 5052 aluminum
Powder coated for corrosion resistance, with a laser engraved logo
Stainless hardware and nylon spacers throughout
Made in the U.S.A.

What’s Included

Auto headlight level brackets (x2)
Hardware kit with stainless hardware and nylon spacers

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

The rear lower control arms are not included; this kit mounts the factory sensor to the Verus Engineering 7000 Series Rear Lower Control Arm Kit, sold separately
The Headlight Level Bracket Kit for ZN6 is needed only on cars with factory automatic headlight leveling
The Verus product title also names the WRX, which its description never covers; confirm WRX fitment with BA before ordering
Verus files the bracket under the first-generation ZN6 and ZC6 cars and does not mention the 2022 and later GR86 or BRZ
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Headlight Level Bracket Kit for ZN6 include the control arms? No. The Headlight Level Bracket Kit for ZN6 contains two aluminum brackets and a hardware kit. It attaches the factory automatic headlight level sensor to the Verus Engineering 7000 Series Rear Lower Control Arm Kit, which is sold separately and should be ordered with it on any car fitted with the sensor.
How do I know if my car has automatic headlight leveling? Check the factory rear lower control arms before removing them. Verus Engineering explains that late-model and European-market GT86, BRZ and FR-S cars can come with an auto headlight level sensor mounted on the rear lower control arm. If the sensor is attached there, order this bracket kit with the Verus arms; if not, the arms install on their own.
Which cars is the bracket made for? Verus Engineering made it for first-generation Toyota 86, European GT86, Scion FR-S and Subaru BRZ cars with factory automatic headlight leveling. The product title also lists the WRX without describing it, so WRX owners should confirm fitment with Bulletproof Automotive first. Verus does not name the 2022 and later GR86 or BRZ.
What is the bracket made from? Each bracket is laser cut from 5052 aluminum, powder coated for corrosion resistance and laser engraved with the Verus logo. Verus Engineering supplies stainless hardware and nylon spacers with the two brackets, and the kit is made in the U.S.A., matching the build standard of the control arms it attaches to.
Is the bracket difficult to install? No. Verus Engineering describes the kit as a simple bolt-on that joins the factory level sensor to its control arms, with every fastener supplied. Fit it in the same session as the rear lower control arms, while the rear suspension is apart, so the sensor is connected before the car returns to the road.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
