Which spring rates come with this kit?

None are fixed. The rates are chosen when ordering: 12, 14 or 16 kgf/mm at the front and 10, 12 or 14 kgf/mm at the rear. TEIN lists 14.0 front and 12.0 rear as its reference set, and helper springs come at both ends.

Will the TEIN Mono Racing Coilovers for GDB fit my STI?

Yes, if the car has the 5-114.3 wheel bolt pattern. TEIN lists the Mono Racing Coilovers for GDB for type E and later cars from June 2004, covering the US GDF STI of 2005 to 2007 and the Japanese-market GDB E, F and G. Earlier cars are not covered.

How low does the STI sit on this kit?

On 2006 and 2007 US cars TEIN recommends 1.6 to 2.4 inches lower at the front and 0.6 to 1.4 inches lower at the rear. The front cannot return to stock height, since its shallowest setting is 1.3 inches below the factory position.

Can camber be adjusted front and rear?

Yes, at both ends. The front pillow ball mounts adjust camber without steps and caster in four steps, independently of each other, and the rear pillow ball mounts also adjust camber. Camber washers in other offsets are sold separately, two per car.

Is this a track kit or a street kit?

Mainly a track kit. TEIN aims Mono Racing at drivers who use circuits often, with settings derived from Super Racing, though it stays usable on the road. For a car that never sees a track, the Mono Sport kit suits better.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN Mono Racing Coilovers for GDB / GDF Subaru Impreza WRX STI (5-114.3 PCD)

TEIN’s Mono Racing Coilovers for GDB and GDF Impreza WRX STI fit only type E and later cars, from June 2004, with the 5-114.3 wheel bolt pattern. The kit is aimed at circuit work: mono-tube dampers with 16 clicks, pillow ball mounts at all four corners and helper springs at both ends. On US 2006-2007 cars the front sits at least 1.3 inches below stock, so it does not suit an owner wanting factory height.

Setup on the GD STI

TEIN set the dampers to keep the STI composed at high speed and to limit nose dive under braking. Helper springs keep the main springs seated as the suspension extends, preserving rebound stroke for ground contact and traction out of corners. Height is set by shell length, so lowering the car leaves stroke and preload alone.

Features

Mono-tube dampers separate oil and gas, so damping holds steady over repeated laps
Upright Strong Tube strut bodies carry over rigidity lessons from TEIN rally programmes
Front pillow ball mounts set camber steplessly and caster in four steps
One knob per damper sets compression and rebound together through 16 levels
Ready for TEIN EDFC, for damping changes from the cabin

Specifications

Reference front spring: 14.0 kgf/mm (784 lbs/in), 150 mm, 65 mm ID
Reference rear spring: 12.0 kgf/mm (672 lbs/in), 150 mm, 65 mm ID
Front ride height (US 2006-2007): -4.4 to -1.3 in (recommended -2.4 to -1.6)
Rear ride height (US 2006-2007): -4.0 to -0.1 in (recommended -1.4 to -0.6)
Wheel bolt pattern: 5-114.3 only

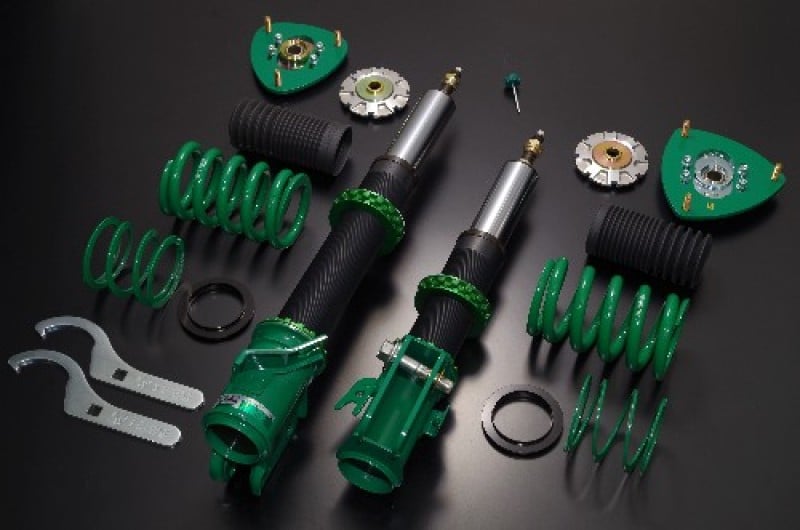

What’s Included

Mono-tube dampers (x4)
Main springs at the selected rates (x4)
Helper springs (front and rear)
Pillow ball upper mounts (x4)

Applications

Subaru Impreza WRX STI (5-114.3 PCD): GDF | 2005-2007 | 2.5L
Subaru Impreza WRX STI (Japan-market, type E onward): GDB (E/F/G) | 2004-2007 | 2.0L

Notes

Built to order by TEIN with a variable lead time; the order cannot be cancelled or returned
Springs for the TEIN Mono Racing Coilovers for GDB are selected at order (front 12, 14 or 16 kgf/mm; rear 10, 12 or 14), and BA confirms them before ordering
For 5-114.3 bolt pattern cars only
Camber washers are a separate purchase, two per car
For a road-biased kit, see the TEIN Mono Sport Coilovers for GDB / GDF

Frequently Asked Questions

Which spring rates come with this kit? None are fixed. The rates are chosen when ordering: 12, 14 or 16 kgf/mm at the front and 10, 12 or 14 kgf/mm at the rear. TEIN lists 14.0 front and 12.0 rear as its reference set, and helper springs come at both ends.
Will the TEIN Mono Racing Coilovers for GDB fit my STI? Yes, if the car has the 5-114.3 wheel bolt pattern. TEIN lists the Mono Racing Coilovers for GDB for type E and later cars from June 2004, covering the US GDF STI of 2005 to 2007 and the Japanese-market GDB E, F and G. Earlier cars are not covered.
How low does the STI sit on this kit? On 2006 and 2007 US cars TEIN recommends 1.6 to 2.4 inches lower at the front and 0.6 to 1.4 inches lower at the rear. The front cannot return to stock height, since its shallowest setting is 1.3 inches below the factory position.
Can camber be adjusted front and rear? Yes, at both ends. The front pillow ball mounts adjust camber without steps and caster in four steps, independently of each other, and the rear pillow ball mounts also adjust camber. Camber washers in other offsets are sold separately, two per car.
Is this a track kit or a street kit? Mainly a track kit. TEIN aims Mono Racing at drivers who use circuits often, with settings derived from Super Racing, though it stays usable on the road. For a car that never sees a track, the Mono Sport kit suits better.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
