Which STI models does it fit?

TEIN built the kit only for type E and later cars, from June 2004 on, with the 5-114.3 bolt pattern. In the US that covers the 2005 to 2007 GDF Impreza WRX STI, and in Japan the GDB from type E onward. Earlier cars on another bolt pattern are not covered.

Are springs included with the Mono Sport Coilovers for GDB?

Yes. The kit includes four TEIN springs, 9.0 kgf/mm (504 lbs/in) at the front and 7.0 kgf/mm (392 lbs/in) at the rear, each 200 mm long with a 70 mm inner diameter. They sit on wrought aluminium seats with low-friction resin thrust washers.

How low can the STI go?

For 2006 and 2007 US cars, TEIN recommends 1.4 to 2.2 inches lower at the front and 0.4 to 1.2 inches lower at the rear. The full range runs from 3.8 inches lower to 0.4 inches above stock at the front, and 3.7 lower to 1.6 above at the rear.

How does the kit cope with rough streets?

The setting behind the TEIN Mono Sport Coilovers for GDB takes absorbency on uneven streets into account, alongside reduced roll and calmer limit behaviour. Full-length adjustment means lowering the car changes the ride very little, and the 16-level knob can be turned softer for daily use.

Can camber be adjusted?

Yes, at the front only. The front pillow ball upper mounts are camber adjustable, while the rear of the car keeps reinforced rubber upper mounts for this application. TEIN also lists the kit as EDFC compatible, so damping can move to an optional in-cabin controller.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN Mono Sport Coilovers for GDB / GDF Subaru Impreza WRX STI (5-114.3 PCD)

TEIN’s Mono Sport Coilovers for GDB and GDF Subaru Impreza WRX STI keep the stability the car already has at high speed while trimming body roll and settling it at the limit, so it holds a cornering line with more control. TEIN also weighed bump absorption on uneven streets into the setting. The kit covers only 5-114.3 cars from type E onward, built from June 2004. It suits a road STI with occasional track days; frequent circuit use points toward Mono Racing.

Damper Construction

TEIN builds each damper around a high-strength STKM13C steel shell with ZTP coating, and the struts use the Upright Strong Tube, a triple-tube structure TEIN describes as a first for mass-production shock absorbers. Full-length bodies set ride height by case length, leaving stroke and spring preload alone. Final assembly happens in a clean room with air showers, and the dampers can be overhauled or revalved later.

Features

Mono-tube dampers keep oil and gas in fully separate chambers
16-level damping, compression and rebound together, via ADVANCE M.S.V.
Thick ribbed knuckle brackets with a conical spring washer against loosening
Model-specific brackets for the brake hose and ABS sensor
Adjusting wrench fits a 12.7 mm (1/2 in) square drive torque wrench
EDFC compatible, with 32 levels on EDFC and 64 on EDFC ACTIVE PRO

Specifications

Front spring: 9.0 kgf/mm (504 lbs/in), 200 mm, 70 mm ID
Rear spring: 7.0 kgf/mm (392 lbs/in), 200 mm, 70 mm ID
Front ride height, 2006-2007 US: -3.8 to +0.4 in (recommended -2.2 to -1.4)
Rear ride height, 2006-2007 US: -3.7 to +1.6 in (recommended -1.2 to -0.4)
Upper mounts: Pillow ball front (camber adjustable), reinforced rubber rear
Bolt pattern: 5-114.3

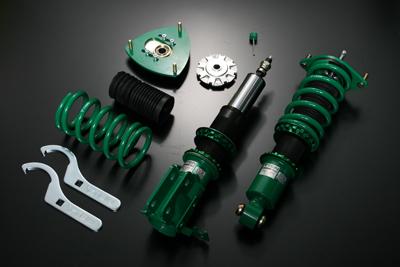

What’s Included

Mono-tube shock absorbers (x4)
Springs (x4)

Applications

Subaru Impreza WRX STI (5-114.3 PCD): GDF | 2005-2007 | 2.5L
Subaru Impreza WRX STI (Japan-market, type E onward): GDB (E/F/G) | 2004-2007 | 2.0L

Notes

TEIN builds the kit to order, so lead time varies and it cannot be cancelled or returned once ordered
The TEIN Mono Sport Coilovers for GDB fit only type E and later cars, built from June 2004, with the 5-114.3 bolt pattern
Drivers who lap often can step up to the TEIN Mono Racing Coilovers for GDB / GDF Impreza WRX STI

Frequently Asked Questions

Which STI models does it fit? TEIN built the kit only for type E and later cars, from June 2004 on, with the 5-114.3 bolt pattern. In the US that covers the 2005 to 2007 GDF Impreza WRX STI, and in Japan the GDB from type E onward. Earlier cars on another bolt pattern are not covered.
Are springs included with the Mono Sport Coilovers for GDB? Yes. The kit includes four TEIN springs, 9.0 kgf/mm (504 lbs/in) at the front and 7.0 kgf/mm (392 lbs/in) at the rear, each 200 mm long with a 70 mm inner diameter. They sit on wrought aluminium seats with low-friction resin thrust washers.
How low can the STI go? For 2006 and 2007 US cars, TEIN recommends 1.4 to 2.2 inches lower at the front and 0.4 to 1.2 inches lower at the rear. The full range runs from 3.8 inches lower to 0.4 inches above stock at the front, and 3.7 lower to 1.6 above at the rear.
How does the kit cope with rough streets? The setting behind the TEIN Mono Sport Coilovers for GDB takes absorbency on uneven streets into account, alongside reduced roll and calmer limit behaviour. Full-length adjustment means lowering the car changes the ride very little, and the 16-level knob can be turned softer for daily use.
Can camber be adjusted? Yes, at the front only. The front pillow ball upper mounts are camber adjustable, while the rear of the car keeps reinforced rubber upper mounts for this application. TEIN also lists the kit as EDFC compatible, so damping can move to an optional in-cabin controller.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
