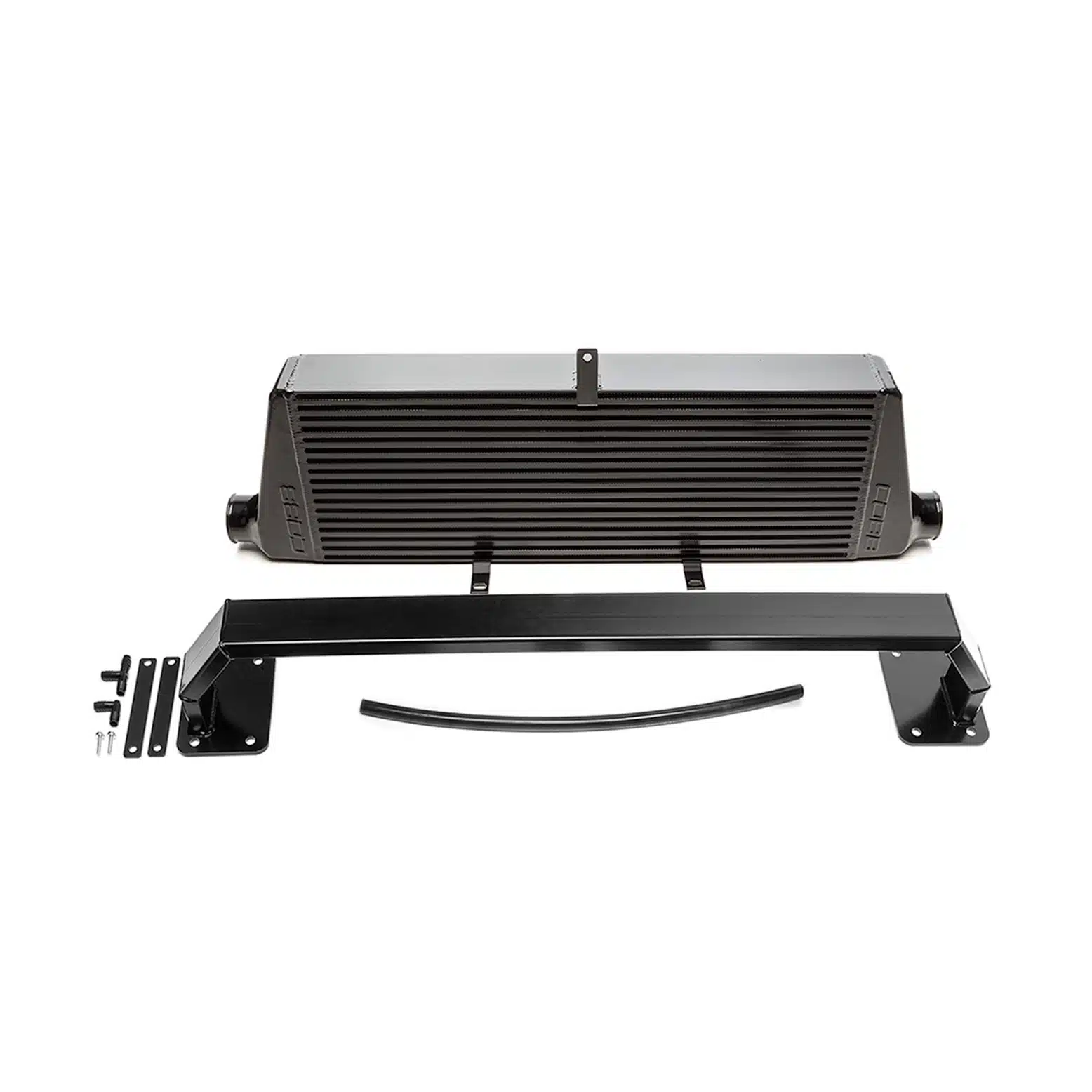

COBB Tuning Black FMIC Core for GR/GV Subaru WRX / WRX STI

COBB Tuning’s Black FMIC Core for GR/GV Subaru WRX and WRX STI owners is a stand-alone front mount intercooler core for cars whose charge piping is already in place or is being fabricated to suit. COBB builds it in bar and plate form at 30 x 10.35 x 3.5 in, with cast end tanks, and the dark finish stays discreet. Buy it to anchor a custom layout or to replace the core in an existing front mount; anyone still on the factory top mount will find the full kit with pipes far simpler.

Construction

COBB calls the factory top mount unit easily overworked because of its size and position above the engine; a hot intercooler means warmer intake air and less power. This core answers that with a larger bar and plate block placed where incoming air reaches it first. The Black FMIC Core for GR/GV vehicles is the part COBB packs into its 724500-BK front mount kit, offered here without the hot and cold side tubes.

Features

Bar and plate core measuring 30 x 10.35 x 3.5 in
Black finish on the core
Cast end tanks bearing the COBB logo
Heat-dissipating coating
Supplied without charge piping for existing or fabricated layouts
Made in the USA

Applications

Subaru WRX Hatchback: GR | 2011-2014 | Manual Transmission | USDM
Subaru WRX Sedan: GV | 2011-2014 | Manual Transmission | USDM
Subaru WRX STI Hatchback: GR | 2011-2014 | Manual Transmission | USDM
Subaru WRX STI Sedan: GV | 2011-2014 | Manual Transmission | USDM

Notes

Core only; no hot side or cold side intercooler piping is supplied
An Accessport or tune is not part of this purchase
COBB lists fitment for USDM 2011-2014 WRX and WRX STI sedans and hatchbacks with the manual transmission only
Not legal for sale or use in California on any emission controlled motor vehicle
CARB testing for this part is pending according to COBB, and no Executive Order number has been issued

Frequently Asked Questions

Will the Black FMIC Core for GR/GV fit a 2013 WRX STI hatchback? Yes, provided it is a USDM car with the manual transmission. COBB lists the core for 2011 to 2014 Subaru Impreza WRX and WRX STI models in both sedan and hatchback body styles. The 2008 to 2010 cars and 2015 and later models are not on the confirmed list.
What else is needed to install the core? The core needs front mount charge piping running from the turbocharger to the core and from the core to the throttle body. That can be existing piping or custom tubes. None of that piping ships with this part, and COBB sells a complete front mount kit for owners who want everything in one box.
Can this core be used on a California registered vehicle? No. COBB states it is not legal for sale or use in California on any emission controlled motor vehicle. The part is legal under the EPA Anti-Tampering Policy in states that accept the federal Clean Air Act provisions, and COBB says CARB testing toward 50-state compliance is pending.
Is the Black FMIC Core for GR/GV the same core used in the COBB front mount kit? Yes. COBB uses part 724502-BK, the Black FMIC Core for GR/GV, inside its 724500-BK black front mount intercooler kit for the 2011 to 2014 WRX. Buying it separately makes sense when the piping is already on the vehicle or a damaged core needs replacing.
Why pick the black core instead of the silver one? Both cores share the same 30 x 10.35 x 3.5 in bar and plate construction and cast end tanks according to COBB, so the choice comes down to looks. The black finish blends into the bumper opening and suits darker grilles, while the silver core shows bright metal through the front of the vehicle.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
