What does the Fuel Cell Line Kit include?

The T1 Fuel Cell Line Kit includes a -16AN pre-filter inlet line, a -16AN pre-filter outlet line, a -16AN pump inlet line, a -12AN drain, a -8AN return and a -8AN vent, plus the bulkhead assemblies that bring the lines out of the trunk.

Which fuel cell is it built for?

T1 Race Development builds the kit around the GT1R Fuel Cell Kit, a JAZ 8 gallon cell modified with -16AN feed fittings and an Earls billet aluminum screw on cap. Using the matching cell keeps the fittings and line lengths correct for the car.

Do I also need the Methanol Fuel Line Kit?

The two kits work together. The Methanol Fuel Line Kit plumbs the pump, filter, fuel rails and regulator and ends with a -8AN return at the trunk bulkhead, and this kit connects the fuel cell to the pump and handles the drain, return and vent lines.

Are the lines safe with methanol?

Yes. T1 Race Development states that all lines in the kit are methanol compatible and use crimp fittings. Methanol still needs care, so T1 advises pickling the system between events and not leaving methanol sitting in it for more than about a week.

Are installation instructions available?

Yes. T1 Race Development publishes installation instructions for the GT1R fuel cell line kit, and Bulletproof Automotive can send them with the order. The kit suits cars on stock location turbos, so confirm the turbo layout and fuel cell before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Fuel Cell Line Kit for R35 Nissan GT-R (Stock Location Turbos)

T1 Race Development’s GT1R Fuel Cell Line Kit for R35 Nissan GT-R connects the GT1R fuel cell in the trunk to the T1 mechanical pump system, taking the guesswork out of routing lines through the car. Every line is methanol compatible with crimp fittings, and the bulkhead assemblies that bring the lines out of the trunk are included.

Where It Fits

The kit completes the package alongside the GT1R Methanol Fuel Line Kit, which plumbs the pump, filter, rails and regulator and ends with a -8AN return at the trunk bulkhead. This kit picks up from there and from the cell, so the feed, drain, return and vent are all handled. This version suits cars on stock location turbos.

Installation

T1 publishes installation instructions for the kit, and BA can supply them with the order.

Features

Mates the GT1R fuel cell kit to the mechanical pump system
Methanol compatible lines with crimp fittings
Trunk bulkhead assemblies included
-16AN feed through the pre-filter to the pump
-12AN drain, -8AN return and -8AN vent

Specifications

Pre-filter inlet: -16AN
Pre-filter outlet: -16AN
Pump inlet: -16AN
Drain: -12AN
Return: -8AN
Vent: -8AN

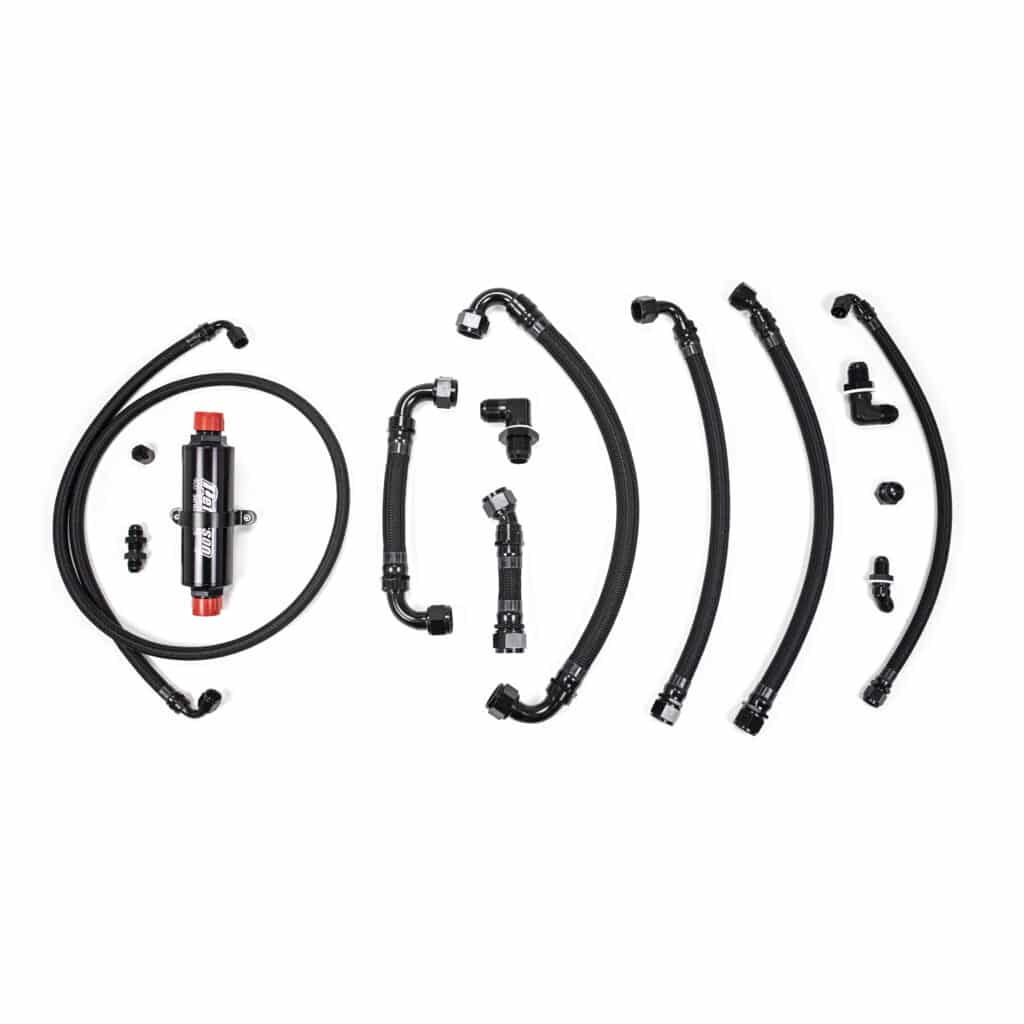

What’s Included

-16AN pre-filter inlet line
-16AN pre-filter outlet line
-16AN pump inlet line
-12AN drain line
-8AN return line
-8AN vent line
Trunk bulkhead assemblies

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6 | Stock location turbos

Notes

Built around the GT1R fuel cell; the Fuel Cell Line Kit is designed for the T1 Race Development GT1R Fuel Cell Kit
The front half of the system is the T1 Race Development GT1R Methanol Fuel Line Kit
T1 marks this kit as not compatible with M5; contact BA to confirm compatibility with your setup before ordering
T1 advises pickling the fuel system between events, keeping it sealed with vents capped if it sits in methanol, and not leaving methanol in it for more than about a week

Frequently Asked Questions

What does the Fuel Cell Line Kit include? The T1 Fuel Cell Line Kit includes a -16AN pre-filter inlet line, a -16AN pre-filter outlet line, a -16AN pump inlet line, a -12AN drain, a -8AN return and a -8AN vent, plus the bulkhead assemblies that bring the lines out of the trunk.
Which fuel cell is it built for? T1 Race Development builds the kit around the GT1R Fuel Cell Kit, a JAZ 8 gallon cell modified with -16AN feed fittings and an Earls billet aluminum screw on cap. Using the matching cell keeps the fittings and line lengths correct for the car.
Do I also need the Methanol Fuel Line Kit? The two kits work together. The Methanol Fuel Line Kit plumbs the pump, filter, fuel rails and regulator and ends with a -8AN return at the trunk bulkhead, and this kit connects the fuel cell to the pump and handles the drain, return and vent lines.
Are the lines safe with methanol? Yes. T1 Race Development states that all lines in the kit are methanol compatible and use crimp fittings. Methanol still needs care, so T1 advises pickling the system between events and not leaving methanol sitting in it for more than about a week.
Are installation instructions available? Yes. T1 Race Development publishes installation instructions for the GT1R fuel cell line kit, and Bulletproof Automotive can send them with the order. The kit suits cars on stock location turbos, so confirm the turbo layout and fuel cell before ordering.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
