What is in the Fuel Cell Kit?

The T1 Fuel Cell Kit is a JAZ 8 gallon fuel cell that T1 Race Development modifies with -16AN feed fittings and an Earls billet aluminum screw on cap. Lines, pump and mounting are sold separately, and T1 offers matching line kits built around this cell.

Why use this cell with the T1 pump?

T1 Race Development designed its fuel cell line kits around this cell, so the -16AN feed, the fittings and the line lengths all match. The -16AN feed suits the Kinsler TP1300 pump, which T1 says needs at least a -16AN feed line from the cell.

Can it be used with methanol?

T1 Race Development builds the cell into its methanol fuel system. T1 advises pickling the system between events and not leaving methanol in it for more than about a week, and warns that any aluminum cell used with methanol must be hard anodized inside and out.

Where does the cell mount?

The cell sits in the trunk, and the T1 fuel cell line kit uses bulkhead assemblies to bring the lines out. Mounting and any firewall need to meet the rules of the class and track the car runs, so confirm the installation with the tech inspector.

Which line kit do I need?

T1 Race Development offers fuel cell line kits for cars that keep a full exhaust and for cars without one. Bulletproof Automotive lists the stock location turbo version, and the team can confirm which kit suits the turbo layout on your car before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Fuel Cell Kit for R35 Nissan GT-R

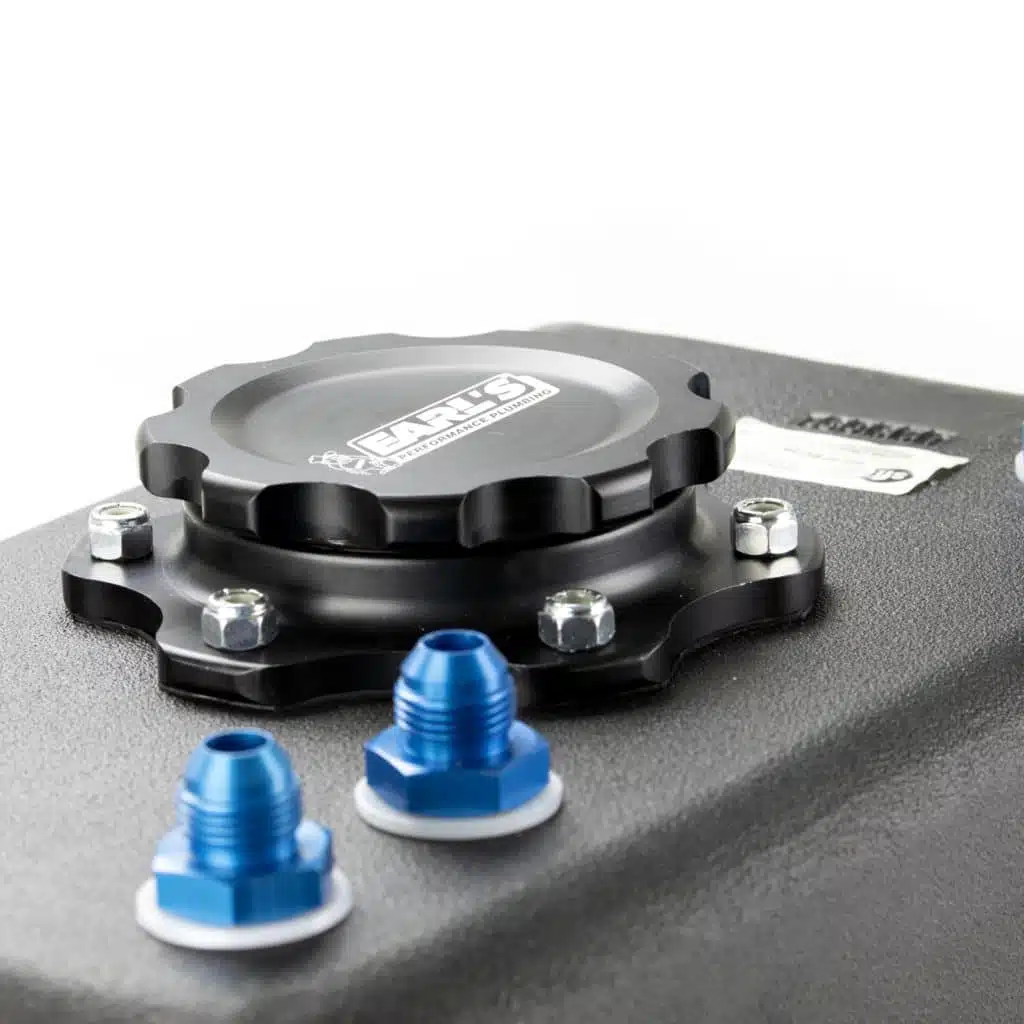

T1 Race Development’s GT1R Fuel Cell Kit for R35 Nissan GT-R is a JAZ 8 gallon fuel cell that T1 modifies with -16AN feed fittings and an Earl’s billet aluminum screw-on cap. It is the starting point of T1’s mechanical pump fuel system, and both of T1’s fuel cell line kits are built around it.

Part of the GT1R System

T1 offers a complete mechanical fuel pump kit and a range of line kits for big power methanol and ethanol R35s. The cell sits in the trunk and feeds the pump through -16AN plumbing, which matches the feed size T1 calls for with the Kinsler TP1300 pump. Using the cell the line kits were designed around keeps the fittings and line lengths correct.

Methanol Care

For methanol builds, T1 advises pickling the fuel system between events, keeping it sealed with vents capped if it sits in methanol, and not leaving methanol in it for more than about a week.

Features

JAZ 8 gallon fuel cell
Modified with -16AN feed fittings
Earl’s billet aluminum screw-on cap
Base of the T1 mechanical pump fuel system
Matches both T1 fuel cell line kits

Specifications

Cell: JAZ, 8 gallon
Feed fittings: -16AN
Cap: Earl’s billet aluminum, screw-on

What’s Included

Modified JAZ 8 gallon fuel cell
-16AN feed fittings
Earl’s billet aluminum screw-on cap

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Plumbing is sold separately; the Fuel Cell Kit connects to the pump system through the T1 Race Development GT1R Fuel Cell Line Kit
The pump is the T1 Race Development GT1R Cable Driven Mechanical Fuel Pump Kit
Fuel cell mounting and any firewall must meet the rules of the class and track you run; confirm with your tech inspector
T1 advises that aluminum fuel cells used with methanol must be hard anodized inside and out

Frequently Asked Questions

What is in the Fuel Cell Kit? The T1 Fuel Cell Kit is a JAZ 8 gallon fuel cell that T1 Race Development modifies with -16AN feed fittings and an Earls billet aluminum screw on cap. Lines, pump and mounting are sold separately, and T1 offers matching line kits built around this cell.
Why use this cell with the T1 pump? T1 Race Development designed its fuel cell line kits around this cell, so the -16AN feed, the fittings and the line lengths all match. The -16AN feed suits the Kinsler TP1300 pump, which T1 says needs at least a -16AN feed line from the cell.
Can it be used with methanol? T1 Race Development builds the cell into its methanol fuel system. T1 advises pickling the system between events and not leaving methanol in it for more than about a week, and warns that any aluminum cell used with methanol must be hard anodized inside and out.
Where does the cell mount? The cell sits in the trunk, and the T1 fuel cell line kit uses bulkhead assemblies to bring the lines out. Mounting and any firewall need to meet the rules of the class and track the car runs, so confirm the installation with the tech inspector.
Which line kit do I need? T1 Race Development offers fuel cell line kits for cars that keep a full exhaust and for cars without one. Bulletproof Automotive lists the stock location turbo version, and the team can confirm which kit suits the turbo layout on your car before ordering.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
