What does the Methanol Fuel Line Kit connect?

The T1 Methanol Fuel Line Kit plumbs the GT1R cable driven mechanical fuel pump to the filter, the fuel rails and the regulator, then runs the return line back to the trunk. It mates with the GT1R fuel cell line kit, which picks up from the GT1R fuel cell kit.

Is the fuel pump included?

No. The Kinsler pump is part of the T1 GT1R Cable Driven Mechanical Fuel Pump Kit, which is sold separately. This kit supplies the lines, Redhorse crimp fittings, the regulator mount and the fittings for the regulator, the rails and the filter.

What information does T1 need with the order?

T1 Race Development needs to know which primary and secondary fuel rails and which intake manifold are on the car, so the correct parts are supplied. Bulletproof Automotive collects these details when the order is placed and passes them to T1.

How should a methanol system be maintained?

T1 Race Development advises pickling the fuel system between events and keeping it sealed, with vents capped, if it sits with methanol in it. Do not leave methanol in the system for more than about a week. Aluminum cells must be hard anodized inside and out.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

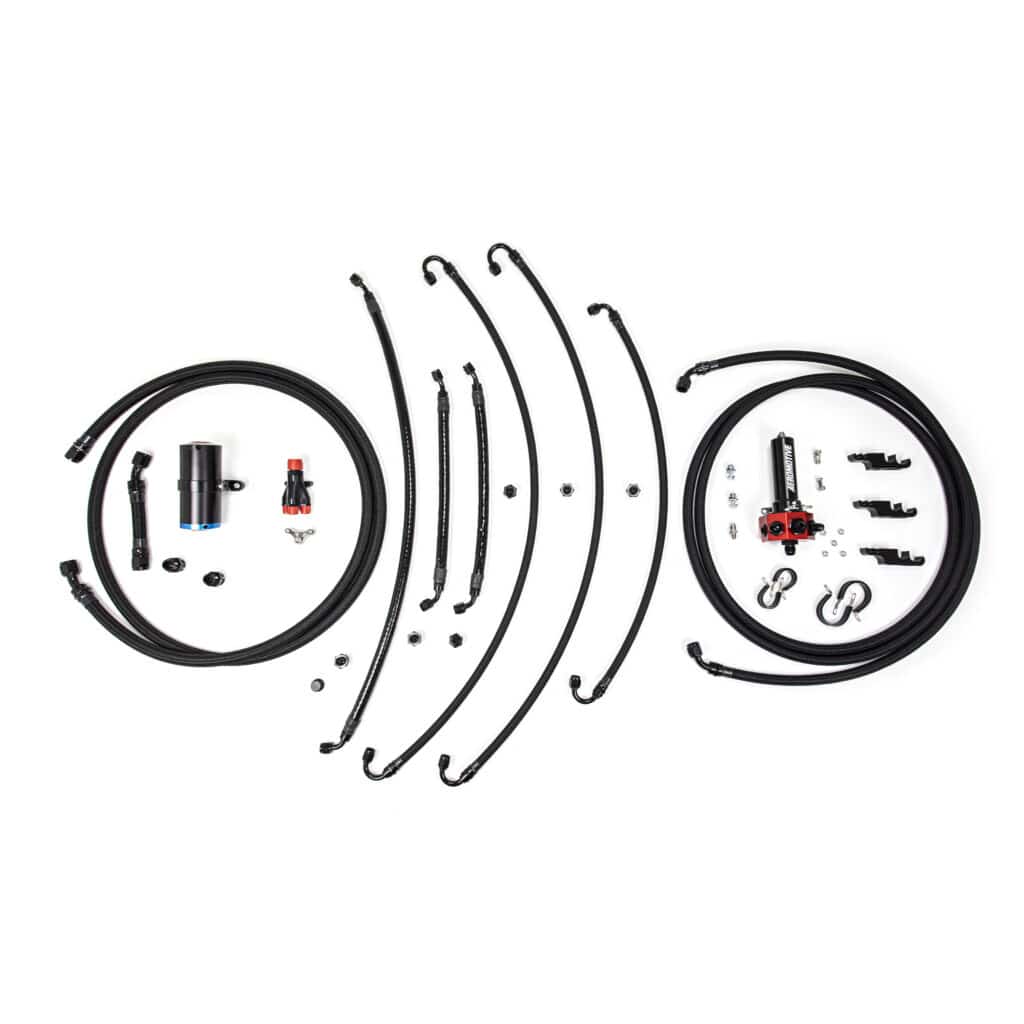

T1 Race Development GT1R Methanol Fuel Line Kit for R35 Nissan GT-R (Stock Location Turbos)

T1 Race Development’s GT1R Methanol Fuel Line Kit for R35 Nissan GT-R plumbs the T1 cable driven mechanical fuel pump for methanol builds of 2,000 hp and more. This version is routed for stock location turbos, with every line secured so the factory location downpipes and a full exhaust can stay on the car.

Fuel Routing

From the Kinsler pump, which is part of the pump kit rather than this line kit, a -10AN line runs to an Injector Dynamics F1250 filter. Out of the filter, a single -10AN line runs forward to a Peterson billet 3 to 1 adapter mounted on the bellhousing, which splits it into three -6AN lines, one for each fuel rail: bank 1, bank 2 and the secondary rail.

Regulator and Return

Each rail returns to an Aeromotive regulator in the battery compartment, and the regulator mount is included. A -8AN return then runs back to a -8AN bulkhead fitting in the trunk.

Features

Plumbs the T1 GT1R mechanical fuel pump kit
Routed for stock location turbos and a full exhaust
Redhorse crimp fittings and methanol compatible hose
Three -6AN feeds, one per fuel rail
Regulator mount and -8AN bulkhead fitting included

Specifications

Pump to filter: -10AN
Filter to adapter: Single -10AN line
Rail feeds: Three -6AN lines from a Peterson billet 3 to 1 adapter
Return: -8AN from the regulator to the trunk bulkhead
Hose and fittings: Redhorse, methanol compatible
Target: 2,000+ hp methanol builds, per T1

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6 | Stock location turbos

Notes

Tell BA your fuel rails and intake manifold when ordering; T1 needs to know which primary and secondary rails and which manifold you run to supply the correct parts for the Methanol Fuel Line Kit
The Kinsler pump is not included; it comes with the T1 Race Development GT1R Cable Driven Mechanical Fuel Pump Kit
Not for front mount turbo setups, which need a different line kit
T1 marks this kit as not compatible with M5; contact BA to confirm compatibility with your setup before ordering
T1 advises pickling the fuel system between events, keeping it sealed with vents capped if it sits in methanol, and not leaving methanol in it for more than about a week

Frequently Asked Questions

What does the Methanol Fuel Line Kit connect? The T1 Methanol Fuel Line Kit plumbs the GT1R cable driven mechanical fuel pump to the filter, the fuel rails and the regulator, then runs the return line back to the trunk. It mates with the GT1R fuel cell line kit, which picks up from the GT1R fuel cell kit.
Can I keep my exhaust? Yes. This version is routed for stock location turbos, and T1 Race Development secures every line so the factory location downpipes and a full exhaust can stay in place. Front mount turbo setups have different space constraints and need a different line kit.
Is the fuel pump included? No. The Kinsler pump is part of the T1 GT1R Cable Driven Mechanical Fuel Pump Kit, which is sold separately. This kit supplies the lines, Redhorse crimp fittings, the regulator mount and the fittings for the regulator, the rails and the filter.
What information does T1 need with the order? T1 Race Development needs to know which primary and secondary fuel rails and which intake manifold are on the car, so the correct parts are supplied. Bulletproof Automotive collects these details when the order is placed and passes them to T1.
How should a methanol system be maintained? T1 Race Development advises pickling the fuel system between events and keeping it sealed, with vents capped, if it sits with methanol in it. Do not leave methanol in the system for more than about a week. Aluminum cells must be hard anodized inside and out.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
