Does the Fuel Pump Hanger for R35 include the fuel pump?

Not in the base price. The T1 Fuel Pump Hanger for R35 is the in-tank module, and the Injector Dynamics FPS1100, made up of the E5LM brushless pump and BPC100 controller, is available as an option on this listing. The hanger is designed specifically around that pump, so choose the Hanger with FPS1100 version if the car needs one.

How much power does the GT1R E5LM hanger support?

With a single FPS1100, T1 Race Development quotes a little over 2,000 wheel horsepower on ethanol, even at relatively low tank levels. Converting to the dual pump configuration, which T1 prices at under 900 dollars, raises that to around 2,700 wheel horsepower on ethanol. Both figures assume system voltage above 8 volts and fuel pressure below 150 psi.

Why choose a brushless pump over conventional R35 pumps?

Conventional pumps lose flow as voltage drops and fuel pressure rises; Injector Dynamics notes a pair of 500 liter per hour pumps can fall to around 500 combined at 30 psi of boost. The BPC100 powers the E5LM from its own supply and holds 1,100 liters per hour even at 8 volts.

Does the hanger keep the factory fuel bowl?

Yes. T1 Race Development retains the lower plastic factory bowl, which works with the siphon jet pumps that move fuel from around the tank to the pickup, so the car can still use most of the tank between fills. The kit adds the upper assembly, lid, check valve and in-tank filter.

Is wiring included with the E5LM hanger?

No. T1 Race Development makes GT1R BPC harnesses for this hanger in PWM and MAP versions, both sold separately. They cover the power and ground supply, the control wires that plug into the factory fuel pump connector, and CAN communication when the car runs a MoTeC M1 ECU.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R E5LM Fuel Pump Hanger for R35 Nissan GT-R

T1 Race Development’s GT1R E5LM Fuel Pump Hanger for R35 Nissan GT-R retires the old routine of stacked pumps, voltage boosters and keeping the tank three-quarters full. Built around the Injector Dynamics FPS1100, the E5LM brushless pump paired with the BPC100 controller, the module supports a little over 2,000 wheel horsepower on ethanol from a single pump at relatively low fuel levels, and converts to dual pumps for under $900 when the build heads toward 2,700. It keeps the factory fuel bowl, so the car still draws fuel the way Nissan designed it to.

Design and Performance

Nissan feeds the pump from a bowl, with siphon jet pumps moving fuel to it from around the tank, which is what lets a GT-R use nearly all of its fuel between fills. T1 keeps that lower plastic bowl and adds a new upper assembly, fuel tank lid, internal check valve and the lines and fittings inside the tank and on the lid.

Features

Supports a little over 2,000 whp on ethanol from a single FPS1100 pump
Converts to dual pumps for 2,700 whp on ethanol
Retains the factory lower fuel bowl
New upper assembly, tank lid and internal check valve
40-micron in-tank pre-filter that rarely needs service
Pump speed control options and CAN diagnostics through the BPC100

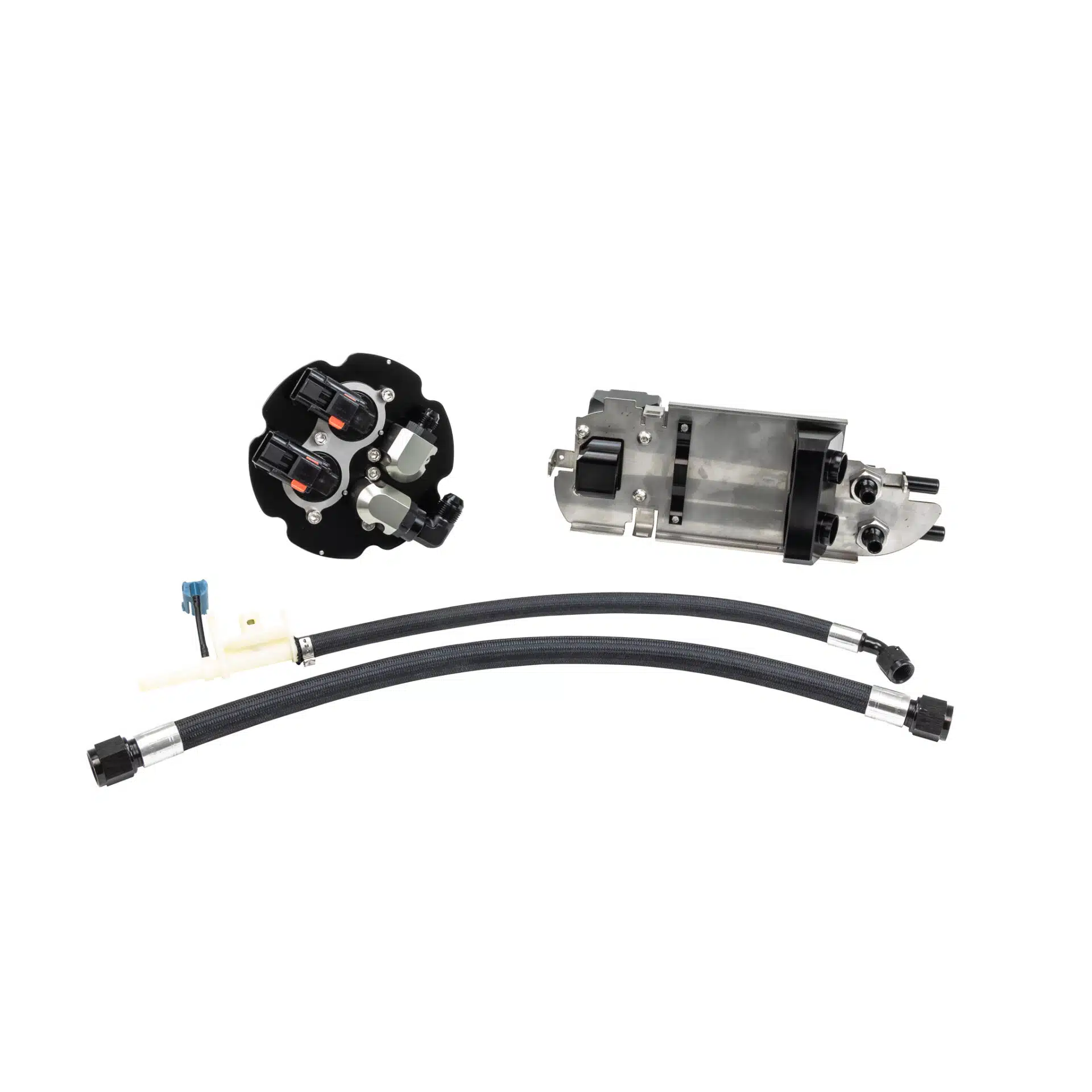

What’s Included

GT1R upper hanger assembly
Fuel tank lid
In-tank fuel filter
Internal check valve
Lines and fittings for the lid and the inside of the tank

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The Injector Dynamics FPS1100 pump and controller is not in the base price; the Fuel Pump Hanger for R35 is built around it, so choose Hanger with FPS1100 to add it
Wire the pump with the T1 Race Development GT1R BPC PWM Harness (GT1R BPC Harness) or the T1 Race Development GT1R BPC MAP Harness (GT1R BPC Harness-1)
A couple of parts transfer from the factory plastic pump module, so keep it through installation
T1 part number 02.01.04

Frequently Asked Questions

Does the Fuel Pump Hanger for R35 include the fuel pump? Not in the base price. The T1 Fuel Pump Hanger for R35 is the in-tank module, and the Injector Dynamics FPS1100, made up of the E5LM brushless pump and BPC100 controller, is available as an option on this listing. The hanger is designed specifically around that pump, so choose the Hanger with FPS1100 version if the car needs one.
How much power does the GT1R E5LM hanger support? With a single FPS1100, T1 Race Development quotes a little over 2,000 wheel horsepower on ethanol, even at relatively low tank levels. Converting to the dual pump configuration, which T1 prices at under 900 dollars, raises that to around 2,700 wheel horsepower on ethanol. Both figures assume system voltage above 8 volts and fuel pressure below 150 psi.
Why choose a brushless pump over conventional R35 pumps? Conventional pumps lose flow as voltage drops and fuel pressure rises; Injector Dynamics notes a pair of 500 liter per hour pumps can fall to around 500 combined at 30 psi of boost. The BPC100 powers the E5LM from its own supply and holds 1,100 liters per hour even at 8 volts.
Does the hanger keep the factory fuel bowl? Yes. T1 Race Development retains the lower plastic factory bowl, which works with the siphon jet pumps that move fuel from around the tank to the pickup, so the car can still use most of the tank between fills. The kit adds the upper assembly, lid, check valve and in-tank filter.
Is wiring included with the E5LM hanger? No. T1 Race Development makes GT1R BPC harnesses for this hanger in PWM and MAP versions, both sold separately. They cover the power and ground supply, the control wires that plug into the factory fuel pump connector, and CAN communication when the car runs a MoTeC M1 ECU.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
