What harness types does the BPC PWM Harness for R35 come in?

The MoTeC M150 version of the BPC PWM Harness for R35 adds a plug and play supplemental harness for owners of a MoTeC M1 ECU, and it costs 155 dollars more. The non-MoTeC version suits other engine management systems. Both cover the main power supply through to CAN communication with the controller.

Is the FPS1100 pump included?

Only with the add-on. Choose Harness with FPS1100 to add the Injector Dynamics FPS1100, made up of the E5LM brushless pump and the BPC controller. The GT1R E5LM hanger is sold separately. The harness is the wiring that connects them to the car, and T1 Race Development publishes installation instructions.

Where can the BPC controller be mounted?

T1 Race Development designs the harness around a controller on the back of the factory rear bulkhead or close by in the trunk, and it can also be built for mounting under the passenger seat. Choose the location when ordering so the harness length matches. The location does not change the price.

Should I choose the PWM or the MAP harness?

The PWM harness suits cars where the ECU drives the Injector Dynamics controller and communicates with it over CAN. The MAP harness sets pump speed from a 7-bar MAP sensor instead. T1 Race Development makes both for the GT1R hanger, so the choice comes down to how the ECU and tune will manage the pump.

Does the harness use the factory fuel pump wiring?

Yes. T1 Race Development uses the factory fuel pump connector for pump control and diagnostics, so the harness plugs into the existing connection at the rear of the car. Main power for the controller comes from the harness itself, which keeps the installation tidy.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

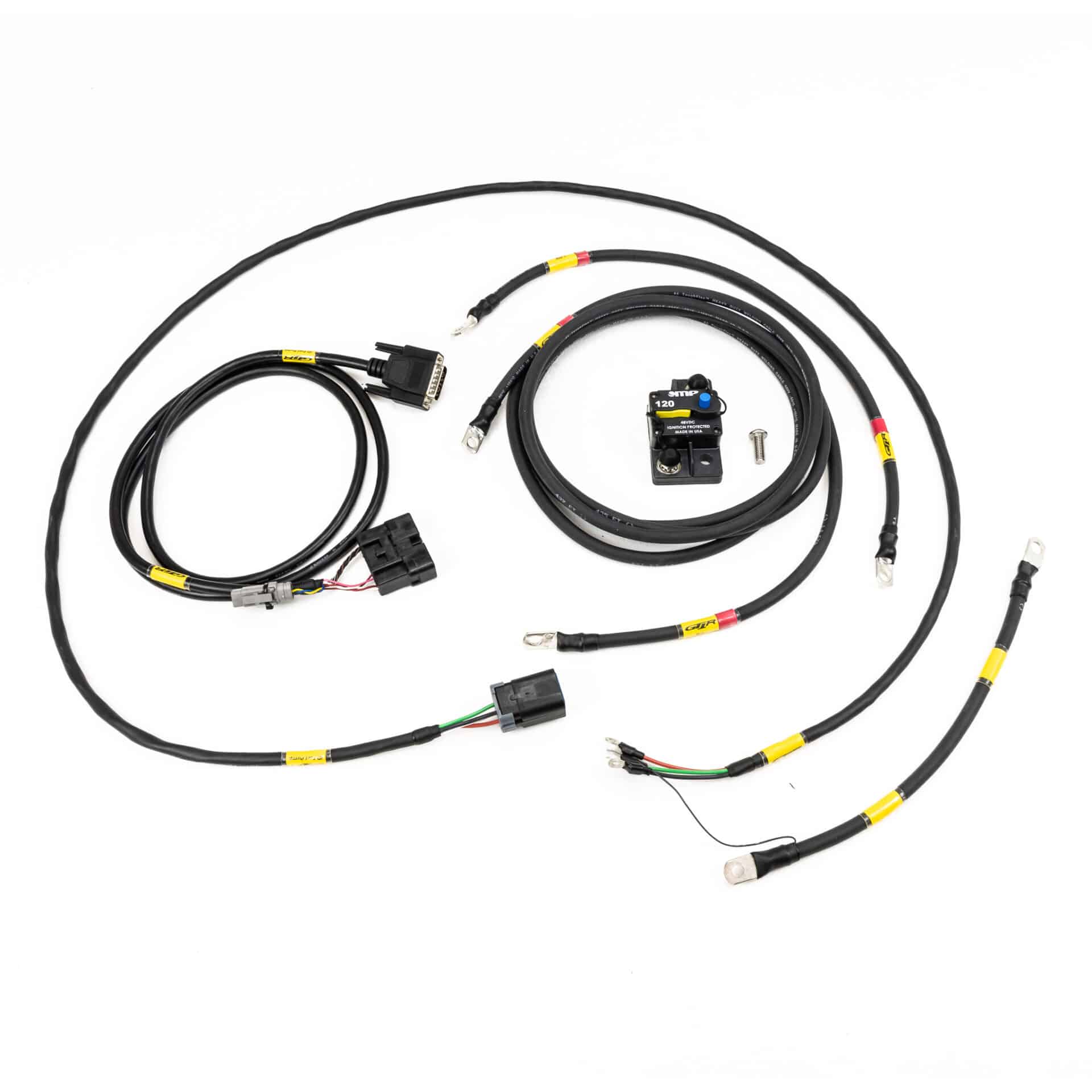

T1 Race Development GT1R BPC PWM Harness for R35 Nissan GT-R

T1 Race Development’s GT1R BPC PWM Harness for R35 Nissan GT-R is the GT1R hanger wiring for owners who want their ECU in charge of the FPS1100. It takes the brushless pump system from battery power all the way to a CAN link with the engine management, and an optional MoTeC M150 version adds a plug and play supplemental loom for cars on an M1.

Design and Performance

The BPC controller mounts on the back of the factory rear bulkhead, close by in the trunk, or under the passenger seat, and T1 sets the harness length by location. The harness uses the factory fuel pump connector for pump control and diagnostics, so the control side plugs straight into the car, and the ECU can monitor the pump over CAN.

Features

Main power supply through to ECU-to-controller CAN communication
Uses the factory fuel pump connector for control and diagnostics
Plug and play supplemental harness option for the MoTeC M150
Trunk, rear bulkhead or passenger seat BPC mounting
Built for the GT1R E5LM hanger

What’s Included

GT1R BPC PWM harness
MoTeC M150 version only: plug and play supplemental harness for the M1 ECU
Injector Dynamics FPS1100 pump system, Harness with FPS1100 version only

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The Injector Dynamics FPS1100 pump and controller is not in the base price; choose Harness with FPS1100 to add it, and the BPC PWM Harness for R35 is designed for the T1 Race Development GT1R E5LM Fuel Pump Hanger (GT1R E5LM Hanger)
Choose the MoTeC M150 version for an M1-equipped car; every other ECU uses the non-MoTeC version
Choose the BPC mounting location when ordering, because T1 builds the harness length to suit
Cars that will set pump speed from manifold pressure should look at the T1 Race Development GT1R BPC MAP Harness (GT1R BPC Harness-1)

Frequently Asked Questions

What harness types does the BPC PWM Harness for R35 come in? The MoTeC M150 version of the BPC PWM Harness for R35 adds a plug and play supplemental harness for owners of a MoTeC M1 ECU, and it costs 155 dollars more. The non-MoTeC version suits other engine management systems. Both cover the main power supply through to CAN communication with the controller.
Is the FPS1100 pump included? Only with the add-on. Choose Harness with FPS1100 to add the Injector Dynamics FPS1100, made up of the E5LM brushless pump and the BPC controller. The GT1R E5LM hanger is sold separately. The harness is the wiring that connects them to the car, and T1 Race Development publishes installation instructions.
Where can the BPC controller be mounted? T1 Race Development designs the harness around a controller on the back of the factory rear bulkhead or close by in the trunk, and it can also be built for mounting under the passenger seat. Choose the location when ordering so the harness length matches. The location does not change the price.
Should I choose the PWM or the MAP harness? The PWM harness suits cars where the ECU drives the Injector Dynamics controller and communicates with it over CAN. The MAP harness sets pump speed from a 7-bar MAP sensor instead. T1 Race Development makes both for the GT1R hanger, so the choice comes down to how the ECU and tune will manage the pump.
Does the harness use the factory fuel pump wiring? Yes. T1 Race Development uses the factory fuel pump connector for pump control and diagnostics, so the harness plugs into the existing connection at the rear of the car. Main power for the controller comes from the harness itself, which keeps the installation tidy.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
