Does the Complete Fuel System for LB724 keep direct injection?

Yes. The T1 Complete Fuel System for LB724 is designed for the stock intake manifold and integrates with the factory direct injection system, keeping all OEM functionality. The kit upgrades the port injection supply from the tank: the pump, rails, filter and regulator.

How much power can a single FPS1100 support?

T1 Race Development rates the Injector Dynamics FPS1100 at 2,000 wheel horsepower on ethanol fuels and 3,000 on race gas from one pump. T1 also offers a dual pump conversion, rated at around 2,700 wheel horsepower on ethanol, for builds past that point.

Is an external surge tank needed?

No. The FPS1100 mounts inside the factory fuel tank, and the system keeps the factory pump bucket full as the original design does. T1 Race Development says full power runs can be made safely with as little as a couple of gallons in the tank.

Will this system work with a factory ECU?

It can, provided the tuner can control the PWM duty cycle sent to the fuel pump. Every standalone ECU can. With a factory ECU, confirm with the tuner before ordering; otherwise pump speed can be set against a wired-in MAP sensor.

What does the kit include for flex fuel?

An ethanol content analyzer and an Injector Dynamics F1250 filter, which together give full flex fuel capability and protect the port injectors. Every line is rated for ethanol, with crimped hose ends and reflective heat sleeve where it needs protection.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development Complete Fuel System for LB724 Lamborghini Huracán and 4S Audi R8

T1 Race Development’s Complete Fuel System for LB724 Lamborghini Huracán and 4S Audi R8 replaces the parts of the factory fuel system that hold a V10 back once it heads toward two or three times stock power, particularly on ethanol. This version keeps the factory intake manifold, and the direct injection side of the engine keeps every OEM function, while T1 rebuilds the port injection supply from the tank forward.

Design and Performance

The Injector Dynamics FPS1100 is a single brushless pump that T1 rates at 2,000 wheel horsepower on ethanol and 3,000 on race gas. It mounts in the factory tank and keeps the factory pump bucket full, so no external surge tank is needed. Billet T1 -08AN rails in gunmetal hard anodize feed the port injectors, and a Fore F2i regulator returns excess fuel through the factory hard lines.

Features

Injector Dynamics FPS1100 brushless pump and controller in the factory tank
No external surge tank required
Billet T1 -08AN fuel rails with crossover line
Injector Dynamics F1250 filter and ethanol content analyzer for flex fuel
Ethanol-rated lines with crimped ends; no permanent modification to the car

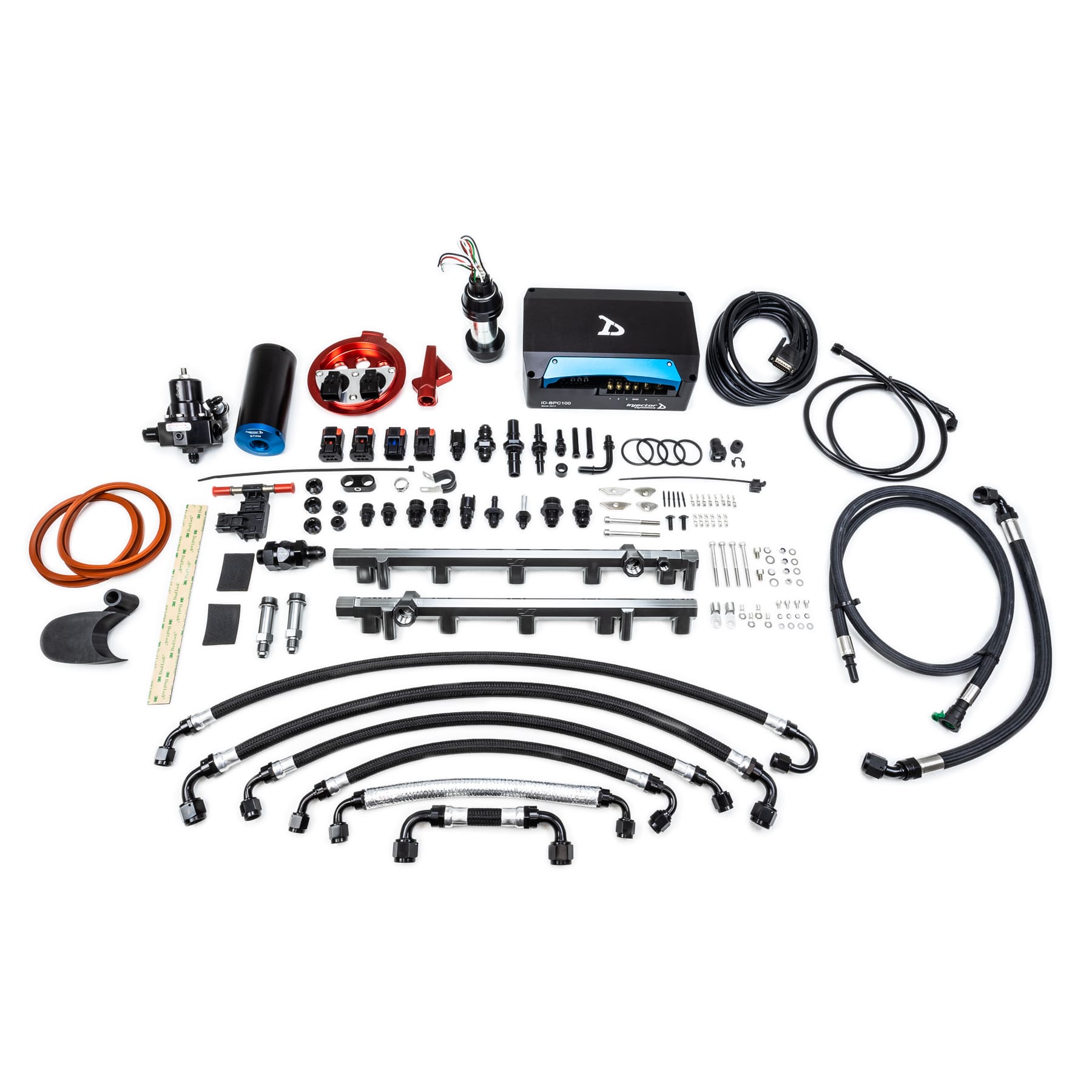

What’s Included

Injector Dynamics FPS1100: BPC100 controller, 1,100 lph in-tank pump and all in-tank parts
Complete T1 BPC wiring kit
T1 fuel rail kit with crossover line
Lines from the pump hanger to the factory hard line used for the return
Injector Dynamics F1250 filter
ECA ethanol content sensor
Fore F2i fuel pressure regulator

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

The tuner must control the PWM signal to the fuel pump; standalone ECUs can, and factory ECU users should confirm it with their tuner
The Complete Fuel System for LB724 suits the stock intake manifold; see the T1 Race Development DSX 20-Port Complete Fuel System (T1 Huracan R8 CFS Kit DSX PI) or the T1 Race Development Boost Logic Manifold Complete Fuel System (T1 Huracan R8 CFS Kit BL) for those manifolds
Injectors are not included

Frequently Asked Questions

Does the Complete Fuel System for LB724 keep direct injection? Yes. The T1 Complete Fuel System for LB724 is designed for the stock intake manifold and integrates with the factory direct injection system, keeping all OEM functionality. The kit upgrades the port injection supply from the tank: the pump, rails, filter and regulator.
How much power can a single FPS1100 support? T1 Race Development rates the Injector Dynamics FPS1100 at 2,000 wheel horsepower on ethanol fuels and 3,000 on race gas from one pump. T1 also offers a dual pump conversion, rated at around 2,700 wheel horsepower on ethanol, for builds past that point.
Is an external surge tank needed? No. The FPS1100 mounts inside the factory fuel tank, and the system keeps the factory pump bucket full as the original design does. T1 Race Development says full power runs can be made safely with as little as a couple of gallons in the tank.
Will this system work with a factory ECU? It can, provided the tuner can control the PWM duty cycle sent to the fuel pump. Every standalone ECU can. With a factory ECU, confirm with the tuner before ordering; otherwise pump speed can be set against a wired-in MAP sensor.
What does the kit include for flex fuel? An ethanol content analyzer and an Injector Dynamics F1250 filter, which together give full flex fuel capability and protect the port injectors. Every line is rated for ethanol, with crimped hose ends and reflective heat sleeve where it needs protection.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
