Is the BPC Plug and Play Harness fully plug and play?

Nearly. The T1 BPC Plug and Play Harness plugs into the factory harness where the original pump controller was and runs a pre-made loom to the tank lid bulkhead. Wiring from inside the bulkhead to the level senders, and terminating the pump pigtail, is left to the installer.

Where does the harness get its signals?

T1 Race Development 3D prints a connector to mate with the factory harness at the original pump controller location. From there the harness picks up switched power, ground and the PWM signal that sets pump speed, which is why the tuner must be able to control that signal.

Does it include the main power supply?

No. The high current supply from the battery to the BPC controller comes from the T1 BPC power harness, which uses 4 AWG wire, a resettable circuit breaker and RADLOK firewall connectors. Plan both harnesses together when wiring an FPS1100 in a Huracán or R8.

Who builds the harness?

Race Spec builds it for T1 Race Development using Tefzel wire and DR25 heat shrink, the construction T1 uses on most of its harnesses. Tefzel insulation stands up to heat, fuel and abrasion better than ordinary automotive wire, which suits a loom that runs to the fuel tank.

Which cars does the harness fit?

It is made for the Lamborghini Huracán and the second generation Audi R8 running the T1 in-tank fuel system, which covers the 2015 and later Huracán and the 2017 and later R8. It is not designed for other in-tank pump arrangements.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

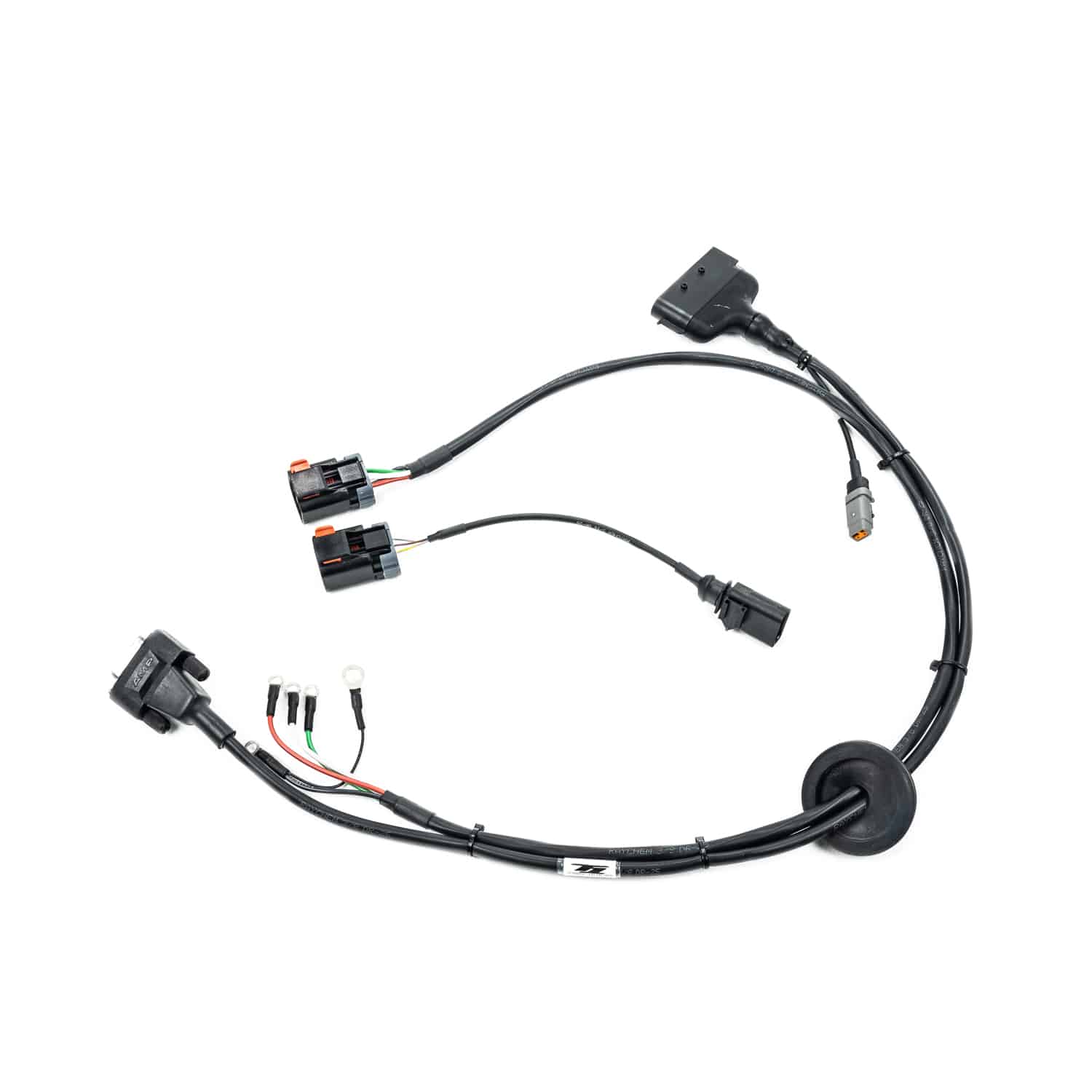

T1 Race Development BPC Plug and Play Harness for LB724 Lamborghini Huracán and 4S Audi R8

T1 Race Development’s BPC Plug and Play Harness for LB724 Lamborghini Huracán and 4S Audi R8 makes installing the Injector Dynamics BPC controller in a T1 in-tank fuel system about as simple as it gets. T1 began with a connector of its own design, 3D printed to mate with the factory harness, which plugs in where the original pump controller sat and picks up switched power, ground and the PWM signal.

Design and Performance

A pre-made loom runs from the BPC to the bulkhead connector in the tank lid, so that section is plug and play, and a short adapter links the bulkhead to the factory fuel level sender connector. The only work that is not plug and play is the wiring from the inside of the bulkhead to the level senders and terminating the pump pigtail at the connector inside the bulkhead. Race Spec builds the harness for T1 from Tefzel wire with DR25 heat shrink.

Features

Custom 3D printed connector that mates to the factory harness
Plugs in where the factory pump controller was
Picks up switched power, ground and the PWM signal
Pre-made loom from the BPC to the tank lid bulkhead
Built by Race Spec with Tefzel wire and DR25 heat shrink

What’s Included

BPC harness with custom factory-harness connector
Pre-made BPC to bulkhead loom
Bulkhead to factory fuel level sender adapter

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

For use with a T1 in-tank fuel system such as the T1 Race Development Single Pump In-Tank Fuel System (T1 01.01.03), where the FPS1100 is available as an option
High current power for the controller comes from the T1 Race Development BPC Power Harness (T1 BPC R8/Hur Power Harness), sold separately
The BPC Plug and Play Harness leaves two jobs for the installer: wiring inside the bulkhead to the level senders and terminating the pump pigtail

Frequently Asked Questions

Is the BPC Plug and Play Harness fully plug and play? Nearly. The T1 BPC Plug and Play Harness plugs into the factory harness where the original pump controller was and runs a pre-made loom to the tank lid bulkhead. Wiring from inside the bulkhead to the level senders, and terminating the pump pigtail, is left to the installer.
Where does the harness get its signals? T1 Race Development 3D prints a connector to mate with the factory harness at the original pump controller location. From there the harness picks up switched power, ground and the PWM signal that sets pump speed, which is why the tuner must be able to control that signal.
Does it include the main power supply? No. The high current supply from the battery to the BPC controller comes from the T1 BPC power harness, which uses 4 AWG wire, a resettable circuit breaker and RADLOK firewall connectors. Plan both harnesses together when wiring an FPS1100 in a Huracán or R8.
Who builds the harness? Race Spec builds it for T1 Race Development using Tefzel wire and DR25 heat shrink, the construction T1 uses on most of its harnesses. Tefzel insulation stands up to heat, fuel and abrasion better than ordinary automotive wire, which suits a loom that runs to the fuel tank.
Which cars does the harness fit? It is made for the Lamborghini Huracán and the second generation Audi R8 running the T1 in-tank fuel system, which covers the 2015 and later Huracán and the 2017 and later R8. It is not designed for other in-tank pump arrangements.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
