Is the Venturi Throttle Body for FK8 the same part for the FL5?

Yes. Spoon registers one venturi throttle body for FK8 and FL5 cars because both use the K20C turbo with the same throttle dimensions. Go Tuning, the sole US distributor for Spoon, sells it for 2017 to 2024 model year US cars, so owners of either generation order this SKU.

Will a tuned Type R gain more from it?

Generally yes. On a car running more boost through a flash tune, the engine asks for more air than the factory calibration does, and the wider inlet and butterfly give it room. The tuner should update the throttle and airflow tables to suit, which also lets the response gain show fully.

Does the car need any modification?

No. Spoon builds the part from the factory throttle body, so it fits the original intake pipe, manifold and wiring without cutting. Swapping it is a straightforward bolt-on job for an owner with hand tools, and most will finish within an hour or so, including a short test drive.

How do the dimensions compare with stock?

The inlet goes from 62.5 mm to 65.0 mm and the butterfly from 60.0 mm to 62.0 mm. Spoon puts the resulting increases in flow area at 8.2 percent for the inlet and 6.8 percent for the butterfly, modest numbers that reflect how well Honda sized the original.

Will it trigger a warning light?

Spoon does not address warning lights in its notes and lists no calibration requirement, and the part retains the factory body and connector. As with any throttle change, clearing adaptations and letting the engine computer relearn idle over a few drives is sensible. If a light appears, have a Honda specialist read the code before driving hard.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

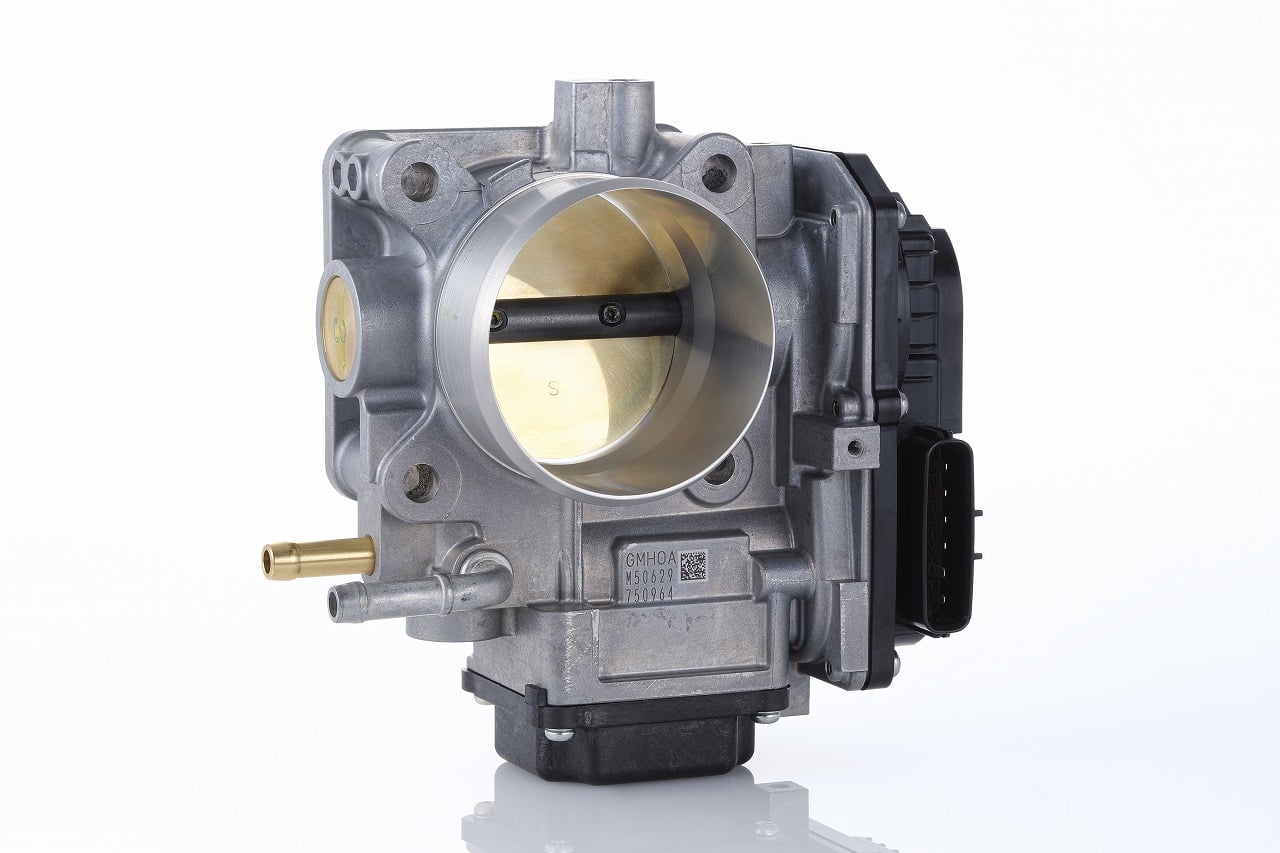

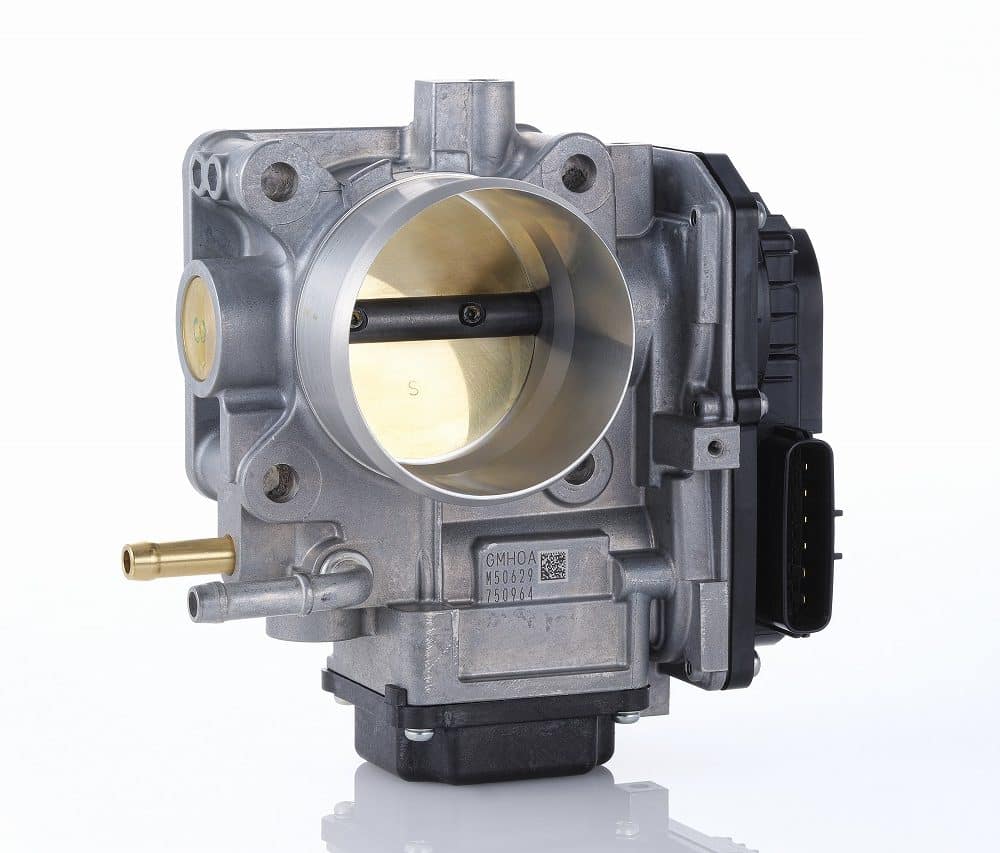

Spoon Sports Venturi Throttle Body for FK8 / FL5 Honda Civic Type R

The Spoon Sports Venturi Throttle Body for FK8 and FL5 Honda Civic Type R applies Spoon’s naturally aspirated tuning experience to the 2.0-litre K20C turbo, on the principle that more air through less resistance is the most efficient way to raise output. Spoon takes the factory throttle body and enlarges the inlet from 62.5 mm to 65.0 mm and the butterfly from 60.0 mm to 62.0 mm, increases in flow area of 8.2 and 6.8 percent. Inside, the surface is refined so intake air moves faster, which Spoon links to quicker response. Honda gave the K20C an excellent intake layout, so Spoon kept the factory body as the base and the part needs no modification to the car. It pays off on a tuned Type R with more boost; an owner running the factory calibration will feel a sharper pedal rather than a step in power.

Features

Factory K20C throttle body used as the base
Enlarged inlet and butterfly for more flow
Smoother internal surface for faster intake air
Sharper response at partial throttle
Direct bolt-on with no changes to the car

Specifications

Inlet diameter: 65.0 mm, stock 62.5 mm
Inlet area increase: 8.2 percent
Butterfly diameter: 62.0 mm, stock 60.0 mm
Butterfly area increase: 6.8 percent
Engine: K20C 2.0L turbo

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo
Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The Venturi Throttle Body for FK8 fits the FK8 and the FL5 without modification
Spoon publishes no power figure for this part

Frequently Asked Questions

Is the Venturi Throttle Body for FK8 the same part for the FL5? Yes. Spoon registers one venturi throttle body for FK8 and FL5 cars because both use the K20C turbo with the same throttle dimensions. Go Tuning, the sole US distributor for Spoon, sells it for 2017 to 2024 model year US cars, so owners of either generation order this SKU.
Will a tuned Type R gain more from it? Generally yes. On a car running more boost through a flash tune, the engine asks for more air than the factory calibration does, and the wider inlet and butterfly give it room. The tuner should update the throttle and airflow tables to suit, which also lets the response gain show fully.
Does the car need any modification? No. Spoon builds the part from the factory throttle body, so it fits the original intake pipe, manifold and wiring without cutting. Swapping it is a straightforward bolt-on job for an owner with hand tools, and most will finish within an hour or so, including a short test drive.
How do the dimensions compare with stock? The inlet goes from 62.5 mm to 65.0 mm and the butterfly from 60.0 mm to 62.0 mm. Spoon puts the resulting increases in flow area at 8.2 percent for the inlet and 6.8 percent for the butterfly, modest numbers that reflect how well Honda sized the original.
Will it trigger a warning light? Spoon does not address warning lights in its notes and lists no calibration requirement, and the part retains the factory body and connector. As with any throttle change, clearing adaptations and letting the engine computer relearn idle over a few drives is sensible. If a light appears, have a Honda specialist read the code before driving hard.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
