Does the S-Tai Front Bumper for FL5 reuse the factory grille?

Yes. Spoon requires the factory grille to be moved over to the new bumper, so a grille is not supplied with it. Keep the original grille in good condition when the factory bumper comes off, because the S-Tai Front Bumper for FL5 relies on it to finish the front opening.

How much lower is it than the stock bumper?

Spoon quotes the center of the bumper at 20 mm lower to the ground than the factory part, and it also reaches 20 mm further forward. That is a modest change for a track car, but steep driveways and tall parking stops deserve a slower, angled approach once the bumper is painted.

Can I add an oil cooler behind it?

Yes. Spoon built dedicated cooling ducts into the spaces on the left and right inside the bumper with an added oil cooler in mind, aimed at endurance race cars and owners who run long track sessions. The cooler itself is not included, and it should be chosen and plumbed by a shop familiar with the K20C1.

Will it help brake cooling?

Yes. The bumper accepts brake ducts of up to 100 mm diameter, a large size that Spoon chose to help fight brake fade during long, continuous running. Ducts and hose are separate purchases, but the openings are ready for them, so a car can be set up for endurance work from the start.

Does it need painting?

Yes. The bumper is FRP finished in a black gel coat, and Spoon states that it must be painted. Test fit it on the car first, keep it away from paint booth heat or heaters that can warp it, and in cold or damp weather dry it evenly at no more than 40 degrees C.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

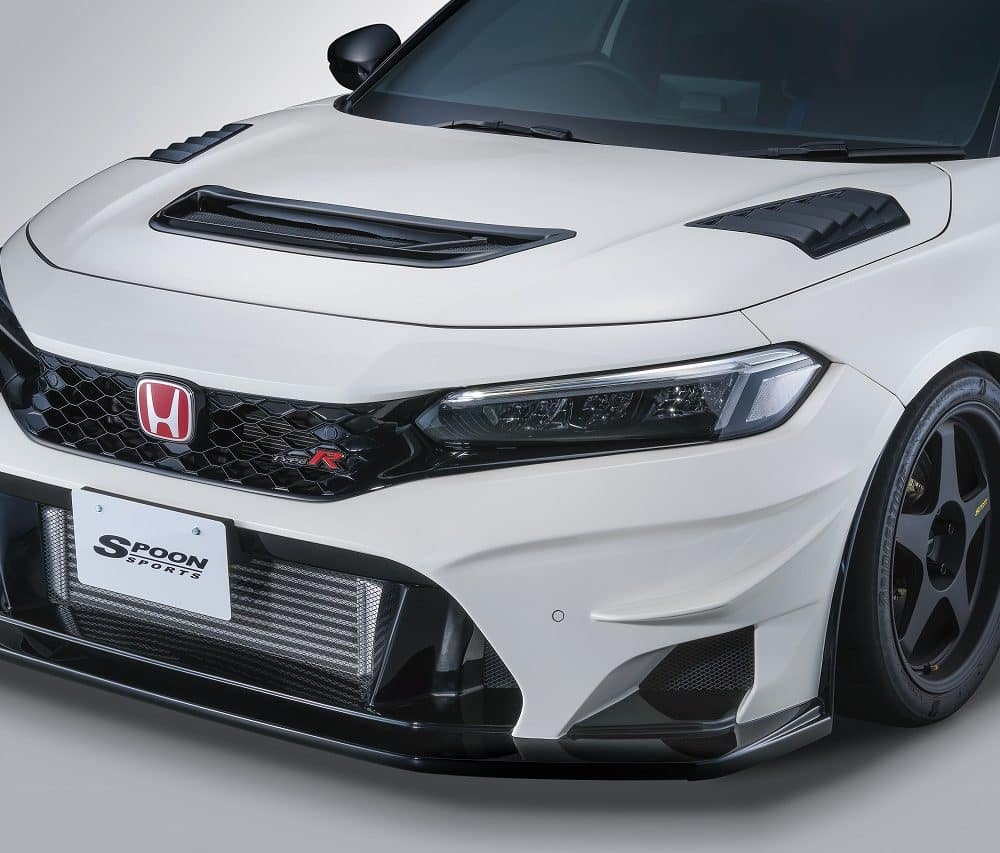

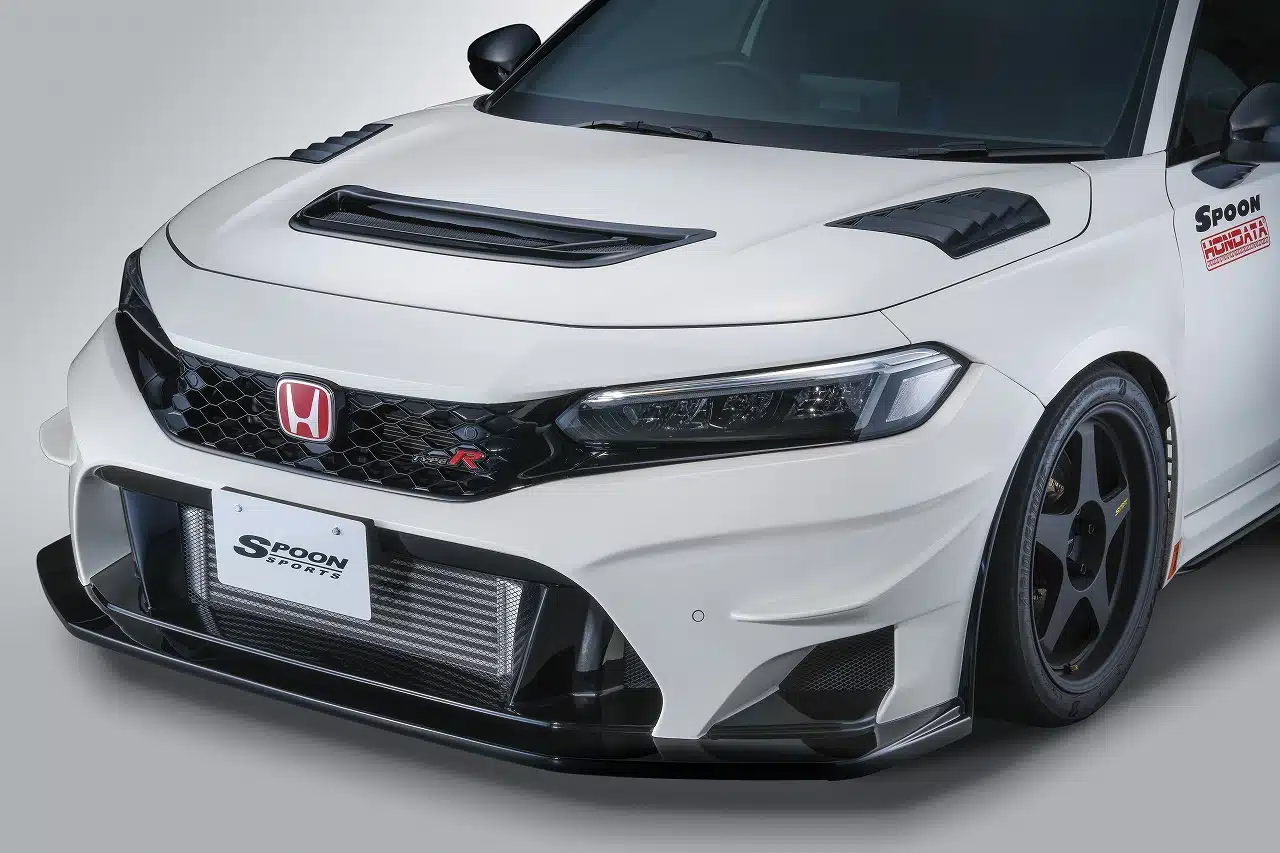

Spoon Sports S-Tai Front Bumper for FL5 Honda Civic Type R

The Spoon Sports S-Tai Front Bumper for FL5 Honda Civic Type R was developed for two jobs at once: adding front downforce and keeping the engine bay cool under sustained circuit load. Spoon started from the setup knowledge of its Super Taikyu race car, built prototypes and ran circuit tests aimed first at front downforce, then used the data from those sessions to improve cooling across the engine bay. Canard and floor shapes were analyzed closely to create downforce while trimming drag, which matters on a front-drive car that needs load on the front axle and stability at high speed. The openings are reshaped to raise radiator and intercooler efficiency, ducts on each side inside the bumper are ready for an added oil cooler, and the brake ducts accept up to 100 mm diameter hose. The center section reaches 20 mm further forward than stock and sits 20 mm lower. This is a part for an FL5 used hard on track or in endurance events; a road-only car will rarely tax it.

Features

Canard and floor shapes tuned for front downforce with lower drag
Reshaped openings for radiator and intercooler efficiency
Built-in side ducts ready for an added oil cooler
Brake duct provision for up to 100 mm diameter hose
Developed from Super Taikyu race car setup and circuit testing

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The factory grille must be transferred to the S-Tai Front Bumper for FL5
FRP with a black gel coat, so painting is required
The center section sits 20 mm further forward and 20 mm lower than the factory bumper; take care on ramps and at parking stops
Spoon registers the standard FL5 and the 2025-on Racing Black Package
Matching S-Tai parts: Spoon S-Tai Rear Bumper, Spoon S-Tai Side Steps and Spoon S-Tai Bonnet

Frequently Asked Questions

Does the S-Tai Front Bumper for FL5 reuse the factory grille? Yes. Spoon requires the factory grille to be moved over to the new bumper, so a grille is not supplied with it. Keep the original grille in good condition when the factory bumper comes off, because the S-Tai Front Bumper for FL5 relies on it to finish the front opening.
How much lower is it than the stock bumper? Spoon quotes the center of the bumper at 20 mm lower to the ground than the factory part, and it also reaches 20 mm further forward. That is a modest change for a track car, but steep driveways and tall parking stops deserve a slower, angled approach once the bumper is painted.
Can I add an oil cooler behind it? Yes. Spoon built dedicated cooling ducts into the spaces on the left and right inside the bumper with an added oil cooler in mind, aimed at endurance race cars and owners who run long track sessions. The cooler itself is not included, and it should be chosen and plumbed by a shop familiar with the K20C1.
Will it help brake cooling? Yes. The bumper accepts brake ducts of up to 100 mm diameter, a large size that Spoon chose to help fight brake fade during long, continuous running. Ducts and hose are separate purchases, but the openings are ready for them, so a car can be set up for endurance work from the start.
Does it need painting? Yes. The bumper is FRP finished in a black gel coat, and Spoon states that it must be painted. Test fit it on the car first, keep it away from paint booth heat or heaters that can warp it, and in cold or damp weather dry it evenly at no more than 40 degrees C.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
