Does the Front Stiff Plate for FK8 make the ride harsher?

No. Spoon says the opposite happens. With the subframe held firmly, the springs and dampers do the moving rather than the mounts, and Spoon describes the result as supple and refined. The Front Stiff Plate for FK8 changes how precisely the front end responds, not the ride rate of the suspension.

Will it fit an FC1 Civic sedan?

Yes, with one extra Honda part. Spoon says the sedan needs the factory brace bar from the FK8 Civic Type R, part number 50290-TGN-E00, to mount the plate. It is not supplied with this listing, so order it from a Honda parts counter at the same time.

Can the factory under panel go back on?

Yes. Spoon designed the plate to sit beneath the stock under panel, so the car keeps its original underbody cover and airflow. Installation is bolt-on with no drilling or cutting, which also means the plate can be removed later without leaving any trace on the subframe or body.

What is the plate made from?

It is JSC780 ultra high-tensile steel, a grade normally reserved for the inner body structure. Spoon forms it on an 800-ton hydraulic press, spot welds three pressed panels together and applies a cationic electrodeposition coat matching factory corrosion protection. The listed weight is 4.9 kg.

Is it worth fitting to a stock car?

It can be, but the benefit grows with grip. Spoon developed the plate to let the suspension work fully, and the effect is most obvious once stickier tires, a good alignment and more power begin to load the front subframe mounts. A stock car driven gently will feel a smaller change.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

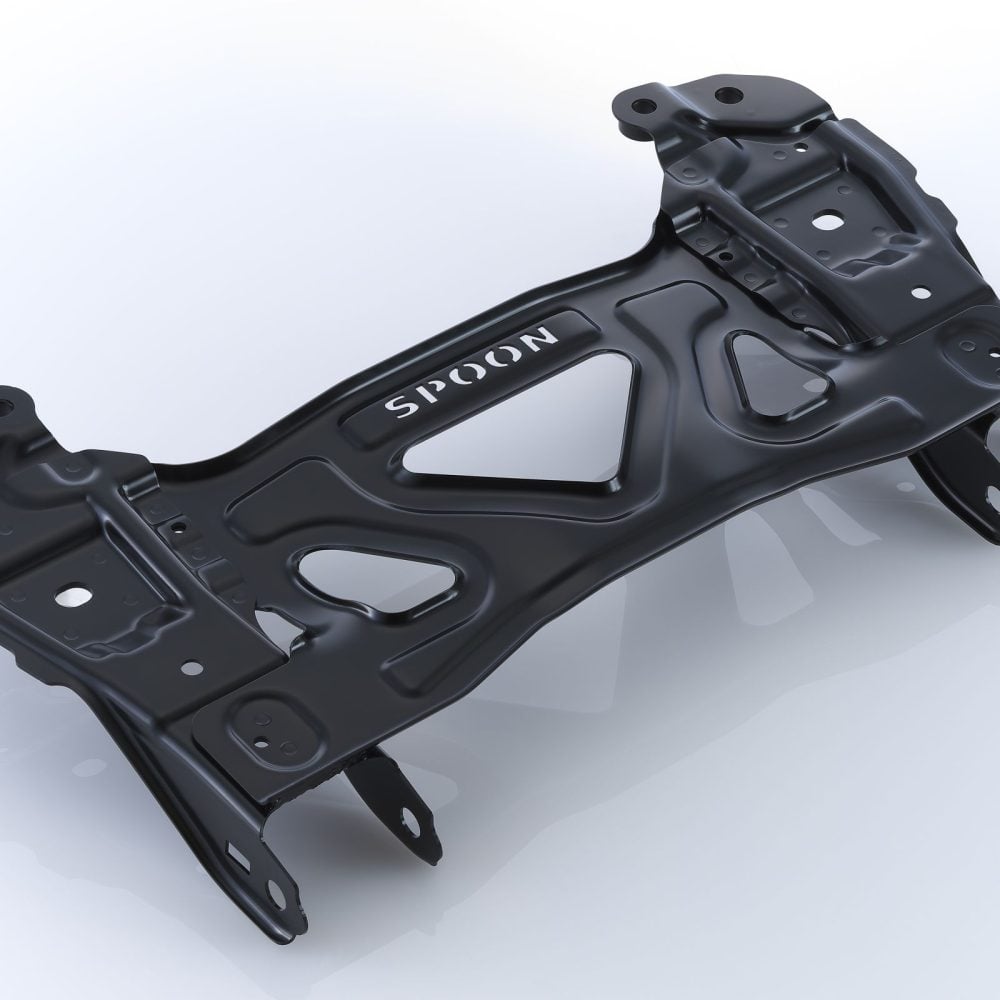

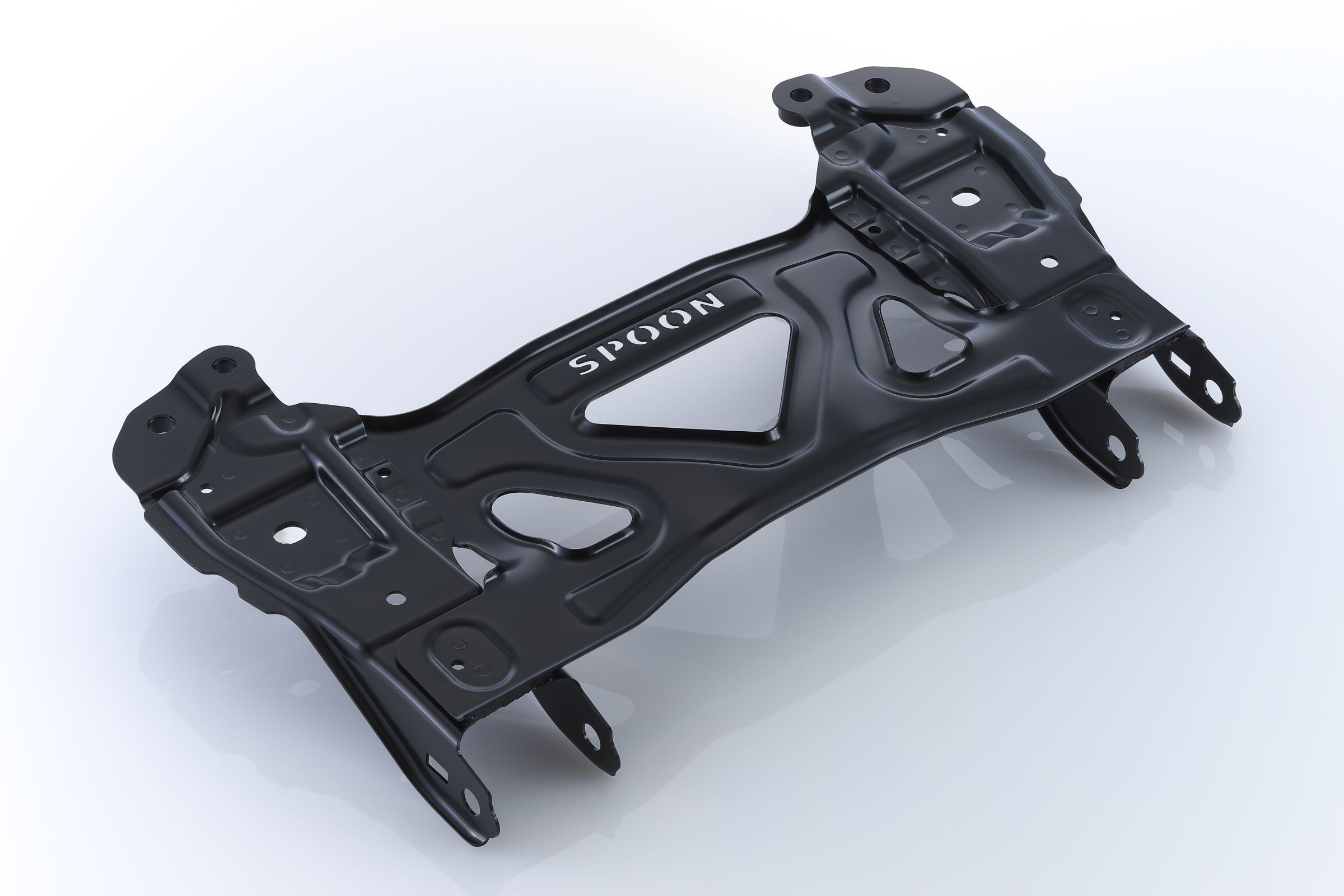

Spoon Sports Front Stiff Plate for FK8 Honda Civic Type R and FK7 / FC1 Civic

The Spoon Sports Front Stiff Plate for FK8 Honda Civic Type R ties the front subframe, the body and the lower arm mounts together with one rigid plate, so the strong 10th generation platform behaves as stiffly at that joint as it does everywhere else. Spoon builds a balanced car from the body outward, and its view of the FK8 is that the shell is already stiff; the gain comes from the fastening between body and subframe. The plate is pressed from JSC780 ultra high-tensile steel, the grade Honda uses inside body structures, on an 800-ton hydraulic press, then three panels are spot welded and given a cationic electrodeposition coat. Spoon lists it at 4.9 kg. It suits an FK8, FK7 or FC1 that already has good tires and alignment and now wants sharper, steadier steering; on an untouched car the difference will be subtler.

Design and Development

Spoon pairs this plate with its Rigid Collars in the subframe bolt holes: fill the play, then spread the load across a surface. The aim is direct, stable handling with suspension that moves as designed.

Features

JSC780 ultra high-tensile steel, a body-structure grade
Formed on an 800-ton hydraulic press
Three panels spot welded into one plate
Cationic electrodeposition coating, as on factory parts
Bolt-on, with no drilling or cutting

Specifications

Material: JSC780 ultra high-tensile steel
Forming: 800-ton hydraulic press
Construction: three plates, spot welded
Finish: cationic electrodeposition coat
Listed weight: 4.9 kg
Shipping box: 65 x 41 x 14 cm

Applications

Honda Civic Hatchback: FK7 | 2017-2021 | 1.5L L15B turbo
Honda Civic Sedan: FC1 | 2016-2021 | 1.5L L15B turbo
Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo

Notes

FC1 sedans need the Honda factory brace bar from the FK8, part number 50290-TGN-E00, which is sold separately
The factory under panel refits over the plate
Spoon Rigid Collars are a separate Spoon product and are not part of this listing
The Front Stiff Plate for FK8 complements the Spoon Motion Control Beam, which controls flex at the front and rear extremities of the body

Frequently Asked Questions

Does the Front Stiff Plate for FK8 make the ride harsher? No. Spoon says the opposite happens. With the subframe held firmly, the springs and dampers do the moving rather than the mounts, and Spoon describes the result as supple and refined. The Front Stiff Plate for FK8 changes how precisely the front end responds, not the ride rate of the suspension.
Will it fit an FC1 Civic sedan? Yes, with one extra Honda part. Spoon says the sedan needs the factory brace bar from the FK8 Civic Type R, part number 50290-TGN-E00, to mount the plate. It is not supplied with this listing, so order it from a Honda parts counter at the same time.
Can the factory under panel go back on? Yes. Spoon designed the plate to sit beneath the stock under panel, so the car keeps its original underbody cover and airflow. Installation is bolt-on with no drilling or cutting, which also means the plate can be removed later without leaving any trace on the subframe or body.
What is the plate made from? It is JSC780 ultra high-tensile steel, a grade normally reserved for the inner body structure. Spoon forms it on an 800-ton hydraulic press, spot welds three pressed panels together and applies a cationic electrodeposition coat matching factory corrosion protection. The listed weight is 4.9 kg.
Is it worth fitting to a stock car? It can be, but the benefit grows with grip. Spoon developed the plate to let the suspension work fully, and the effect is most obvious once stickier tires, a good alignment and more power begin to load the front subframe mounts. A stock car driven gently will feel a smaller change.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
