Which Civics does the Progressive Spring Set for EK4 fit?

Spoon registers the Progressive Spring Set for EK4 for the EK4 Civic SiR and SiR II from 1995 to 2000 and the EK9 Civic Type R from 1997 to 2000, including the race base version. Go Tuning sells it for 1996 to 2000 EK4 and EK9 cars.

Why only about 20 mm lower?

The EK hatchback has limited suspension travel, so Spoon lowers it by about 20 mm and lets the stiffer rates do the work of controlling roll. A bigger drop on fixed dampers would bring the car onto its bump stops more often and cost ride quality on poor roads.

Are they much firmer than stock?

The numbers say yes: 6.5 kgf/mm front and 5.5 kgf/mm rear against the 3.6 and 2.0 kgf/mm Spoon quotes for the factory springs. Spoon still tuned them to match the stock dampers and describes the ride as comparable to a standard car, firmer in roll rather than over bumps.

Do they fit US Civic hatchbacks of the same era?

Spoon registers them only for the Japanese EK4 and EK9 hatchbacks, the B16 SiR and Type R. Other EK body styles and grades used their own factory springs and are not covered by the Spoon record, so BA lists the set for the EK4 and EK9 only.

Can I install them at home?

With spring compressors and some experience, yes. Each strut comes out, the spring is compressed and swapped, and the strut goes back in. The job is safer and quicker at a shop with a strut spring tool, and an alignment should follow either way.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

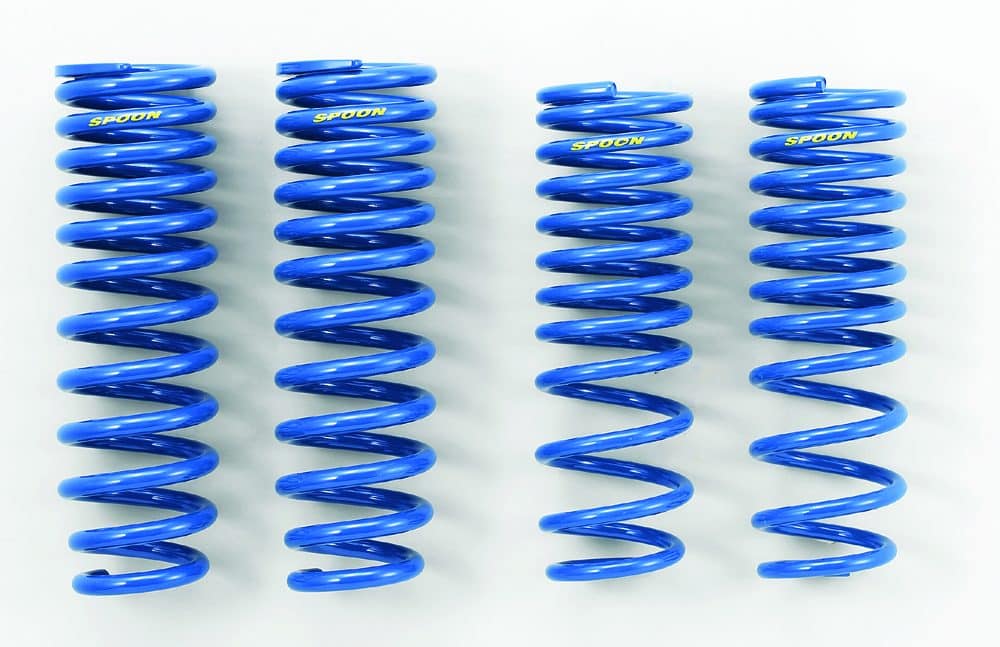

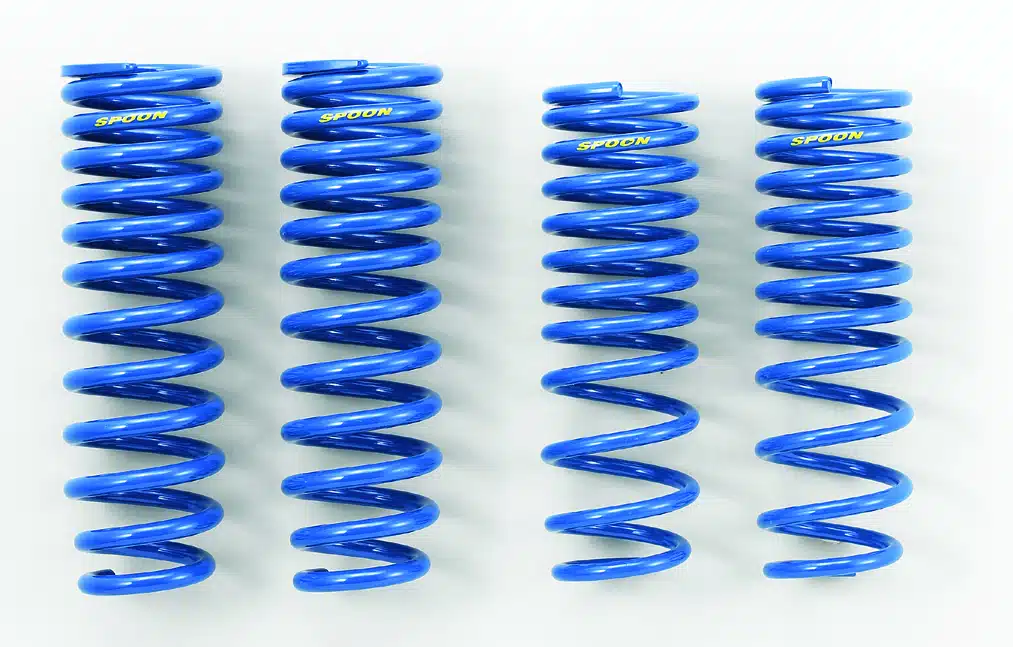

Spoon Sports Progressive Spring Set for EK4 / EK9 Honda Civic

The Spoon Sports Progressive Spring Set for EK4 / EK9 Honda Civic belongs to the hatchback Spoon knows best, the B16 Civic that carried the company’s name onto circuits through the late 1990s. It covers the EK4 SiR with the B16A and the EK9 Type R with the B16B, including the race base cars. The rates are firm for a lowering spring, 6.5 kgf/mm front and 5.5 kgf/mm rear against the 3.6 and 2.0 kgf/mm Spoon gives for stock, while the drop is kept to about 20 mm. That restraint is deliberate: the EK hatch has little wheel travel to spare, and a modest drop keeps the car usable over speed bumps and broken roads. Spoon tuned the springs for the factory dampers or a fixed-rate kit and says the ride stays at a standard level. It is the right spring for a well-kept SiR or Type R on the road; a car that lives on track wants coilovers instead.

Features

6.5 kgf/mm front rate in place of the 3.6 kgf/mm factory spring
5.5 kgf/mm rear rate in place of the 2.0 kgf/mm factory spring
Modest drop of about 20 mm keeps usable wheel travel
Paired with factory or fixed-rate dampers
Less roll and steadier grip on poor road surfaces

Specifications

Front spring rate: 6.5 kgf/mm
Factory front rate: 3.6 kgf/mm
Rear spring rate: 5.5 kgf/mm
Factory rear rate: 2.0 kgf/mm
Ride height change: about 20 mm lower
Listed weight: 11.7 kg
Box size: 39 x 37 x 21 cm

Applications

Honda Civic SiR: EK4 | 1995-2000 | 1.6L B16A
Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B

Notes

The Progressive Spring Set for EK4 / EK9 is registered for the JDM SiR and Type R hatchbacks
Sold as one set of front and rear springs; dampers and mounts are not included
An alignment after fitting is recommended

Frequently Asked Questions

Which Civics does the Progressive Spring Set for EK4 fit? Spoon registers the Progressive Spring Set for EK4 for the EK4 Civic SiR and SiR II from 1995 to 2000 and the EK9 Civic Type R from 1997 to 2000, including the race base version. Go Tuning sells it for 1996 to 2000 EK4 and EK9 cars.
Why only about 20 mm lower? The EK hatchback has limited suspension travel, so Spoon lowers it by about 20 mm and lets the stiffer rates do the work of controlling roll. A bigger drop on fixed dampers would bring the car onto its bump stops more often and cost ride quality on poor roads.
Are they much firmer than stock? The numbers say yes: 6.5 kgf/mm front and 5.5 kgf/mm rear against the 3.6 and 2.0 kgf/mm Spoon quotes for the factory springs. Spoon still tuned them to match the stock dampers and describes the ride as comparable to a standard car, firmer in roll rather than over bumps.
Do they fit US Civic hatchbacks of the same era? Spoon registers them only for the Japanese EK4 and EK9 hatchbacks, the B16 SiR and Type R. Other EK body styles and grades used their own factory springs and are not covered by the Spoon record, so BA lists the set for the EK4 and EK9 only.
Can I install them at home? With spring compressors and some experience, yes. Each strut comes out, the spring is compressed and swapped, and the strut goes back in. The job is safer and quicker at a shop with a strut spring tool, and an alignment should follow either way.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
