Which Civics does the LSD Kit for EG6 fit?

Spoon registers the LSD Kit for EG6 for the EG6 Civic SiR from 1991 to 1995 and the EK4 Civic SiR from 1995 to 2000, both with the B16A and a five-speed manual. The EK9 Civic Type R takes a different Spoon kit, part 41000-DC2-000, shared with the Integra Type R.

What does the kit include?

Spoon supplies the differential with side bearings, a speedometer drive gear and mounting bolts, and lists the kit at 7 kg in a 24 x 24 x 21 cm box. Gear oil, gaskets and the labor of opening the transmission are not part of the kit and should be planned for separately.

How will it change the way an SiR drives?

The biggest change is on corner exit. Instead of the inside front tire spinning as the throttle opens, both front tires pull, so the car accelerates out of tight bends with less understeer. Turn-in stays predictable because the 1.5-way setting locks only partly when the throttle is closed.

Is some noise normal?

Yes. Spoon warns that a mechanical differential can make the driven wheels drag, produce operating noise from its internal gears and cause some vibration. The effect is strongest at walking pace with the steering on full lock and fades at road speeds, and it reflects how a plate-type unit works rather than a defect.

Can the kit be rebuilt later?

Yes. Spoon offers an overhaul set for this kit, part 41000-EG6-S01, which also serves the Integra and EK9 kit. When the internal plates wear and the locking effect fades after hard use, a specialist can rebuild the unit with those parts instead of replacing it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Spoon Sports LSD Kit for EG6 / EK4 Honda Civic

The Spoon Sports LSD Kit for EG6 and EK4 Civic SiR brings a 1.5-way mechanical differential to the B16A hatchbacks, light front-drive cars whose high-revving engines can easily overwhelm a single inside tire. When an SiR is driven hard through a tight corner, the inside front wheel goes light, and a standard differential lets it spin away the drive just as the driver wants to accelerate. Spoon’s unit detects the speed and torque difference across the axle and limits it, keeping the drive on the outside tire that carries the load. The 1.5-way profile acts strongly on acceleration and partially on deceleration, a balance Spoon picked because it is easy to live with. Initial torque leaves the factory at 9 to 9.5 kgf-m, measured cold, and Spoon lists the kit at 7 kg. It is the right part for an SiR that runs at a circuit, autocross or hillclimb; on a car that only commutes, the chatter of a mechanical unit will be noticed more than the gain.

Features

Mechanical 1.5-way locking
Initial torque of 9 to 9.5 kgf-m, cold
Keeps drive on the loaded front tire out of tight bends
Designed for easy assembly and maintenance
Side bearings, speedometer drive gear and bolts supplied

Specifications

Type: mechanical limited-slip differential
Locking: 1.5-way
Initial torque: 9 to 9.5 kgf-m, cold
Listed weight: 7 kg
Box size: 24 x 24 x 21 cm

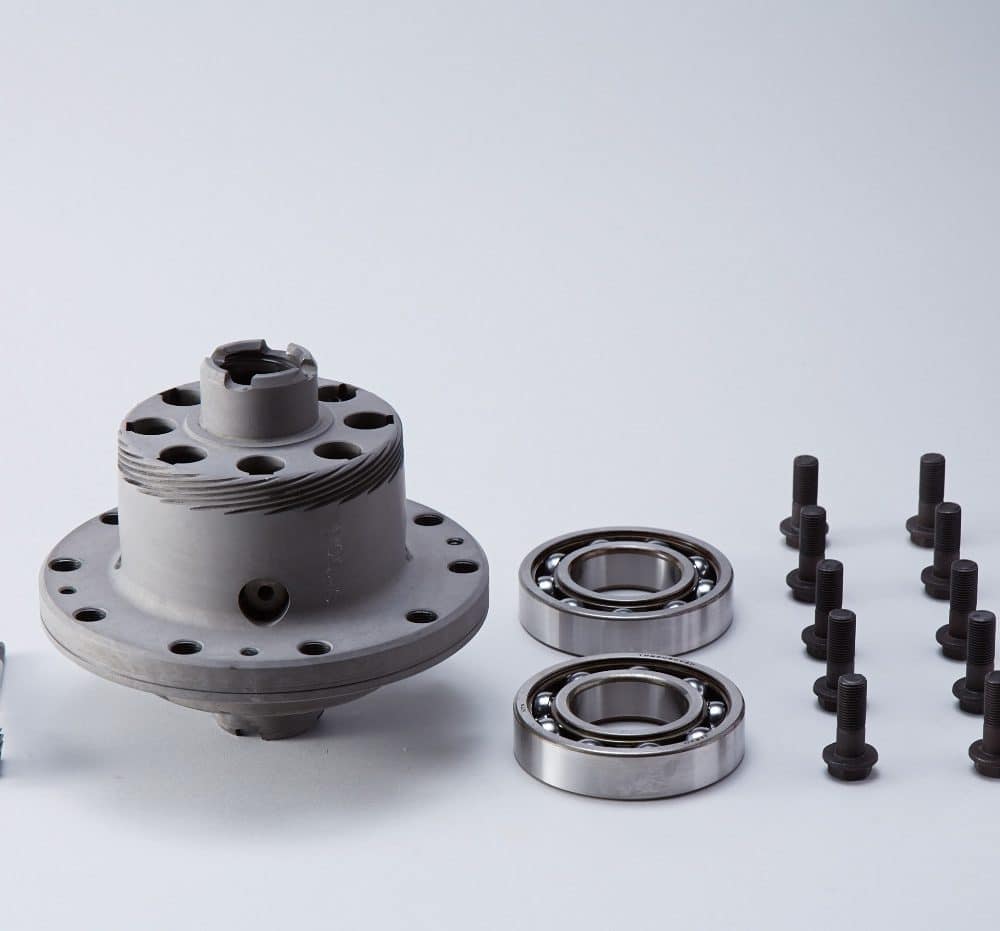

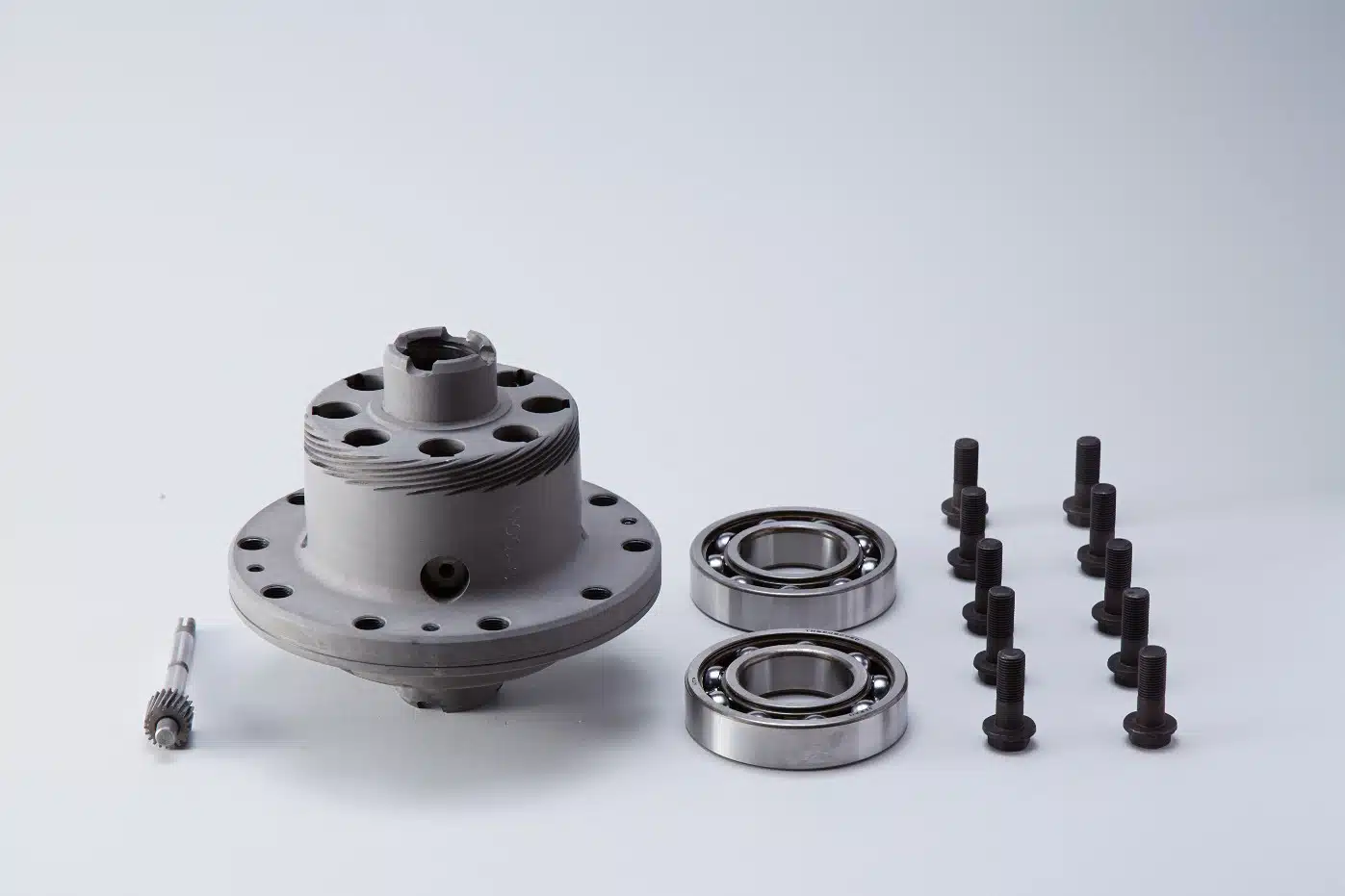

What’s Included

Spoon LSD unit
Side bearings
Speedometer drive gear
Mounting bolts

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A
Honda Civic SiR: EK4 | 1995-2000 | 1.6L B16A

Notes

Drag at the wheels, internal gear noise and some vibration at low speed are normal for a mechanical LSD
A worn unit can be rebuilt with the Spoon Sports LSD Overhaul Set for EG6
EG6 and EK4 are the JDM Civic SiR hatchbacks with the B16A and 5-speed manual
The LSD Kit for EG6 should be fitted by a transmission specialist

Frequently Asked Questions

Which Civics does the LSD Kit for EG6 fit? Spoon registers the LSD Kit for EG6 for the EG6 Civic SiR from 1991 to 1995 and the EK4 Civic SiR from 1995 to 2000, both with the B16A and a five-speed manual. The EK9 Civic Type R takes a different Spoon kit, part 41000-DC2-000, shared with the Integra Type R.
What does the kit include? Spoon supplies the differential with side bearings, a speedometer drive gear and mounting bolts, and lists the kit at 7 kg in a 24 x 24 x 21 cm box. Gear oil, gaskets and the labor of opening the transmission are not part of the kit and should be planned for separately.
How will it change the way an SiR drives? The biggest change is on corner exit. Instead of the inside front tire spinning as the throttle opens, both front tires pull, so the car accelerates out of tight bends with less understeer. Turn-in stays predictable because the 1.5-way setting locks only partly when the throttle is closed.
Is some noise normal? Yes. Spoon warns that a mechanical differential can make the driven wheels drag, produce operating noise from its internal gears and cause some vibration. The effect is strongest at walking pace with the steering on full lock and fades at road speeds, and it reflects how a plate-type unit works rather than a defect.
Can the kit be rebuilt later? Yes. Spoon offers an overhaul set for this kit, part 41000-EG6-S01, which also serves the Integra and EK9 kit. When the internal plates wear and the locking effect fades after hard use, a specialist can rebuild the unit with those parts instead of replacing it.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
