Does the LSD Overhaul Set for EG6 also service the Integra Type R kit?

Yes. Spoon registers the LSD Overhaul Set for EG6 for the EG6 and EK4 Civic SiR, the EK9 Civic Type R and the DC2 and DB8 Integra Type R, which covers owners of both the 41000-EG6-000 and 41000-DC2-000 kits. The US distributor names only the SiR kit, so BA follows the Spoon Japan fitment list.

Will it rebuild a factory Honda differential?

No. The set contains repair parts for the two Spoon mechanical differentials and is not intended for a factory differential or for a limited-slip unit from another maker. Those units have different internals and require their own service parts, so check which differential the car carries before ordering.

When does a Spoon B-series differential need rebuilding?

When the fading of the locking effect can be felt. Typical signs are the inside front tire spinning again on corner exit and the car pushing wide under power. A specialist can measure breakaway torque and compare it with the setting Spoon uses for a new unit, 9 to 9.5 kgf-m with the differential cold.

Is the parts list published?

No. Spoon and Go Tuning describe the set only as overhaul or repair parts for the Spoon kits and do not itemise the contents. BA does not name parts that Spoon has not listed, and the exact contents can be checked with the distributor before a rebuild is booked.

How much work is an overhaul?

It is a significant job. The transmission comes out, the case is split to remove the differential, and the unit is stripped, rebuilt to the correct initial torque and refitted with bearing preload set. Many owners combine the work with a clutch replacement, since the gearbox is already out of the car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Spoon Sports LSD Overhaul Set for EG6 / EK4 / EK9 Honda Civic and DC2 / DB8 Integra Type R

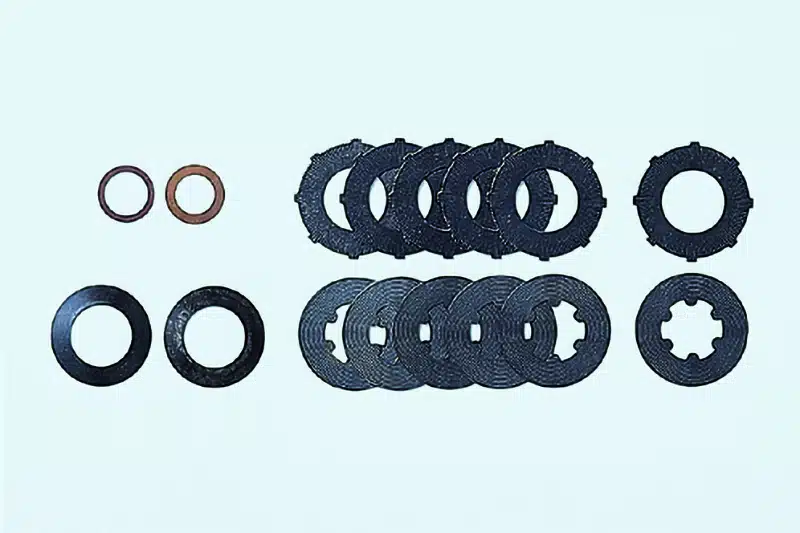

Spoon Sports’ LSD Overhaul Set for EG6, EK4 and EK9 Civic and DC2 and DB8 Integra Type R holds the repair parts for both of Spoon’s B-series differentials: the 41000-EG6-000 kit for the SiR Civics and the 41000-DC2-000 kit for the Type R Civic and Integra. One set for two kits is a practical detail for owners and workshops alike, since the same box serves an EK4 hillclimb car and a DC2 that runs every circuit day of the season. Both kits are 1.5-way mechanical units that Spoon ships at 9 to 9.5 kgf-m initial torque, and both depend on internal friction plates that wear as they do their job. As that wear builds, locking arrives later, wheelspin creeps back on corner exit, and the front end loses the bite the differential was fitted for. Rebuilding with Spoon parts keeps the unit in service without replacing it. This set is only for cars already running one of the two Spoon kits.

Features

Repair parts for the 41000-EG6-000 and 41000-DC2-000 kits
One set serves both Spoon B-series differentials
Intended to return a worn unit to Spoon specification
Made for the 1.5-way mechanical Spoon units
Supplied as one set

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A
Honda Civic SiR: EK4 | 1995-2000 | 1.6L B16A
Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B
Honda Integra Type R / Acura Integra: DC2 | 1995-2001 | 1.8L B18C
Honda Integra Type R 4-door: DB8 | 1995-2001 | 1.8L B18C

Notes

Services the Spoon Sports LSD Kit for EG6 and the Spoon Sports LSD Kit for DC2 only
Spoon does not publish an itemised parts list for the LSD Overhaul Set for EG6
Overhaul work should be done by a transmission specialist
DB8 is the JDM 4-door Integra Type R, a body style not sold in the US

Frequently Asked Questions

Does the LSD Overhaul Set for EG6 also service the Integra Type R kit? Yes. Spoon registers the LSD Overhaul Set for EG6 for the EG6 and EK4 Civic SiR, the EK9 Civic Type R and the DC2 and DB8 Integra Type R, which covers owners of both the 41000-EG6-000 and 41000-DC2-000 kits. The US distributor names only the SiR kit, so BA follows the Spoon Japan fitment list.
Will it rebuild a factory Honda differential? No. The set contains repair parts for the two Spoon mechanical differentials and is not intended for a factory differential or for a limited-slip unit from another maker. Those units have different internals and require their own service parts, so check which differential the car carries before ordering.
When does a Spoon B-series differential need rebuilding? When the fading of the locking effect can be felt. Typical signs are the inside front tire spinning again on corner exit and the car pushing wide under power. A specialist can measure breakaway torque and compare it with the setting Spoon uses for a new unit, 9 to 9.5 kgf-m with the differential cold.
Is the parts list published? No. Spoon and Go Tuning describe the set only as overhaul or repair parts for the Spoon kits and do not itemise the contents. BA does not name parts that Spoon has not listed, and the exact contents can be checked with the distributor before a rebuild is booked.
How much work is an overhaul? It is a significant job. The transmission comes out, the case is split to remove the differential, and the unit is stripped, rebuilt to the correct initial torque and refitted with bearing preload set. Many owners combine the work with a clutch replacement, since the gearbox is already out of the car.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
