Why does the Crane Neck Wing for FK8 hang from above?

Downforce from a GT wing comes mainly from faster airflow under the wing compared with slower flow over it. Mounting the Crane Neck Wing for FK8 from the top, on swan-neck stays, keeps the supports away from that lower surface, which is why Spoon calls the shape the logical choice for a powerful car.

Does the wing add drag on the straights?

Yes, as any wing does, but Spoon worked to limit it. After repeated circuit testing, the stay stiffness was set so the wing bends slightly as speed rises, lowering its angle of attack near the end of a straight and cutting drag. As speed falls for the next corner, the load eases and the set angle returns.

How much does it weigh?

Spoon gives 5.5 kg for the wing, with a span of 1,510 mm. Carbon is used for the main plane, the body mounts and the end plates. The shipping carton is much larger and heavier than the wing, so the weight on a freight label is not the weight added to the rear of the car.

Is the angle adjustable?

Yes. The wing offers five angle positions. Lower settings favor straight-line speed and a calmer balance on the highway, while steeper settings add rear grip for tighter circuits. More rear downforce shifts the balance of the car toward understeer, so a matching front aero setup is worth planning on a dedicated track FK8.

Does this wing fit the FL5?

No. Spoon registers this wing for the FK8 Civic Type R only, covering cars built from September 2017 with the K20C turbo engine and 6-speed manual. The FL5 has its own Spoon crane neck wing, a wider 1,550 mm design developed with full-scale wind tunnel testing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

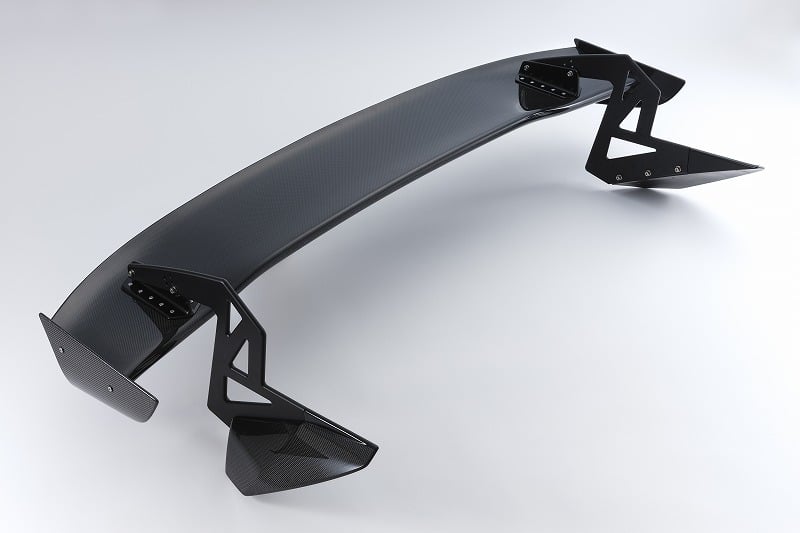

Spoon Sports Crane Neck Wing for FK8 Honda Civic Type R

Spoon Sports’ Crane Neck Wing for FK8 Civic Type R takes its name and its stay profile from the crane in the Spoon emblem, and the shape earns its place on function as well as symbolism. A GT wing makes most of its downforce from the pressure difference between slower air over the top and faster air underneath, so hanging the 1,510 mm wing from above, swan-neck style, keeps the stays off the surface doing most of the work. Spoon calls this layout the right one for a high-power car such as the turbocharged FK8. Repeated circuit testing also set the stiffness of the stays so they flex as speed builds toward the end of a straight, easing the angle of attack and the drag that comes with it. Wing, body mounts and end plates are carbon, the angle adjusts in five steps, and the wing weighs 5.5 kg. It belongs on an FK8 that sees regular track work.

Features

Swan-neck stays styled on the crane in the Spoon emblem
Stays tuned to flex at speed and trim drag at the end of a straight
Carbon wing, body mounts and end plates
Five-step angle adjustment
Meets Japanese vehicle safety standards

Specifications

Wing width: 1,510 mm
Weight: 5.5 kg
Angle adjustment: 5 steps
Carbon parts: wing, body mounts, end plates
Stay type: swan neck

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo

Notes

The Crane Neck Wing for FK8 is sold as a complete wing set
Spoon publishes an installation manual for this wing
Japanese safety standard compliance is a Spoon-stated Japanese certification

Frequently Asked Questions

Why does the Crane Neck Wing for FK8 hang from above? Downforce from a GT wing comes mainly from faster airflow under the wing compared with slower flow over it. Mounting the Crane Neck Wing for FK8 from the top, on swan-neck stays, keeps the supports away from that lower surface, which is why Spoon calls the shape the logical choice for a powerful car.
Does the wing add drag on the straights? Yes, as any wing does, but Spoon worked to limit it. After repeated circuit testing, the stay stiffness was set so the wing bends slightly as speed rises, lowering its angle of attack near the end of a straight and cutting drag. As speed falls for the next corner, the load eases and the set angle returns.
How much does it weigh? Spoon gives 5.5 kg for the wing, with a span of 1,510 mm. Carbon is used for the main plane, the body mounts and the end plates. The shipping carton is much larger and heavier than the wing, so the weight on a freight label is not the weight added to the rear of the car.
Is the angle adjustable? Yes. The wing offers five angle positions. Lower settings favor straight-line speed and a calmer balance on the highway, while steeper settings add rear grip for tighter circuits. More rear downforce shifts the balance of the car toward understeer, so a matching front aero setup is worth planning on a dedicated track FK8.
Does this wing fit the FL5? No. Spoon registers this wing for the FK8 Civic Type R only, covering cars built from September 2017 with the K20C turbo engine and 6-speed manual. The FL5 has its own Spoon crane neck wing, a wider 1,550 mm design developed with full-scale wind tunnel testing.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
