How is the Motion Control Beam for FK8 different from a strut brace?

A strut brace is solid, so it adds stiffness and also passes fine vibration into the cabin. The Motion Control Beam for FK8 uses springs and friction plates, resisting large twisting loads while absorbing small vibrations, and it sits at the front and rear ends of the body rather than between the strut towers.

Will it make the ride firmer?

No. Spoon developed the beam to improve comfort and refinement as well as cornering. The friction plates absorb the small, high-frequency movements that make a braced car feel busy, so the ride feels smoother and quieter while the body resists the larger twisting forces of hard cornering.

Where are the beams mounted?

The front beam attaches at the forward edge of the front reinforcement, low at the nose of the car, and the rear beam fits at the rear end panel inside the bumper. Spoon publishes an installation manual, and the job suits a shop or an experienced home mechanic.

Do the friction plates wear out?

Go Tuning states that the springs and friction plates are not subject to degradation, so the beams are intended as a fit and forget part. The design is deliberately simple, with no fluid to leak and no adjusters to set, which suits a car used daily as well as one used on track.

Does it fit the FC1 sedan as well as the hatchback?

Yes. Spoon registers the set for the FC1 sedan, the FK7 hatchback and the FK8 Type R, and Go Tuning lists it for all 10th generation Civic models sold in the US. One part number covers each body style, so there is no separate sedan version to choose.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

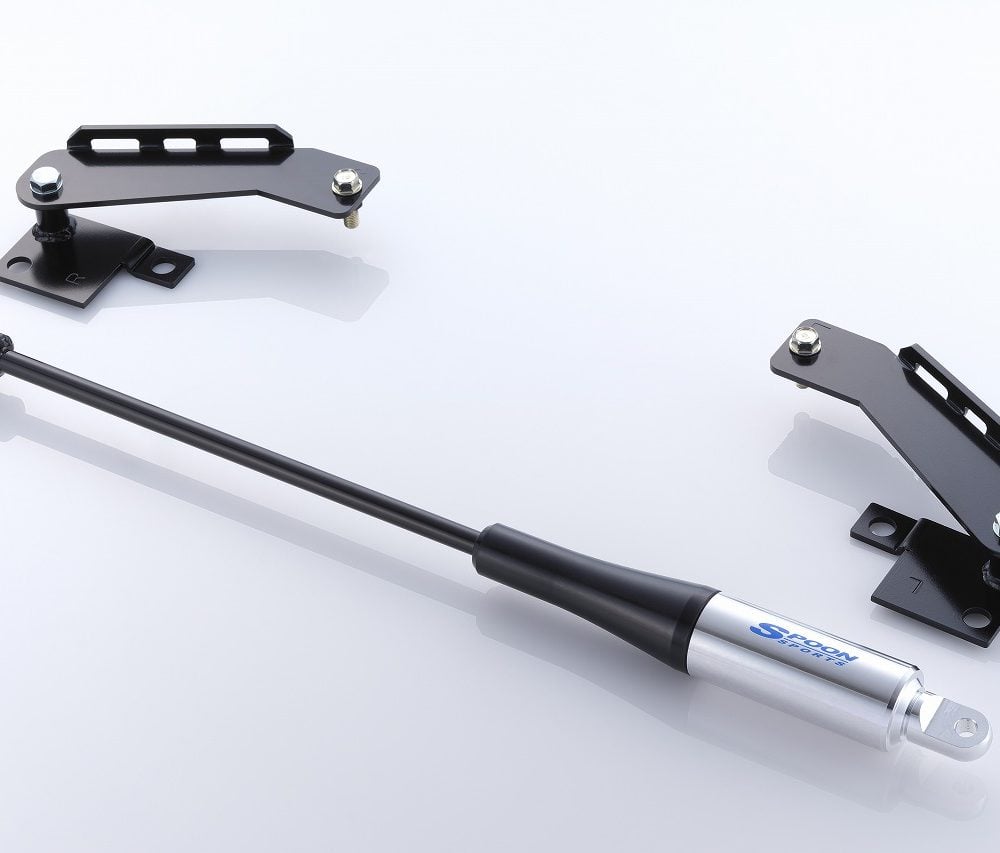

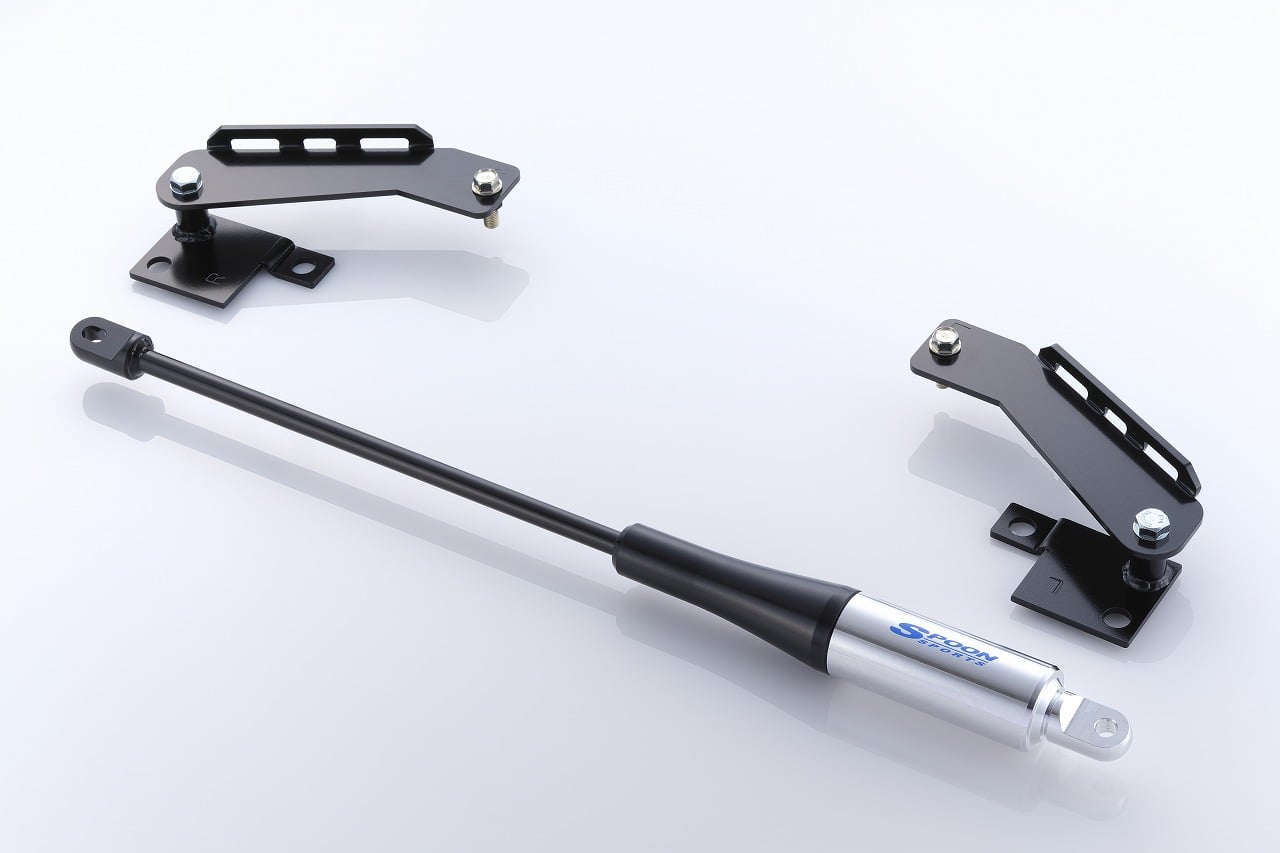

Spoon Sports Motion Control Beam for FK8 Honda Civic Type R and FK7 / FC1 Civic

The Spoon Sports Motion Control Beam for FK8 Honda Civic Type R works where a conventional brace cannot: at the very front and rear of the body, where the shell twists most in a corner. Instead of a solid bar, each beam carries a damper built from high-rebound springs and friction plates. Large inputs meet the springs, which resist twist as a brace would, while small ones are soaked up by the elasticity of the friction plates, so the car gains turn-in without the fine vibration a rigid brace tends to add. Spoon has raced production-based touring cars since the 1990s with exactly that balance in mind, keeping the comfort a road car needs. The front and rear set weighs 7.8 kg. It is the right choice for an FK8, FK7 or FC1 that already handles well and should feel cleaner on the road; it will not cure worn suspension.

Design and Development

Spoon calls its body philosophy rigidization, and its Rigid Collar, sold since 2007, makes the monocoque and subframes act as one. The beam looks at the problem from another angle, controlling diagonal twist from load transfer at the extremities of the body. Go Tuning, the sole US distributor for Spoon, notes the friction damper technology was first developed by Aisin for other manufacturers before Spoon adapted it for Honda.

Features

Friction-type dampers in place of solid bars
High-rebound springs handle large twisting inputs
Friction plates absorb small inputs and fine vibration
Mounts at the front reinforcement and rear end panel
Front and rear beams supplied as one set

What’s Included

Front Motion Control Beam
Rear Motion Control Beam

Applications

Honda Civic Hatchback: FK7 | 2017-2021 | 1.5L L15B turbo
Honda Civic Sedan: FC1 | 2016-2021 | 1.5L L15B turbo
Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo

Notes

Spoon recommends pairing the beams with Spoon Rigid Collars for an even cleaner ride; the collars are not included
The Motion Control Beam for FK8 pairs well with the Spoon Front Stiff Plate under the front subframe

Frequently Asked Questions

How is the Motion Control Beam for FK8 different from a strut brace? A strut brace is solid, so it adds stiffness and also passes fine vibration into the cabin. The Motion Control Beam for FK8 uses springs and friction plates, resisting large twisting loads while absorbing small vibrations, and it sits at the front and rear ends of the body rather than between the strut towers.
Will it make the ride firmer? No. Spoon developed the beam to improve comfort and refinement as well as cornering. The friction plates absorb the small, high-frequency movements that make a braced car feel busy, so the ride feels smoother and quieter while the body resists the larger twisting forces of hard cornering.
Where are the beams mounted? The front beam attaches at the forward edge of the front reinforcement, low at the nose of the car, and the rear beam fits at the rear end panel inside the bumper. Spoon publishes an installation manual, and the job suits a shop or an experienced home mechanic.
Do the friction plates wear out? Go Tuning states that the springs and friction plates are not subject to degradation, so the beams are intended as a fit and forget part. The design is deliberately simple, with no fluid to leak and no adjusters to set, which suits a car used daily as well as one used on track.
Does it fit the FC1 sedan as well as the hatchback? Yes. Spoon registers the set for the FC1 sedan, the FK7 hatchback and the FK8 Type R, and Go Tuning lists it for all 10th generation Civic models sold in the US. One part number covers each body style, so there is no separate sedan version to choose.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
