Is the Flywheel for EG6 the same part for the Integra?

Yes. Spoon sells one flywheel, part 22100-B16-000, for the EG6 and EK4 Civic SiR, the EK9 Civic Type R, the DC2 and DB8 Integra Type R and the earlier Integra Si VTEC. The Flywheel for EG6 weighs 4.2 kg whichever of those cars it goes into.

How much lighter is it than the factory flywheel?

Spoon and Go Tuning both give the Spoon flywheel at 4.2 kg, about 9.2 lb, but neither publishes a factory weight for these B-series cars, so BA does not quote a saving. The difference shows in how quickly the engine gains and loses revs between shifts.

Will a lighter flywheel make the car harder to launch?

Yes, slightly. A lighter flywheel stores less energy, so moving off from rest asks for a little more throttle and a smoother clutch release, particularly on a hill. In return the engine matches revs faster on downshifts and climbs back into the VTEC range sooner after each corner.

Which clutch should go with it?

Spoon designed its metal clutch disc for these cars to work with the factory cover, so the flywheel and that disc can be fitted together without a special pressure plate. The disc and cover are sold separately, while the pilot bearing and cover bolts arrive with the flywheel.

Should a shop install it?

Yes. The transmission has to come out to reach the flywheel, so the work suits a shop with a lift and a transmission jack. While it is apart, the clutch and release bearing are usually renewed, and the flywheel bolts must be torqued to the factory specification in the correct sequence.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

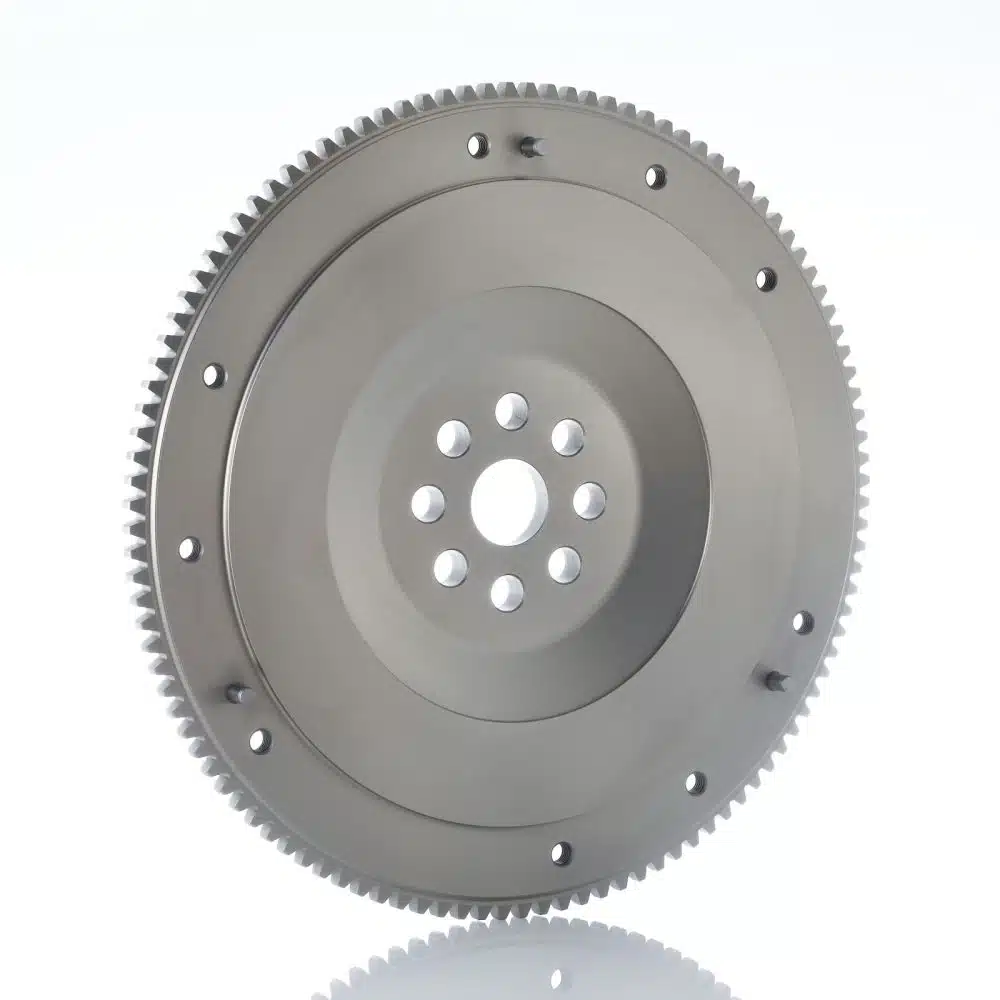

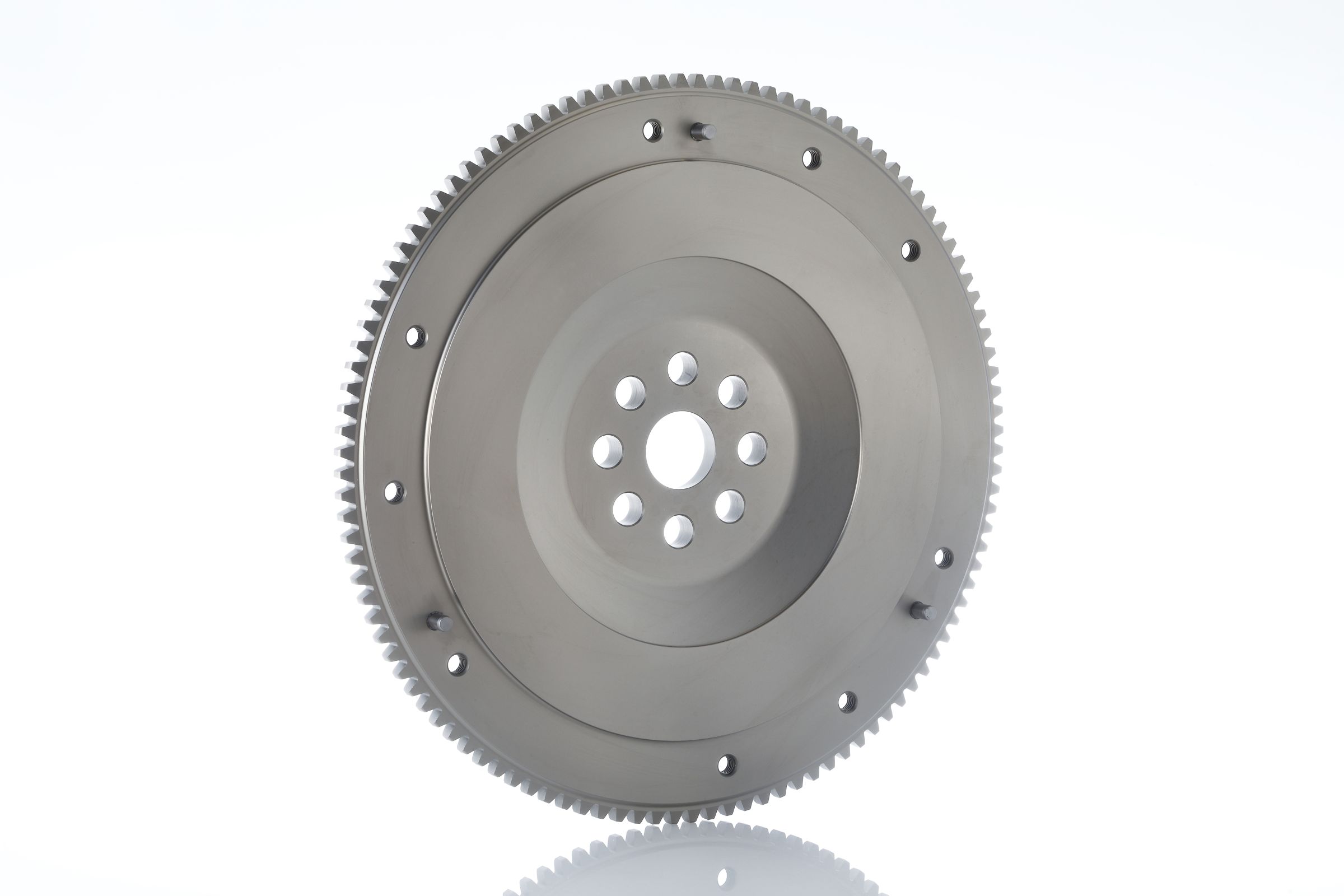

Spoon Sports Flywheel for EG6 / EK4 / EK9 Honda Civic and DC2 / DB8 Integra

Spoon Sports’ Flywheel for EG6, EK4 and EK9 Civic and DC2 and DB8 Integra gives the B16 and B18C a lighter partner at 4.2 kg, so less of the engine’s effort goes into spinning its own drivetrain and more into climbing toward the VTEC crossover. Spoon reached that weight through bench, on-car and circuit testing, choosing the figure that gave the best overall balance rather than the lowest number possible. Each flywheel is then dynamically balanced as an individual part, so the pattern of balance holes differs slightly between units. The same flywheel covers the five-speed SiR and Type R Civics, both Integra Type R bodies and the earlier JDM Integra Si VTEC, the core of the B-series cars on which Spoon built its name. It suits a car driven hard on back roads or at a circuit; an owner who wants the gentlest possible launches in daily traffic may prefer the factory part.

Features

Lightweight 4.2 kg construction
Weight set through bench, on-car and circuit testing
Individually dynamic balanced
Quicker throttle response and rev speed, per the US distributor
Drilled balance holes specific to each unit

What’s Included

Spoon flywheel
Pilot bearing
Clutch cover mounting bolts

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A
Honda Civic SiR: EK4 | 1995-2000 | 1.6L B16A
Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B
Honda Integra Si VTEC: DC2 | 1993-2001 | 1.8L B18C
Honda Integra Type R / Acura Integra: DC2 | 1995-2001 | 1.8L B18C
Honda Integra Type R 4-door: DB8 | 1995-2001 | 1.8L B18C

Notes

Fits the JDM B16A, B16B and B18C cars Spoon registers, all 5-speed manual; Go Tuning sells it for 1992-2001 US Civic and Integra models
Clutch disc and cover are not included; the Spoon Sports Metal Clutch Disc for EG6 is designed to work with the factory cover
DB8 is the JDM 4-door Integra Type R, a body style not sold in the US
Balance hole positions on the Flywheel for EG6 vary slightly between units by design

Frequently Asked Questions

Is the Flywheel for EG6 the same part for the Integra? Yes. Spoon sells one flywheel, part 22100-B16-000, for the EG6 and EK4 Civic SiR, the EK9 Civic Type R, the DC2 and DB8 Integra Type R and the earlier Integra Si VTEC. The Flywheel for EG6 weighs 4.2 kg whichever of those cars it goes into.
How much lighter is it than the factory flywheel? Spoon and Go Tuning both give the Spoon flywheel at 4.2 kg, about 9.2 lb, but neither publishes a factory weight for these B-series cars, so BA does not quote a saving. The difference shows in how quickly the engine gains and loses revs between shifts.
Will a lighter flywheel make the car harder to launch? Yes, slightly. A lighter flywheel stores less energy, so moving off from rest asks for a little more throttle and a smoother clutch release, particularly on a hill. In return the engine matches revs faster on downshifts and climbs back into the VTEC range sooner after each corner.
Which clutch should go with it? Spoon designed its metal clutch disc for these cars to work with the factory cover, so the flywheel and that disc can be fitted together without a special pressure plate. The disc and cover are sold separately, while the pilot bearing and cover bolts arrive with the flywheel.
Should a shop install it? Yes. The transmission has to come out to reach the flywheel, so the work suits a shop with a lift and a transmission jack. While it is apart, the clutch and release bearing are usually renewed, and the flywheel bolts must be torqued to the factory specification in the correct sequence.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
