Does it fit the four-wheel-drive Fit?

No. The Black Damper RS for GK5 and GK3 cars is built for the two-wheel-drive versions only, and the manufacturer states that four-wheel-drive models cannot be fitted. Some English listings include the GK4, but the Japanese fitment excludes it, so Bulletproof Automotive follows the Japanese fitment.

How stiff is the Black Damper RS for GK5 compared with a street coilover?

Stiffer. With 8 kg/mm springs up front and 6 kg/mm at the rear, the rates are higher than a typical street kit, which the manufacturer chose to allow a lower stance and a cornering-focused balance. The 15-step damping adjustment lets you soften or firm up the ride to suit the road or the circuit.

How low will the car sit?

The manufacturer recommends a drop of about 20mm. Because the kit is full-length adjustable, ride height is set by moving the damper body rather than compressing the spring, and the short case and stroke keep bump travel intact at that height, which matters on a lowered car.

Can the dampers be rebuilt?

Yes. Every unit can be overhauled, so the kit can be refreshed rather than replaced as it wears. The manufacturer also sells replacement damper cartridges individually for the front and rear, which is useful for a car that sees regular circuit use or if one corner is damaged.

How is the damping adjusted?

Each damper has a 15-step adjuster turned with the hex wrench supplied in the kit, alongside a separate wrench for ride height. Turn the dial carefully, because the manufacturer warns that too much force can damage the shaft, and recheck all mounting bolts and nuts before each circuit session.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Black Damper RS for GK5 Honda Fit

J’s Racing’s Black Damper RS for GK5 Fits is the first coilover the Osaka tuner developed entirely in house, the Black Series Damper RS, drawing on more than 20 years of racing in Super Taikyu and other classes. It is a high-spec street damper tuned for sports driving: the springs run stiffer than a typical street kit, with a front to rear balance chosen for cornering. The full-length adjustable body lets you set ride height without giving up bump travel. It suits a GK5 or GK3 that sees fast roads and track days; a Fit driven purely for comfort will find it firm.

Design and Performance

Every damper is a monotube unit. Shortening the case and stroke is what lets the kit lower the car while keeping bump stroke, and where a strut needs extra rigidity J’s Racing specifies an inverted body with a large-diameter cylinder.

Features

J’s Racing’s first fully original coilover design
Spring rates above typical street kits, balanced for cornering
Full-length adjustable design that preserves bump stroke
Monotube construction with inverted large-bore units on struts
Rebuildable, with replacement cartridges available

Specifications

Front spring rate: 8 kg/mm
Rear spring rate: 6 kg/mm
Spring inner diameter: 65mm
Front spring free length: 175mm
Rear spring free length: 150mm
Recommended drop: About 20mm
Damping adjustment: 15 steps

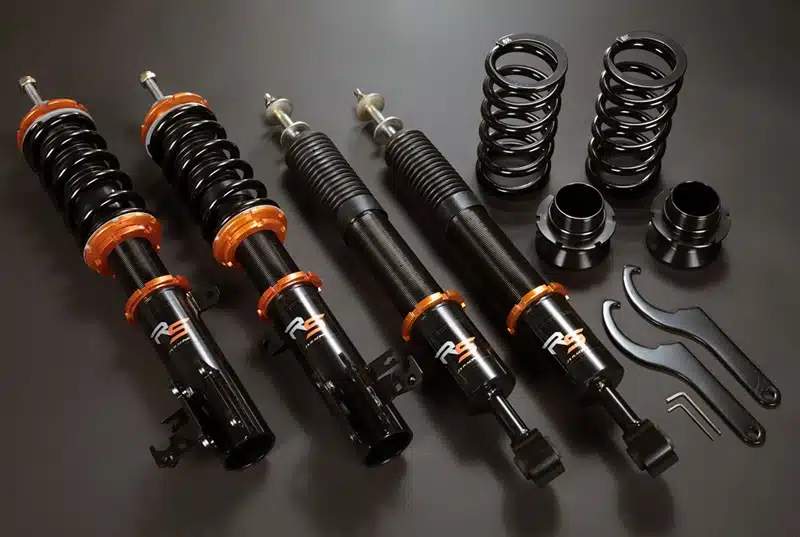

What’s Included

Front and rear dampers with springs
Ride height adjustment wrench
Hex wrench for damping adjustment

Applications

Honda Fit: GK3 | 2013-2020 | 1.3L L13B
Honda Fit: GK5 | 2013-2020 | 1.5L L15B

Notes

For two-wheel-drive GK3 and GK5 Fits only; four-wheel-drive cars cannot take this kit
Turn the damping dial gently, because forcing the supplied wrench can break the damper shaft
Check bolt and nut tightness regularly after fitting, and before every circuit session
Lowered Fits can add the J’s Racing Roll Center Adjuster for the GK5 Honda Fit, listed separately
J’s Racing USA imports each kit from Japan, and Bulletproof Automotive confirms availability and lead time when you order

Frequently Asked Questions

Does it fit the four-wheel-drive Fit? No. The Black Damper RS for GK5 and GK3 cars is built for the two-wheel-drive versions only, and the manufacturer states that four-wheel-drive models cannot be fitted. Some English listings include the GK4, but the Japanese fitment excludes it, so Bulletproof Automotive follows the Japanese fitment.
How stiff is the Black Damper RS for GK5 compared with a street coilover? Stiffer. With 8 kg/mm springs up front and 6 kg/mm at the rear, the rates are higher than a typical street kit, which the manufacturer chose to allow a lower stance and a cornering-focused balance. The 15-step damping adjustment lets you soften or firm up the ride to suit the road or the circuit.
How low will the car sit? The manufacturer recommends a drop of about 20mm. Because the kit is full-length adjustable, ride height is set by moving the damper body rather than compressing the spring, and the short case and stroke keep bump travel intact at that height, which matters on a lowered car.
Can the dampers be rebuilt? Yes. Every unit can be overhauled, so the kit can be refreshed rather than replaced as it wears. The manufacturer also sells replacement damper cartridges individually for the front and rear, which is useful for a car that sees regular circuit use or if one corner is damaged.
How is the damping adjusted? Each damper has a 15-step adjuster turned with the hex wrench supplied in the kit, alongside a separate wrench for ride height. Turn the dial carefully, because the manufacturer warns that too much force can damage the shaft, and recheck all mounting bolts and nuts before each circuit session.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
