Is the under panel ready to bolt on?

No. Every panel needs fitting work to suit the individual car, and the manufacturer asks that installation be done by a professional shop with aero experience rather than at home. The carbon version also needs a clear coat and the FRP version needs paint. The front bumper, air intake and brake duct are separate purchases.

Why does the Type-GT Under Panel for AP1 cars need extra mounting?

The front wing section of the Type-GT Under Panel for AP1 and AP2 cars generates large downforce, and contact with the road can break it while driving. The manufacturer requires the installer to add retention, such as additional aluminum stays spread across the lower edge or strong supports suspending it from above.

Should I choose carbon or FRP?

The carbon panel comes ready for a clear coat so the weave shows after fitting. The FRP panel arrives in black gelcoat and is meant to be painted. Both share the same shape and purpose, so the choice comes down to finish and budget, and the FRP panel is the lower priced option.

Will it fit a car without the Type-GT body?

No. It is designed for the lower edge of the Type-GT front bumper and is sold as a repair part for the Type-GT wide body aero system. The manufacturer states it cannot be fitted to a standard body by itself, so a stock front bumper is not an option.

How does the panel create downforce?

By guiding the air that passes under the nose, the panel speeds that flow up. Faster air under the car means lower pressure beneath it, which pulls the front toward the road. The same organizing effect reduces air resistance. No downforce or drag figures are published for this part.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

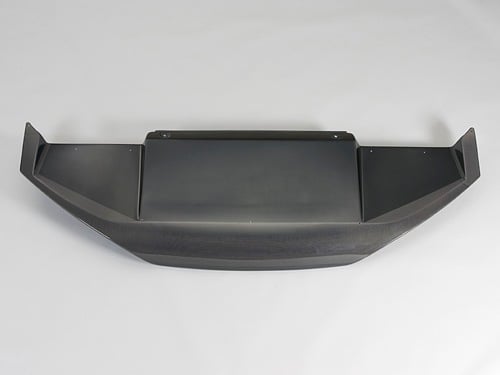

J’s Racing Type-GT Under Panel for AP1 / AP2 Honda S2000

J’s Racing’s Type-GT Under Panel for AP1 and AP2 S2000s is the front splitter section that mounts beneath the Type-GT front bumper, available in carbon or FRP. By organizing the air that runs under the nose, it lowers air resistance, and because straightened air moves faster, it also produces front downforce. The Osaka company sells it as a repair part for its Type-GT wide body aero system. It is a serious circuit component that needs professional fitting and secure extra mounting, so it is best matched to owners who already run the full Type-GT body and have a capable shop.

Features

Mounts to the lower edge of the Type-GT front bumper
Smooths airflow under the car to lower air resistance
Faster underbody flow produces front downforce
Front wing section shaped for large downforce loads
Carbon version finished for clear coating; FRP version in black gelcoat

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C
Honda S2000: AP2 | 2004-2009 | 2.2L F22C

Notes

Options: the Carbon panel needs clear coating after fitting, while the FRP panel comes in black gelcoat and needs paint
This is a repair part for the Type-GT wide body aero system and cannot be fitted to a standard body by itself
The front bumper, air intake and brake duct are sold separately
Fitting work is required on every car, and installation by an experienced professional shop is strongly advised
The installer must add extra retention so the panel cannot detach, whatever the type of driving
Related parts: Type-GT Front Bumper for the AP1 / AP2 S2000 and Type-GT Carbon Brake Ducts for the AP1 / AP2 S2000
Produced in Japan and supplied through J’s Racing USA; Bulletproof Automotive verifies availability and lead time once the order arrives

Frequently Asked Questions

Is the under panel ready to bolt on? No. Every panel needs fitting work to suit the individual car, and the manufacturer asks that installation be done by a professional shop with aero experience rather than at home. The carbon version also needs a clear coat and the FRP version needs paint. The front bumper, air intake and brake duct are separate purchases.
Why does the Type-GT Under Panel for AP1 cars need extra mounting? The front wing section of the Type-GT Under Panel for AP1 and AP2 cars generates large downforce, and contact with the road can break it while driving. The manufacturer requires the installer to add retention, such as additional aluminum stays spread across the lower edge or strong supports suspending it from above.
Should I choose carbon or FRP? The carbon panel comes ready for a clear coat so the weave shows after fitting. The FRP panel arrives in black gelcoat and is meant to be painted. Both share the same shape and purpose, so the choice comes down to finish and budget, and the FRP panel is the lower priced option.
Will it fit a car without the Type-GT body? No. It is designed for the lower edge of the Type-GT front bumper and is sold as a repair part for the Type-GT wide body aero system. The manufacturer states it cannot be fitted to a standard body by itself, so a stock front bumper is not an option.
How does the panel create downforce? By guiding the air that passes under the nose, the panel speeds that flow up. Faster air under the car means lower pressure beneath it, which pulls the front toward the road. The same organizing effect reduces air resistance. No downforce or drag figures are published for this part.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
