Will the Baffle Oil Pan for DC5 fit a US Acura RSX or Civic Si?

No, not according to Spoon data. Spoon registers the Baffle Oil Pan for DC5 for the K20A in the JDM Integra Type R and EP3 Civic Type R only. The US RSX and Civic Si use K20A2 and K20A3 versions that Spoon does not list, so BA cannot confirm those cars from the Spoon records.

Why does a K20A need a baffled pan?

On a circuit with sticky tires, the oil in an unbaffled sump surges toward the outer wall in long corners and under heavy braking. If the pickup is uncovered even briefly, pressure drops or air is drawn in, and a high-revving K20A has little tolerance for either. A baffle keeps oil contained around the pickup through those loads.

Yes. Spoon begins with a brand-new genuine Honda oil pan and adds its baffle plate, so the part arrives clean and true, with factory fitment at the block. There is no exchange core and nothing to send back, and the pan bolts up in place of the original with the usual Honda sealing material.

Does it change oil capacity?

Spoon does not publish a capacity change for this pan, so fill as normal and confirm the level on the dipstick after the first run and cool-down. Checking the level that way is good practice after any sump work, and it removes any guesswork about how much oil the engine is holding.

Should it be fitted by a shop?

Not necessarily. Drain the oil, remove the factory pan, clean both flanges and refit with fresh sealant, tightening the bolts evenly. A home mechanic with jack stands can do it carefully, but a shop with a lift makes the job quicker and can inspect the old pan for debris.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

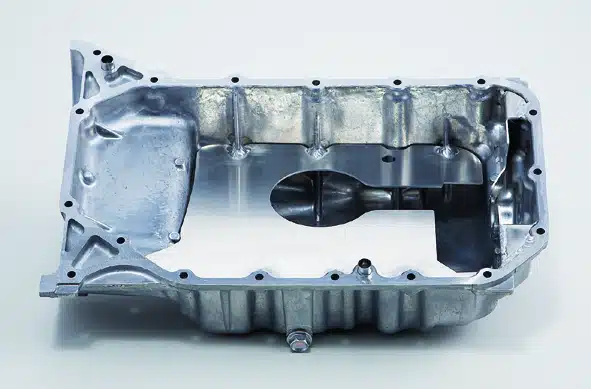

Spoon Sports Baffle Oil Pan for DC5 Honda Integra Type R and EP3 Civic Type R

The Spoon Sports Baffle Oil Pan for DC5 Integra Type R and EP3 Civic Type R protects the K20A in two early K-series Type R models. Both share the same 2.0L engine and 6-speed manual in the Spoon records, and both are capable of serious lap times on good tires, which is exactly when oil in the factory sump starts to slosh away from the pickup. Spoon answers with a new genuine Honda pan and a purpose-designed baffle plate, so a reserve of oil stays at the pickup through hard cornering, braking and acceleration, pressure holds steady and the pump does not ingest air. Listed at 5.1 kg, it replaces the factory pan without other changes. Fit it to a DC5 or EP3 that does track days or time attack; a car used only on the road will never know it is there.

Features

New genuine Honda K20A oil pan
Spoon-designed internal baffle plate
Keeps oil at the pickup under sustained high G
Protects against oil pressure drop and aeration
Listed weight of 5.1 kg

Applications

Honda Civic Type R: EP3 | 2001-2005 | 2.0L K20A
Honda Integra Type R: DC5 | 2001-2006 | 2.0L K20A

Notes

Spoon registers the K20A of the JDM Integra Type R and Civic Type R; the K20A2 and K20A3 engines in the US Acura RSX and Civic Si are not named in Spoon fitment
Spoon does not list a gasket or sealant with the Baffle Oil Pan for DC5
Engine oil and filter are not included

Frequently Asked Questions

Will the Baffle Oil Pan for DC5 fit a US Acura RSX or Civic Si? No, not according to Spoon data. Spoon registers the Baffle Oil Pan for DC5 for the K20A in the JDM Integra Type R and EP3 Civic Type R only. The US RSX and Civic Si use K20A2 and K20A3 versions that Spoon does not list, so BA cannot confirm those cars from the Spoon records.
Why does a K20A need a baffled pan? On a circuit with sticky tires, the oil in an unbaffled sump surges toward the outer wall in long corners and under heavy braking. If the pickup is uncovered even briefly, pressure drops or air is drawn in, and a high-revving K20A has little tolerance for either. A baffle keeps oil contained around the pickup through those loads.
Is the pan new? Yes. Spoon begins with a brand-new genuine Honda oil pan and adds its baffle plate, so the part arrives clean and true, with factory fitment at the block. There is no exchange core and nothing to send back, and the pan bolts up in place of the original with the usual Honda sealing material.
Does it change oil capacity? Spoon does not publish a capacity change for this pan, so fill as normal and confirm the level on the dipstick after the first run and cool-down. Checking the level that way is good practice after any sump work, and it removes any guesswork about how much oil the engine is holding.
Should it be fitted by a shop? Not necessarily. Drain the oil, remove the factory pan, clean both flanges and refit with fresh sealant, tightening the bolts evenly. A home mechanic with jack stands can do it carefully, but a shop with a lift makes the job quicker and can inspect the old pan for debris.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
